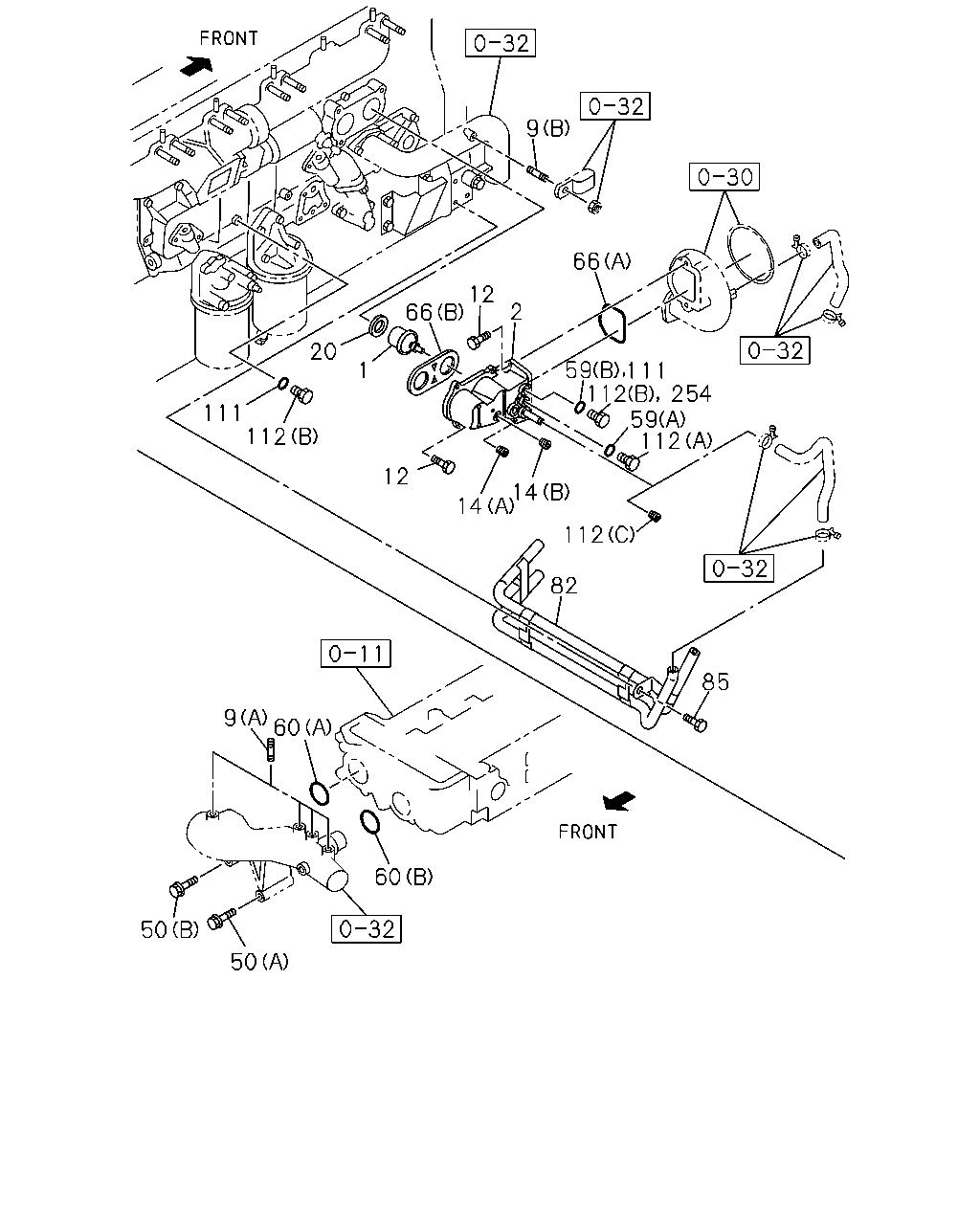

0-31A — THERMOSTAT AND HOUSING (#6434) — 73 parça

9 66 12 66 2 20 59 112 1 111 112 12 14 14 112 82 85 9 60 60 50 50 59 111 254 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT 79 CELSIUS	1-13770-041-1	02	1	9601-9610	●
1	THERMOSTAT 79 CELSIUS	1-13770-041-1	02	1	9611-9904	●	●
1	THERMOSTAT 79 CELSIUS	1-13770-041-2	02	1	9905-		●	●	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41)	1-13710-530-0	01	1	9601-9610	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-530-0	01	1	9611-9904	●	●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41)	1-13710-531-0	01	1	9601-9610	●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-531-0	01	1	9611-9902	●	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-530-0	01	1	9905-0105		●
2	HOUSING; THERMOSTAT	1-13710-530-0	01	1	9905-0105			●	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-577-0	01	1	0106-		●
2	HOUSING; THERMOSTAT	1-13710-577-0	01	1	0106-			●	●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-531-0	01	1	9903-9904	●	●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-531-0	01	1	9905-0105		●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13711-828-2	01	1	0106-		●
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	04	1	9601-9610	●
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	04	1	9611-9904	●	●
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	04	1	9905-		●	●	●
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	9601-9610	●
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	9611-9904	●	●
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	9905-		●	●	●
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	9601-9610	●
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	9611-9904	●	●
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	9905-		●	●	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9601-9610	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9611-9904	●	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9905-0105		●	●	●
14	PLUG; SW (B) PT3/8	8-94475-259-0	01	1	9905-		●	●	●
20	RING; SEAL	1-13779-011-0	02	1	9601-9610	●
20	RING; SEAL	1-13779-011-0	02	1	9611-9904	●	●
20	RING; SEAL	1-13779-011-0	02	1	9905-		●	●	●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28181-050-0	02	1	9601-9610	●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28181-050-0	02	1	9611-9904	●	●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28181-050-0	02	1	9905-		●	●	●
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	04	1	9601-9610	●
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	04	1	9611-9904	●	●
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	04	1	9905-		●	●	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	9601-9610	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	9611-9904	●	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	9905-		●	●	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0106-		●	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	9601-9610	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	9611-9904	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	9905-		●	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	9601-9610	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	9611-9904	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	9905-		●	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	9601-9610	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	9611-9904	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	9905-		●	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	9601-9610	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	9611-9904	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	9905-		●	●	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41)	1-13721-547-1	01	1	9601-9603	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41)	1-13721-669-1	01	1	9604-9610	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13721-669-1	01	1	9611-9904	●	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13721-669-1	01	1	9905-9905		●	●	●
82	PIPE; WATER,HTR	1-13721-669-1	01	1	9905-		●	●	●
85	BOLT; CLIP HEATER & DEFROSTER(C41) M14X20 FLANGE	0-28181-420-0	01	1	9601-9606	●
85	BOLT; CLIP HEATER & DEFROSTER(C41) M14X20 FLANGE	0-28981-420-0	01	1	9607-9610	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE	0-28981-420-0	01	1	9611-9904	●	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE	0-28981-420-0	01	1	9905-9905		●	●	●
85	BOLT; CLIP M14X20 FLANGE	0-28981-420-0	01	1	9905-		●	●	●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	02	1	9601-9610	●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	02	1	9611-9904	●	●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	02	1	9905-0105		●	●	●
112	PLUG (A) M12X9	1-09604-095-0	01	1	9601-9610	●
112	PLUG (A) M12X9	1-09604-095-0	01	1	9611-9904	●	●
112	PLUG (A) M12X9	1-09604-095-0	01	1	9905-		●	●	●
112	PLUG (B) M14X9	9-99202-314-0	02	1	9601-9610	●
112	PLUG (B) M14X9	9-99202-314-0	02	1	9611-9904	●	●
112	PLUG (B) M14X9	9-99202-314-0	02	1	9905-0105		●	●	●
112	PLUG EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) PT3/8 T=8.0	1-09605-066-0	01	1	0106-		●
254	PLUG; HSG M16X12	9-99202-316-0	02	1	0106-		●	●	●
