Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#64332) — 406 parça

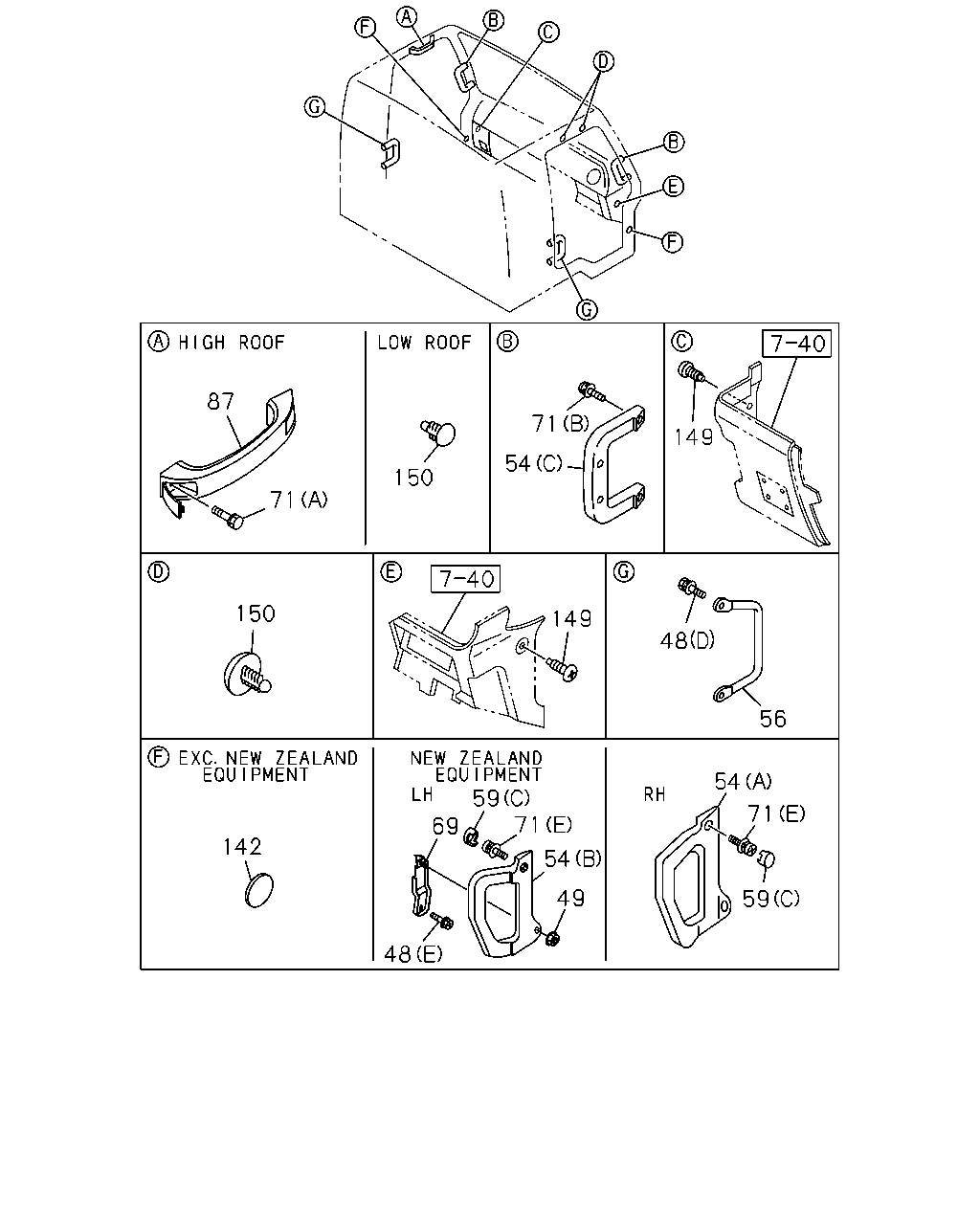

87 71 149 54 150 71 150 149 48 56 59 71 54 71 69 142 54 49 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0404-0904	●
48	BOLT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (E) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603		●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-0004	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-0004		●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-0004	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●
48	BOLT; ASSIST GRIP BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-0004	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-0004	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●
49	NUT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) M6 FLANGE	0-91150-106-0	01	1	0404-0602	●
49	NUT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) M6 FLANGE	0-91180-106-0	01	1	0603-	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (A)	1-73617-563-1	01	1	0404-	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-73617-564-1	01	1	0404-	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	9510-0004	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0005-0211	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-185-1	02	1	0212-	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-4	02	1	9510-0004	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●
59	COVER; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (C)	1-73617-565-0	02	1	0404-	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9510-0004	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0005-	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9510-0004	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0005-	●
69	BRACKET; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5)	1-73618-178-2	01	1	0404-	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0404-	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004		●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0004	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0004		●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9510-0004	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9510-0004		●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0005-0212	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0301-	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	9510-0004	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-0403	●
142	SEAL; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5) OD=25 BLACK	1-76798-019-0	02	1	0404-	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	9510-0004	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	0005-0302	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004		●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9510-0212	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0404-0904	●
48	BOLT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (E) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603		●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-0004	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-0004		●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-0004	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●
48	BOLT; ASSIST GRIP BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-0004	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-0004	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●
59	COVER; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (C)	1-73617-565-0	02	1	0404-	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9510-0004	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0005-	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9510-0004	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0005-	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71997-895-1	02	1	9510-9610	●
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	02	1	9510-9610		●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71907-492-0	02	1	9611-0004	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9611-0004		●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71907-492-0	02	1	0005-0907	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	8-97630-819-0	02	1	0908-	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	9510-0004	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9510-0004		●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0005-	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9510-0004	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0005-	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9510-0004	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0005-	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	9510-0004	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0005-0411	●
103	GRIP; ASSIST,FRT PNL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	1-71998-792-2	01	1	0412-	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	9510-0004	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0005-0411	●
103	GRIP; ASSIST,FRT PNL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	1-71998-791-2	01	1	0412-	●

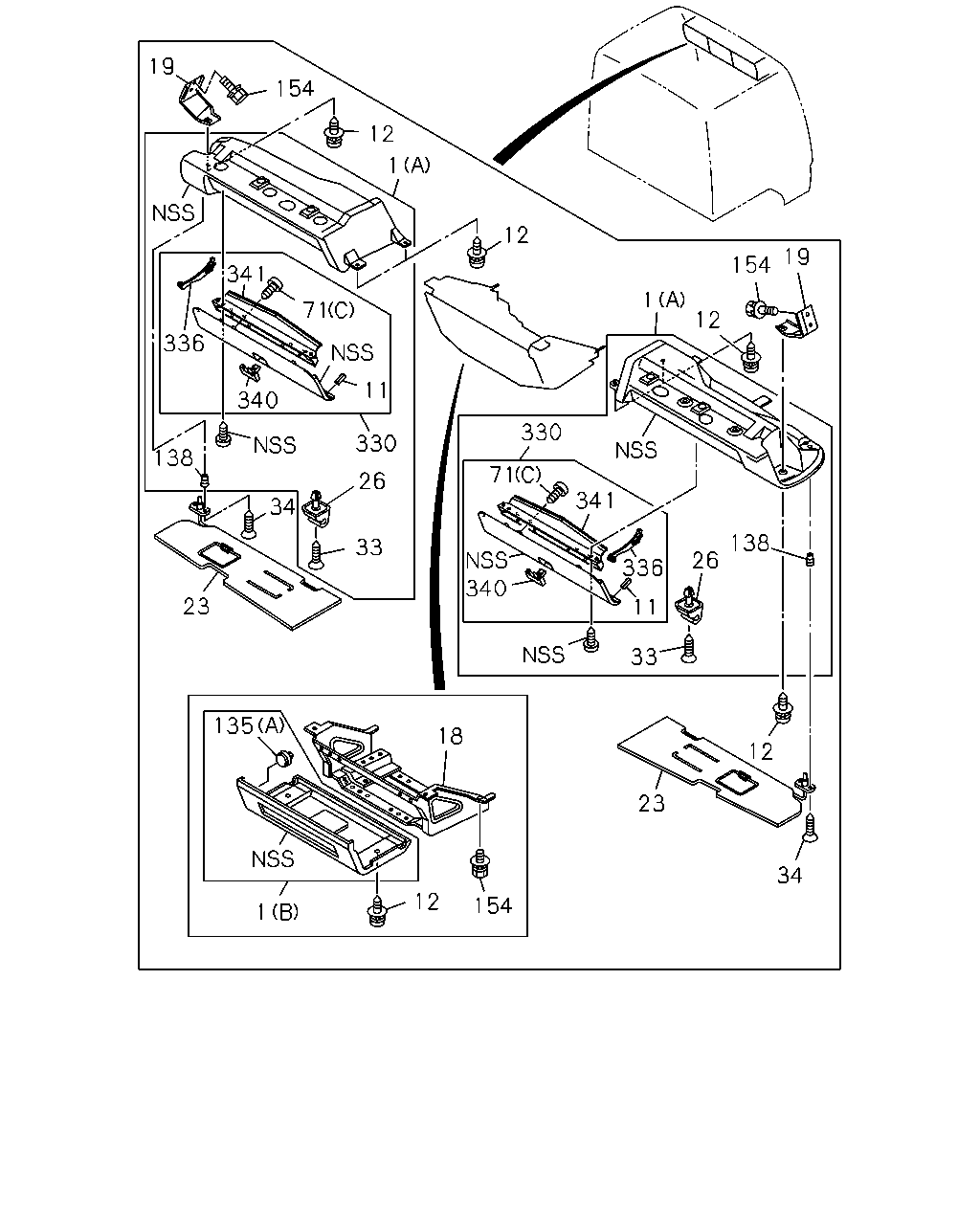

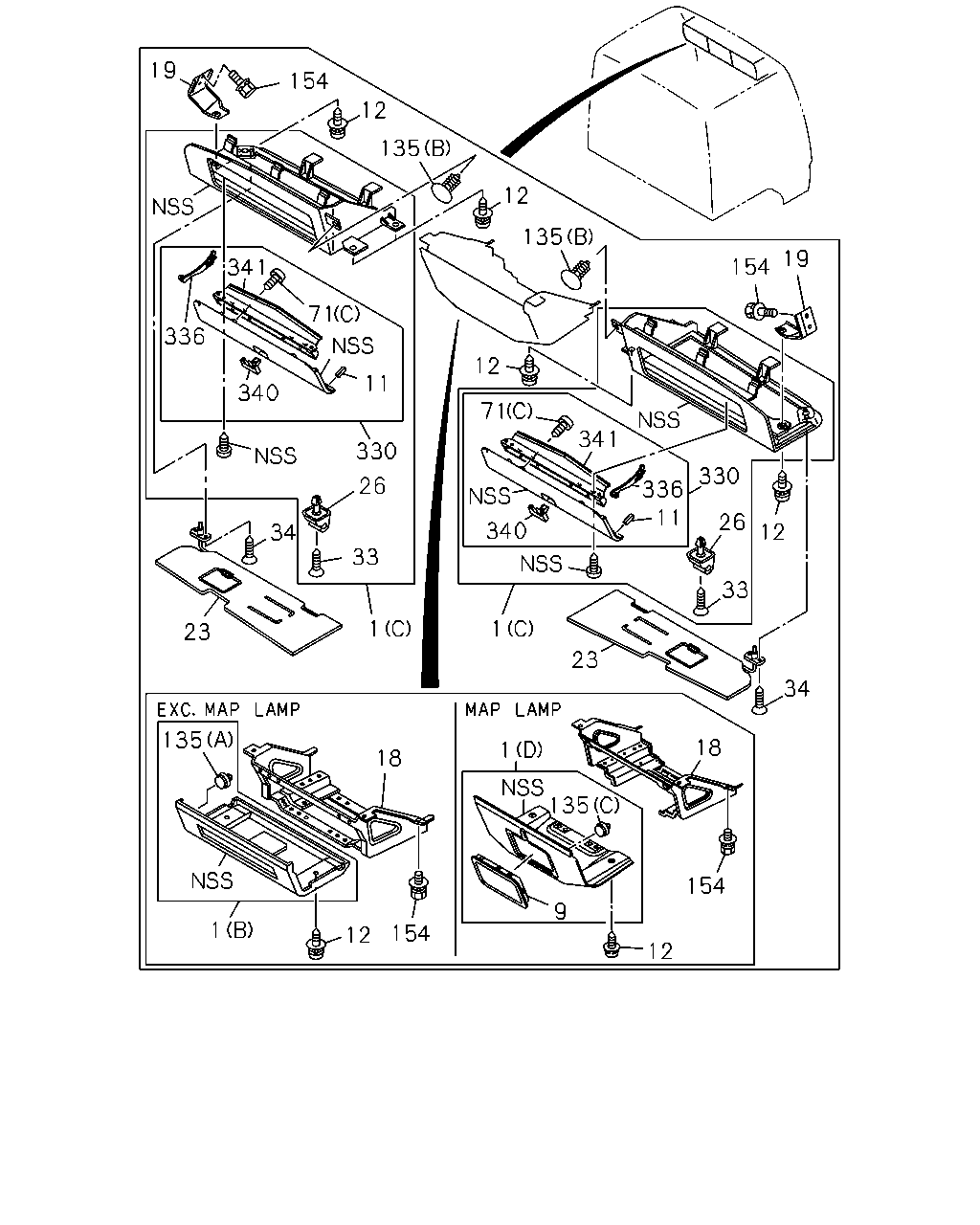

24 26 24 14 24 33 24 26 121 14 33 34 121 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9510-	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9510-0004	●
23	SUN VISOR	1-73138-150-1	01	1	9510-0004		●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-	●
23	SUN VISOR	1-73138-148-1	01	1	9510-0004	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	9510-	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	9510-	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	9510-	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-0004	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-0004	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0005-0101	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9510-9704	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9510-9704		●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-0004	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-0004	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-0004		●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0005-	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0005-	●
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9510-	●

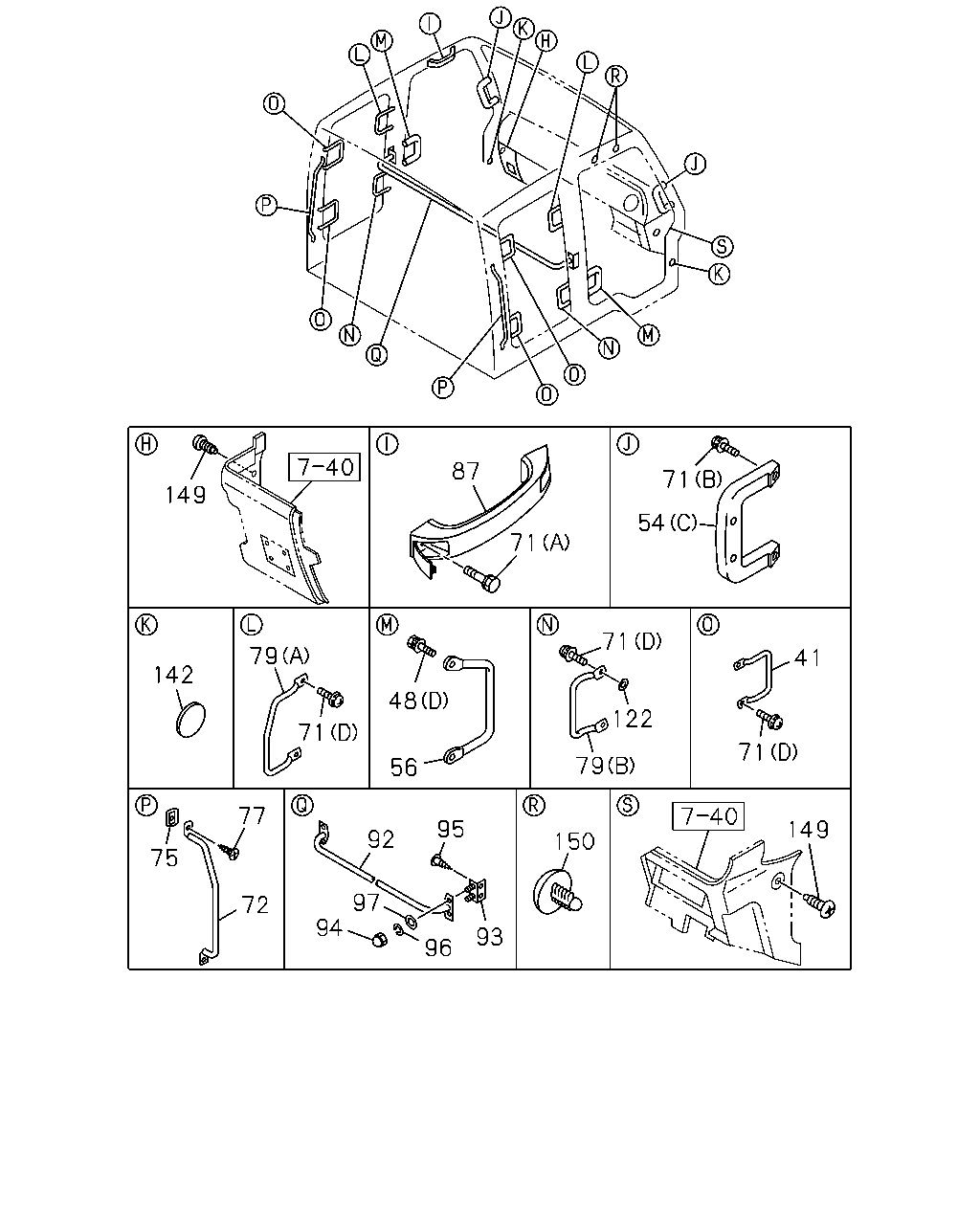

87 71 149 54 71 71 79 41 142 48 122 71 71 79 56 77 95 149 92 150 75 97 94 72 93 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	GRIP; ASSIST,BACK SIDE	1-71998-467-0	04	1	9510-0004		●
48	BOLT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0404-0904	●
48	BOLT; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5) (E) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603		●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-0004	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-0004		●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-0004	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●
48	BOLT; ASSIST GRIP BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-0004	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-0004	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (A)	1-73617-563-1	01	1	0404-	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-73617-564-1	01	1	0404-	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	9510-0004	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0005-0211	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-185-1	02	1	0212-	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-4	02	1	9510-0004	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0404-	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004		●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0004	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0004		●
72	GRIP; ASSIST,CAB ENTRY,BACK L=450 WHITE	1-71998-278-0	02	1	9510-0004		●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-478-1	04	1	9510-0004		●
77	SCREW; ASSIST GRIP	8-94279-407-0	04	1	9510-0004		●
79	GRIP; ASSIST (A)	1-71996-134-0	02	1	9510-0004		●
79	GRIP; ASSIST (B)	1-71998-467-0	02	1	9510-0004		●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9510-0004	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9510-0004		●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0005-0212	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0301-	●
92	BAR; ASSIST	1-73618-123-2	01	1	9510-0004		●
93	BRACKET; ASSIST BAR	1-73618-126-1	02	1	9510-0004		●
94	NUT; CAP,ASSIST BAR M8 FLANGE	1-09984-126-0	04	1	9510-0004		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9510-0004		●
96	WASHER; LK,ASSIST BAR ID=8.2	1-09985-177-0	04	1	9510-0004		●
97	WASHER; PL,ASSIST BAR ID=8.4 OD=16	1-09985-174-0	04	1	9510-0004		●
122	WASHER; PL,ASSIST GRIP ID=10.2 OD=22 T=6	1-09989-009-1	02	1	9510-0004		●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	9510-0004	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-0403	●
142	SEAL; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5) OD=25 BLACK	1-76798-019-0	02	1	0404-	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	9510-0004	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	0005-0302	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004		●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9510-0212	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●

19 154 12 1 12 19 154 341 1 71 12 336 11 340 330 330 138 71 26 341 34 138 33 340 26 336 23 11 33 135 18 12 23 34 12 154 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (D) CENTER	1-72448-667-0	01	1	0301-	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-568-1	01	1	9510-0004	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-568-1	01	1	9510-0004		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-663-0	01	1	0005-0211	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0212-	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9510-9802	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9510-9802		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-616-1	01	1	9803-0003	●
1	BOARD; HEADER SHELF (C)	1-73318-616-1	01	1	9803-0003		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-689-0	01	1	0004-0004	●
1	BOARD; HEADER SHELF (C)	1-73318-689-0	01	1	0004-0004		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-691-0	01	1	0005-	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9510-9802	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9510-9802		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73317-362-1	01	1	9803-0003	●
1	BOARD; HEADER SHELF (C)	1-73317-362-1	01	1	9803-0003		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-687-0	01	1	0004-0004	●
1	BOARD; HEADER SHELF (C)	1-73318-687-0	01	1	0004-0004		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-690-0	01	1	0005-	●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9510-0004	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9510-0004		●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	0005-	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-0004	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-0004		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-632-1	01	1	0212-	●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	1-72448-552-4	01	1	9510-9604	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-552-4	01	1	9510-9604		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-0	01	1	9605-0004	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-0	01	1	9605-0004		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-1	01	1	0005-0211	●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0212-	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9510-0004	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9510-0004		●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	0005-	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9510-0004	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9510-0004		●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	0005-	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9510-0004	●
23	SUN VISOR	1-73138-150-1	01	1	9510-0004		●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-	●
23	SUN VISOR	1-73138-148-1	01	1	9510-0004	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-0004	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-0004	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0005-0101	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9510-9704	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9510-9704		●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-0004	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-0004	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-0004		●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0005-	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0005-	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0404-	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004		●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0004	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0004		●
135	CLIP; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (C) OD=7.9 BLACK	8-94279-974-1	03	1	0301-	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0004	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0004		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0211	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0212-	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0004	●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0004		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	0005-0209	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 BLACK	1-09987-114-0	02	1	0210-	●
138	NUT; BRKT,HEADER SHELF HIGH ROOF<S2F>	1-09984-166-0	04	1	9510-9802	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9510-9802		●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004		●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-	●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9510-0004	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9510-0004		●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	0005-	●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9510-0004	●
336	STAY; LID	1-72448-379-3	04	1	9510-0004		●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	0005-	●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9510-0004	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9510-0004		●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	0005-	●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9510-0004	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9510-0004		●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	0005-	●

19 154 12 135 12 135 19 154 341 71 336 12 11 340 71 341 330 330 26 336 11 26 340 12 34 33 33 1 1 23 23 34 135 18 1 18 135 154 9 1 154 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (D) CENTER	1-72448-667-0	01	1	0301-	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-568-1	01	1	9510-0004	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-568-1	01	1	9510-0004		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-663-0	01	1	0005-0211	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0212-	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9510-9802	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9510-9802		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-616-1	01	1	9803-0003	●
1	BOARD; HEADER SHELF (C)	1-73318-616-1	01	1	9803-0003		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-689-0	01	1	0004-0004	●
1	BOARD; HEADER SHELF (C)	1-73318-689-0	01	1	0004-0004		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-691-0	01	1	0005-	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9510-9802	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9510-9802		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73317-362-1	01	1	9803-0003	●
1	BOARD; HEADER SHELF (C)	1-73317-362-1	01	1	9803-0003		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-687-0	01	1	0004-0004	●
1	BOARD; HEADER SHELF (C)	1-73318-687-0	01	1	0004-0004		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-690-0	01	1	0005-	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-547-2	01	1	0301-	●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9510-0004	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9510-0004		●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	0005-	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-0004	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-0004		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-632-1	01	1	0212-	●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	1-72448-552-4	01	1	9510-9604	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-552-4	01	1	9510-9604		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-0	01	1	9605-0004	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-0	01	1	9605-0004		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-1	01	1	0005-0211	●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0212-	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9510-0004	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9510-0004		●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	0005-	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9510-0004	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9510-0004		●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	0005-	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9510-0004	●
23	SUN VISOR	1-73138-150-1	01	1	9510-0004		●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-	●
23	SUN VISOR	1-73138-148-1	01	1	9510-0004	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-0004	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-0004	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0005-0101	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9510-9704	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9510-9704		●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-0004	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-0004	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-0004		●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0005-	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0005-	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0404-	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0004		●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9510-0004		●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0004	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0004		●
135	CLIP; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (C) OD=7.9 BLACK	8-94279-974-1	03	1	0301-	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0004	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0004		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0211	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0212-	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0004	●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0004		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	0005-0209	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 BLACK	1-09987-114-0	02	1	0210-	●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004		●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-	●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9510-0004	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9510-0004		●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	0005-	●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9510-0004	●
336	STAY; LID	1-72448-379-3	04	1	9510-0004		●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	0005-	●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9510-0004	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9510-0004		●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	0005-	●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9510-0004	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9510-0004		●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
