◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#64331) — 306 parça
çizim 183903
259 260 597
BalonParca AdiParca NoAdetTipApplied Date A B
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9510-0004 ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005- ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9510-0004 ● ●
260 SCREW; STUFF PLATE
M6X25 		1-09981-441-0 02 1 0005- ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 9510-0004 ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0005- ●

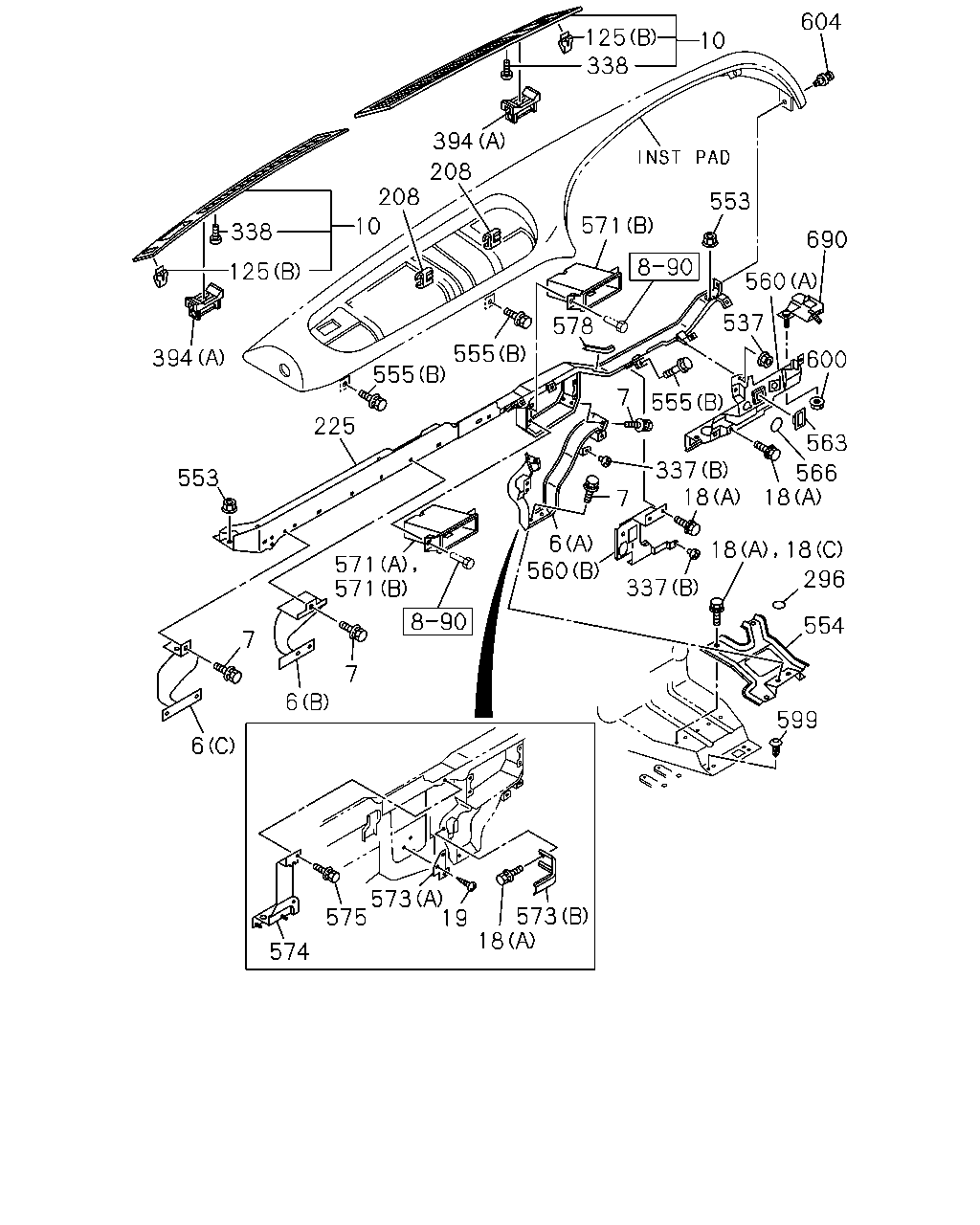

çizim 183906
573 18 19 573 575 574 599 554 296 18 18 337 560 6 571 571 7 7 6 6 553 225 18 18 566 563 337 7 555 7 600 560 690 537 578 555 555 394 125 338 10 208 208 394 338 125 10 604 553 571
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9510-9802 ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9803- ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9510-9802 ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9803- ●
6 SUPPORT; INST PANEL
(A) 		1-65680-961-4 01 1 9510-9904 ● ●
6 SUPPORT; INST PANEL
(A) 		1-65681-165-1 01 1 9905-0004 ● ●
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 0005- ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510-9802 ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9803- ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9510-0004 ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0005- ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72437-089-8 01 1 9510-9601 ●
10 PANEL ASM; GARNISH 1-72437-089-8 01 1 9510-9601 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-1 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-1 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-2 01 1 9803-0004 ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-2 01 1 9803-0004 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0005- ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-150-2 01 1 9510-9601 ●
10 PANEL ASM; GARNISH 1-72438-150-2 01 1 9510-9601 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-1 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-1 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-2 01 1 9803-0004 ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-2 01 1 9803-0004 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0005- ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-142-0 01 1 9510-9601 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-0 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 9803- ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-141-0 01 1 9510-9601 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-0 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 9803- ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0004 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9510-9801 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9802-0004 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9510-0004 ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ●
18 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804 ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0004 ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512 ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9803-0004 ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9803-0004 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9803-0004 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005- ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0005- ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9510-9812 ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-0004 ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0005- ●
125 CLIP; INST PANEL
(B) 		8-97853-939-4 08 1 9510-9812 ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9901-9909 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-97217-066-0 08 1 9910-0004 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9910-0004 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 0005- ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9510-0004 ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0005- ●
225 FRAME; FACIA 1-65680-890-9 01 1 9510-9512 ● ●
225 FRAME; FACIA 1-65681-096-0 01 1 9601-0004 ● ●
225 FRAME; FACIA 1-65681-096-2 01 1 0005-1002 ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ●
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9510-9806 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-0004 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510-0004 ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9510-9802 ●
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 9510-9802 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9803-0004 ●
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 9803-0004 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0005-0208 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 10 1 0209-0309 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 20 1 0310-0405 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0406-0801 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 15 1 0802- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510-0004 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005- ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510-0004 ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9510-0004 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9510-0004 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
554 BRACKET; CENTER BEZEL 1-65680-963-1 01 1 9510-0004 ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0005- ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 9510-0004 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0005-0512 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605- ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9510-0004 ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005- ●
560 BRACKET
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65681-197-2 01 1 0601-0603 ●
560 BRACKET
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-65681-197-2 01 1 0601-0603 ●
560 BRACKET
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65681-197-2 01 1 0604- ●
560 BRACKET
THAILAND EQUIPMENT(PM9) (A) 		1-65671-717-8 01 1 9510-9802 ●
560 BRACKET
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-65681-078-3 01 1 9510-9802 ●
560 BRACKET
(A) 		1-65681-078-3 01 1 9510-9802 ●
560 BRACKET
(A) 		1-65681-078-3 01 1 9803-0004 ● ●
560 BRACKET
(A) 		1-65681-078-3 01 1 0005-0012 ●
560 BRACKET
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-5 01 1 0101-0405 ●
560 BRACKET
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-5 01 1 0101-0405 ●
560 BRACKET
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-6 01 1 0406-0406 ●
560 BRACKET
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-6 01 1 0406-0406 ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) 		1-65681-078-6 01 1 0406-0406 ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) 		1-65681-078-7 01 1 0407- ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65671-717-8 01 1 0101-0302 ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65671-786-0 01 1 0303-0405 ●
560 BRACKET
6HK1 TCC ENG(81L) (A) 		1-65681-179-4 01 1 0406- ●
560 BRACKET
(B) 		1-65680-976-2 01 1 9510-0004 ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0005-0512 ●
560 BRACKET
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>, HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-65680-976-3 01 1 0601-0603 ●
560 BRACKET
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65680-976-3 01 1 0604- ●
563 BEZEL; BRKT
6HK1 TCC ENG(81L) 		1-72448-410-3 01 1 0707- ●
566 PLUG; HOLE
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 N ENG(66L) NEW ZEALAND EQUIPMENT(PK5) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0406- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9510-0004 ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0005-0405 ●
566 PLUG; HOLE
6HK1 TCC ENG(81L) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0406- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0406- ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9510-9812 ●
571 BEZEL; POCKET
(B) 		1-72438-151-0 01 1 9510-9812 ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901-0004 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-1 01 1 9901-0004 ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901-0004 ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-3 01 1 0005- ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 0005- ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9510-9812 ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9510-9802 ●
573 BRACKET; PANEL,RELAY BOX
(A) 		1-73908-023-2 01 1 9510-9802 ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9803-0004 ●
573 BRACKET; PANEL,RELAY BOX
(A) 		1-73908-023-2 01 1 9803-0004 ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 0005- ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 9510-0004 ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 0005- ●
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9510-9910 ● ●
574 PANEL; RELAY BOX 1-73908-252-1 01 1 9911-0004 ● ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0005- ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0004 ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ●
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9510-9903 ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-0 01 1 9904-0004 ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0005- ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9510-0004 ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0005- ●
600 NUT; PANEL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 FLANGE 		0-91150-106-0 02 1 0601-0602 ●
600 NUT; PANEL
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M6 FLANGE 		0-91150-106-0 02 1 0601-0602 ●
600 NUT; PANEL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 FLANGE 		0-91180-106-0 02 1 0603-0603 ●
600 NUT; PANEL
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M6 FLANGE 		0-91180-106-0 02 1 0603-0603 ●
600 NUT; PANEL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 FLANGE 		0-91180-106-0 02 1 0604- ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9510-0004 ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0005- ●
690 PANEL; RELAY,HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-65681-196-1 01 1 0601-0603 ●
690 PANEL; RELAY,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-65681-196-1 01 1 0601-0603 ●
690 PANEL; RELAY,HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-65681-196-1 01 1 0604- ●

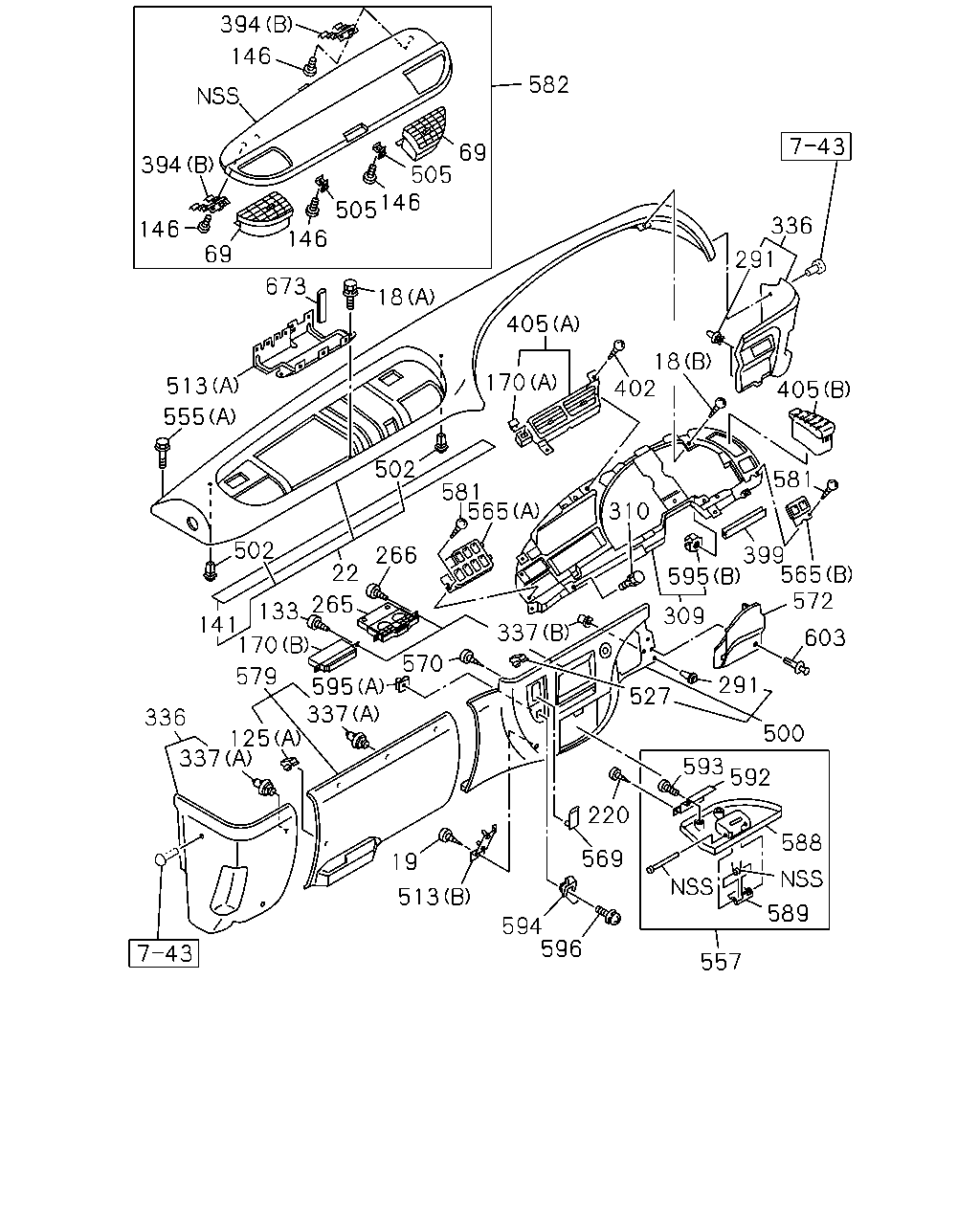

çizim 183911
394 146 582 69 505 146 505 146 69 146 394 336 291 405 18 402 581 405 170 565 572 603 595 399 310 565 581 502 266 22 265 133 141 170 502 555 513 673 18 579 336 337 125 337 595 570 19 513 594 596 557 589 588 592 593 500 291 527 309 337 220 569
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0004 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9510-9801 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9802-0004 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9510-0004 ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ●
18 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804 ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0004 ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512 ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9803-0004 ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9803-0004 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9803-0004 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005- ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0005- ●
22 PAD; INST 1-72318-421-2 01 1 9510-0004 ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9510-0004 ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005- ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9510-0004 ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005- ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9510-9812 ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-0004 ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0005- ●
125 CLIP; INST PANEL
(B) 		8-97853-939-4 08 1 9510-9812 ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9901-9909 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-97217-066-0 08 1 9910-0004 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9910-0004 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 0005- ●
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9510-0004 ● ●
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 0005- ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9510-0004 ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0005- ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9510-0004 ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0005- ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9510-0004 ● ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0005- ●
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-0 01 1 9510-0004 ● ●
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-1 01 1 0005- ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9510-0004 ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0005- ●
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-7 01 1 9510-0004 ● ●
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-8 01 1 0005- ●
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9510-0004 ● ●
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 0005- ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9510-0004 ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0005- ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9510-0004 ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0005- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510-0004 ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9510-0004 ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005- ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9510-0004 ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-0004 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510-0004 ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510-0004 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005- ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510-0004 ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ●
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807 ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808- ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9510-0004 ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604 ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 9510-0004 ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0005- ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9510-0004 ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0005- ●
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 9510-0004 ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9510-0004 ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0005- ●
505 LOCK; LID 1-72558-024-2 02 1 9510-0004 ● ●
505 LOCK; LID 1-72558-024-2 02 1 0005- ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9510- ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9510-0004 ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0005-0205 ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206- ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9510-9812 ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-0004 ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0005- ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 9510-0004 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0005-0512 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605- ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9510-0004 ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005- ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9510-0004 ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0005- ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-1 01 1 9510-0004 ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0005- ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-2 01 1 9510-0004 ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0005- ●
569 HOLDER; CARD 1-72498-015-1 01 1 9510-0004 ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 0005- ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9510-0004 ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0005- ●
572 COVER; INSPECTION 1-72438-054-3 01 1 9510-0004 ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0005- ●
579 COVER; INST PNL 1-72438-113-4 01 1 9510-0004 ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0005- ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9510-0004 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604 ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ●
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9510-0004 ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005- ●
588 LID; BOX 1-72548-135-3 01 1 9510-0004 ● ●
588 LID; BOX 1-72548-135-3 01 1 0005- ●
589 KNOB; LID 1-72548-143-0 01 1 9510-0004 ● ●
589 KNOB; LID 1-72548-143-0 01 1 0005- ●
592 HINGE; LID 1-72548-133-3 01 1 9510-0004 ● ●
592 HINGE; LID 1-72548-133-3 01 1 0005- ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9510-0004 ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0005- ●
594 HOOK; COAT 1-72498-013-0 01 1 9510-0004 ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0005- ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 9510-0004 ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0005-0012 ●
595 NUT; HOOK
(A) 		8-97810-118-0 01 1 0101-0110 ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0111- ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9510-0004 ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0005- ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9510-0004 ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0005-0012 ●
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110 ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111- ●
603 CLIP; COVER 1-09987-245-1 01 1 9510-0004 ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005- ●
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009 ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
