Isuzu WW
▶
TRUCKS
▶
FSR
▶
10700 - FSR32,33(RHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

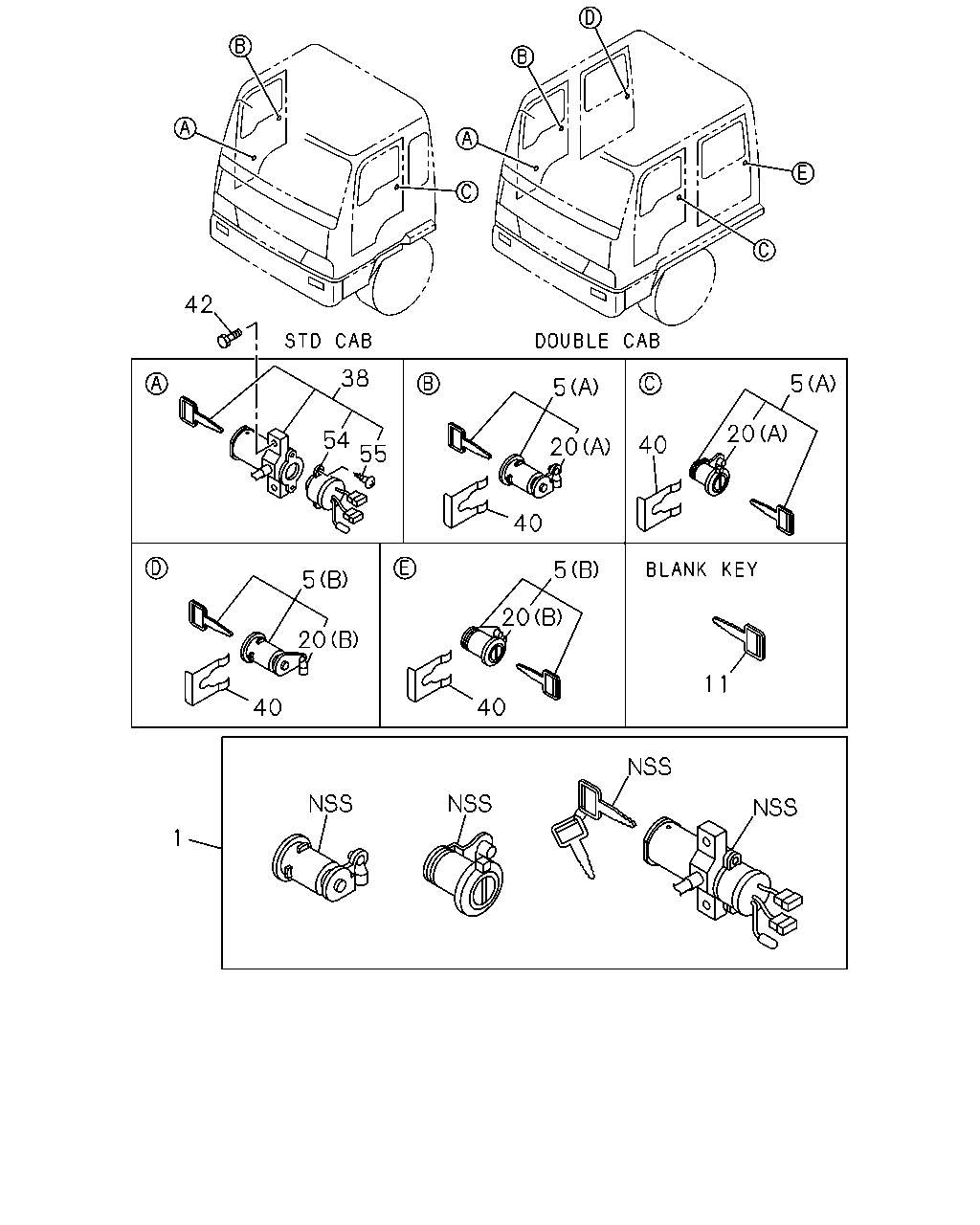

7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#64330) — 30 parça
Tümü
A - FSR5MF
B - FSR5WF
42
38
5
5
20
54
55
40
20
40
5
5
20
20
11
40
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER SET; CAR LOCK
1-79138-199-5
01
1
9510-
●
1
CYLINDER SET; CAR LOCK
1-79138-200-2
01
1
9510-0004
●
5
CYLINDER ASM; DOOR LOCK
(A)
1-79138-203-1
01
1
9510-0004
●
●
5
CYLINDER ASM; DOOR LOCK
(A)
1-79138-203-2
01
1
0005-
●
5
CYLINDER ASM; DOOR LOCK
(A)
1-79138-202-1
01
1
9510-0004
●
●
5
CYLINDER ASM; DOOR LOCK
(A)
1-79138-202-2
01
1
0005-
●
5
CYLINDER ASM; DOOR LOCK
(B)
1-79137-099-1
01
1
9510-0004
●
5
CYLINDER ASM; DOOR LOCK
(B)
1-79137-096-1
01
1
9510-0004
●
11
KEY; BLANK
WO/ROSIN
1-79137-129-1
AR
1
9510-0004
●
●
11
KEY; BLANK
WO/ROSIN
1-79137-129-1
AR
1
0005-
●
11
KEY; BLANK
W/ROSIN
1-79137-130-1
AR
1
9510-0004
●
●
11
KEY; BLANK
W/ROSIN
1-79137-130-1
AR
1
0005-
●
20
SNAP; DOOR LOCK CYL
(A) GREEN
1-79138-193-0
01
1
9510-0004
●
●
20
SNAP; DOOR LOCK CYL
(A) GREEN
1-79138-193-0
01
1
0005-
●
20
SNAP; DOOR LOCK CYL
(A) PINK
1-79138-192-0
01
1
9510-0004
●
●
20
SNAP; DOOR LOCK CYL
(A) PINK
1-79138-192-0
01
1
0005-
●
20
SNAP; DOOR LOCK CYL
(B) NATURAL FOR D=3.5
1-79138-167-0
01
1
9510-0004
●
20
SNAP; DOOR LOCK CYL
(B) YELLOW
1-79138-166-0
01
1
9510-0004
●
38
LOCK ASM; STRG
1-79138-201-1
01
1
9510-0004
●
●
38
LOCK ASM; STRG
1-79138-201-2
01
1
0005-
●
40
CLIP; CYL LK
1-79137-033-1
02
1
9510-0004
●
●
40
CLIP; CYL LK
1-79137-033-1
02
1
9510-0004
●
40
CLIP; CYL LK
1-79137-033-1
02
1
0005-
●
42
BOLT; STRG LOCK
M8X30 W/PL WASHER
1-09981-482-2
02
1
9510-0004
●
●
42
BOLT; STRG LOCK
M8X30 W/PL WASHER
1-09981-482-2
02
1
0005-0106
●
42
BOLT; STRG LOCK
CUT BOLT M8X30 TORQUE SHEAR BOLT
1-09980-621-1
02
1
0107-
●
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-0
01
1
9510-0004
●
●
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-2
01
1
0005-
●
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
9510-0004
●
●
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
0005-
●
