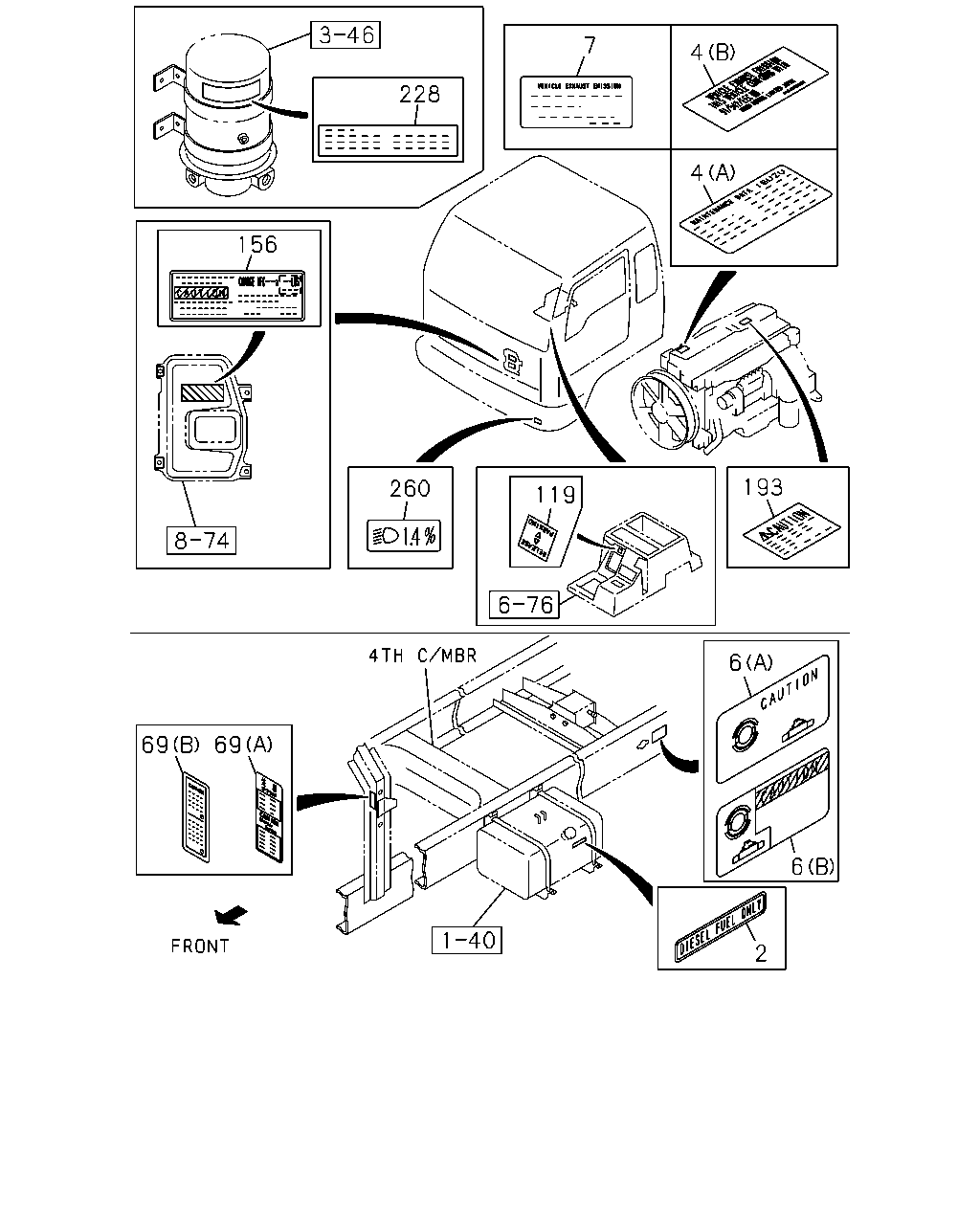

7-10 — CAUTION PLATE AND LABEL (#64328) — 85 parça

7 4 228 4 156 193 260 119 6 69 69 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LABEL; FUEL CAUTION FUEL TANK 200L FMCSR<PK6>	8-94414-353-0	01	1	9510-9802	●
2	LABEL; FUEL CAUTION	8-94414-353-0	01	1	9510-9802		●
2	LABEL; FUEL CAUTION FUEL TANK 200L FMCSR<PK6>	8-97135-605-0	01	1	9803-0004	●
2	LABEL; FUEL CAUTION	8-97135-605-0	01	1	9803-0004		●
4	LABEL; ENG MAINTENANCE 6HK1 TCC ENG(81L) (A)	8-94391-524-0	01	1	0406-	●
4	LABEL; ENG MAINTENANCE THAILAND EQUIPMENT(PM9) (A)	8-94395-932-1	01	1	9510-9802	●
4	LABEL; ENG MAINTENANCE EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94395-931-0	01	1	9510-9802	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-931-0	01	1	9803-0001	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-931-0	01	1	0002-0004	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A)	8-94395-931-0	01	1	0005-	●
4	LABEL; ENG MAINTENANCE WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A)	8-94390-593-0	01	1	9612-0004	●
4	LABEL; ENG MAINTENANCE 6HH1 N ENG(66L) AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-091-0	01	1	9510-0004	●
4	LABEL; ENG MAINTENANCE 6HH1 N ENG(66L) (A)	8-94390-091-0	01	1	9510-0004		●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-517-0	01	1	9510-0004	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) (A)	8-94390-517-0	01	1	9510-0004		●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A)	8-97600-783-0	01	1	9911-0004	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) (A)	8-97600-783-0	01	1	0005-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (B)	8-97601-293-0	01	1	0003-0004	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-97601-293-0	01	1	0005-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B)	8-97601-727-0	01	1	0011-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	9510-0708	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0709-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-53639-004-0	01	1	9510-0004	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> (A)	1-53639-004-0	01	1	9510-0004		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-53639-004-0	01	1	0005-0708	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	8-98082-437-0	01	1	0709-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	9510-0708	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	0709-	●
7	LABEL; EMISSION 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	9803-0004	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> (B)	1-85887-537-0	01	1	9803-0302	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D> (B)	1-85887-537-0	01	1	0303-	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> (B)	1-85887-535-0	01	1	9803-0302	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> EXC. STARTER SWITCH DELETION<E5D> (B)	1-85887-535-0	01	1	0303-	●
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85887-389-0	01	1	9510-9802	●
69	PLATE; CAUTION,STARTER SW AUSTRALIA EQUIPMENT(RR3) (A)	1-85887-389-0	01	1	9510-9802		●
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85887-389-0	01	1	9803-0004	●
69	PLATE; CAUTION,STARTER SW (A)	1-85887-389-0	01	1	9803-0004		●
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5) EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85887-389-0	01	1	0005-0302	●
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85887-389-0	01	1	0303-	●
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-726-0	01	1	9510-9606	●	●
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	9607-0004	●	●
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	0005-	●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	9803-0504	●
193	PLATE; CAUTION,EGR 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	8-97601-728-0	01	1	0011-	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-48199-326-0	01	1	9803-1001	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	9803-0004	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7>	1-48199-325-0	01	1	9803-0004		●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	0005-1001	●
260	PLATE; CAUTION,HEAD LAMP LEVELING LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>	8-98008-779-0	01	1	0602-	●

51 51 49 109 60

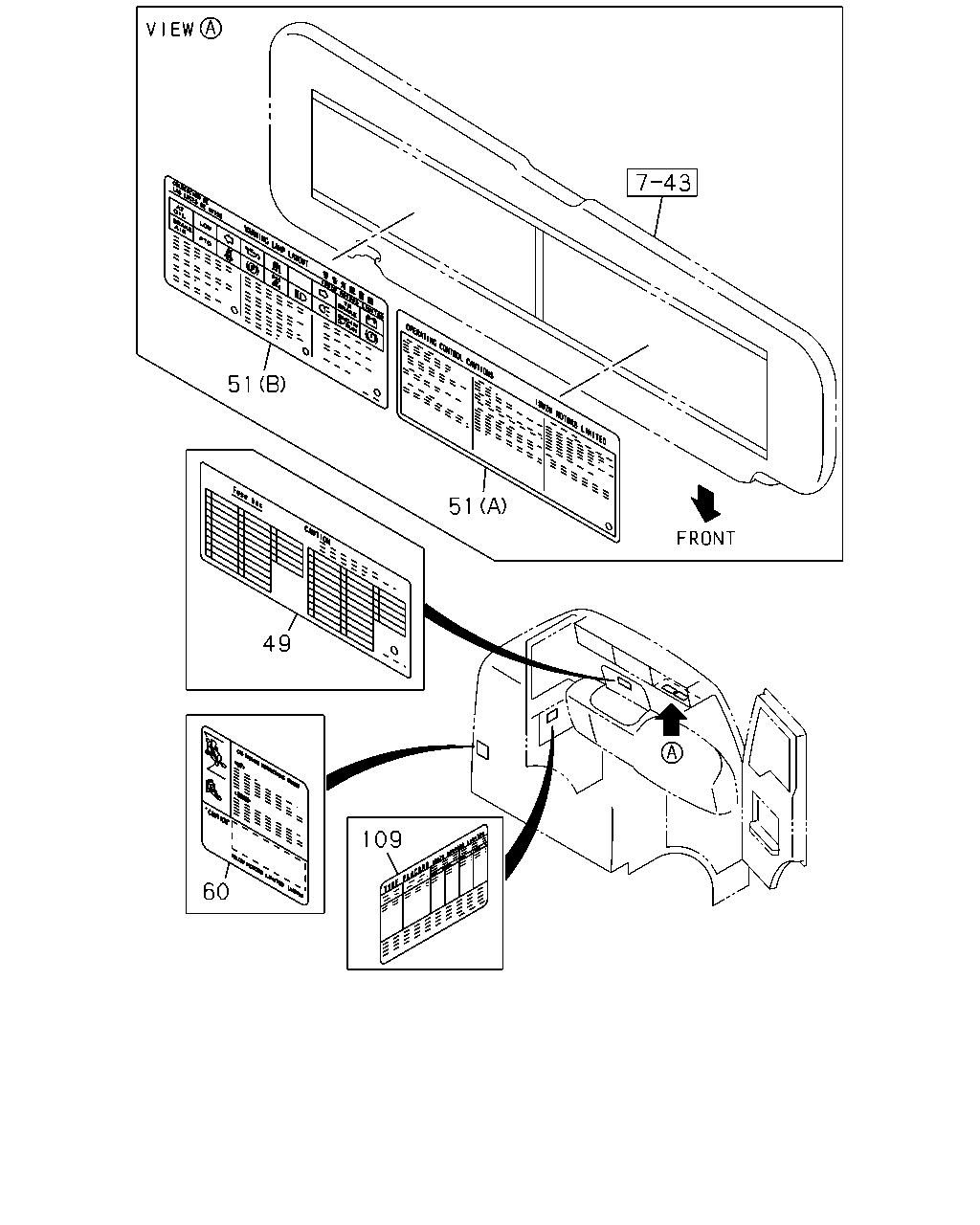

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85888-558-0	01	1	9510-0109	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0110-	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85888-554-2	01	1	9510-9802	●
49	PLATE; CAUTION,FUSE BOX	1-85888-554-2	01	1	9510-9802		●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85877-623-0	01	1	9803-9806	●
49	PLATE; CAUTION,FUSE BOX	1-85877-623-0	01	1	9803-9806		●
49	PLATE; CAUTION,FUSE BOX EXC. ELEC OUTLET 12V<TAW>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>	1-85877-623-0	01	1	9807-0004	●
49	PLATE; CAUTION,FUSE BOX EXC. ELEC OUTLET 12V<TAW>	1-85877-623-0	01	1	9807-0004		●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-557-0	01	1	9510-	●
49	PLATE; CAUTION,FUSE BOX ELEC OUTLET 12V<TAW> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85878-077-0	01	1	9807-0004	●
49	PLATE; CAUTION,FUSE BOX ELEC OUTLET 12V<TAW>	1-85878-077-0	01	1	9807-0004		●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85878-278-0	01	1	0005-0010	●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-85878-278-0	01	1	0011-	●
49	PLATE; CAUTION,FUSE BOX EXC. NEW ZEALAND EQUIPMENT(PK5),CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85878-278-0	01	1	0011-	●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-85878-324-0	01	1	0011-0405	●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-85878-324-0	01	1	0406-	●
51	PLATE; CAUTION,WARNING 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B)	1-85878-472-0	01	1	0406-	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	9510-	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	9510-	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	9510-0004	●
51	PLATE; CAUTION,WARNING (A)	1-85880-707-1	01	1	9510-0004		●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	0005-	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	9510-0004	●
51	PLATE; CAUTION,WARNING (B)	1-85888-559-2	01	1	9510-0004		●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	0005-0010	●
51	PLATE; CAUTION,WARNING 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B)	1-85888-559-2	01	1	0011-	●
51	PLATE; CAUTION,WARNING EXC. NEW ZEALAND EQUIPMENT(PK5),CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	0011-	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-710-1	01	1	9510-	●
51	PLATE; CAUTION,WARNING 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-85878-325-0	01	1	0011-	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-172-0	01	1	9510-	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85883-169-0	01	1	9510-	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-173-0	01	1	9510-	●
60	PLATE; CAUTION,CAB TILT	1-85883-178-0	01	1	9510-0004		●
109	PLATE; CAUTION,TIRE PLACARD AUSTRALIA EQUIPMENT(RR3)	1-85881-740-0	01	1	9510-9802	●	●
109	PLATE; CAUTION,TIRE PLACARD AUSTRALIA EQUIPMENT(RR3)	1-85881-767-0	01	1	9803-0004	●
109	PLATE; CAUTION,TIRE PLACARD	1-85881-767-0	01	1	9803-0004		●
