◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#64327) — 17 parça

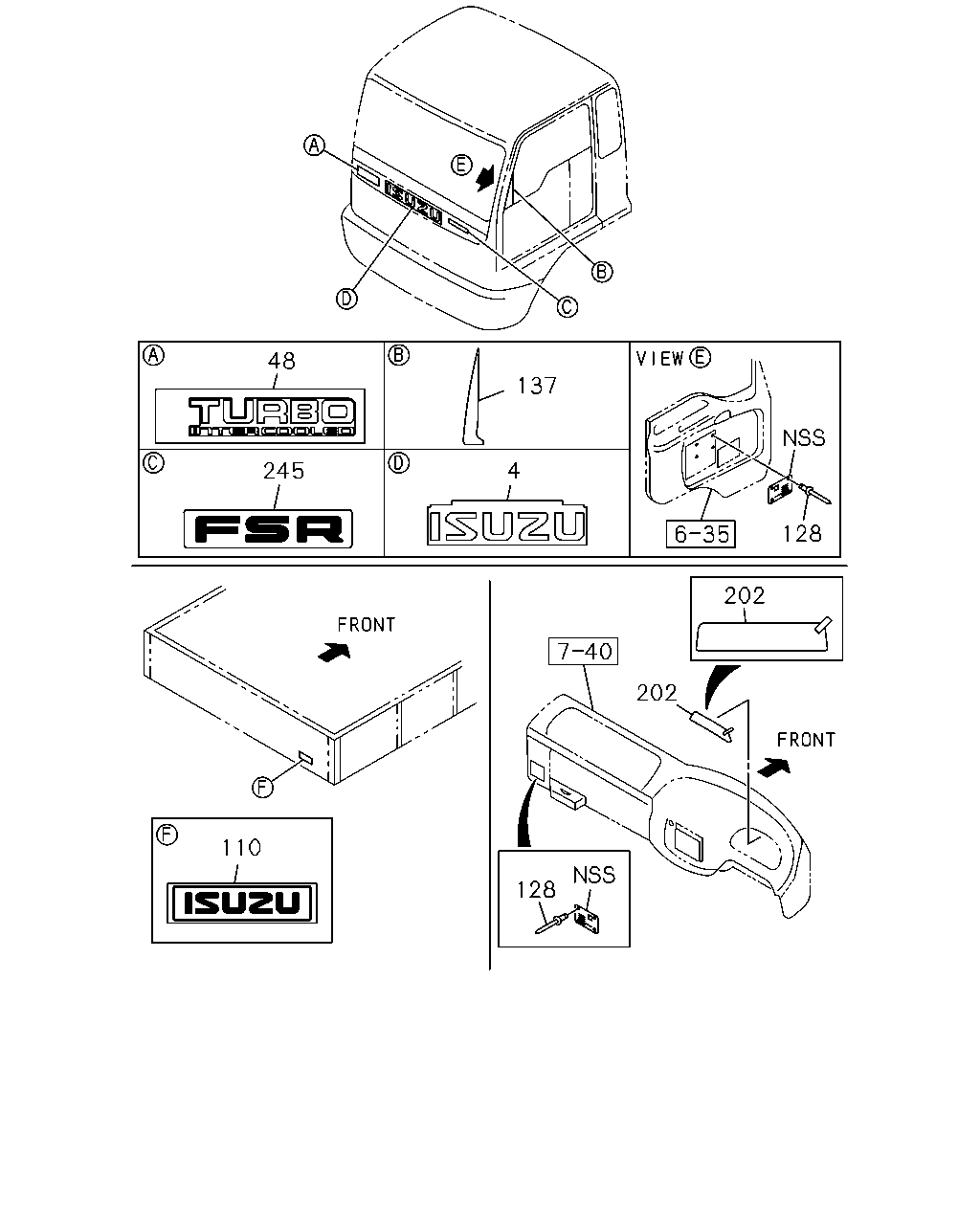

çizim 132112
48 137 4 245 128 202 202 110 128
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE 1-76210-634-0 01 1 9510-9802 ● ●
4 EMBLEM; RAD GRILLE 1-76210-668-2 01 1 9803-0004 ● ●
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 0005- ●
48 DECAL; TURBOCHARGER
6HE1 TCN ENG(58L) 		1-76218-114-0 01 1 9610-0405 ●
48 DECAL; TURBOCHARGER
6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) 		1-76218-114-0 01 1 0406- ●
110 EMBLEM; "ISUZU",RR BODY 1-76210-663-0 01 1 9510-0004 ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9510-0004 ● ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 9510-0004 ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 0005- ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0005- ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9510-0004 ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0005- ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9510-0004 ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0005- ●
202 DECAL; METER CLUSTER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-016-1 01 1 0212- ●
245 DECAL; MODEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-76218-109-0 01 1 9510-0004 ●
245 DECAL; MODEL 1-76218-109-0 01 1 0005- ●
