◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#64325) — 31 parça

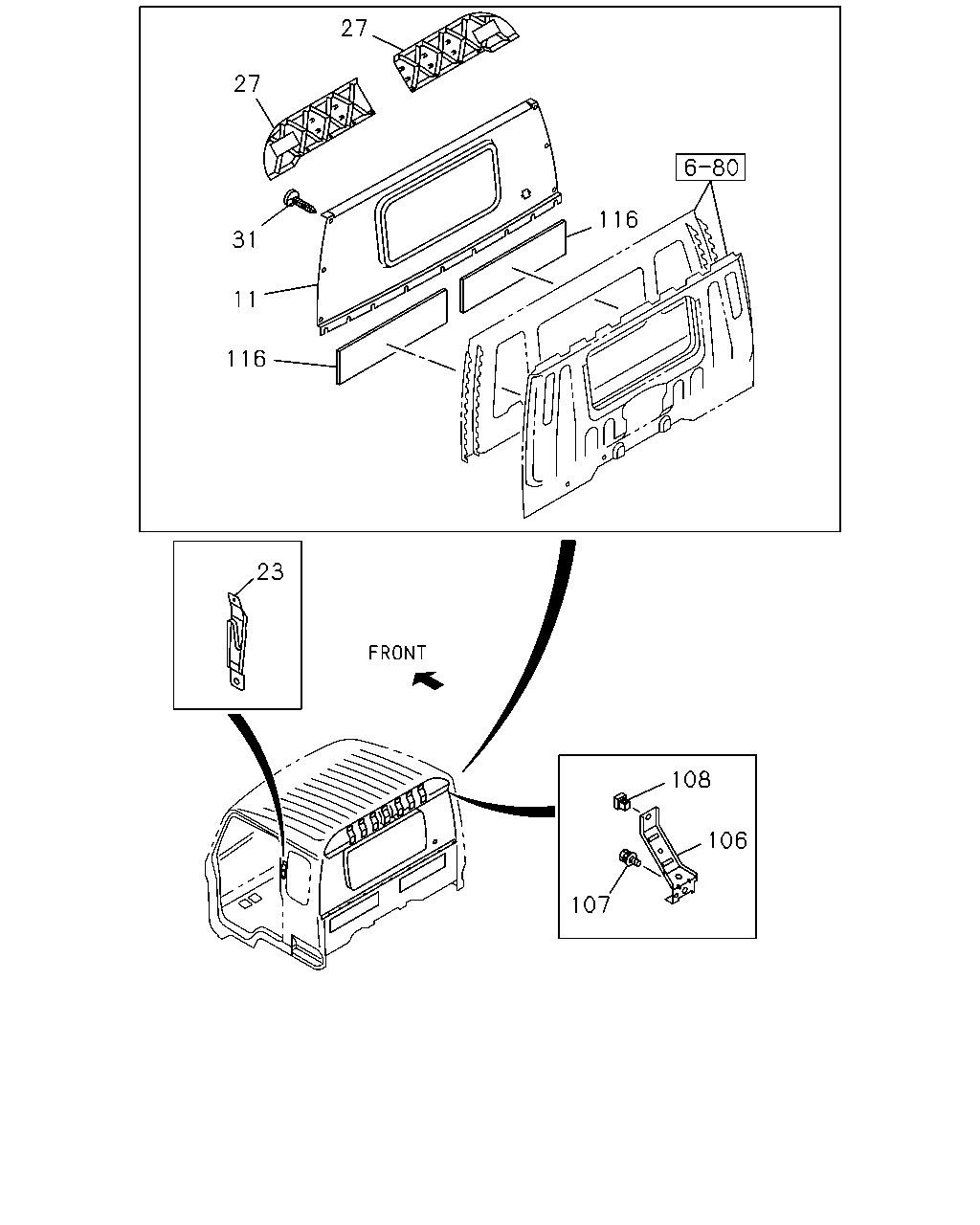

çizim 132388
27 27 116 31 11 116 23 108 106 107
BalonParca AdiParca NoAdetTipApplied Date A B
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> EXC. LOW ROOF<6XQ> 		8-97893-967-1 01 1 0301- ●
11 TRIM; ROOM,BACK INNER 1-73348-874-3 01 1 9510-0004 ●
11 TRIM; ROOM,BACK INNER
LOW ROOF<6XQ> 		1-73348-968-1 01 1 0005- ●
11 TRIM; ROOM,BACK INNER
EXC. LOW ROOF<6XQ> 		1-73348-942-1 01 1 0005-0212 ●
11 TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-942-3 01 1 0301- ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9510- ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9510- ●
23 FINISHER; BACK INNER PANEL
WHITE 		1-73337-264-0 02 1 9510-0004 ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> 		1-73348-888-0 01 1 9510-9802 ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> 		1-73348-887-1 01 1 9510-9802 ●
31 CLIP; TRIM PAD
D6X23 BEIGE 		1-09987-225-0 04 1 9510-0004 ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0005- ●
31 CLIP; TRIM PAD
D6X23 DARK GRAY 		1-09987-238-0 23 1 9510-0004 ●
106 BRACKET; BACK TRIM
HIGH ROOF<S2F> 		1-73348-411-4 07 1 9510-9802 ●
107 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 14 1 9510-9802 ●
108 GROMMET; SCREW
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 14 1 9510-9708 ●
108 GROMMET; SCREW
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 14 1 9709-9802 ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 9510- ●

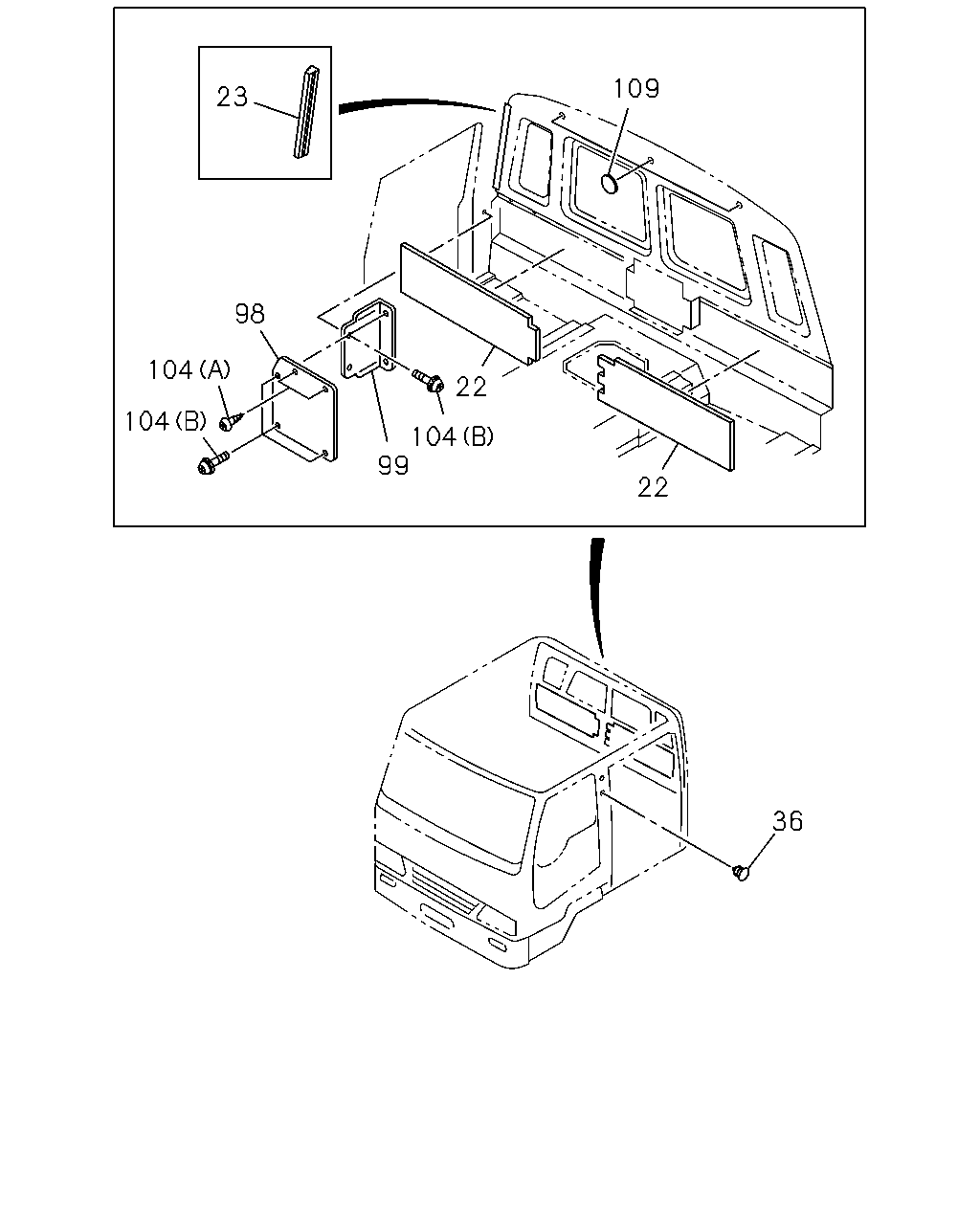

çizim 132487
109 23 98 104 22 104 104 99 22 36
BalonParca AdiParca NoAdetTipApplied Date A B
22 SHEET; SILENCER,CAB FLOOR 1-73348-204-2 01 1 9510-0004 ●
22 SHEET; SILENCER,CAB FLOOR 1-73348-203-1 01 1 9510-0004 ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9510- ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9510- ●
23 FINISHER; BACK INNER PANEL
WHITE 		1-73337-264-0 02 1 9510-0004 ●
36 PLUG; TRIM COVER HOLE
OD=15 L=14.5 		1-76378-157-0 04 1 9510-0004 ●
98 TRIM; BACK SIDE 1-73348-905-0 01 1 9510-0004 ●
98 TRIM; BACK SIDE 1-73348-904-0 01 1 9510-0004 ●
99 SUPPORT; BACK SIDE TRIM 1-73348-765-0 01 1 9510-0004 ●
99 SUPPORT; BACK SIDE TRIM 1-73348-503-1 01 1 9510-0004 ●
104 SCREW; BACK TRIM
(A) M6X13 		5-09981-074-0 04 1 9510-0004 ●
104 SCREW; BACK TRIM
(B) M6X16 W/LK&PL WASHER 		8-94279-402-0 10 1 9510-0004 ●
109 SEAL; HOLE
WHITE 		1-76777-076-0 03 1 9510-0004 ●
