Isuzu WW
▶
TRUCKS
▶
FSR
▶
10700 - FSR32,33(RHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-52 - REAR DOOR LOCK AND HANDLE
▶

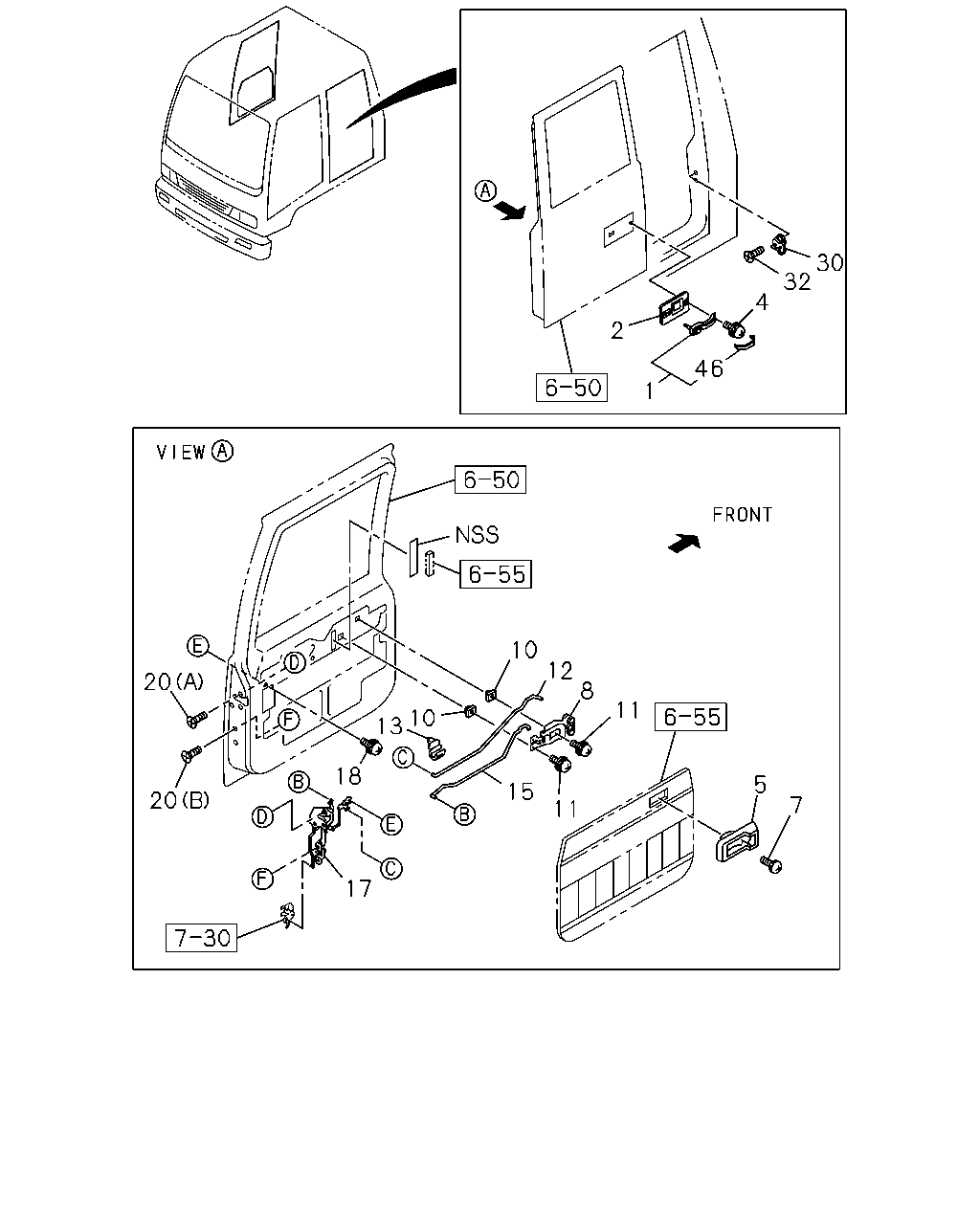

6-52 — REAR DOOR LOCK AND HANDLE
(#64315) — 23 parça
30
32
4
2
46
1
10
12
8
20
11
10
13
18
5
15
20
7
11
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,RR DOOR
1-74617-038-2
02
1
9510-0004
2
BASE; DOOR OUTSIDE HANDLE
1-74617-024-5
02
1
9510-0004
4
SCREW; DOOR OUTSIDE HANDLE
M6X16 W/LK&PL WASHER
1-09981-439-0
04
1
9510-0004
5
ESCUTCHEON; INSIDE HANDLE,RR DOOR
BLACK
8-94201-500-1
01
1
9510-0004
5
ESCUTCHEON; INSIDE HANDLE,RR DOOR
BLACK
8-94201-499-1
01
1
9510-0004
7
SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD
0-70580-410-0
02
1
9510-0004
8
HANDLE; INSIDE,RR DOOR
1-74717-019-4
01
1
9510-0004
8
HANDLE; INSIDE,RR DOOR
1-74717-018-4
01
1
9510-0004
10
GROMMET; SCREW,INSIDE LEVER,RR DOOR
1-09983-061-0
04
1
9510-0004
11
SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER
0-74110-616-0
04
1
9510-0004
12
ROD; DOOR LK RR
1-74518-082-1
01
1
9510-0004
12
ROD; DOOR LK RR
1-74518-081-1
01
1
9510-0004
13
CLAMP; DOOR INSIDE LOCKING ROD
1-74517-116-0
02
1
9510-0004
15
LINK; RR DOOR LK
1-74518-080-0
01
1
9510-0004
15
LINK; RR DOOR LK
1-74518-079-0
01
1
9510-0004
17
LOCK; DOOR,RR DOOR
1-74517-162-0
01
1
9510-0004
17
LOCK; DOOR,RR DOOR
1-74517-158-0
01
1
9510-0004
18
SCREW; BELLCRANK,DOOR LOCK
M6X16 W/LK&PL WASHER
8-94279-402-0
02
1
9510-0004
20
SCREW; DOOR LK
(A) M6X16
1-09981-447-1
06
1
9510-0004
20
SCREW; DOOR LK
(B) M6X14
1-09981-512-1
04
1
9510-0004
30
STRIKER; RR DOOR
1-74527-001-1
02
1
9510-0004
32
SCREW; DOOR STRIKER
M8X20
1-09981-450-3
04
1
9510-0004
46
COVER; OUTSIDE HANDLE
1-74617-033-1
02
1
9510-0004
