◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#64311) — 57 parça

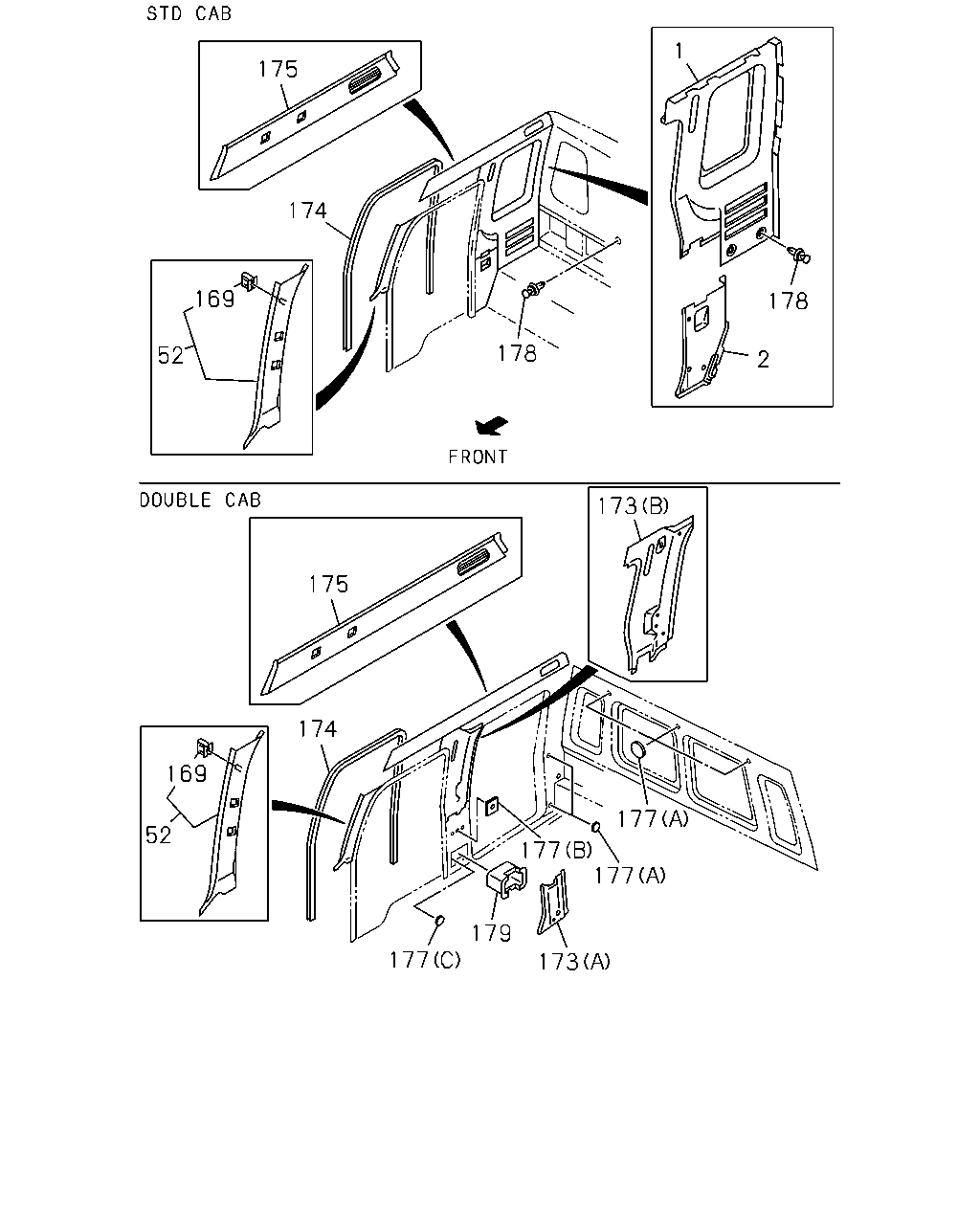

çizim 130866
1 175 174 169 178 178 52 2 173 175 174 169 177 52 177 177 179 177 173
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-861-5 01 1 9510-0004 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-996-1 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-996-3 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-996-3 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-902-2 01 1 9510-0004 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-995-1 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-995-3 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-995-3 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. LOW ROOF<6XQ> 		1-73348-941-4 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-941-7 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. LOW ROOF<6XQ> 		1-73348-934-4 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-934-7 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> DRIVER ISRINGHAUSEN SEAT<SJA> EXC. LOW ROOF<6XQ> 		1-73346-032-1 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9510-0004 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-978-1 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-978-1 01 1 0301-0406 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-978-1 01 1 0301-0406 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0407- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0407- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-7 01 1 9510-9810 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73347-779-8 01 1 9811-0004 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-977-1 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-977-2 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73347-877-0 01 1 9811-0004 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. LOW ROOF<6XQ> 		1-73348-926-2 01 1 0005-0010 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,LOW ROOF<6XQ> 		1-73348-926-2 01 1 0011-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,DRIVER ISRINGHAUSEN SEAT<SJA>,LOW ROOF<6XQ> 		1-73348-926-3 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. LOW ROOF<6XQ> 		1-73348-980-0 01 1 0011-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-980-1 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. LOW ROOF<6XQ> 		1-73348-927-2 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-927-3 01 1 0301- ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9510-0004 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005- ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9510-0004 ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005- ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9510-0004 ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0005- ●
173 TRIM; ROOM,CENTER PILLAR
(A) 		1-73348-892-1 01 1 9510-0004 ●
173 TRIM; ROOM,CENTER PILLAR
(B) 		1-73348-894-0 01 1 9510-0004 ●
173 TRIM; ROOM,CENTER PILLAR
(A) 		1-73348-891-0 01 1 9510-9810 ●
173 TRIM; ROOM,CENTER PILLAR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-73348-891-1 01 1 9811-0004 ●
173 TRIM; ROOM,CENTER PILLAR
(B) 		1-73348-893-0 01 1 9510-0004 ●
173 TRIM; ROOM,CENTER PILLAR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-73348-974-1 01 1 9811-0004 ●
174 FINISHER; BODY SIDE 1-76718-175-3 02 1 9510-0004 ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0005- ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-901-0 01 1 9510-9802 ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-781-0 01 1 9510-9802 ●
175 COVER; TRIM,SIDE 1-73348-909-0 01 1 9510-9802 ●
175 COVER; TRIM,SIDE 1-73348-908-0 01 1 9510-9802 ●
177 SEAL; SIDE PANEL
(A) WHITE 		1-76777-076-0 07 1 9510-0004 ●
177 SEAL; SIDE PANEL
(B) 25X25 		8-94272-533-0 04 1 9510-0004 ●
177 SEAL; SIDE PANEL
(C) OD=30 BLACK 		1-76798-035-0 01 1 9510-9606 ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9510-0004 ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005- ●
179 COVER; SIDE PANEL 1-73348-768-2 01 1 9510-0004 ●
179 COVER; SIDE PANEL 1-73348-767-2 01 1 9510-0004 ●
