◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#64306) — 45 parça

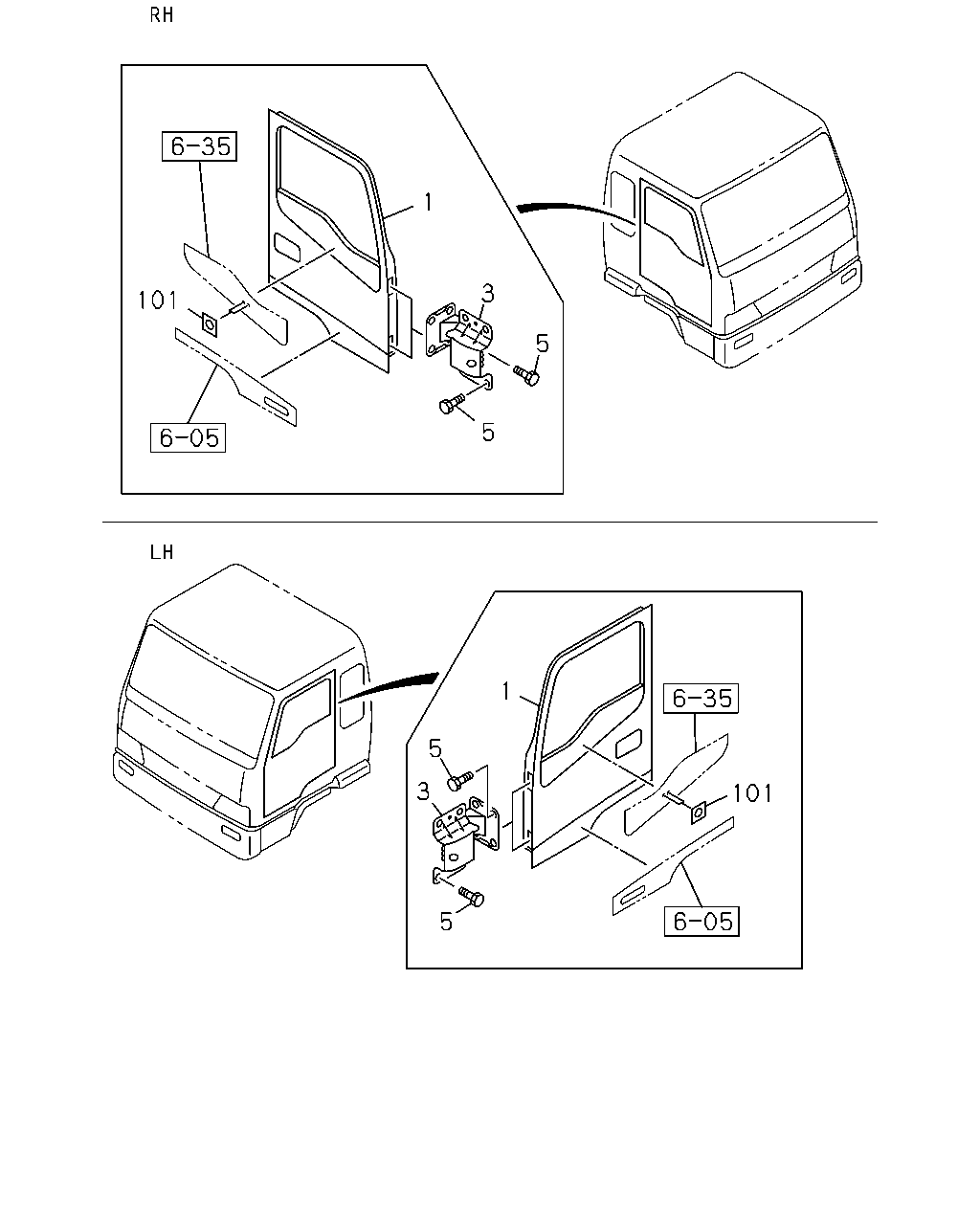

çizim 131117
1 3 101 5 5 1 5 3 101 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2> PRIMER 		1-64080-333-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-388-2 01 1 9902- ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-389-2 01 1 0011- ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4> 		1-64080-328-0 01 1 9510-9801 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-64080-328-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-64080-392-0 01 1 9902-0010 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-2 01 1 0011- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-64080-326-0 01 1 9510-9801 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-326-0 01 1 9510-9801 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> 		1-64080-326-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-326-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> 		1-64080-391-0 01 1 9902-0004 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-0 01 1 9902-0004 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> 		1-64080-391-2 01 1 0005- ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-325-0 01 1 9510-9801 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-325-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-325-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-390-0 01 1 9902-0004 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-390-0 01 1 9902-0004 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-390-2 01 1 0005- ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> LOWER 		1-64780-090-2 01 1 9805- ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> UPPER 		1-64780-091-2 01 1 9805- ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 02 1 9510-9804 ● ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 01 1 9805-0004 ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> UPPER 		1-64780-088-2 01 1 9805-0004 ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 01 1 9805-0004 ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> UPPER 		1-64780-088-3 01 1 0005- ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-3 01 1 0005- ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 02 1 9510-9804 ● ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 01 1 9805-0004 ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> LOWER 		1-64780-089-2 01 1 9805-0004 ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 01 1 9805-0004 ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> LOWER 		1-64780-089-4 01 1 0005- ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-4 01 1 0005- ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0005- ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 32 1 9510-0004 ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0005-0307 ●
5 BOLT; HINGE
EXC. MIR O/S RR VIEW LONG ARM<DH2> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
5 BOLT; HINGE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
5 BOLT; HINGE
EXC. MIR O/S RR VIEW WIDE<WU4> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
101 SEAL; BODY METAL
MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9510-9809 ●
101 SEAL; BODY METAL
EXC. MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9510-9801 ●
101 SEAL; BODY METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9510-9801 ●
101 SEAL; BODY METAL
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9802-9809 ●
101 SEAL; BODY METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9802-9809 ●
