◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#64305) — 343 parça

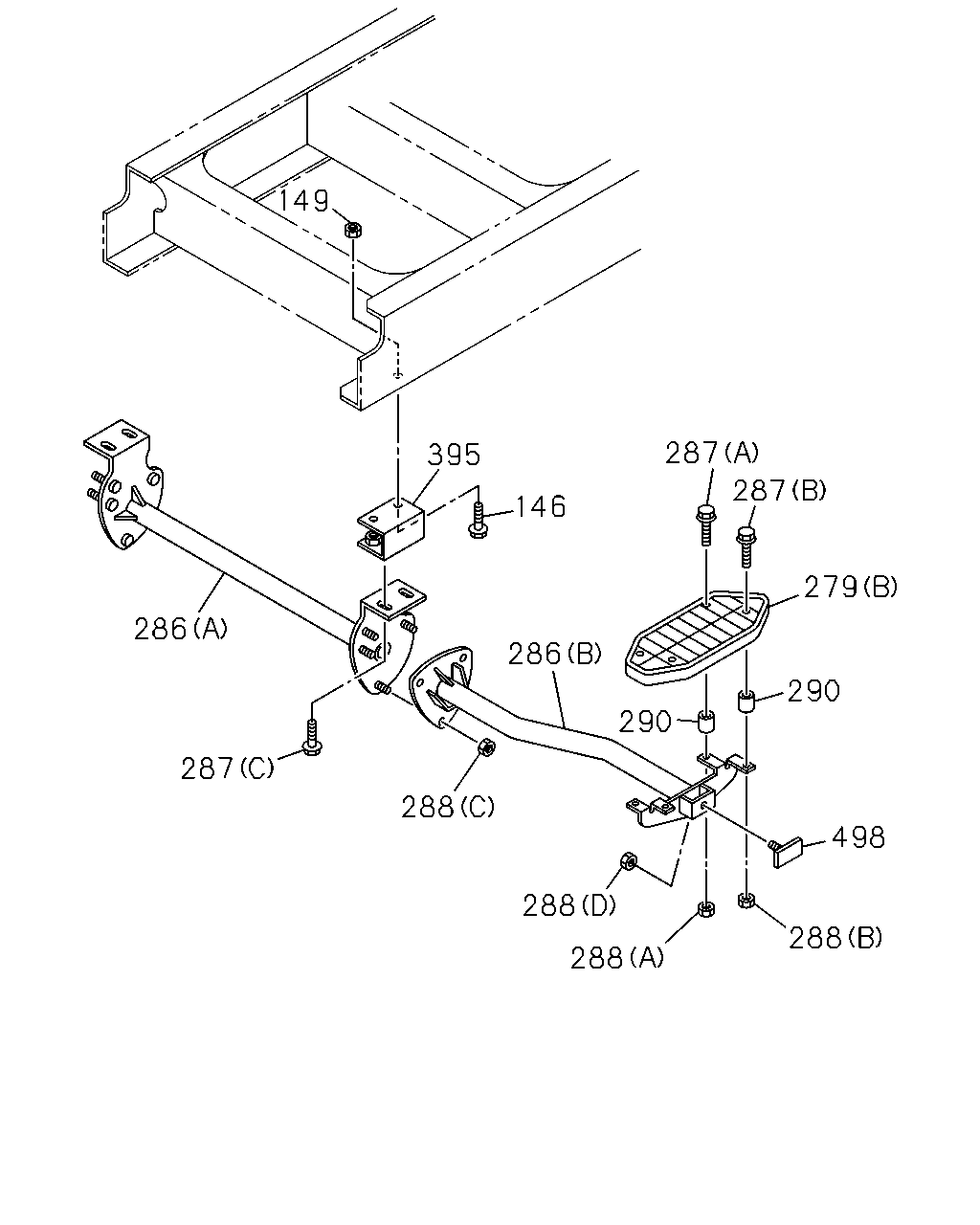

çizim 130600
149 287 395 287 146 279 286 286 290 290 287 288 498 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B
146 BOLT; STEP BRKT
AUXILIARY STEPS<E29> M12X30 FLANGE 		0-28081-230-0 04 1 9709-9802 ● ●
146 BOLT; STEP BRKT
AUXILIARY STEPS<E29> M12X35 FLANGE 		0-28681-235-0 04 1 9803-0004 ● ●
149 NUT; STEP BRKT
AUXILIARY STEPS<E29> M12 FLANGE 		0-91150-212-0 04 1 9709-0004 ● ●
279 BOARD; STEP 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-035-0 02 1 9709-0004 ● ●
279 BOARD; STEP 1ST
(A) 		1-65680-808-0 01 1 9510-0004 ●
279 BOARD; STEP 1ST
(A) 		1-65680-807-1 01 1 9510-0004 ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (A) 		1-53414-126-1 01 1 9709-0004 ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-130-1 01 1 9709-0004 ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-129-1 01 1 9709-0004 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (A) M6X35 FLANGE 		0-28080-635-0 04 1 9709-0004 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (B) M8X35 FLANGE 		0-28080-835-0 04 1 9709-0004 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (C) M12X35 FLANGE 		0-28681-235-0 04 1 9709-0004 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (A) M6 FLANGE 		0-91150-106-0 04 1 9709-0004 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (B) M8 FLANGE 		0-91150-108-0 04 1 9709-0004 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (C) M12 FLANGE 		0-91150-212-0 06 1 9709-0004 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (D) M6 		9-09110-406-0 02 1 9709-0004 ● ●
290 SPACER
AUXILIARY STEPS<E29> 		1-53414-016-0 08 1 9709-0004 ● ●
395 BRACKET; SIDE STEP
AUXILIARY STEPS<E29> 		1-53414-199-0 02 1 9709-0004 ● ●
498 REFLECTOR
AUXILIARY STEPS<E29> 		1-82290-061-0 02 1 9709-0004 ● ●

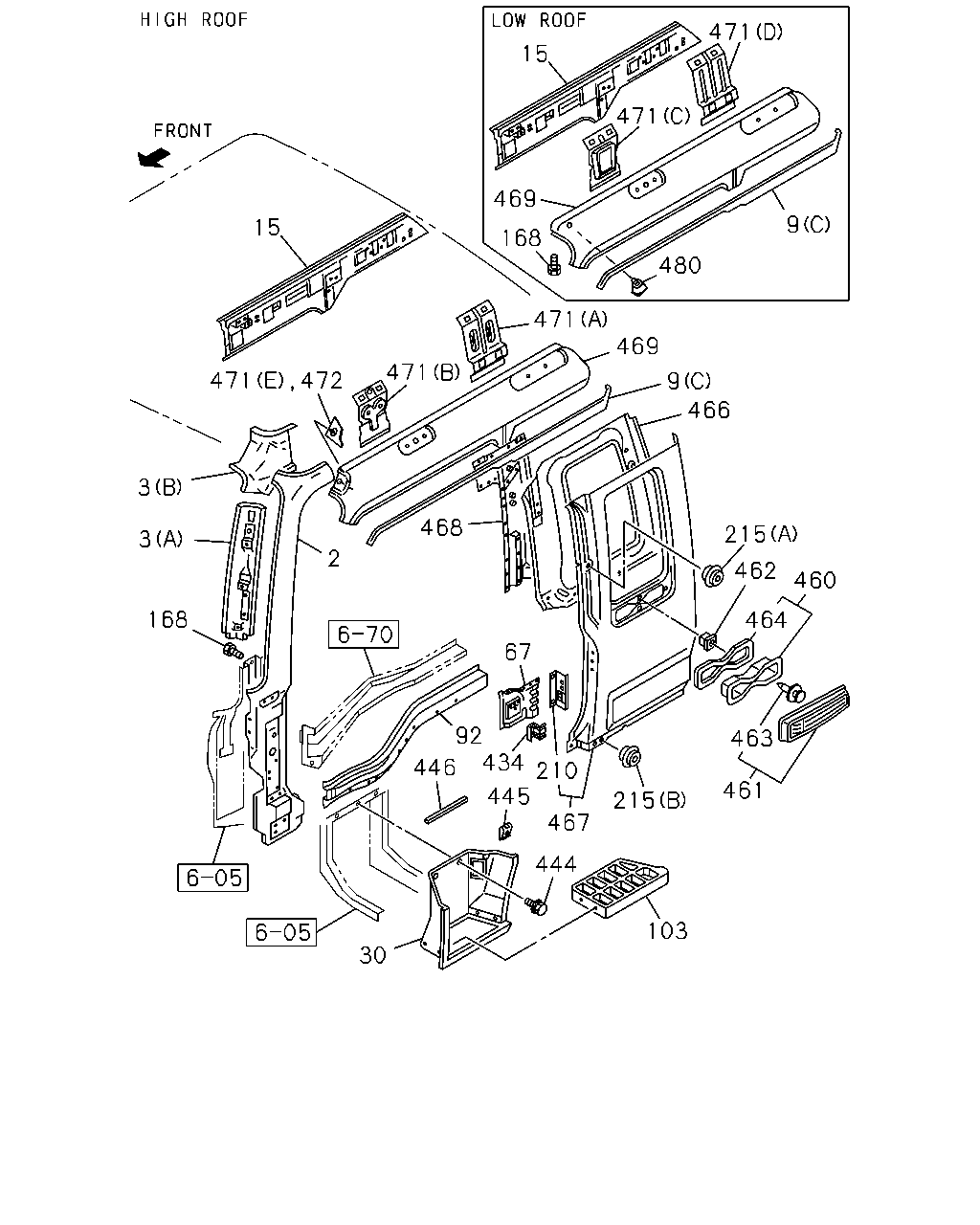

çizim 184041
471 15 471 469 9 15 168 480 471 469 471 9 466 3 468 215 3 2 462 460 168 464 67 92 434 463 446 210 445 461 215 467 444 103 30 471 472
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-156-4 01 1 9510-0004 ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0005- ●
2 PILLAR; FRT 1-61281-155-4 01 1 9510-0004 ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9510- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9510- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9510-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9510-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-281-5 01 1 9510- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-280-5 01 1 9510- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-334-4 01 1 9510-0004 ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-340-6 01 1 9510-0004 ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-333-4 01 1 9510-0004 ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-339-6 01 1 9510-0004 ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9510- ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9510- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9510- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9510- ●
15 PANEL; CANT RAIL SIDE 1-61281-358-8 01 1 9510-0004 ●
15 PANEL; CANT RAIL SIDE 1-61281-357-8 01 1 9510-0004 ●
30 CLOSING; SIDE STEP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-092-4 01 1 0601- ●
30 CLOSING; SIDE STEP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-093-4 01 1 0601- ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9510-9708 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> 		1-71998-878-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9510-9708 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> 		1-71998-877-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) 		1-71996-093-4 01 1 9510-9708 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-093-4 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-093-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUXILIARY STEPS<E29> 		1-71996-093-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0005-0405 ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0406-0512 ●
30 CLOSING; SIDE STEP
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71998-878-7 01 1 0601- ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) 		1-71996-092-4 01 1 9510-9708 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-092-4 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-092-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUXILIARY STEPS<E29> 		1-71996-092-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0005-0405 ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0406-0512 ●
30 CLOSING; SIDE STEP
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71998-877-7 01 1 0601- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9510- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9510- ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-862-3 01 1 9510-0004 ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-861-3 01 1 9510-0004 ●
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9510-0004 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0005- ●
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9510-0004 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0005- ●
103 PLATE; STEP 1-71998-868-1 01 1 9510-9607 ● ●
103 PLATE; STEP 1-71996-174-0 01 1 9608-0004 ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0005- ●
103 PLATE; STEP 1-71998-867-1 01 1 9510-9607 ● ●
103 PLATE; STEP 1-71996-173-0 01 1 9608-0004 ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0005- ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0512 ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 0005-0512 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 9510- ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-0004 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005- ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9510-0004 ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005- ●
434 PATCH; ASSIST GRIP
HIGH ROOF<S2F> 		1-61270-763-1 02 1 9510- ●
434 PATCH; ASSIST GRIP
LOW ROOF<6XQ> 		1-61270-763-1 02 1 9510-0405 ●
434 PATCH; ASSIST GRIP
LOW ROOF<6XQ> 		1-61270-763-1 01 1 0406- ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9510-0004 ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0005-0904 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
445 NUT; CLOSING 8-94279-723-0 02 1 9510-0004 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0404 ●
445 NUT; CLOSING
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 0405-0405 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0601 ●
445 NUT; CLOSING
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 0602-0609 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9510-0004 ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005- ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 9510- ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9510- ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9510- ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9510-9802 ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9803- ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9510- ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9510- ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9510- ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9510- ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-478-5 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-0 01 1 9510-9510 ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-1 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-476-1 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-477-1 01 1 9510-0004 ●
467 PANEL; OUTER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-1 01 1 9510-9510 ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-2 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-2 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> 		1-61281-204-4 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-4 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-203-2 01 1 9510-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER 1-61280-509-5 01 1 9510-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61280-508-4 01 1 9510-0004 ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 9510- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 9510- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9510- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9510- ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 9510-0405 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 0406- ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 9510-0405 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 0406- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9510- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9510- ●
469 ROOF; SIDE 1-61281-338-3 01 1 9510-0004 ●
469 ROOF; SIDE 1-61281-337-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 9510- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
(E) 		1-61281-233-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-4 01 1 0005-0812 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		8-98132-463-0 01 1 0901- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 9510-0405 ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 01 1 0406- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9510- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9510- ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9510-9907 ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9510-9907 ●
472 PATCH; STAY,ROOF
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-232-3 01 1 9908-9910 ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9908-9910 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61270-943-0 01 1 9908-9910 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-0 01 1 9911-0004 ●
472 PATCH; STAY,ROOF 1-61270-943-0 01 1 9911-0004 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-1 01 1 0005- ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9510- ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9510- ●

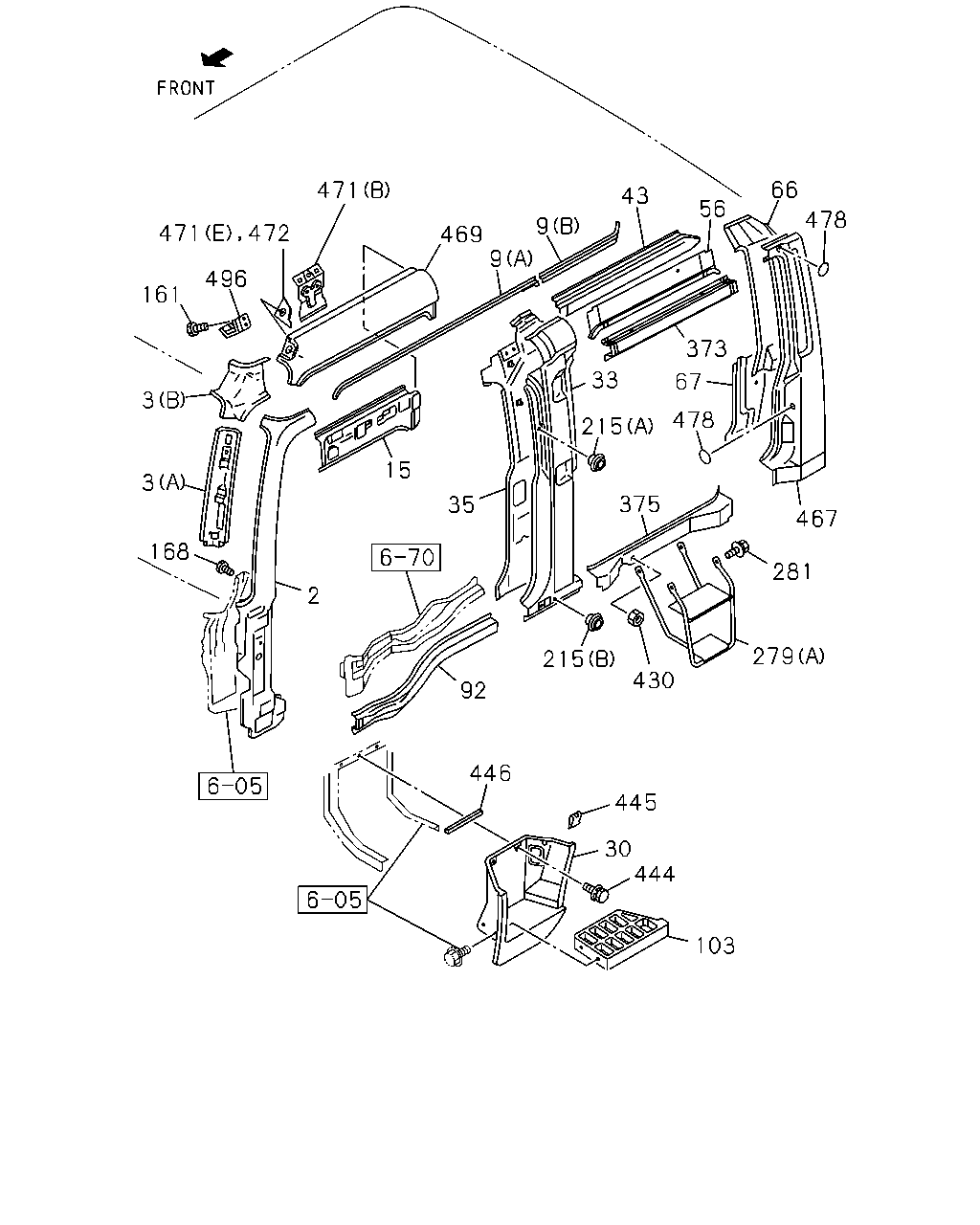

çizim 184044
66 471 43 56 478 9 469 9 496 161 373 33 67 3 478 215 15 3 375 35 467 168 281 2 279 215 430 92 446 445 30 444 103 471 472
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-156-4 01 1 9510-0004 ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0005- ●
2 PILLAR; FRT 1-61281-155-4 01 1 9510-0004 ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 9510-0004 ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9510- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9510- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9510-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9510-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-281-5 01 1 9510- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-280-5 01 1 9510- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-334-4 01 1 9510-0004 ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-340-6 01 1 9510-0004 ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-333-4 01 1 9510-0004 ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-339-6 01 1 9510-0004 ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9510- ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9510- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9510- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9510- ●
15 PANEL; CANT RAIL SIDE 1-61281-358-8 01 1 9510-0004 ●
15 PANEL; CANT RAIL SIDE 1-61281-357-8 01 1 9510-0004 ●
30 CLOSING; SIDE STEP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-092-4 01 1 0601- ●
30 CLOSING; SIDE STEP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-093-4 01 1 0601- ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9510-9708 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-878-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> 		1-71998-878-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9510-9708 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-71998-877-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
AUXILIARY STEPS<E29> 		1-71998-877-7 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) 		1-71996-093-4 01 1 9510-9708 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-093-4 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-093-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUXILIARY STEPS<E29> 		1-71996-093-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0005-0405 ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0406-0512 ●
30 CLOSING; SIDE STEP
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71998-878-7 01 1 0601- ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) 		1-71996-092-4 01 1 9510-9708 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-092-4 01 1 9709-9802 ● ●
30 CLOSING; SIDE STEP
AUSTRALIA EQUIPMENT(RR3) EXC. AUXILIARY STEPS<E29> 		1-71996-092-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP
EXC. AUXILIARY STEPS<E29> 		1-71996-092-4 01 1 9803-0004 ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0005-0405 ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0406-0512 ●
30 CLOSING; SIDE STEP
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71998-877-7 01 1 0601- ●
33 PANEL; CENTER PILLAR,OUTER 1-61281-548-1 01 1 9510-0004 ●
33 PANEL; CENTER PILLAR,OUTER 1-61281-485-1 01 1 9510-0004 ●
35 PANEL; CENTER PILLAR,INNER 1-61281-493-1 01 1 9510-0004 ●
35 PANEL; CENTER PILLAR,INNER 1-61281-486-1 01 1 9510-0004 ●
43 CANTRAIL; SIDE OUTER,FRT 1-61181-038-2 01 1 9510-0004 ●
43 CANTRAIL; SIDE OUTER,FRT 1-61181-037-2 01 1 9510-0004 ●
56 CANTRAIL; SIDE 1-61281-114-0 01 1 9510-0004 ●
56 CANTRAIL; SIDE 1-61281-113-0 01 1 9510-0004 ●
66 PANEL; BACK SIDE INNER 1-61280-855-2 01 1 9510-0004 ●
66 PANEL; BACK SIDE INNER 1-61280-854-2 01 1 9510-0004 ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9510- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9510- ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-862-3 01 1 9510-0004 ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-861-3 01 1 9510-0004 ●
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9510-0004 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0005- ●
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9510-0004 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0005- ●
103 PLATE; STEP 1-71998-868-1 01 1 9510-9607 ● ●
103 PLATE; STEP 1-71996-174-0 01 1 9608-0004 ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0005- ●
103 PLATE; STEP 1-71998-867-1 01 1 9510-9607 ● ●
103 PLATE; STEP 1-71996-173-0 01 1 9608-0004 ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0005- ●
161 BOLT; FIX
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0004 ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0512 ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 0005-0512 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-0004 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005- ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9510-0004 ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005- ●
279 BOARD; STEP 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-035-0 02 1 9709-0004 ● ●
279 BOARD; STEP 1ST
(A) 		1-65680-808-0 01 1 9510-0004 ●
279 BOARD; STEP 1ST
(A) 		1-65680-807-1 01 1 9510-0004 ●
281 BOLT; STEP BOARD TO FLOOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 9510-0004 ●
373 PANEL; CANTRAIL,CLOSING RR 1-61280-568-2 02 1 9510-0004 ●
375 PANEL; SIDE SILL RR,CAB 1-61280-638-3 01 1 9510-9811 ●
375 PANEL; SIDE SILL RR,CAB 1-61281-640-0 01 1 9812-0004 ●
375 PANEL; SIDE SILL RR,CAB 1-61280-637-3 01 1 9510-9811 ●
375 PANEL; SIDE SILL RR,CAB 1-61281-639-0 01 1 9812-0004 ●
430 NUT; PANEL
M6 		9-09114-086-0 02 1 9803-0004 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9510-0004 ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0005-0904 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
445 NUT; CLOSING 8-94279-723-0 02 1 9510-0004 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0404 ●
445 NUT; CLOSING
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 0405-0405 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0601 ●
445 NUT; CLOSING
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 0602-0609 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9510-0004 ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005- ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-478-5 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-0 01 1 9510-9510 ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-1 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-476-1 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-477-1 01 1 9510-0004 ●
467 PANEL; OUTER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-1 01 1 9510-9510 ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-2 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-2 01 1 9511-0004 ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> 		1-61281-204-4 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-4 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-203-2 01 1 9510-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER 1-61280-509-5 01 1 9510-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61280-508-4 01 1 9510-0004 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 9510-0405 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 0406- ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 9510-0405 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 0406- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9510- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9510- ●
469 ROOF; SIDE 1-61281-338-3 01 1 9510-0004 ●
469 ROOF; SIDE 1-61281-337-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 9510- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
(E) 		1-61281-233-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-4 01 1 0005-0812 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		8-98132-463-0 01 1 0901- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9510-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 9510-0405 ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 01 1 0406- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9510- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9510- ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9510-9907 ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9510-9907 ●
472 PATCH; STAY,ROOF
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-232-3 01 1 9908-9910 ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9908-9910 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61270-943-0 01 1 9908-9910 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-0 01 1 9911-0004 ●
472 PATCH; STAY,ROOF 1-61270-943-0 01 1 9911-0004 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-1 01 1 0005- ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 07 1 9510-0004 ●
478 SEAL; RR PILLAR
OD=45 T=0.08 BLACK 		8-94291-688-2 01 1 9510-0004 ●
496 SUPPORT ASM 1-72448-324-1 01 1 9510-0004 ●
496 SUPPORT ASM 1-72448-323-1 01 1 9510-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
