◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶

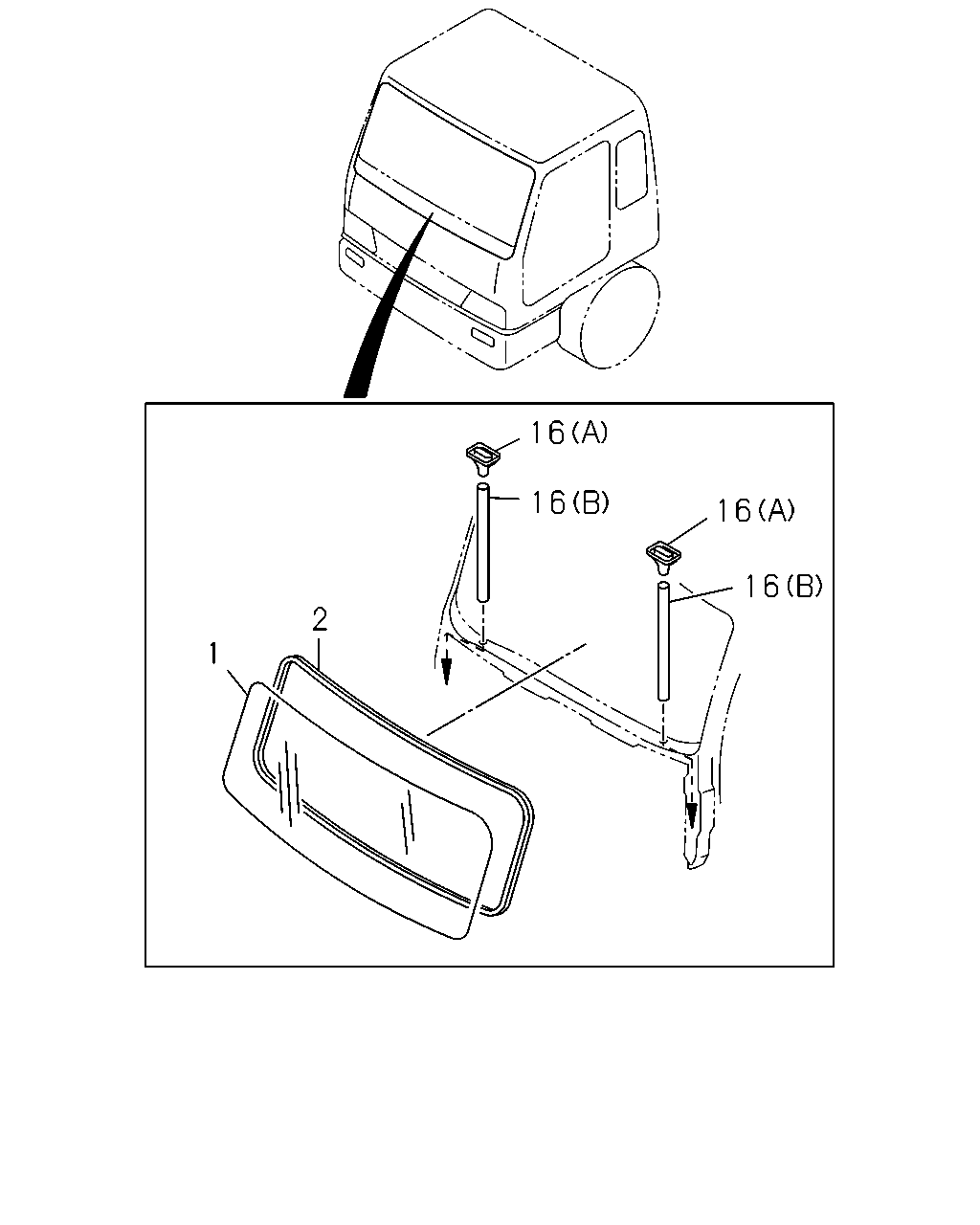

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#64304) — 11 parça
çizim 126725
16 16 16 16 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD
EXC. AUSTRALIA EQUIPMENT(RR3) NSG 		1-76118-045-0 01 1 9906-0004 ●
1 GLASS; WINDSHIELD
NSG 		1-76118-045-1 01 1 0005- ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-026-1 01 1 9510-9611 ● ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-036-1 01 1 9612-0004 ● ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-036-2 01 1 0005- ●
2 WEATHERSTRIP; WINDSHIELD GLASS 1-76738-087-5 01 1 9510-0004 ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS 1-76738-087-6 01 1 0005- ●
16 HOSE; DRAIN,WINDSHIELD
(A) 		1-76738-090-2 02 1 9510-0004 ● ●
16 HOSE; DRAIN,WINDSHIELD
(A) 		1-76738-090-2 02 1 0005- ●
16 HOSE; DRAIN,WINDSHIELD
(B) 		1-76738-106-0 02 1 9510-0004 ● ●
16 HOSE; DRAIN,WINDSHIELD
(B) 		1-76738-106-0 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
