Sayfa 6-05 - Isuzu EPC

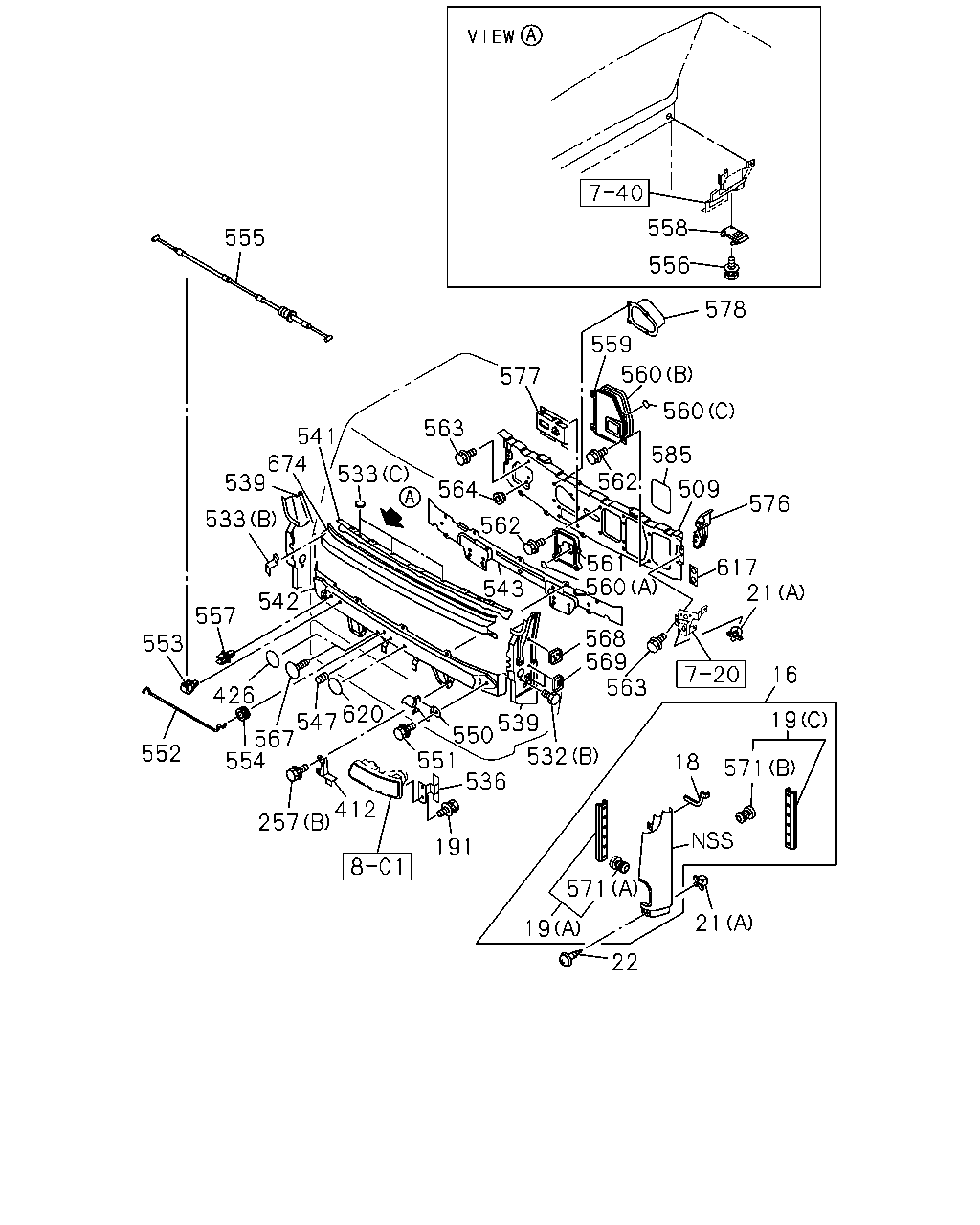

6-05 — FRONT PANEL (#64303) — 420 parça

558 555 556 578 559 560 577 560 563 541 674 539 585 533 562 509 564 576 533 562 561 560 543 617 21 542 557 568 569 563 553 16 426 620 547 567 554 19 539 550 551 552 532 18 571 536 412 257 191 571 21 19 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PANEL; FRONT,SIDE KENYA EQUIPMENT(PQ2) WHITE	1-65481-562-2	01	1	9802-9803	●
16	PANEL; FRONT,SIDE MIR O/S RR VIEW LONG ARM<DH2> WHITE	1-65481-562-3	01	1	9804-	●
16	PANEL; FRONT,SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-563-3	01	1	0005-	●
16	PANEL; FRONT,SIDE MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-563-2	01	1	9510-9803	●
16	PANEL; FRONT,SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-563-2	01	1	9804-0004	●
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-591-1	01	1	9510-9803	●
16	PANEL; FRONT,SIDE WHITE	1-65481-591-1	01	1	9510-9803		●
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> WHITE	1-65481-591-1	01	1	9804-0004	●
16	PANEL; FRONT,SIDE WHITE	1-65481-591-1	01	1	9804-0004		●
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> WHITE	1-65481-591-2	01	1	0005-	●
16	PANEL; FRONT,SIDE WHITE	1-65481-590-1	01	1	9510-9801	●	●
16	PANEL; FRONT,SIDE EXC. KENYA EQUIPMENT(PQ2) WHITE	1-65481-590-1	01	1	9802-9803	●
16	PANEL; FRONT,SIDE WHITE	1-65481-590-1	01	1	9802-9803		●
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE	1-65481-590-1	01	1	9804-0004	●
16	PANEL; FRONT,SIDE WHITE	1-65481-590-1	01	1	9804-0004		●
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE	1-65481-590-2	01	1	0005-	●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	9510-0004	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	0005-	●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	9510-0004	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	0005-	●
19	SEAL; FRT SIDE PANEL (C)	1-71996-102-1	01	1	9510-	●
19	SEAL; FRT SIDE PANEL (C)	1-71996-101-1	01	1	9510-	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-807-3	01	1	9510-0004	●	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-807-4	01	1	0005-	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-3	01	1	9510-0004	●	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-4	01	1	0005-	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-0004	●	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0005-	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9510-0004	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0005-	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9510-0004	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0005-	●
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	9510-0003	●	●
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0004-0004	●	●
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0005-0810	●
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	0811-1010	●
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	1011-	●
191	BOLT; HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9510-0004	●
191	BOLT; HINGE M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9510-0004		●
191	BOLT; HINGE M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0005-0708	●
191	BOLT; HINGE M6X16 FLANGE	0-28650-616-0	04	1	0709-	●
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9510-0004	●
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9510-0004		●
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904	●
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9510-0004	●	●
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	0005-0411	●
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	0412-	●
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-044-3	01	1	9510-0004	●
412	BRACKET ASM; HD LAMP UPR	1-86830-044-3	01	1	9510-0004		●
412	BRACKET ASM; HD LAMP UPR	1-86830-044-3	01	1	0005-	●
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-043-3	01	1	9510-0004	●
412	BRACKET ASM; HD LAMP UPR	1-86830-043-3	01	1	9510-0004		●
412	BRACKET ASM; HD LAMP UPR	1-86830-043-3	01	1	0005-	●
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	03	1	9805-0004	●
426	GASKET OD=25 BLACK	1-76798-019-0	03	1	9805-0004		●
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	03	1	0005-	●
426	GASKET OD=25 BLACK	1-76798-019-0	01	1	9805-0004	●	●
426	GASKET AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9805-0004	●
426	GASKET AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0005-0112	●
426	GASKET OD=25 BLACK	1-76798-019-0	01	1	0005-0112	●
426	GASKET AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0201-	●
509	PANEL; DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-193-5	01	1	9510-9802	●
509	PANEL; DASH	1-62280-193-5	01	1	9510-9802		●
509	PANEL; DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-193-5	01	1	9803-0004	●
509	PANEL; DASH	1-62280-193-5	01	1	9803-0004		●
509	PANEL; DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-193-5	01	1	0005-0604	●
509	PANEL; DASH EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-215-1	01	1	9510-9802	●
509	PANEL; DASH EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-215-1	01	1	9803-0604	●
532	BOLT; FRT PANEL (A) M8X20	1-79198-002-0	02	1	9510-0004	●	●
532	BOLT; FRT PANEL (A) M8X20	1-79198-002-0	02	1	0005-	●
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9510-0004	●	●
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0005-	●
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	03	1	0005-	●
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	9510-0004	●	●
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-3	02	1	0005-	●
533	SEAL; FRT PANEL (C) OD=36 BLACK	1-76798-018-0	13	1	9510-9806	●	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	13	1	9807-0004	●	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	13	1	0005-	●
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9510-0004	●	●
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	0005-	●
536	HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-004-5	01	1	9510-0004	●
536	HINGE	1-86830-004-5	01	1	9510-0004		●
536	HINGE	1-86830-004-5	01	1	0005-	●
536	HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-003-5	01	1	9510-0004	●
536	HINGE	1-86830-003-5	01	1	9510-0004		●
536	HINGE	1-86830-003-5	01	1	0005-	●
539	CLOSING; PILLAR	1-61480-674-6	01	1	9510-0004	●	●
539	CLOSING; PILLAR	1-61480-674-6	01	1	0005-	●
539	CLOSING; PILLAR	1-61480-673-6	01	1	9510-0004	●	●
539	CLOSING; PILLAR	1-61480-673-6	01	1	0005-	●
541	PANEL; FRONT,INNER	1-61480-679-0	01	1	9510-0004	●	●
541	PANEL; FRONT,INNER	1-61480-679-0	01	1	0005-	●
542	RAIL; FRT MOUNTING	1-61480-685-9	01	1	9510-9708	●	●
542	RAIL; FRT MOUNTING	1-61480-825-3	01	1	9709-0004	●	●
542	RAIL; FRT MOUNTING	1-61480-825-6	01	1	0005-	●
543	CLOSING; FRT MTG RAIL	1-61480-687-2	01	1	9510-0004	●	●
543	CLOSING; FRT MTG RAIL	1-61480-687-4	01	1	0005-	●
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	03	1	9510-0004	●	●
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	03	1	0005-	●
550	LOCK ASM; FRT LID	1-79318-010-1	01	1	9510-0004	●	●
550	LOCK ASM; FRT LID	1-79318-010-2	01	1	0005-	●
550	LOCK ASM; FRT LID	1-79318-009-3	01	1	9510-0004	●	●
550	LOCK ASM; FRT LID	1-79318-009-4	01	1	0005-	●
551	BOLT; LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9510-0004	●	●
551	BOLT; LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0005-	●
552	STAY; FRT LID	1-71998-810-2	01	1	9510-0004	●	●
552	STAY; FRT LID	1-71998-810-2	01	1	0005-0205	●
552	STAY; FRT LID	1-71996-310-0	01	1	0206-0706	●
552	STAY; FRT LID	1-71996-352-0	01	1	0707-	●
553	CLIP; STAY	8-97031-428-0	01	1	9510-0004	●	●
553	CLIP; STAY	8-97031-428-0	01	1	0005-	●
554	GROMMET; STAY ID=8 OD=20 T=9	9-09956-038-0	01	1	9510-0004	●	●
554	GROMMET; STAY ID=8 OD=20 T=9	9-09956-038-0	01	1	0005-	●
555	CABLE; FRT LID L=2142	1-79348-001-4	01	1	9510-0004	●	●
555	CABLE; FRT LID L=2142	1-79348-001-4	01	1	0005-	●
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9510-0004	●	●
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0005-	●
557	CLIP; CABLE ID=4.8	8-94128-483-0	02	1	9510-0004	●	●
557	CLIP; CABLE ID=4.8	8-94128-483-0	02	1	0005-	●
558	LEVER; FRT LID	1-79338-003-1	01	1	9510-0004	●	●
558	LEVER; FRT LID	1-79338-003-1	01	1	0005-0212	●
558	LEVER; FRT LID	1-79338-007-1	01	1	0301-	●
559	COVER; EVAPOLATOR	1-71998-831-3	01	1	9510-9603	●	●
559	COVER; EVAPOLATOR	1-71996-162-0	01	1	9604-9608	●	●
559	COVER; EVAPOLATOR	1-71996-194-0	01	1	9609-0004	●	●
559	COVER; EVAPOLATOR	1-71996-194-1	01	1	0005-	●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41) (A) OD=36 BLACK	1-76798-018-0	02	1	9510-9802	●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 BLACK	1-76798-018-0	02	1	9803-9806	●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9807-	●
560	SEAL; COVER (B)	1-71998-827-1	01	1	9510-0004	●	●
560	SEAL; COVER (B)	1-71998-827-1	01	1	0005-	●
560	SEAL; COVER (C) OD=36 BLACK	1-76798-018-0	01	1	9510-9802	●	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK	1-76798-018-0	01	1	9803-9806	●
560	SEAL; COVER (C) OD=36 BLACK	1-76798-018-0	01	1	9803-9806		●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9807-0004	●
560	SEAL; COVER (C) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9807-0004		●
560	SEAL; COVER ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0005-	●
561	COVER; HEATER CORE	1-71998-829-1	01	1	9510-0004	●	●
561	COVER; HEATER CORE	1-71998-829-1	01	1	0005-	●
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004	●	●
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-	●
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	0203-	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	12	1	9510-9707	●	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	10	1	9708-9807	●	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	14	1	9808-0004	●	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	14	1	0005-0202	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	12	1	0203-	●
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9510-9707	●	●
563	BOLT; DASH PANEL M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	9708-9807	●	●
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	9510-0004	●	●
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	0005-	●
567	PLUG; FRT MTG RAIL OD=15 BLACK	8-94279-804-0	01	1	9510-9803	●	●
567	PLUG; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	01	1	9804-9804	●	●
568	PATCH; INST REINF	1-61480-675-2	02	1	9510-0004	●	●
568	PATCH; INST REINF	1-61480-675-2	02	1	0005-	●
569	PATCH; LWR GRIP	1-61480-736-2	01	1	9510-0004	●	●
569	PATCH; LWR GRIP	1-61480-736-2	01	1	0005-	●
569	PATCH; LWR GRIP	1-61480-689-2	01	1	9510-0004	●	●
569	PATCH; LWR GRIP	1-61480-689-2	01	1	0005-	●
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	14	1	9510-0207	●
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	07	1	0208-	●
571	CLIP; SEAL (A)	1-09987-228-0	12	1	9510-0001	●	●
571	CLIP; SEAL (A)	1-09987-228-0	06	1	0002-0004	●	●
571	CLIP; SEAL (A)	1-09987-228-0	06	1	0002-0004	●	●
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	07	1	0208-	●
571	CLIP; SEAL (A)	1-09987-228-0	06	1	0005-	●
571	CLIP; SEAL (A)	1-09987-228-0	06	1	0005-	●
576	FRAME; INST SIDE	1-62280-177-7	01	1	9510-0004	●	●
576	FRAME; INST SIDE	1-62280-177-7	01	1	0005-0604	●
576	FRAME; INST SIDE	1-62280-176-6	01	1	9510-0004	●	●
576	FRAME; INST SIDE	1-62280-176-6	01	1	0005-0604	●
577	BRACKET; IDLER	1-62280-195-0	01	1	9510-0004	●	●
577	BRACKET; IDLER	1-62280-195-0	01	1	0005-0604	●
578	COVER; WIPER MOTOR	1-62280-173-3	01	1	9510-0004	●	●
578	COVER; WIPER MOTOR	1-62280-173-4	01	1	0005-0604	●
585	PLATE; EVAPOLATOR EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-71996-084-1	01	1	9510-9802	●
585	PLATE; EVAPOLATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-71996-084-1	01	1	9803-	●
617	SEAL; DASH	1-61281-497-0	02	1	9510-0004	●	●
617	SEAL; DASH	1-61281-497-0	02	1	0005-0604	●
620	SEAL; FRT MTG OD=25 BLACK	1-76798-019-0	02	1	9803-0004	●	●
620	SEAL; FRT MTG OD=25 BLACK	1-76798-019-0	02	1	0005-	●
674	PANEL; UPR THAILAND EQUIPMENT(PM9)	1-61480-785-1	01	1	9510-9511	●
674	PANEL; UPR EXC. THAILAND EQUIPMENT(PM9)	1-61480-677-4	01	1	9510-9511	●
674	PANEL; UPR	1-61480-677-4	01	1	9510-9511		●
674	PANEL; UPR	1-61480-677-4	01	1	9512-	●

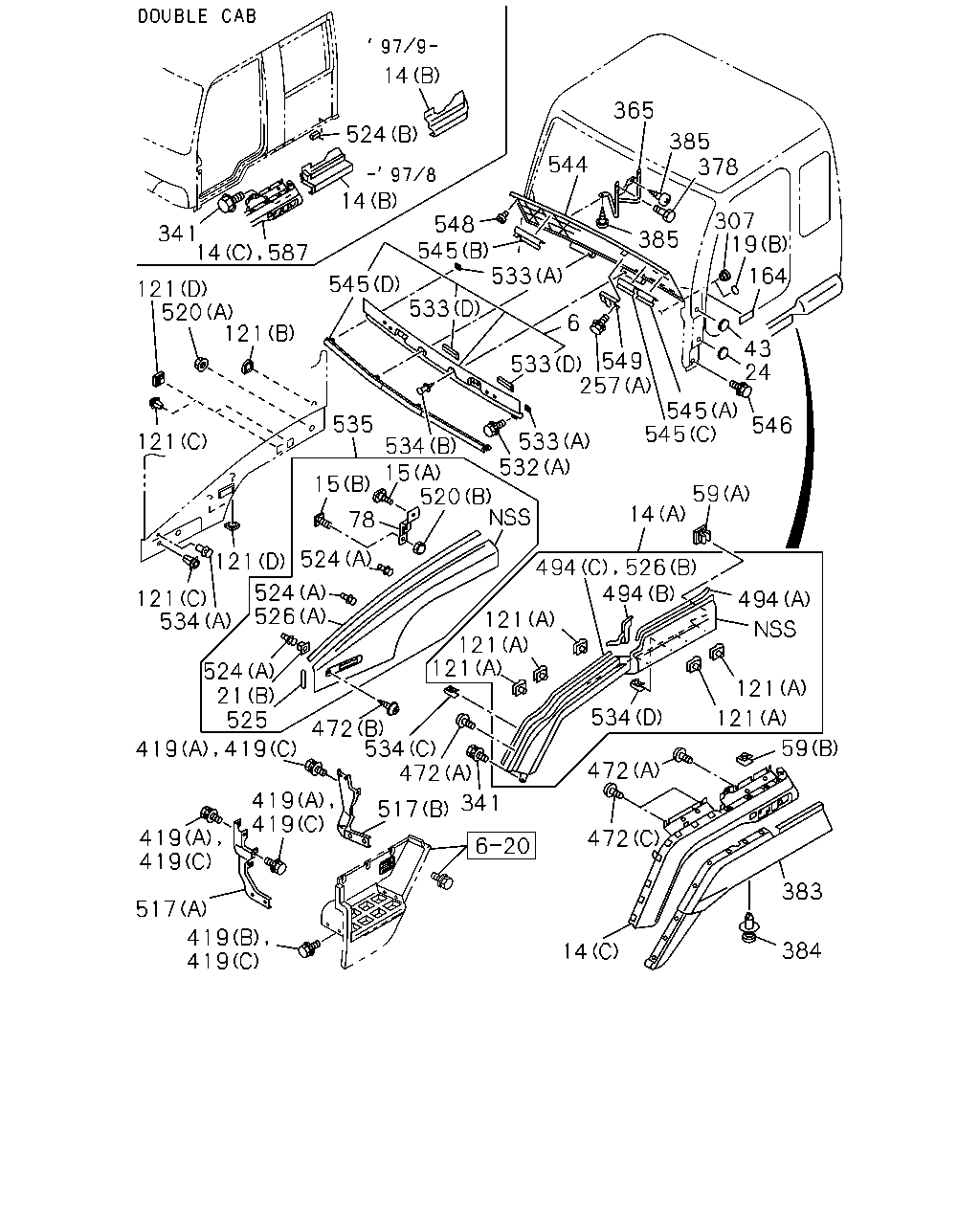

14 365 524 385 378 544 14 307 19 548 545 533 341 385 164 545 533 121 520 6 121 43 24 533 549 257 545 545 535 546 533 532 121 534 15 520 78 15 59 14 524 121 494 524 526 121 534 494 121 121 121 524 21 525 121 534 121 472 534 472 59 419 472 419 419 341 517 419 419 472 383 517 419 419 384 14 14 587 419 494 526

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PANEL; FRONT	1-65481-556-2	01	1	9510-9807	●	●
6	PANEL; FRONT	1-65481-744-1	01	1	9808-0004	●	●
6	PANEL; FRONT	1-65481-744-2	01	1	0005-	●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (C)	1-71996-149-5	01	1	9510-9703	●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (C) GRAY	1-71996-178-1	01	1	9704-	●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (C)	1-71996-148-4	01	1	9510-9703	●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (C) GRAY	1-71996-177-1	01	1	9704-	●
14	FENDER; FRT (B)	1-65481-547-2	01	1	9510-9708		●
14	FENDER; FRT (B)	1-65481-782-0	01	1	9709-0004		●
14	FENDER; FRT (A)	1-65481-668-0	01	1	9510-0004		●
14	FENDER; FRT (B)	1-65481-546-2	01	1	9510-9708		●
14	FENDER; FRT (B)	1-65481-781-0	01	1	9709-0004		●
14	FENDER; FRT (A)	1-65481-667-0	01	1	9510-9802		●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (A)	1-65481-638-1	01	1	9510-0209	●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (A) WHITE	1-65482-045-0	01	1	0210-	●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (A)	1-65481-637-1	01	1	9510-0209	●
14	FENDER; FRT FRONT FENDER WIDE<SA4> (A) WHITE	1-65482-044-0	01	1	0210-	●
14	FENDER; FRT EXC. FRONT FENDER WIDE<SA4> (A) WHITE	1-65481-447-1	01	1	9510-0209	●
14	FENDER; FRT EXC. FRONT FENDER WIDE<SA4> (A) WHITE	1-65482-023-0	01	1	0210-	●
14	FENDER; FRT EXC. FRONT FENDER WIDE<SA4> (A) WHITE	1-65481-446-1	01	1	9510-0209	●
14	FENDER; FRT EXC. FRONT FENDER WIDE<SA4> (A) WHITE	1-65482-022-0	01	1	0210-	●
14	FENDER; FRT (A)	1-65481-667-0	01	1	9803-0004		●
14	FENDER; FRT (C)	1-71996-164-0	01	1	9607-9703		●
14	FENDER; FRT (C)	1-71996-182-1	01	1	9704-0004		●
14	FENDER; FRT (C)	1-71996-163-0	01	1	9607-9703		●
14	FENDER; FRT (C)	1-71996-181-1	01	1	9704-0004		●
15	BOLT; FENDER (A) M6X7	1-71268-294-0	02	1	9510-0004	●	●
15	BOLT; FENDER (A) M6X7	1-71268-294-0	02	1	0005-	●
15	BOLT; FENDER (B) M6X14 SQUARE HEAD	1-71268-300-1	02	1	9510-0004	●	●
15	BOLT; FENDER (B) M6X14 SQUARE HEAD	1-71268-300-1	02	1	0005-	●
19	SEAL; FRT SIDE PANEL (C)	1-71996-102-1	01	1	9510-	●
19	SEAL; FRT SIDE PANEL (C)	1-71996-101-1	01	1	9510-	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-807-3	01	1	9510-0004	●	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-807-4	01	1	0005-	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-3	01	1	9510-0004	●	●
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-4	01	1	0005-	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-0004	●	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0005-	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9510-0004	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0005-	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9510-0004	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0005-	●
24	SEAL; FRT PANEL LWR DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	04	1	9510-9601	●
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	04	1	9510-9601		●
24	SEAL; FRT PANEL LWR FRONT FENDER WIDE<SA4> DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	06	1	9602-9811	●
24	SEAL; FRT PANEL LWR DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	08	1	9812-0004	●
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	08	1	9812-0004		●
24	SEAL; FRT PANEL LWR DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	08	1	0005-	●
24	SEAL; FRT PANEL LWR DOOR WINDOW MANUAL CONT<SKF> EXC. FRONT FENDER WIDE<SA4> OD=25 BLACK	1-76798-019-0	04	1	9602-9811	●
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	04	1	9602-9811		●
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	02	1	9510-9903	●
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	04	1	9904-	●
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9510-0004	●	●
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	0005-	●
59	GROMMET; SCREW AUSTRALIA EQUIPMENT(RR3) EXC. FRONT FENDER WIDE<SA4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9510-9708	●
59	GROMMET; SCREW (A) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9510-9708		●
59	GROMMET; SCREW (A) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9510-9708		●
59	GROMMET; SCREW (A) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9709		●
59	GROMMET; SCREW (A) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9709		●
59	GROMMET; SCREW (A) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9710-9802		●
59	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B)	8-94279-723-0	03	1	9510-9705	●
59	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B)	8-94279-723-0	02	1	9706-0405	●
59	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B)	8-94279-723-0	02	1	0406-	●
59	GROMMET; SCREW (A) D=8.6X7.7 L=7.5	1-09983-177-0	04	1	9710-0004		●
78	BRACKET; FENDER	1-71268-323-0	01	1	9510-0004	●	●
78	BRACKET; FENDER	1-71268-323-0	01	1	0005-	●
78	BRACKET; FENDER	1-71268-322-0	01	1	9510-0004	●	●
78	BRACKET; FENDER	1-71268-322-0	01	1	0005-	●
121	GROMMET; FENDER (A)	8-94279-723-0	16	1	9510-	●
121	GROMMET; FENDER (B)	1-09983-162-0	02	1	9510-0004	●	●
121	GROMMET; FENDER (B)	1-09983-162-0	02	1	0005-1009	●
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9510-9601	●	●
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	12	1	9602-9603	●	●
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9604-0004	●	●
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0005-0304	●
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	12	1	0305-	●
121	GROMMET; FENDER (D) 14.5X14.5 BLACK	8-94279-714-0	10	1	9604-0004	●	●
121	GROMMET; FENDER (D) 14.5X14.5 BLACK	8-94279-714-0	10	1	0005-0304	●
121	GROMMET; FENDER (A)	8-94279-723-0	06	1	9510-0004		●
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	9510-0004	●	●
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	0005-	●
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9510-0004	●
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9510-0004		●
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904	●
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9510-0004	●	●
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	0005-0411	●
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	0412-	●
307	GROMMET; FRT PANEL OD=44	8-94279-727-0	03	1	9510-9703	●	●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-9606		●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	8-94279-203-0	12	1	9607-9708		●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	8-94279-203-0	14	1	9709-0004		●
365	SUPPORT; FENDER FRONT FENDER WIDE<SA4>	1-71996-147-1	01	1	9510-	●
378	BOLT; SUPPORT FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9510-	●
383	GUARD; MUD,FENDER LWR EXC. FRONT FENDER WIDE<SA4>	1-71996-062-3	01	1	9510-	●
383	GUARD; MUD,FENDER LWR EXC. FRONT FENDER WIDE<SA4>	1-71996-061-3	01	1	9510-	●
384	CLIP; FENDER LWR EXC. FRONT FENDER WIDE<SA4> D8X13.5	1-09987-248-1	06	1	9510-	●
385	SCREW; FENDER LWR FRONT FENDER WIDE<SA4> M6X22	1-65481-386-0	02	1	9510-9601	●
385	SCREW; FENDER LWR FRONT FENDER WIDE<SA4> M6X30	1-65481-387-0	02	1	9510-9601	●
385	SCREW; FENDER LWR FRONT FENDER WIDE<SA4> M6X30	1-65481-387-0	04	1	9602-	●
385	SCREW; FENDER LWR EXC. FRONT FENDER WIDE<SA4> M6X30	1-65481-387-0	01	1	9809-	●
419	BOLT; STEP (B) M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	0010-0204	●
419	BOLT; STEP (B) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0205-0301	●
419	BOLT; STEP (B) M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	0302-	●
419	BOLT; STEP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	18	1	9510-0004	●	●
419	BOLT; STEP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	18	1	0005-0009	●
419	BOLT; STEP (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	0010-0904	●
419	BOLT; STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	10	1	0905-	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (C) M6X22	1-65481-386-0	21	1	9510-9601	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (C) M6X25	1-65481-736-0	04	1	9602-9606	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (C) M6X25	1-65481-736-0	04	1	9607-0004	●
472	SCREW; FENDER TO CAB (C) M6X25	1-65481-736-0	04	1	9607-0004		●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (C) M6X25	1-65481-736-0	04	1	0005-	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X30	1-65481-387-0	16	1	9510-9601	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X30	1-65481-387-0	27	1	9602-9602	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X30	1-65481-387-0	33	1	9603-9606	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X30	1-65481-387-0	34	1	9607-9607	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X30	1-65481-387-0	32	1	9608-9802	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X30	1-65481-387-0	28	1	9803-9804	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X30	1-65481-387-0	26	1	9805-	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X22	1-65481-386-0	06	1	9602-9602	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X22	1-65481-386-0	02	1	9607-9802	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X22	1-65481-386-0	07	1	9803-9804	●
472	SCREW; FENDER TO CAB FRONT FENDER WIDE<SA4> (A) M6X22	1-65481-386-0	08	1	9805-	●
472	SCREW; FENDER TO CAB EXC. FRONT FENDER WIDE<SA4> (A) M6X22	1-65481-386-0	17	1	9510-	●
472	SCREW; FENDER TO CAB (B) M5X20	5-09981-102-0	02	1	9510-9706	●	●
472	SCREW; FENDER TO CAB (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	9707-0004	●	●
472	SCREW; FENDER TO CAB (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0005-	●
472	SCREW; FENDER TO CAB (A) M6X22	1-65481-386-0	12	1	9510-9606		●
472	SCREW; FENDER TO CAB (A) M6X22	1-65481-386-0	08	1	9510-9606		●
472	SCREW; FENDER TO CAB (A) M6X30	1-65481-387-0	12	1	9607-0004		●
494	FINISHER; FENDER (A)	1-71998-999-0	02	1	9510-	●
494	FINISHER; FENDER (C)	1-71998-900-3	02	1	9510-0004	●	●
494	FINISHER; FENDER (C)	1-71998-900-3	02	1	0005-0610	●
494	FINISHER; FENDER (C)	1-71907-641-0	02	1	0611-	●
494	FINISHER; FENDER (B)	1-71907-181-4	01	1	9510-0004	●	●
494	FINISHER; FENDER (B)	1-71907-181-4	01	1	0005-	●
494	FINISHER; FENDER (B)	1-71907-180-4	01	1	9510-0004	●	●
494	FINISHER; FENDER (B)	1-71907-180-4	01	1	0005-	●
517	SUPPORT; STEP PANEL (A)	1-71998-780-5	01	1	9510-0004	●	●
517	SUPPORT; STEP PANEL (A)	1-71998-780-5	01	1	0005-	●
517	SUPPORT; STEP PANEL (B)	1-71998-782-2	01	1	9510-9512	●	●
517	SUPPORT; STEP PANEL (B)	1-71996-083-3	01	1	9601-0004	●	●
517	SUPPORT; STEP PANEL (B)	1-71996-083-4	01	1	0005-	●
517	SUPPORT; STEP PANEL (A)	1-71998-779-5	01	1	9510-0004	●	●
517	SUPPORT; STEP PANEL (A)	1-71998-779-5	01	1	0005-	●
517	SUPPORT; STEP PANEL (B)	1-71998-781-2	01	1	9510-9512	●	●
517	SUPPORT; STEP PANEL (B)	1-71996-082-1	01	1	9601-0004	●	●
517	SUPPORT; STEP PANEL (B)	1-71996-082-2	01	1	0005-	●
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0004	●	●
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-	●
520	NUT; FENDER (B) M6	1-09984-189-0	02	1	9510-0004	●	●
520	NUT; FENDER (B) M6	1-09984-189-0	02	1	0005-	●
524	CLIP; FENDER COVER (A) D5.4X8	1-09983-174-0	08	1	9510-9803	●	●
524	CLIP; FENDER COVER (A) D5.4X8	1-09983-154-0	08	1	9804-0004	●	●
524	CLIP; FENDER COVER (A) D5.4X8	1-09983-154-0	08	1	0005-	●
524	CLIP; FENDER COVER (B)	1-71997-509-2	02	1	9510-9809		●
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	9510-0004	●	●
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	0005-0409	●
525	SEAL; FENDER 10X145	1-71267-342-0	02	1	0410-	●
526	FINISHER; FENDER (B)	1-71998-900-3	04	1	9801-0207	●
526	FINISHER; FENDER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	1-71998-900-3	04	1	0208-0209	●
526	FINISHER; FENDER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	1-71998-900-3	02	1	0210-0610	●
526	FINISHER; FENDER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	1-71907-641-0	02	1	0611-	●
526	FINISHER; FENDER (A)	1-71268-276-1	01	1	9510-0004	●	●
526	FINISHER; FENDER (A)	1-71268-276-1	01	1	0005-0209	●
526	FINISHER; FENDER (A)	1-71268-275-1	01	1	9510-0004	●	●
526	FINISHER; FENDER (A)	1-71268-275-1	01	1	0005-0209	●
526	FINISHER; FENDER (A)	1-71268-275-1	02	1	0210-	●
532	BOLT; FRT PANEL (A) M8X20	1-79198-002-0	02	1	9510-0004	●	●
532	BOLT; FRT PANEL (A) M8X20	1-79198-002-0	02	1	0005-	●
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9510-0004	●	●
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0005-	●
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	03	1	0005-	●
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	9510-0004	●	●
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-3	02	1	0005-	●
533	SEAL; FRT PANEL (C) OD=36 BLACK	1-76798-018-0	13	1	9510-9806	●	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	13	1	9807-0004	●	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	13	1	0005-	●
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9510-0004	●	●
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	0005-	●
534	FASTENER FRONT FENDER WIDE<SA4> (C)	1-71996-035-1	06	1	9510-9602	●
534	FASTENER (C)	1-71996-035-1	06	1	9510-9602		●
534	FASTENER FRONT FENDER WIDE<SA4> (C)	1-71996-035-1	02	1	9603-9605	●
534	FASTENER (C)	1-71996-035-1	02	1	9603-9605		●
534	FASTENER FRONT FENDER WIDE<SA4> (C)	1-71996-035-1	04	1	9606-0004	●
534	FASTENER (C)	1-71996-035-1	04	1	9606-0004		●
534	FASTENER FRONT FENDER WIDE<SA4> (C)	1-71996-035-1	04	1	0005-0404	●
534	FASTENER FRONT FENDER WIDE<SA4> (C)	1-71996-035-1	06	1	0405-	●
534	FASTENER FRONT FENDER WIDE<SA4> (D)	1-71996-035-1	20	1	9510-	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-019-0	08	1	9510-9803	●	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-020-1	08	1	9804-0001	●	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-0004	●	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0005-1302	●
534	FASTENER (A) ID=5.4 OD=6.8	8-98241-984-0	08	1	1303-	●
534	FASTENER (D)	1-71996-035-1	10	1	9510-0001	●	●
534	FASTENER (D)	1-71996-035-1	10	1	0002-0004		●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	9510-0004	●	●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0005-	●
535	FENDER; BLISTER WHITE	1-71268-361-2	01	1	9510-0004	●	●
535	FENDER; BLISTER WHITE	1-71268-361-3	01	1	0005-0209	●
535	FENDER; BLISTER WHITE	1-71268-429-0	01	1	0210-	●
535	FENDER; BLISTER WHITE	1-71268-360-2	01	1	9510-0004	●	●
535	FENDER; BLISTER WHITE	1-71268-360-3	01	1	0005-0209	●
535	FENDER; BLISTER WHITE	1-71268-428-0	01	1	0210-	●
544	LID; FRT FRONT PANEL CARGO FACE<NGD> MITRAS	1-71108-116-0	01	1	0007-0411	●
544	LID; FRT EXC. FRONT PANEL CARGO FACE<NGD>	1-71108-235-3	01	1	0005-	●
544	LID; FRT WHITE	1-71108-118-1	01	1	9704-9802	●	●
544	LID; FRT HITACHI CHEMICAL	1-71108-152-0	01	1	9803-0004	●	●
544	LID; FRT FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL	1-71108-152-0	01	1	0005-	●
545	SEAL; FRT LID (D)	1-71998-814-4	01	1	0005-	●
545	SEAL; FRT LID (D)	1-71998-814-3	02	1	9510-0004	●	●
545	SEAL; FRT LID (B)	1-71998-871-2	01	1	9510-9908	●	●
545	SEAL; FRT LID (B)	1-71996-253-1	01	1	9909-0004	●	●
545	SEAL; FRT LID (B)	1-71996-253-1	01	1	0005-0411	●
545	SEAL; FRT LID (B)	1-71996-253-1	01	1	0412-	●
545	SEAL; FRT LID (C)	1-71998-873-2	01	1	9510-9908	●	●
545	SEAL; FRT LID (C)	1-71996-255-0	01	1	9909-0004	●	●
545	SEAL; FRT LID (C)	1-71996-255-0	01	1	0005-0411	●
545	SEAL; FRT LID (C)	1-71996-255-0	01	1	0412-	●
545	SEAL; FRT LID (A) L=63	1-71998-963-2	01	1	9510-0004	●	●
545	SEAL; FRT LID (A) L=63	1-71998-963-2	01	1	0005-0411	●
545	SEAL; FRT LID (A) L=63	1-71998-963-2	01	1	0412-	●
546	PLUG; DUMMY HOLE OD=16 L=11	1-76378-155-0	02	1	9510-0004	●	●
546	PLUG; DUMMY HOLE OD=16 L=11	1-76378-155-0	02	1	0005-	●
548	STRIKER; FRT LID PANEL	1-79318-008-0	02	1	9510-0004	●	●
548	STRIKER; FRT LID PANEL	1-79318-008-0	02	1	0005-0411	●
548	STRIKER; FRT LID PANEL	1-79318-008-1	02	1	0412-	●
549	BRACKET; STOPPER,FRT LID	1-71108-033-4	01	1	9510-0004	●	●
549	BRACKET; STOPPER,FRT LID	1-71108-033-4	01	1	0005-0301	●
549	BRACKET; STOPPER,FRT LID	1-71108-358-0	01	1	0302-0411	●
549	BRACKET; STOPPER,FRT LID	1-71108-358-0	01	1	0412-	●
587	FENDER; WIDE	1-71996-098-1	01	1	9510-9606		●
587	FENDER; WIDE	1-71996-097-1	01	1	9510-9606		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
