Isuzu WW
▶
TRUCKS
▶
FSR
▶
10700 - FSR32,33(RHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶

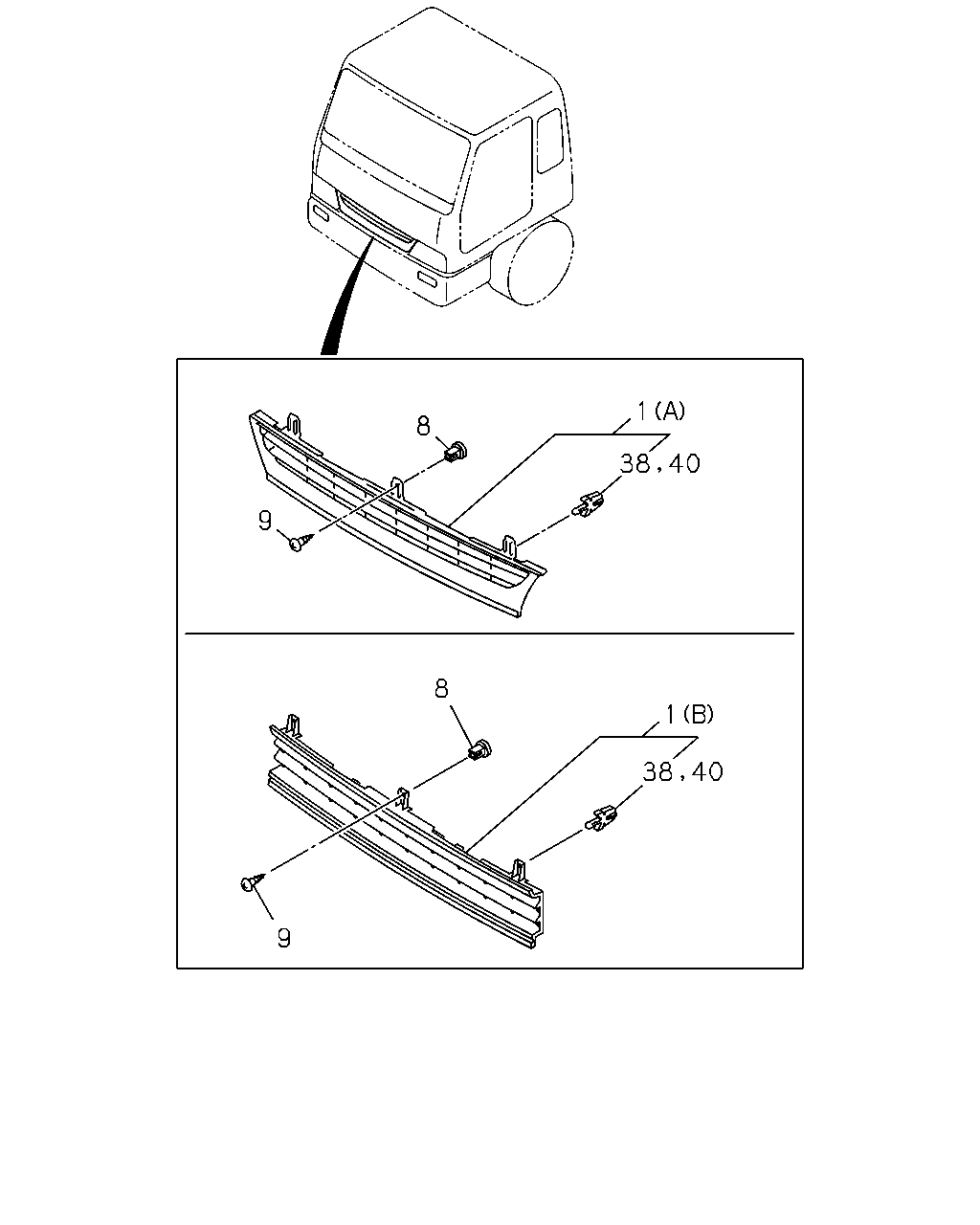

6-03 — RADIATOR GRILLE
(#64301) — 15 parça
Tümü
A - FSR5MF
B - FSR5WF
1
8
9
8
1
9
38
40
38
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GRILLE; RAD
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) BLACK
1-71118-766-1
01
1
9510-9709
●
1
GRILLE; RAD
HEADLAMPS RECTANGULAR<TR4> (B) BLACK
1-71118-766-1
01
1
9710-0004
●
1
GRILLE; RAD
EXC. FRONT PANEL CARGO FACE<NGD> (A) WHITE
1-71118-818-1
01
1
0005-
●
1
GRILLE; RAD
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)
1-71118-702-3
01
1
9510-0004
●
1
GRILLE; RAD
(A)
1-71118-702-3
01
1
9510-0004
●
1
GRILLE; RAD
FRONT PANEL CARGO FACE<NGD> (A)
1-71118-702-3
01
1
0005-
●
8
GROMMET; SCREW,RAD GRILLE
8-94279-704-0
01
1
9510-0004
●
●
8
GROMMET; SCREW,RAD GRILLE
8-94279-704-0
01
1
0005-
●
9
SCREW; RAD GRILLE
M5X16 W/PL WASHER TAPPING
8-94279-123-0
01
1
9510-0004
●
●
9
SCREW; RAD GRILLE
M5X16 W/PL WASHER TAPPING
8-94279-123-0
01
1
0005-
●
38
CLIP; GRILLE
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> BLACK
8-94218-027-0
06
1
9510-9709
●
38
CLIP; GRILLE
HEADLAMPS RECTANGULAR<TR4> BLACK
8-94218-027-0
06
1
9710-0004
●
40
CLIP; RAD GRILLE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> BLACK
8-94218-027-0
06
1
9510-0004
●
40
CLIP; RAD GRILLE
BLACK
8-94218-027-0
06
1
9510-0004
●
40
CLIP; RAD GRILLE
BLACK
8-94218-027-0
06
1
0005-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
