◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#64300) — 200 parça

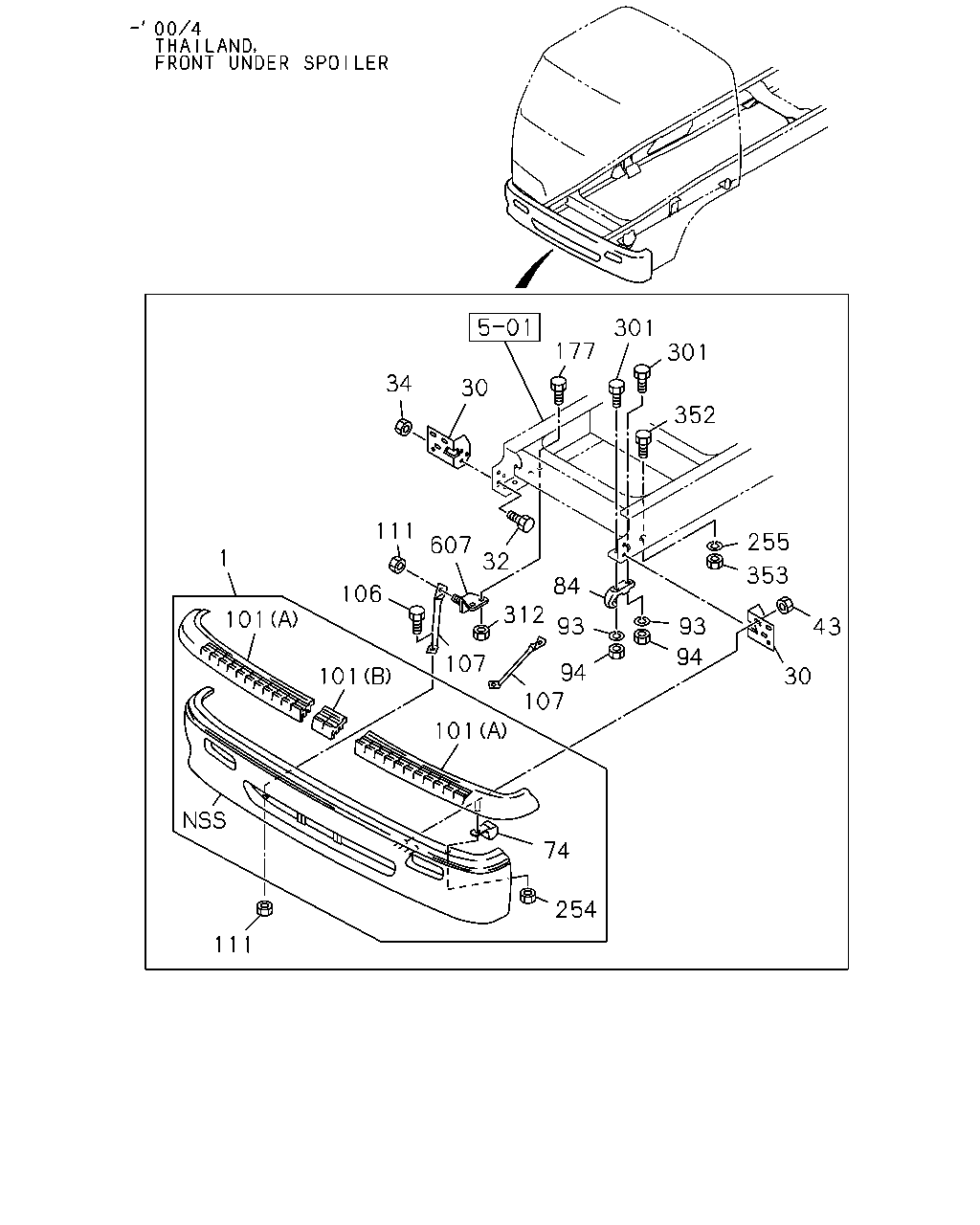

çizim 125805
301 177 301 34 30 352 111 255 607 1 32 353 84 106 101 93 93 43 94 107 94 107 101 30 101 74 254 111 312
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
THAILAND EQUIPMENT(PM9) WHITE 		1-71210-661-1 01 1 9510-9708 ●
1 BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-1 01 1 9709-9802 ● ●
1 BUMPER ASM; FRT
THAILAND EQUIPMENT(PM9) WHITE 		1-71210-661-1 01 1 9709-9802 ●
1 BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-1 01 1 9803-0004 ● ●
1 BUMPER ASM; FRT
EXC. THAILAND EQUIPMENT(PM9) WHITE 		1-71210-583-3 01 1 9510-9708 ●
1 BUMPER ASM; FRT
WHITE 		1-71210-583-3 01 1 9510-9708 ●
1 BUMPER ASM; FRT
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9709-9802 ●
1 BUMPER ASM; FRT
EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9709-9802 ●
1 BUMPER ASM; FRT
EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9803-0004 ● ●
1 BUMPER ASM; FRT
WHITE 		1-71210-583-4 01 1 0005-0403 ●
1 BUMPER ASM; FRT
6HK1 TCC ENG(81L) 		1-71210-941-1 01 1 0406- ●
1 BUMPER ASM; FRT
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) WHITE 		1-71210-583-4 01 1 0406- ●
30 BRACKET; FRT BUMPER
6HK1 TCC ENG(81L) 		1-71230-481-0 01 1 0406- ●
30 BRACKET; FRT BUMPER
6HK1 TCC ENG(81L) 		1-71230-482-0 01 1 0406- ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9510-0004 ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 0005-0403 ●
30 BRACKET; FRT BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-71230-208-3 01 1 0404- ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9510-0004 ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 0005-0111 ●
30 BRACKET; FRT BUMPER 1-71230-568-0 01 1 0112-0403 ●
30 BRACKET; FRT BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-71230-568-1 01 1 0404- ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9510-9606 ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0004 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0005-0512 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9510-9606 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0004 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0005-0602 ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
43 NUT; BRKT TO BUMPER
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-110-0 06 1 9510-9608 ●
43 NUT; BRKT TO BUMPER
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 06 1 9609-9708 ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9709-9802 ● ●
43 NUT; BRKT TO BUMPER
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 06 1 9709-9802 ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9803-0004 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
43 NUT; BRKT TO BUMPER
EXC. THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ●
43 NUT; BRKT TO BUMPER
EXC. THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 04 1 9609-9708 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 9609-9708 ●
43 NUT; BRKT TO BUMPER
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9709-9802 ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9709-9802 ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9510-0004 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 0005- ●
84 HOOK
THAILAND EQUIPMENT(PM9) 		1-57181-003-5 01 1 9510-9708 ●
84 HOOK
FRONT UNDER SPOILER<VP1> 		1-57181-003-5 01 1 9709-9802 ● ●
84 HOOK
THAILAND EQUIPMENT(PM9) 		1-57181-003-5 01 1 9709-9802 ●
84 HOOK
FRONT UNDER SPOILER<VP1> 		1-57181-003-5 01 1 9803-0004 ● ●
84 HOOK
EXC. THAILAND EQUIPMENT(PM9) 		1-57181-017-2 01 1 9510-9708 ●
84 HOOK 1-57181-017-2 01 1 9510-9708 ●
84 HOOK
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> 		1-57181-017-2 01 1 9709-9802 ●
84 HOOK
EXC. FRONT UNDER SPOILER<VP1> 		1-57181-017-2 01 1 9709-9802 ●
84 HOOK
EXC. FRONT UNDER SPOILER<VP1> 		1-57181-017-2 01 1 9803-0004 ● ●
84 HOOK 1-57181-017-2 01 1 0005- ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-514-0 02 1 9510-0004 ● ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-514-0 02 1 0005-0603 ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-514-0 02 1 0604- ●
94 NUT; HOOK
M14 		9-99110-414-0 02 1 9510-0004 ● ●
94 NUT; HOOK
M14 		9-99110-414-0 02 1 0005-0512 ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0601- ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 0005- ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 0005- ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 0005- ●
106 BOLT; AIR DAM
THAILAND EQUIPMENT(PM9) M10X16 FLANGE 		0-28081-016-0 02 1 9510-9602 ●
106 BOLT; AIR DAM
THAILAND EQUIPMENT(PM9) M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ●
106 BOLT; AIR DAM
THAILAND EQUIPMENT(PM9) M10X25 FLANGE 		0-28681-025-0 02 1 9607-9802 ●
106 BOLT; AIR DAM
FRONT UNDER SPOILER<VP1> M10X25 FLANGE 		0-28681-025-0 02 1 9803-0004 ● ●
107 STAY; AIR DAM
THAILAND EQUIPMENT(PM9) 		1-71260-127-1 01 1 9510-9802 ●
107 STAY; AIR DAM
THAILAND EQUIPMENT(PM9) 		1-71260-126-1 01 1 9510-9802 ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> 		1-71260-130-1 01 1 9803-0004 ● ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> 		1-71260-129-1 01 1 9803-0004 ● ●
111 NUT; STAY
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ●
111 NUT; STAY
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 04 1 9609-9708 ●
111 NUT; STAY
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9709-9802 ● ●
111 NUT; STAY
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 04 1 9709-9802 ●
111 NUT; STAY
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ●
177 BOLT
THAILAND EQUIPMENT(PM9) M10X30 FLANGE 		0-28081-030-0 04 1 9510-9606 ●
177 BOLT
THAILAND EQUIPMENT(PM9) M10X35 FLANGE 		0-28681-035-0 04 1 9607-9802 ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9510-0004 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 0005-0602 ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 11 1 0603- ●
255 WASHER; LK
THAILAND EQUIPMENT(PM9) ID=14.2 		9-09150-514-0 01 1 9510-9708 ●
255 WASHER; LK
FRONT UNDER SPOILER<VP1> ID=14.2 		9-09150-514-0 01 1 9709-9802 ● ●
255 WASHER; LK
THAILAND EQUIPMENT(PM9) ID=14.2 		9-09150-514-0 01 1 9709-9802 ●
255 WASHER; LK
FRONT UNDER SPOILER<VP1> ID=14.2 		9-09150-514-0 01 1 9803-0004 ● ●
301 BOLT; HOOK TO FRAME
THAILAND EQUIPMENT(PM9) M14X50 		0-10811-450-0 01 1 9510-9708 ●
301 BOLT; HOOK TO FRAME
FRONT UNDER SPOILER<VP1> M14X50 		0-10811-450-0 01 1 9709-9802 ● ●
301 BOLT; HOOK TO FRAME
THAILAND EQUIPMENT(PM9) M14X50 		0-10811-450-0 01 1 9709-9802 ●
301 BOLT; HOOK TO FRAME
FRONT UNDER SPOILER<VP1> M14X50 		0-10811-450-0 01 1 9803-0004 ● ●
301 BOLT; HOOK TO FRAME
EXC. THAILAND EQUIPMENT(PM9) M14X70 		0-10811-470-0 01 1 9510-9708 ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10811-470-0 01 1 9510-9708 ●
301 BOLT; HOOK TO FRAME
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> M14X70 		0-10811-470-0 01 1 9709-9802 ●
301 BOLT; HOOK TO FRAME
EXC. FRONT UNDER SPOILER<VP1> M14X70 		0-10811-470-0 01 1 9709-9802 ●
301 BOLT; HOOK TO FRAME
EXC. FRONT UNDER SPOILER<VP1> M14X70 		0-10811-470-0 01 1 9803-0004 ● ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10811-470-0 01 1 0005-0512 ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10861-470-0 01 1 0601- ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10811-460-0 01 1 9510-0004 ● ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10811-460-0 01 1 0005-0512 ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 01 1 0601- ●
312 NUT; BRKT
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-110-0 04 1 9510-9606 ●
312 NUT; BRKT
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ●
352 BOLT; FRAME
THAILAND EQUIPMENT(PM9) M14X40 		0-20801-440-0 01 1 9510-9708 ●
352 BOLT; FRAME
FRONT UNDER SPOILER<VP1> M14X40 		0-20801-440-0 01 1 9709-9802 ● ●
352 BOLT; FRAME
THAILAND EQUIPMENT(PM9) M14X40 		0-20801-440-0 01 1 9709-9802 ●
352 BOLT; FRAME
FRONT UNDER SPOILER<VP1> M14X40 		0-20801-440-0 01 1 9803-0004 ● ●
353 NUT; FRAME
THAILAND EQUIPMENT(PM9) M14 		9-99110-414-0 01 1 9510-9708 ●
353 NUT; FRAME
FRONT UNDER SPOILER<VP1> M14 		9-99110-414-0 01 1 9709-9802 ● ●
353 NUT; FRAME
THAILAND EQUIPMENT(PM9) M14 		9-99110-414-0 01 1 9709-9802 ●
353 NUT; FRAME
FRONT UNDER SPOILER<VP1> M14 		9-99110-414-0 01 1 9803-0004 ● ●
607 BRACKET
THAILAND EQUIPMENT(PM9) 		1-71260-128-0 02 1 9510-9802 ●

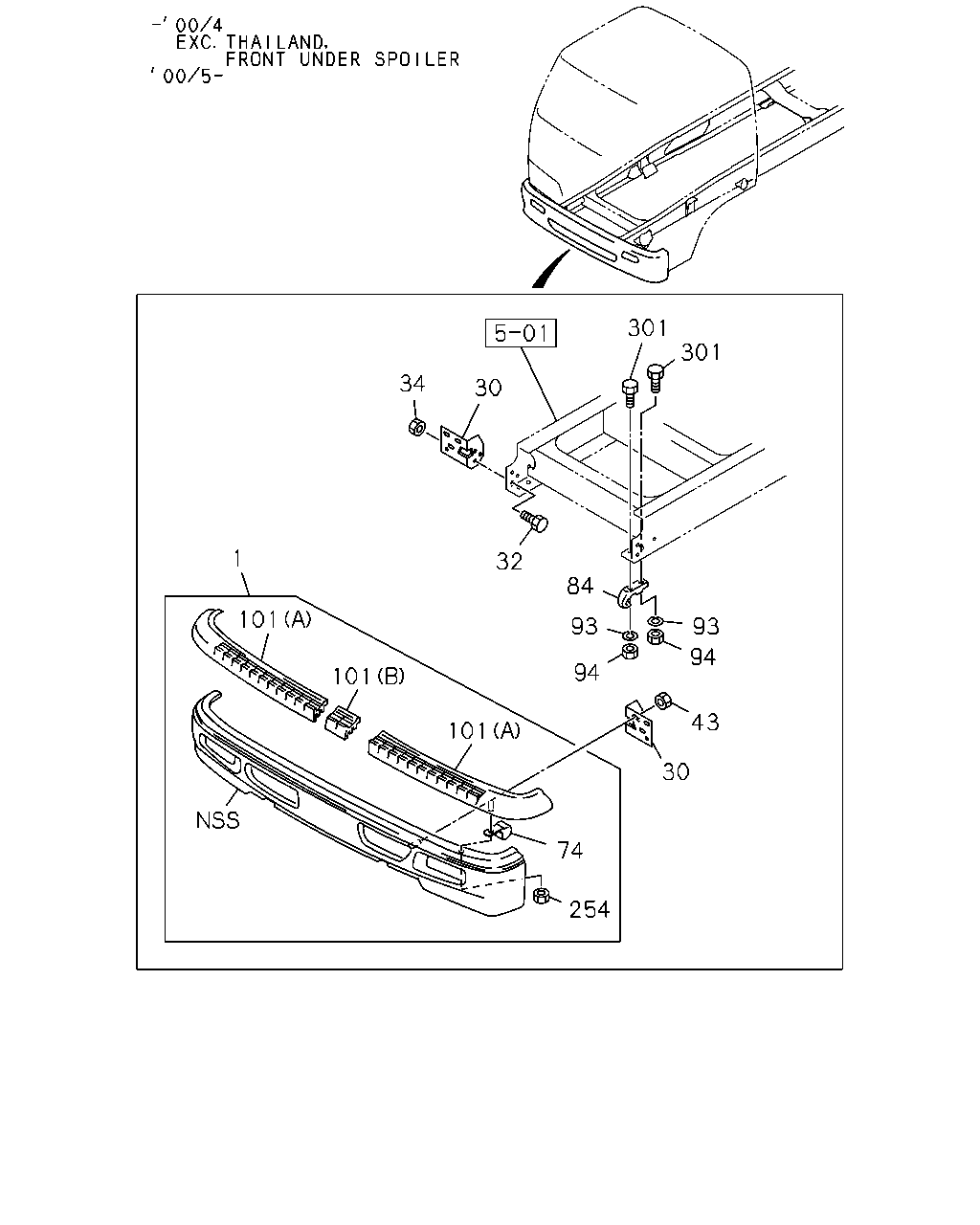

çizim 126463
301 301 34 30 1 32 84 101 93 93 94 94 101 43 101 30 74 254
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
THAILAND EQUIPMENT(PM9) WHITE 		1-71210-661-1 01 1 9510-9708 ●
1 BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-1 01 1 9709-9802 ● ●
1 BUMPER ASM; FRT
THAILAND EQUIPMENT(PM9) WHITE 		1-71210-661-1 01 1 9709-9802 ●
1 BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-1 01 1 9803-0004 ● ●
1 BUMPER ASM; FRT
EXC. THAILAND EQUIPMENT(PM9) WHITE 		1-71210-583-3 01 1 9510-9708 ●
1 BUMPER ASM; FRT
WHITE 		1-71210-583-3 01 1 9510-9708 ●
1 BUMPER ASM; FRT
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9709-9802 ●
1 BUMPER ASM; FRT
EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9709-9802 ●
1 BUMPER ASM; FRT
EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9803-0004 ● ●
1 BUMPER ASM; FRT
WHITE 		1-71210-583-4 01 1 0005-0403 ●
1 BUMPER ASM; FRT
6HK1 TCC ENG(81L) 		1-71210-941-1 01 1 0406- ●
1 BUMPER ASM; FRT
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) WHITE 		1-71210-583-4 01 1 0406- ●
30 BRACKET; FRT BUMPER
6HK1 TCC ENG(81L) 		1-71230-481-0 01 1 0406- ●
30 BRACKET; FRT BUMPER
6HK1 TCC ENG(81L) 		1-71230-482-0 01 1 0406- ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9510-0004 ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 0005-0403 ●
30 BRACKET; FRT BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-71230-208-3 01 1 0404- ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9510-0004 ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 0005-0111 ●
30 BRACKET; FRT BUMPER 1-71230-568-0 01 1 0112-0403 ●
30 BRACKET; FRT BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-71230-568-1 01 1 0404- ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9510-9606 ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0004 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0005-0512 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9510-9606 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0004 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0005-0602 ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
43 NUT; BRKT TO BUMPER
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-110-0 06 1 9510-9608 ●
43 NUT; BRKT TO BUMPER
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 06 1 9609-9708 ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9709-9802 ● ●
43 NUT; BRKT TO BUMPER
THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 06 1 9709-9802 ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9803-0004 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
43 NUT; BRKT TO BUMPER
EXC. THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ●
43 NUT; BRKT TO BUMPER
EXC. THAILAND EQUIPMENT(PM9) M10 FLANGE 		0-91150-210-0 04 1 9609-9708 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 9609-9708 ●
43 NUT; BRKT TO BUMPER
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9709-9802 ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9709-9802 ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9510-0004 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 0005- ●
84 HOOK
THAILAND EQUIPMENT(PM9) 		1-57181-003-5 01 1 9510-9708 ●
84 HOOK
FRONT UNDER SPOILER<VP1> 		1-57181-003-5 01 1 9709-9802 ● ●
84 HOOK
THAILAND EQUIPMENT(PM9) 		1-57181-003-5 01 1 9709-9802 ●
84 HOOK
FRONT UNDER SPOILER<VP1> 		1-57181-003-5 01 1 9803-0004 ● ●
84 HOOK
EXC. THAILAND EQUIPMENT(PM9) 		1-57181-017-2 01 1 9510-9708 ●
84 HOOK 1-57181-017-2 01 1 9510-9708 ●
84 HOOK
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> 		1-57181-017-2 01 1 9709-9802 ●
84 HOOK
EXC. FRONT UNDER SPOILER<VP1> 		1-57181-017-2 01 1 9709-9802 ●
84 HOOK
EXC. FRONT UNDER SPOILER<VP1> 		1-57181-017-2 01 1 9803-0004 ● ●
84 HOOK 1-57181-017-2 01 1 0005- ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-514-0 02 1 9510-0004 ● ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-514-0 02 1 0005-0603 ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-514-0 02 1 0604- ●
94 NUT; HOOK
M14 		9-99110-414-0 02 1 9510-0004 ● ●
94 NUT; HOOK
M14 		9-99110-414-0 02 1 0005-0512 ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0601- ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 0005- ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 0005- ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 0005- ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9510-0004 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 0005-0602 ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 11 1 0603- ●
301 BOLT; HOOK TO FRAME
THAILAND EQUIPMENT(PM9) M14X50 		0-10811-450-0 01 1 9510-9708 ●
301 BOLT; HOOK TO FRAME
FRONT UNDER SPOILER<VP1> M14X50 		0-10811-450-0 01 1 9709-9802 ● ●
301 BOLT; HOOK TO FRAME
THAILAND EQUIPMENT(PM9) M14X50 		0-10811-450-0 01 1 9709-9802 ●
301 BOLT; HOOK TO FRAME
FRONT UNDER SPOILER<VP1> M14X50 		0-10811-450-0 01 1 9803-0004 ● ●
301 BOLT; HOOK TO FRAME
EXC. THAILAND EQUIPMENT(PM9) M14X70 		0-10811-470-0 01 1 9510-9708 ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10811-470-0 01 1 9510-9708 ●
301 BOLT; HOOK TO FRAME
EXC. THAILAND EQUIPMENT(PM9),FRONT UNDER SPOILER<VP1> M14X70 		0-10811-470-0 01 1 9709-9802 ●
301 BOLT; HOOK TO FRAME
EXC. FRONT UNDER SPOILER<VP1> M14X70 		0-10811-470-0 01 1 9709-9802 ●
301 BOLT; HOOK TO FRAME
EXC. FRONT UNDER SPOILER<VP1> M14X70 		0-10811-470-0 01 1 9803-0004 ● ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10811-470-0 01 1 0005-0512 ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10861-470-0 01 1 0601- ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10811-460-0 01 1 9510-0004 ● ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10811-460-0 01 1 0005-0512 ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 01 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
