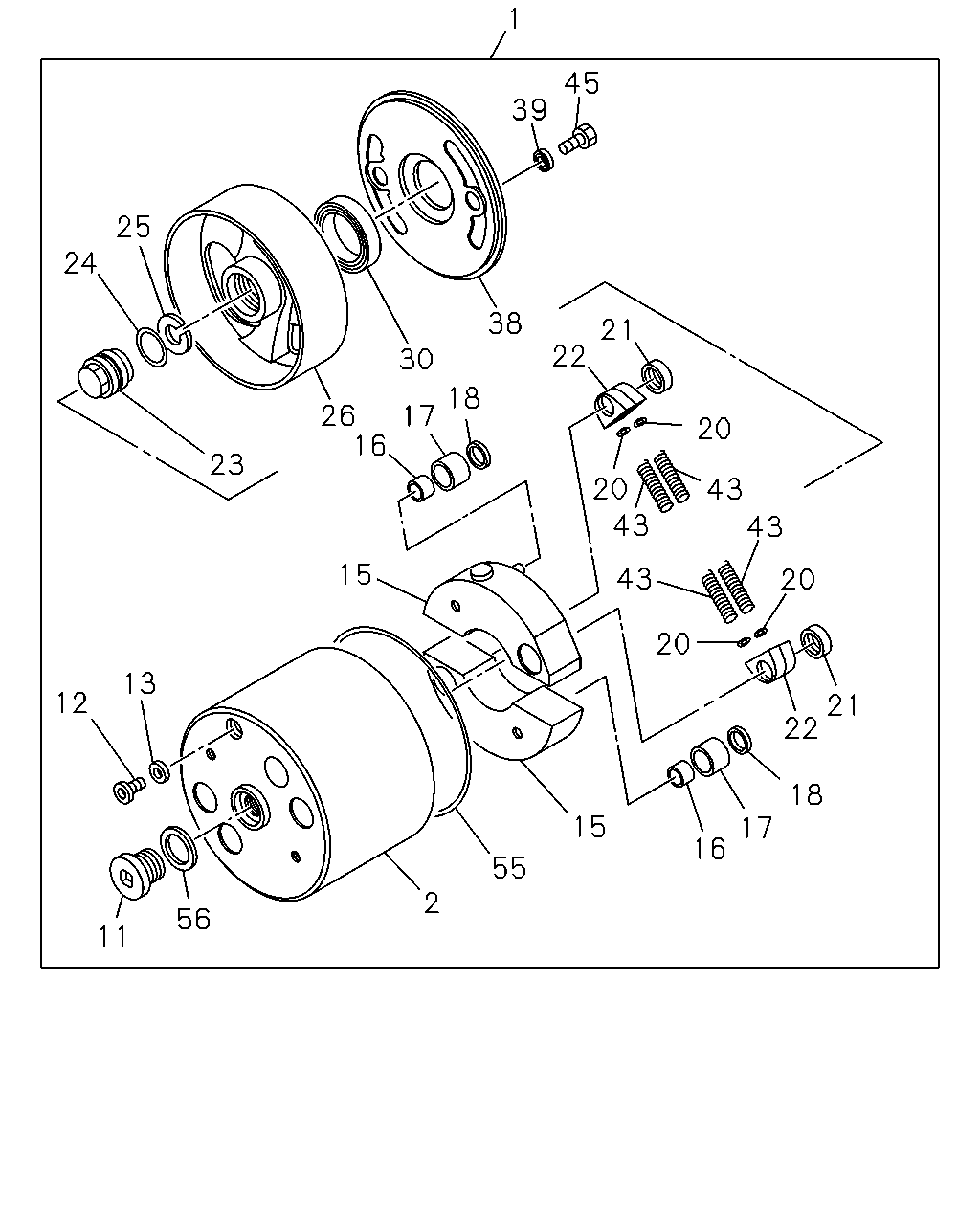

0-85 — AUTO TIMER; INJECTION PUMP (#643) — 49 parça

1 45 39 25 24 38 21 22 30 18 26 16 17 20 23 20 43 43 43 15 43 20 20 13 12 21 22 18 15 17 16 55 2 56 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94393-459-2	1-15740-408-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	1-15740-409-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1	1-15740-411-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: I = 8-94395-050-0	1-15740-447-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15741-032-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-454-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: C = 8-94393-466-0	1-15619-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15719-093-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 8-94395-050-0	1-15743-100-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1	1-15743-122-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	5-15749-051-1	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-455-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-034-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94393-459-2	1-15742-120-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1	1-15742-121-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 8-94395-050-0	1-15742-140-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-451-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-072-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15339-010-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	1-15749-563-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: I = 8-94395-050-0	1-15749-620-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1	1-15749-621-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 8-94393-459-2	1-15749-697-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-029-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-449-1	01	1	-
56	GASKET; CAP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15749-453-0	01	1	-
