Isuzu WW
▶
TRUCKS
▶
FSR
▶
10700 - FSR32,33(RHD)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

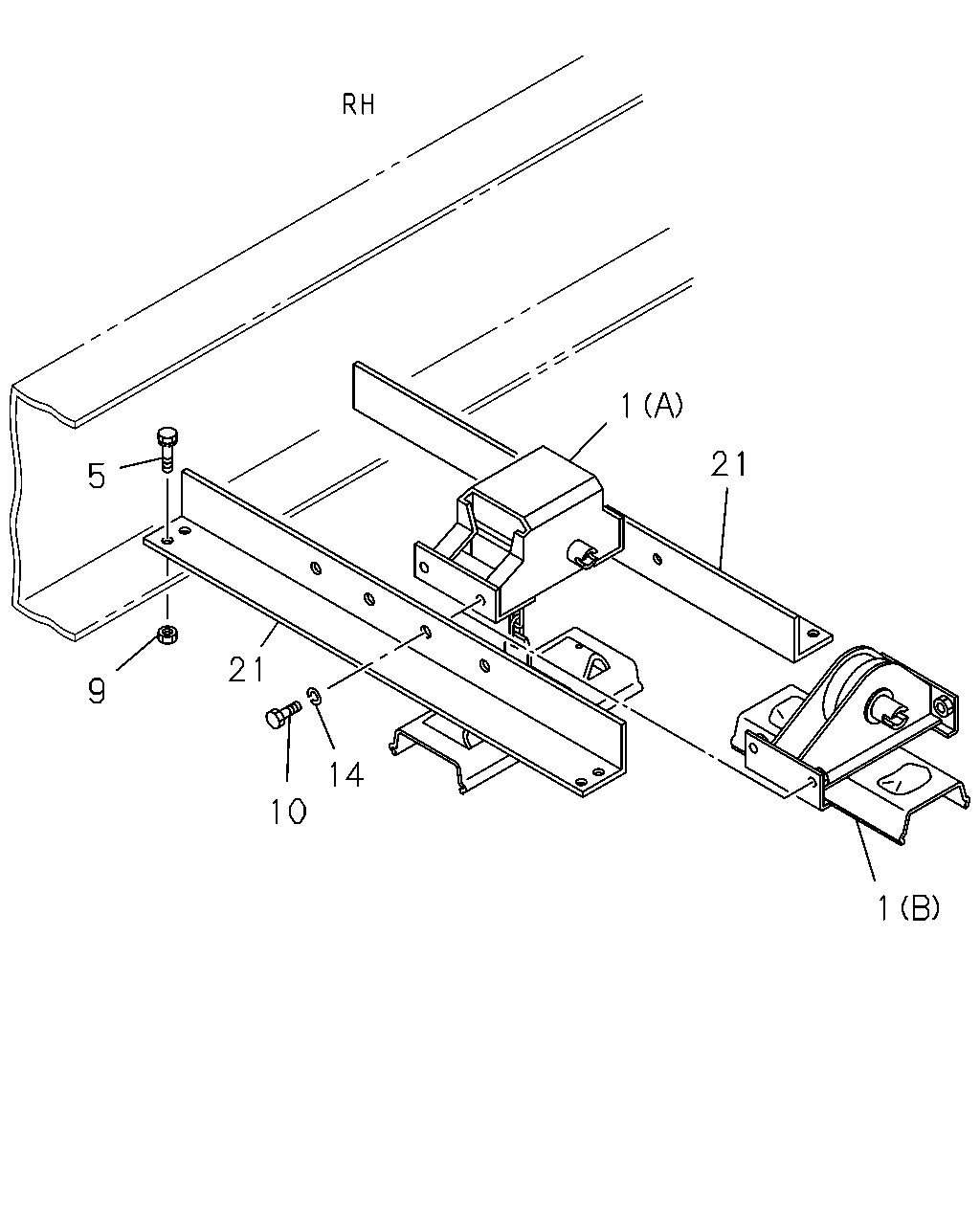

5-30 — SPARE TIRE CARRIER AND COVER
(#64299) — 19 parça
Tümü
A - FSR5MF
B - FSR5WF
1
21
5
21
9
14
10
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)
1-53630-147-2
01
1
9510-9608
●
●
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)
1-53630-208-1
01
1
9609-0004
●
●
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)
1-53630-208-3
01
1
0005-
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE
0-28681-030-0
08
1
9607-9608
●
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28081-025-0
08
1
9609-0004
●
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28081-025-0
08
1
0005-0512
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28051-025-0
08
1
0601-
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10
9-09110-510-0
08
1
9510-9606
●
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91150-210-0
08
1
9607-0004
●
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91150-210-0
08
1
0005-0602
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
0603-
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30
0-20801-630-0
04
1
9510-9608
●
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28681-230-0
04
1
9609-0004
●
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28681-230-0
04
1
0005-0512
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
0601-
●
14
WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> ID=16.2
9-09150-516-0
04
1
9510-9608
●
●
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-201-0
02
1
9510-9608
●
●
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-394-0
02
1
9609-0004
●
●
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-394-0
02
1
0005-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
