◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#64293) — 157 parça

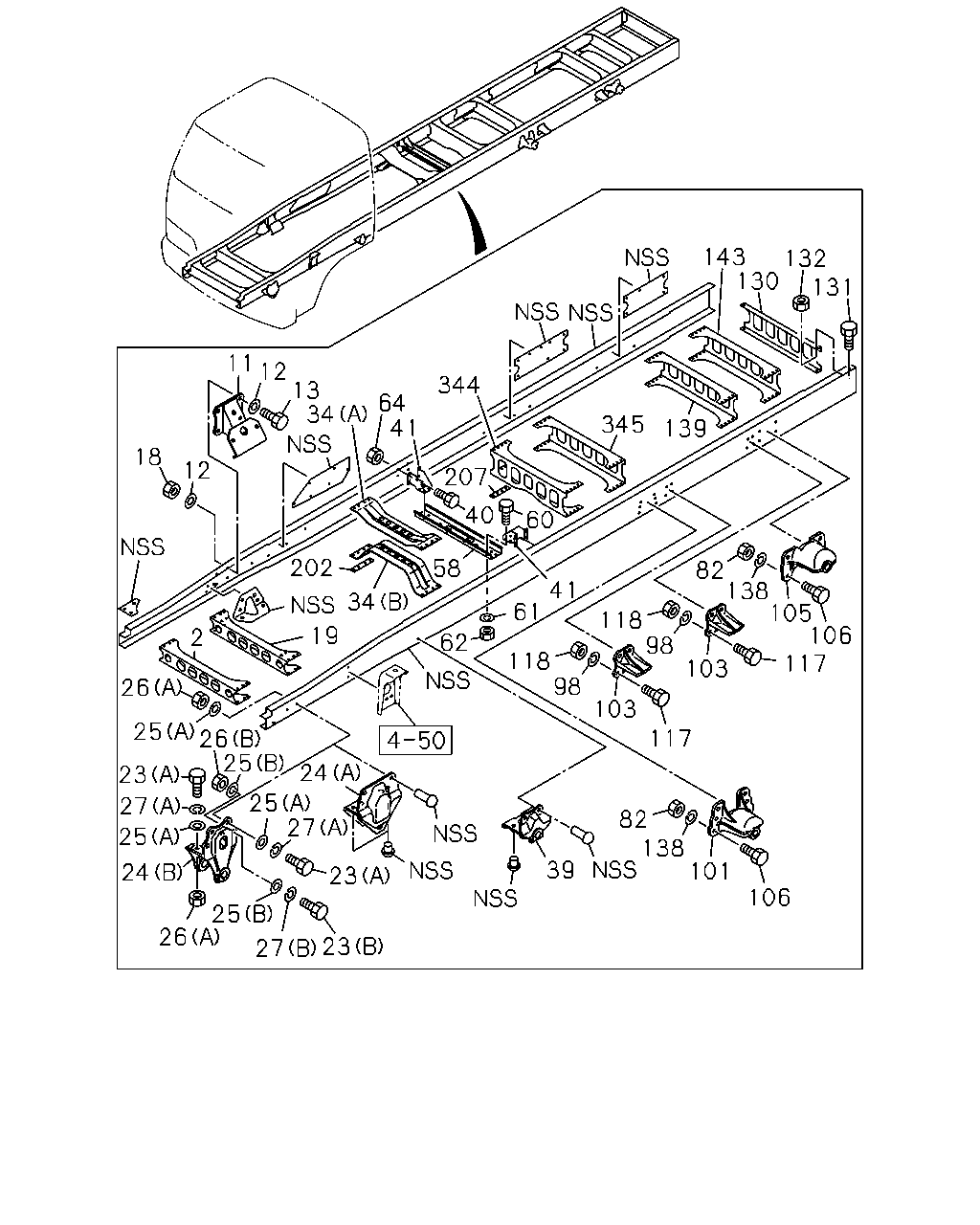

çizim 184037
143 132 130 131 11 12 13 34 344 64 41 345 139 18 12 40 60 58 34 82 138 105 106 117 202 41 2 61 118 98 19 62 118 98 103 26 103 25 26 25 117 24 23 25 27 27 82 138 101 25 39 24 25 23 106 26 27 23 207
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 1-53181-460-8 01 1 9510-9802 ● ● ●
2 MEMBER; CROSS,1ST 1-53181-460-9 01 1 9803-0004 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-460-9 01 1 0005-0407 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-892-4 01 1 0408- ● ● ● ●
11 BRACKET; ENG MTG 1-53211-197-0 02 1 9510-9802 ● ● ●
11 BRACKET; ENG MTG 1-53211-197-0 02 1 9803-0004 ● ● ● ●
11 BRACKET; ENG MTG 1-53211-197-0 02 1 0005- ● ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 		9-92061-240-0 08 1 9510-9802 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28691-240-0 08 1 9803-0004 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28691-240-0 08 1 0005-0512 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 0601- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0004 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0005-0602 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-716-8 01 1 9510- ●
19 MEMBER; CROSS,2ND
EXC. FRONT AXLE F049(FS4) 		1-53181-716-8 01 1 9510- ● ●
19 MEMBER; CROSS,2ND
FRONT AXLE F049(FS4) 		1-53181-661-4 01 1 9510-9802 ● ●
19 MEMBER; CROSS,2ND
FRONT AXLE F049(FS4) 		1-53181-661-7 01 1 9803-0004 ● ● ●
19 MEMBER; CROSS,2ND
FRONT AXLE F049(FS4) 		1-53181-661-9 01 1 0005-0312 ● ●
19 MEMBER; CROSS,2ND 1-53181-661-9 01 1 0005-0312 ●
19 MEMBER; CROSS,2ND
FRONT AXLE F049(FS4) 		1-53181-661-9 01 1 0401-0511 ● ●
19 MEMBER; CROSS,2ND
FRONT AXLE F049(FS4) 		8-97611-712-0 01 1 0512- ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14X60 		9-91066-460-0 08 1 9510-9802 ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14X50 		9-91066-450-0 08 1 9803-0004 ● ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14X50 		9-91066-450-0 08 1 0005-0312 ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		9-91066-450-0 08 1 0005-0312 ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14X50 		9-91066-450-0 08 1 0401-0512 ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14X50 		0-10956-450-0 08 1 0601- ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16X60 		9-91066-660-0 04 1 9510-9802 ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16X60 		9-91066-660-0 04 1 9803-0004 ● ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16X60 		9-91066-660-0 04 1 0005-0312 ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		9-91066-660-0 04 1 0005-0312 ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16X60 		9-91066-660-0 04 1 0401-0512 ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16X60 		0-10956-660-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT
(A) 		1-53351-166-0 02 1 9510- ●
24 BRACKET; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (A) 		1-53351-166-0 02 1 9510- ● ●
24 BRACKET; FRT SPR,FRT
FRONT AXLE F049(FS4) (B) 		1-53351-115-5 02 1 9510-9802 ● ●
24 BRACKET; FRT SPR,FRT
FRONT AXLE F049(FS4) (B) 		1-53351-115-5 02 1 9803-0004 ● ● ●
24 BRACKET; FRT SPR,FRT
FRONT AXLE F049(FS4) (B) 		1-53351-115-5 02 1 0005-0312 ● ●
24 BRACKET; FRT SPR,FRT
(B) 		1-53351-115-5 02 1 0005-0312 ●
24 BRACKET; FRT SPR,FRT
FRONT AXLE F049(FS4) (B) 		1-53351-115-6 02 1 0401- ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (A) ID=16.2 		1-09503-223-0 08 1 9510-9802 ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (A) ID=16.2 		1-09503-223-0 08 1 9803-0004 ● ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (A) ID=16.2 		1-09503-223-0 08 1 0005-0312 ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 0005-0312 ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (A) ID=16.2 		1-09503-223-0 08 1 0401- ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (B) ID=15 		9-09651-069-0 16 1 9510-9802 ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (B) ID=15 		9-09651-069-0 16 1 9803-0004 ● ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (B) ID=15 		9-09651-069-0 16 1 0005-0312 ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 0005-0312 ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (B) ID=15 		9-09651-069-0 16 1 0401-1201 ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (B) ID=15 		8-98010-627-1 16 1 1202- ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14 		9-99110-514-0 08 1 9510-9802 ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14 		9-99110-514-0 08 1 9803-0004 ● ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14 		9-99110-514-0 08 1 0005-0312 ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 08 1 0005-0312 ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14 		9-99110-514-0 08 1 0401-0512 ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14 		0-91110-514-0 08 1 0601- ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16 		9-99110-516-0 04 1 9510-9802 ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16 		9-99110-516-0 04 1 9803-0004 ● ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16 		9-99110-516-0 04 1 0005-0312 ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0312 ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16 		9-99110-516-0 04 1 0401-0512 ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16 		0-91110-516-0 04 1 0601- ● ●
27 WASHER; LK,BRKT,FRT SPR
FRONT AXLE F049(FS4) (A) ID=14.2 		9-09150-614-0 08 1 9510-9802 ● ●
27 WASHER; LK,BRKT,FRT SPR
FRONT AXLE F049(FS4) (B) ID=16.2 		9-09150-616-0 04 1 9510-9802 ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 9510-9802 ● ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 9803-0004 ● ● ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 0005- ● ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 9510-9802 ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 9803-0004 ● ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 0005- ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-360-1 01 1 0005- ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 9510- ●
39 BRACKET; FRT SPR,RR
EXC. FRONT AXLE F049(FS4) 		1-53352-154-2 02 1 9510- ● ●
39 BRACKET; FRT SPR,RR
FRONT AXLE F049(FS4) 		1-53352-052-1 02 1 9510-9802 ● ●
39 BRACKET; FRT SPR,RR
FRONT AXLE F049(FS4) 		1-53352-052-1 02 1 9803-0004 ● ● ●
39 BRACKET; FRT SPR,RR
FRONT AXLE F049(FS4) 		1-53352-052-1 02 1 0005-0312 ● ●
39 BRACKET; FRT SPR,RR 1-53352-052-1 02 1 0005-0312 ●
39 BRACKET; FRT SPR,RR
FRONT AXLE F049(FS4) 		1-53352-052-1 02 1 0401- ● ●
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9510-9802 ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 08 1 9803-0512 ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0601- ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 9510- ●
58 MEMBER; CENTER BRG 1-37529-076-0 01 1 9510- ●
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9510-9802 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 9803-0512 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9510-9802 ●
62 NUT; MBR
M10 		9-09110-410-0 08 1 9510-9802 ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9510-9802 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 9510-9802 ● ● ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 9803-0004 ● ● ● ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 0005-0512 ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 22 1 0601- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-9802 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9803-0004 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 0005-0603 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-1 02 1 9510-9802 ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 9803-0004 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0005- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 9510-9802 ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 9803-0004 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0005- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 9510-9802 ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 9803-0004 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0005- ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 22 1 9510-9802 ● ● ●
106 BOLT; BRKT
M14X40 		0-20801-440-0 22 1 9803-0004 ● ● ● ●
106 BOLT; BRKT
M14X40 		0-20801-440-0 22 1 0005-0512 ● ● ● ●
106 BOLT; BRKT
M14X40 		0-20851-440-0 22 1 0601- ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510-9802 ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9803-0004 ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0005- ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9510-9802 ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9803-0004 ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 0005-0512 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ● ●
130 MEMBER; CROSS,END 1-53181-516-1 01 1 9510-9802 ● ● ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 9803-0004 ● ● ● ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 0005- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9510-9802 ● ● ●
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28681-030-0 04 1 9803-0004 ● ● ● ●
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28681-030-0 04 1 0005-0512 ● ● ● ●
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ● ● ●
132 NUT; END C/MBR
M10 		9-09110-410-0 04 1 9510-9802 ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 04 1 9803-0004 ● ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 04 1 0005-0602 ● ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91180-110-0 04 1 0603- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 9510-9802 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 9803-0004 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 0005-0603 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 22 1 0604- ● ● ● ●
139 MEMBER; CROSS,6TH 1-53181-465-5 01 1 9510-9802 ● ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 9803-0004 ● ● ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 0005- ● ● ●
143 MEMBER; CROSS,7TH 1-53181-465-9 01 1 9803-0004 ●
143 MEMBER; CROSS,7TH 1-53181-465-9 01 1 0005- ●
202 SPACER; 3RD C/MBR 1-53178-015-0 02 1 0005- ●
207 SPACER; 4TH C/MBR
FRONT T=7.0 		1-53168-321-0 02 1 9510-0004 ● ●
207 SPACER; 4TH C/MBR
FRONT T=7.0 		1-53168-321-0 02 1 0005- ● ● ●
207 SPACER; 4TH C/MBR
REAR T=4.5 		1-53168-357-0 02 1 9510- ● ●
344 MEMBER; CROSS,4TH 1-53181-465-9 01 1 9510- ●
344 MEMBER; CROSS,4TH 1-53181-604-1 01 1 9510-0004 ● ●
344 MEMBER; CROSS,4TH 1-53181-604-3 01 1 0005- ● ● ●
344 MEMBER; CROSS,4TH 1-53181-463-1 01 1 9803-0004 ●
345 MEMBER; CROSS,5TH 1-53181-465-5 01 1 9510-9802 ● ● ●
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 9803-0004 ● ● ● ●
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 0005- ● ● ●
345 MEMBER; CROSS,5TH 1-53181-604-3 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
