Sayfa 4-80 - Isuzu EPC

4-80 — ROAD WHEEL (#64292) — 179 parça

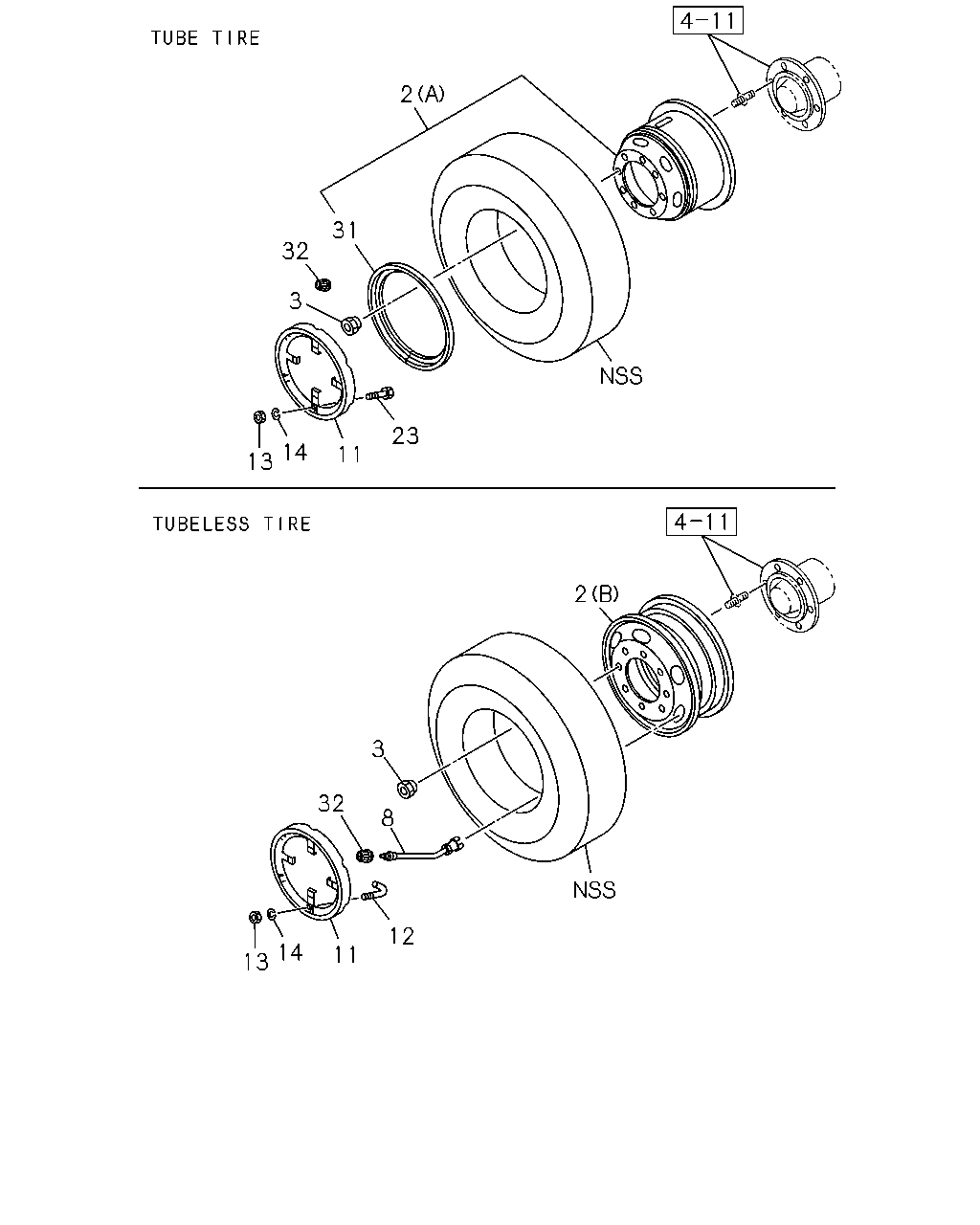

2 31 32 3 23 14 11 13 2 3 32 8 12 14 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-642-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-642-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	9510-0004	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	9510-0004	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-407-1	01	1	9510-9603	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-407-1	01	1	9510-9603	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-427-0	01	1	9604-0004	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-427-0	01	1	9604-0004	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-427-0	01	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-407-1	01	1	0203-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-525-0	06	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-525-0	06	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-642-0	06	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-302-2	06	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-302-2	06	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-641-0	06	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	9803-0004	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	9803-0004		●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-407-1	06	1	9510-9603	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	9604-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	9803-0004	●
2	WHEEL; DISC EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	9803-0004		●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-407-1	06	1	0203-	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-0	08	1	9510-0004	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0005-	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-0	08	1	9510-0004	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0005-	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	01	1	9510-0004	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	01	1	9510-0004	●	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	01	1	0005-	●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46>	1-42370-020-3	01	1	0005-	●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	9510-9802	●	●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	9803-0004	●
8	VALVE; TIRE	1-42370-020-3	06	1	9803-0004		●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	0005-	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66>	1-43139-002-2	02	1	9510-9802	●
12	U-BOLT; STEP DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL STEP<W66> L=60	1-43139-016-0	06	1	9510-9802	●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	9-09110-510-0	06	1	9510-9802	●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	9-09150-510-0	06	1	9510-9802	●
23	PLATE; CLAMP,STEP DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL STEP<W66> M10X45	0-10806-045-0	06	1	9510-9802	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0205-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0205-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	06	1	0205-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	0307-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	0307-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	06	1	0307-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	06	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	06	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	06	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	06	1	9803-0203	●
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	9510-0004	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	05	1	9510-0004	●	●
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0005-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	05	1	0005-	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELREAR<R46>	1-42374-001-0	04	1	9510-0004	●	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELREAR<R46>	1-42374-001-0	04	1	0005-0210	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELREAR<R46>	1-42374-001-0	04	1	0211-	●

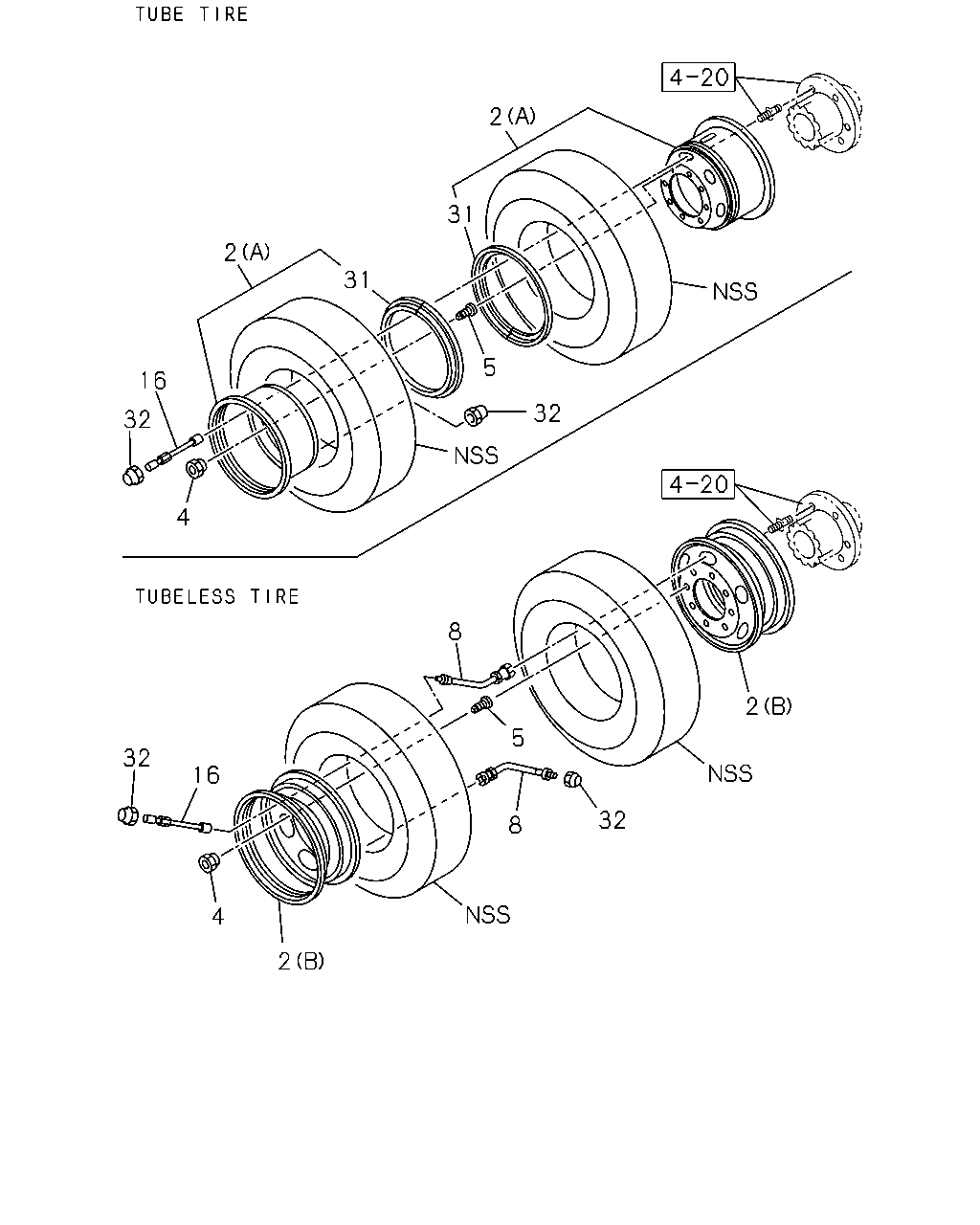

2 31 2 31 5 16 32 32 4 8 2 5 32 16 32 8 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-525-0	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-642-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-642-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-302-2	01	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0204-	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	9510-0004	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	9510-0004	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-408-0	01	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-407-1	01	1	9510-9603	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-407-1	01	1	9510-9603	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-427-0	01	1	9604-0004	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-427-0	01	1	9604-0004	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-427-0	01	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B) SPARE	1-42350-407-1	01	1	0203-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-525-0	06	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-525-0	06	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-642-0	06	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-302-2	06	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-302-2	06	1	9803-0203	●
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-641-0	06	1	0204-	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	9510-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	9803-0004	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	9803-0004		●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-408-0	06	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-407-1	06	1	9510-9603	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	9604-9802	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	9803-0004	●
2	WHEEL; DISC EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	9803-0004		●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-427-0	06	1	0005-0202	●
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (B)	1-42350-407-1	06	1	0203-	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) M30 LH THREAD	1-42334-023-0	06	1	0005-0610	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) M30 LH THREAD	8-97359-810-0	06	1	0611-	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) M30	1-42333-023-0	06	1	0005-0610	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) M30 RH THREAD	8-97359-809-0	06	1	0611-	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	9510-0004	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) M30 LH THREAD	1-42334-023-0	08	1	0005-0405	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0406-0610	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-	●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	9510-0004	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) M30	1-42333-023-0	08	1	0005-0405	●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0406-0610	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	0005-0610	●
5	NUT; WHEEL,INNER,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	0005-0610	●
5	NUT; WHEEL,INNER,RR AXLE EXC. DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-0	08	1	9510-0004	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0005-0405	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0406-0610	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-0	08	1	9510-0004	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 20X6.50T 145-10(Q47) OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0005-0405	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0406-0610	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	01	1	9510-0004	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	01	1	9510-0004	●	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	01	1	0005-	●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46>	1-42370-020-3	01	1	0005-	●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	9510-9802	●	●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	9803-0004	●
8	VALVE; TIRE	1-42370-020-3	06	1	9803-0004		●
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	0005-	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	9510-0004	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	0005-0210	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	0211-1003	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	8-98167-051-0	02	1	1004-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0205-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0205-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	06	1	0205-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	0307-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	0307-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	06	1	0307-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	01	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	06	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-040-0	06	1	9803-0203	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	06	1	9510-9802	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42355-012-1	06	1	9803-0203	●
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	9510-0004	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	05	1	9510-0004	●	●
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0005-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	05	1	0005-	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELREAR<R46>	1-42374-001-0	04	1	9510-0004	●	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELREAR<R46>	1-42374-001-0	04	1	0005-0210	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELREAR<R46>	1-42374-001-0	04	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
