◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#64288) — 225 parça

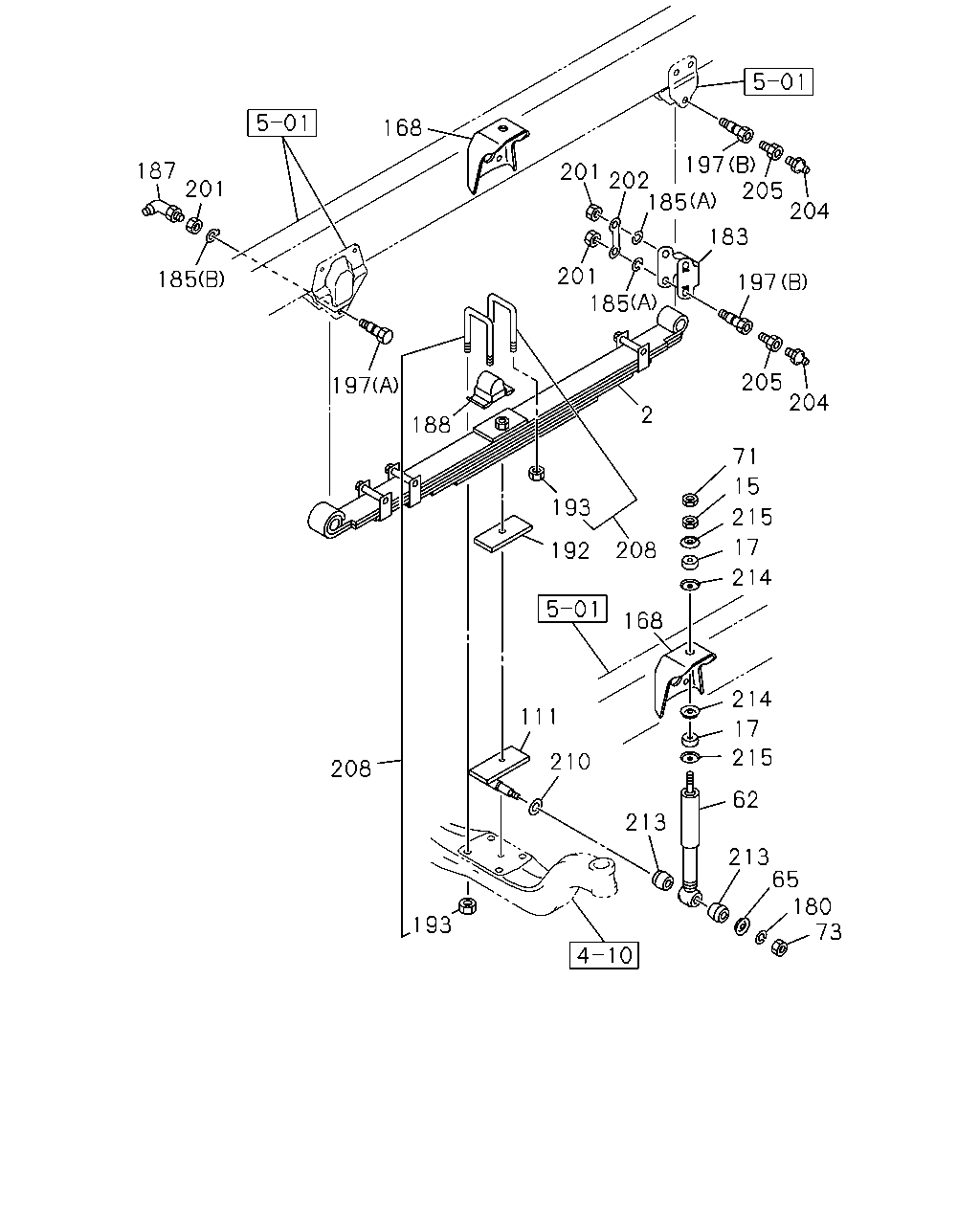

çizim 184024
168 197 205 204 187 201 201 202 183 201 185 197 205 204 197 2 188 71 15 193 215 17 208 192 214 168 214 111 17 215 210 208 62 213 213 65 180 73 193 185 185
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT AXLE F049(FS4) 7-LEAF 		1-51130-341-0 02 1 9510-0004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-341-0 02 1 9510-0004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT AXLE F049(FS4) 7-LEAF 		1-51130-341-0 02 1 0005- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT AXLE F049(FS4) 7-LEAF 		1-51130-433-1 02 1 9510- ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9510-0004 ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9510-0004 ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0005- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT AXLE F049(FS4) 		1-51630-180-3 02 1 9510-0004 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9510-0004 ●
62 ABSORBER ASM; SHOCK,FRT
FRONT AXLE F049(FS4) 		1-51630-180-4 02 1 0005- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT AXLE F049(FS4) 		1-51630-302-1 02 1 9510- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT AXLE F049(FS4) BEST VALUE PARTS 		1-87610-153-0 02 1 9510-0004 ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 9510-0004 ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9510-0004 ● ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 0005- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9510-0004 ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 9510-9702 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9703-0004 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 0005-0206 ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-721-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-721-1 01 1 0005-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		8-98153-482-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-720-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-720-1 01 1 0005-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		8-98153-481-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT AXLE F049(FS4) 		1-51681-642-2 01 1 9510- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT AXLE F049(FS4) 		1-51681-641-2 01 1 9510- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9510-0004 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0005- ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9510-0004 ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0005-0605 ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
183 SHACKLE; FRT SUSP
FRONT AXLE F049(FS4) 		1-51162-029-4 02 1 9510-0004 ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9510-0004 ●
183 SHACKLE; FRT SUSP
FRONT AXLE F049(FS4) 		1-51162-029-5 02 1 0005- ●
183 SHACKLE; FRT SUSP
EXC. FRONT AXLE F049(FS4) 		1-51162-037-0 02 1 9510- ●
185 WASHER; LK,PIN
FRONT AXLE F049(FS4) (C) ID=12.2 		9-09150-612-0 12 1 9510-0004 ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9510-0004 ●
185 WASHER; LK,PIN
FRONT AXLE F049(FS4) (C) ID=12.2 		9-09150-612-0 12 1 0005-0603 ●
185 WASHER; LK,PIN
FRONT AXLE F049(FS4) (C) ID=12.2 		0-91510-612-0 12 1 0604- ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (A) ID=25.5 		1-09503-011-0 04 1 9510-0910 ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (A) ID=25.5 		8-98010-404-0 04 1 0911- ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (B) ID=23 		1-51169-003-0 02 1 9510-0910 ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (B) ID=23 		8-98010-411-0 02 1 0911- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-0004 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT AXLE F049(FS4) 		1-51172-085-0 02 1 9510-0004 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-0 02 1 9510-0004 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT AXLE F049(FS4) 		1-51172-085-2 02 1 0005- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT AXLE F049(FS4) 		1-51172-107-0 02 1 9510-0004 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT AXLE F049(FS4) 		1-51172-112-0 02 1 0005- ●
192 PIECE; DIST
FRONT AXLE F049(FS4) T=6 		1-51177-284-1 01 1 9510- ●
192 PIECE; DIST
T=6 		1-51177-284-1 01 1 9510- ●
192 PIECE; DIST
EXC. FRONT AXLE F049(FS4) T=4.5 		1-51177-149-0 01 1 9510- ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		9-09112-822-0 08 1 9510-0004 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9510-0004 ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		9-09112-822-0 08 1 0005-0512 ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		0-91112-822-0 08 1 0601-1206 ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		8-98179-318-0 08 1 1207- ●
193 NUT; U BOLT
EXC. FRONT AXLE F049(FS4) M16 		1-09440-028-1 08 1 9510-0503 ●
193 NUT; U BOLT
EXC. FRONT AXLE F049(FS4) M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
EXC. FRONT AXLE F049(FS4) M16 		8-97360-121-0 08 1 0707- ●
197 PIN; FRT SPR,FRT
FRONT AXLE F049(FS4) (C) 		1-51161-031-0 06 1 9510-0004 ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9510-0004 ●
197 PIN; FRT SPR,FRT
FRONT AXLE F049(FS4) (C) 		1-51161-031-0 06 1 0005- ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (A) 		1-51161-004-3 02 1 9510-0911 ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (A) 		8-98060-335-0 02 1 0912- ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (B) 		1-51161-005-3 04 1 9510-0911 ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (B) 		8-98060-333-0 04 1 0912- ●
201 NUT; PIN LK
FRONT AXLE F049(FS4) M12 		9-99110-512-0 12 1 9510-0004 ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9510-0004 ●
201 NUT; PIN LK
FRONT AXLE F049(FS4) M12 		9-99110-512-0 12 1 0005-0512 ●
201 NUT; PIN LK
FRONT AXLE F049(FS4) M12 		0-91110-512-0 12 1 0601- ●
201 NUT; PIN LK
EXC. FRONT AXLE F049(FS4) M22 		9-09111-522-0 06 1 9510-0512 ●
201 NUT; PIN LK
EXC. FRONT AXLE F049(FS4) M22 		0-91111-522-0 06 1 0601- ●
202 PLATE; LK,SPR PIN
EXC. FRONT AXLE F049(FS4) 		1-51169-016-0 02 1 9510-0910 ●
202 PLATE; LK,SPR PIN
EXC. FRONT AXLE F049(FS4) 		8-98010-648-0 02 1 0911- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-0004 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE
FRONT AXLE F049(FS4) 		9-43165-001-0 06 1 9510-0004 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9510-0004 ●
205 ATTACHMENT; GREASE NIPPLE
FRONT AXLE F049(FS4) 		9-43165-001-0 06 1 0005- ●
205 ATTACHMENT; GREASE NIPPLE
EXC. FRONT AXLE F049(FS4) 		9-43165-001-0 04 1 9510- ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F049(FS4) L=210 		1-87870-380-0 04 1 9510-0004 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9510-0004 ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F049(FS4) L=210 		1-87870-380-2 04 1 0005- ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=175 		1-87870-350-0 04 1 9510-0004 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=165 		1-87870-407-0 04 1 0005-0503 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=165 		1-87870-447-0 04 1 0504-0706 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=165 		1-87870-483-0 04 1 0707- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9510-0004 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0005- ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9510-0004 ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0005- ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9510-0004 ● ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 0005- ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9510-0004 ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 0005- ●

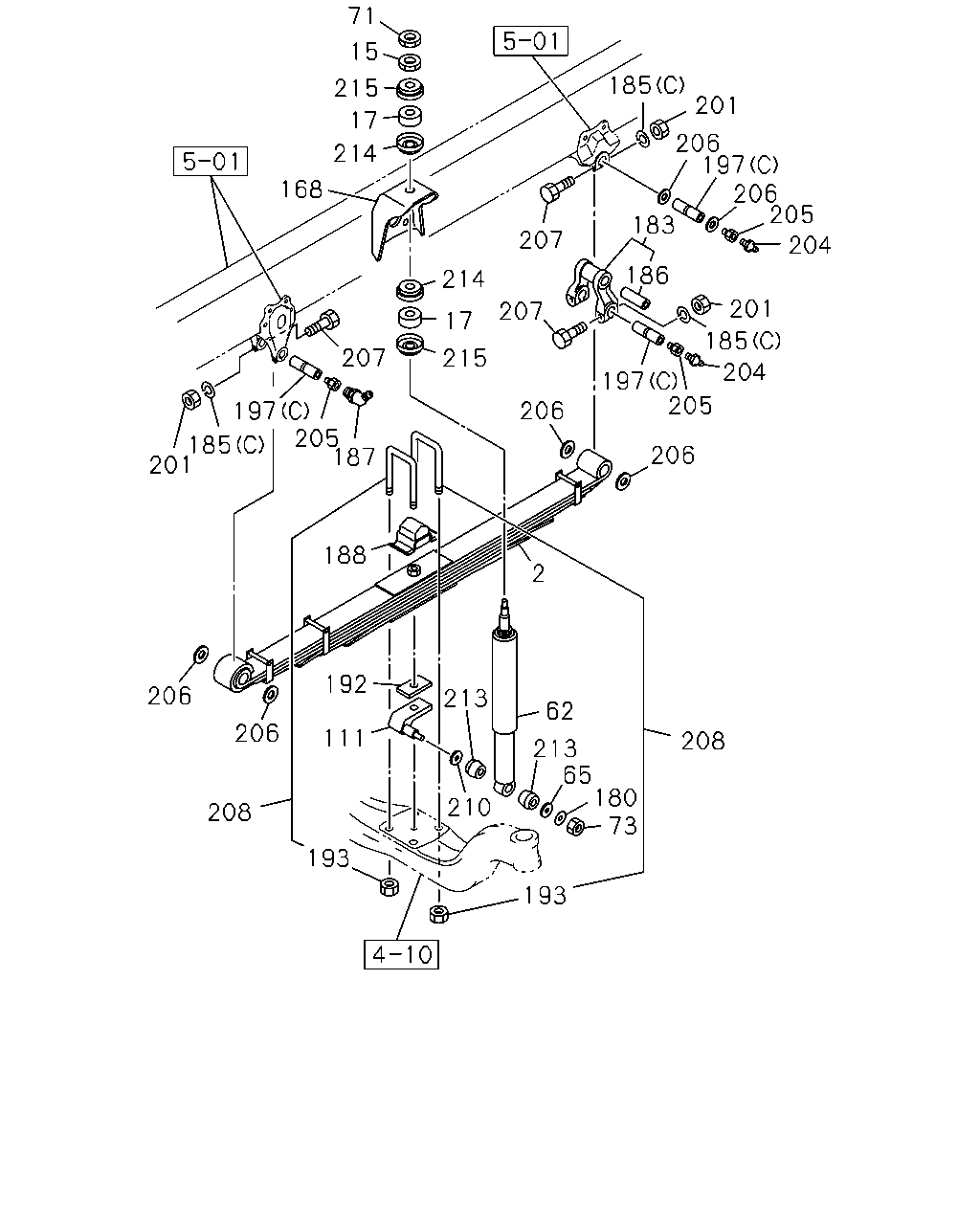

çizim 184025
71 15 185 201 215 17 206 197 206 205 214 168 183 207 204 186 214 201 207 17 185 207 215 204 197 205 206 197 205 187 185 201 206 188 2 192 206 213 62 206 111 208 213 65 180 73 210 208 193 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT AXLE F049(FS4) 7-LEAF 		1-51130-341-0 02 1 9510-0004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-341-0 02 1 9510-0004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT AXLE F049(FS4) 7-LEAF 		1-51130-341-0 02 1 0005- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT AXLE F049(FS4) 7-LEAF 		1-51130-433-1 02 1 9510- ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9510-0004 ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9510-0004 ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0005- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT AXLE F049(FS4) 		1-51630-180-3 02 1 9510-0004 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9510-0004 ●
62 ABSORBER ASM; SHOCK,FRT
FRONT AXLE F049(FS4) 		1-51630-180-4 02 1 0005- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT AXLE F049(FS4) 		1-51630-302-1 02 1 9510- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT AXLE F049(FS4) BEST VALUE PARTS 		1-87610-153-0 02 1 9510-0004 ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 9510-0004 ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9510-0004 ● ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 0005- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9510-0004 ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 9510-9702 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9703-0004 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 0005-0206 ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-721-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-721-1 01 1 0005-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		8-98153-482-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-720-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-0 01 1 9510-0004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		1-51681-720-1 01 1 0005-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) 		8-98153-481-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT AXLE F049(FS4) 		1-51681-642-2 01 1 9510- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT AXLE F049(FS4) 		1-51681-641-2 01 1 9510- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9510-0004 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0005- ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9510-0004 ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0005-0605 ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
183 SHACKLE; FRT SUSP
FRONT AXLE F049(FS4) 		1-51162-029-4 02 1 9510-0004 ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9510-0004 ●
183 SHACKLE; FRT SUSP
FRONT AXLE F049(FS4) 		1-51162-029-5 02 1 0005- ●
183 SHACKLE; FRT SUSP
EXC. FRONT AXLE F049(FS4) 		1-51162-037-0 02 1 9510- ●
185 WASHER; LK,PIN
FRONT AXLE F049(FS4) (C) ID=12.2 		9-09150-612-0 12 1 9510-0004 ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9510-0004 ●
185 WASHER; LK,PIN
FRONT AXLE F049(FS4) (C) ID=12.2 		9-09150-612-0 12 1 0005-0603 ●
185 WASHER; LK,PIN
FRONT AXLE F049(FS4) (C) ID=12.2 		0-91510-612-0 12 1 0604- ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (A) ID=25.5 		1-09503-011-0 04 1 9510-0910 ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (A) ID=25.5 		8-98010-404-0 04 1 0911- ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (B) ID=23 		1-51169-003-0 02 1 9510-0910 ●
185 WASHER; LK,PIN
EXC. FRONT AXLE F049(FS4) (B) ID=23 		8-98010-411-0 02 1 0911- ●
186 BUSHING; SHACKLE
FRONT AXLE F049(FS4) OD=38 		1-51351-009-0 02 1 9510-0004 ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9510-0004 ●
186 BUSHING; SHACKLE
FRONT AXLE F049(FS4) OD=38 		1-51351-009-0 02 1 0005-0902 ●
186 BUSHING; SHACKLE
FRONT AXLE F049(FS4) OD=38 		8-98081-829-0 02 1 0903- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-0004 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT AXLE F049(FS4) 		1-51172-085-0 02 1 9510-0004 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-0 02 1 9510-0004 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT AXLE F049(FS4) 		1-51172-085-2 02 1 0005- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT AXLE F049(FS4) 		1-51172-107-0 02 1 9510-0004 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT AXLE F049(FS4) 		1-51172-112-0 02 1 0005- ●
192 PIECE; DIST
FRONT AXLE F049(FS4) T=6 		1-51177-284-1 01 1 9510- ●
192 PIECE; DIST
T=6 		1-51177-284-1 01 1 9510- ●
192 PIECE; DIST
EXC. FRONT AXLE F049(FS4) T=4.5 		1-51177-149-0 01 1 9510- ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		9-09112-822-0 08 1 9510-0004 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9510-0004 ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		9-09112-822-0 08 1 0005-0512 ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		0-91112-822-0 08 1 0601-1206 ●
193 NUT; U BOLT
FRONT AXLE F049(FS4) M22 		8-98179-318-0 08 1 1207- ●
193 NUT; U BOLT
EXC. FRONT AXLE F049(FS4) M16 		1-09440-028-1 08 1 9510-0503 ●
193 NUT; U BOLT
EXC. FRONT AXLE F049(FS4) M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
EXC. FRONT AXLE F049(FS4) M16 		8-97360-121-0 08 1 0707- ●
197 PIN; FRT SPR,FRT
FRONT AXLE F049(FS4) (C) 		1-51161-031-0 06 1 9510-0004 ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9510-0004 ●
197 PIN; FRT SPR,FRT
FRONT AXLE F049(FS4) (C) 		1-51161-031-0 06 1 0005- ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (A) 		1-51161-004-3 02 1 9510-0911 ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (A) 		8-98060-335-0 02 1 0912- ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (B) 		1-51161-005-3 04 1 9510-0911 ●
197 PIN; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (B) 		8-98060-333-0 04 1 0912- ●
201 NUT; PIN LK
FRONT AXLE F049(FS4) M12 		9-99110-512-0 12 1 9510-0004 ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9510-0004 ●
201 NUT; PIN LK
FRONT AXLE F049(FS4) M12 		9-99110-512-0 12 1 0005-0512 ●
201 NUT; PIN LK
FRONT AXLE F049(FS4) M12 		0-91110-512-0 12 1 0601- ●
201 NUT; PIN LK
EXC. FRONT AXLE F049(FS4) M22 		9-09111-522-0 06 1 9510-0512 ●
201 NUT; PIN LK
EXC. FRONT AXLE F049(FS4) M22 		0-91111-522-0 06 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-0004 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE
FRONT AXLE F049(FS4) 		9-43165-001-0 06 1 9510-0004 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9510-0004 ●
205 ATTACHMENT; GREASE NIPPLE
FRONT AXLE F049(FS4) 		9-43165-001-0 06 1 0005- ●
205 ATTACHMENT; GREASE NIPPLE
EXC. FRONT AXLE F049(FS4) 		9-43165-001-0 04 1 9510- ●
206 WASHER; LK,SPRING PIN
FRONT AXLE F049(FS4) ID=32.4 		1-51169-018-0 12 1 9510-0004 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9510-0004 ●
206 WASHER; LK,SPRING PIN
FRONT AXLE F049(FS4) ID=32.4 		1-51169-018-0 12 1 0005- ●
207 BOLT; SPR TO SHACKLE
FRONT AXLE F049(FS4) M12X80 		0-10806-280-0 12 1 9510-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9510-0512 ●
207 BOLT; SPR TO SHACKLE
FRONT AXLE F049(FS4) M12X80 		0-10856-280-0 12 1 0601- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F049(FS4) L=210 		1-87870-380-0 04 1 9510-0004 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9510-0004 ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F049(FS4) L=210 		1-87870-380-2 04 1 0005- ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=175 		1-87870-350-0 04 1 9510-0004 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=165 		1-87870-407-0 04 1 0005-0503 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=165 		1-87870-447-0 04 1 0504-0706 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE F049(FS4) L=165 		1-87870-483-0 04 1 0707- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9510-0004 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0005- ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9510-0004 ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0005- ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9510-0004 ● ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 0005- ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9510-0004 ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
