Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#64284) — 365 parça

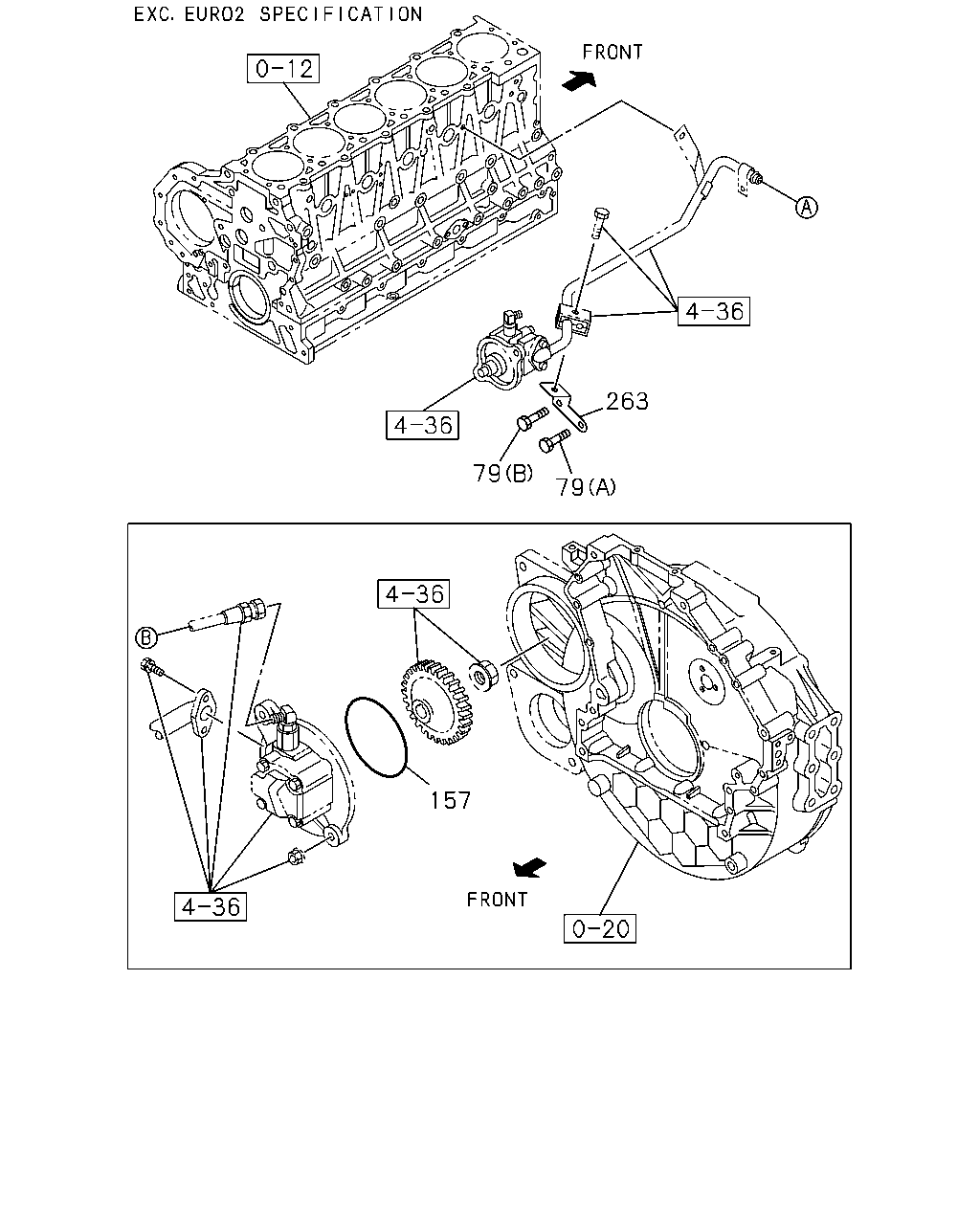

263 79 79 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28181-016-0	01	1	0011-0512	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28881-420-0	01	1	0011-0512	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	9510-0004	●	●
79	BOLT; BRKT 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-0405	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-0405	●
79	BOLT; BRKT 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0406-0512	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0406-0512	●
79	BOLT; BRKT 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> ID=105.6	1-09623-247-0	01	1	0011-0412	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> ID=105.6	8-97386-295-0	01	1	0501-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9510-0004	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ID=96.4	1-09623-178-0	01	1	0005-0405	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=96.4	1-09623-178-0	01	1	0005-0405	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) ID=96.4	1-09623-178-0	01	1	0406-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=96.4	1-09623-178-0	01	1	0406-	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	8-97600-076-0	01	1	0011-	●
263	BRACKET; P/S PIPE	8-94393-981-0	01	1	9510-9901	●	●
263	BRACKET; P/S PIPE	8-97600-117-0	01	1	9902-0004	●	●
263	BRACKET; P/S PIPE 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-97600-117-0	01	1	0005-0405	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-97600-117-0	01	1	0005-0405	●
263	BRACKET; P/S PIPE 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	8-97600-117-0	01	1	0406-	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-97600-117-0	01	1	0406-	●

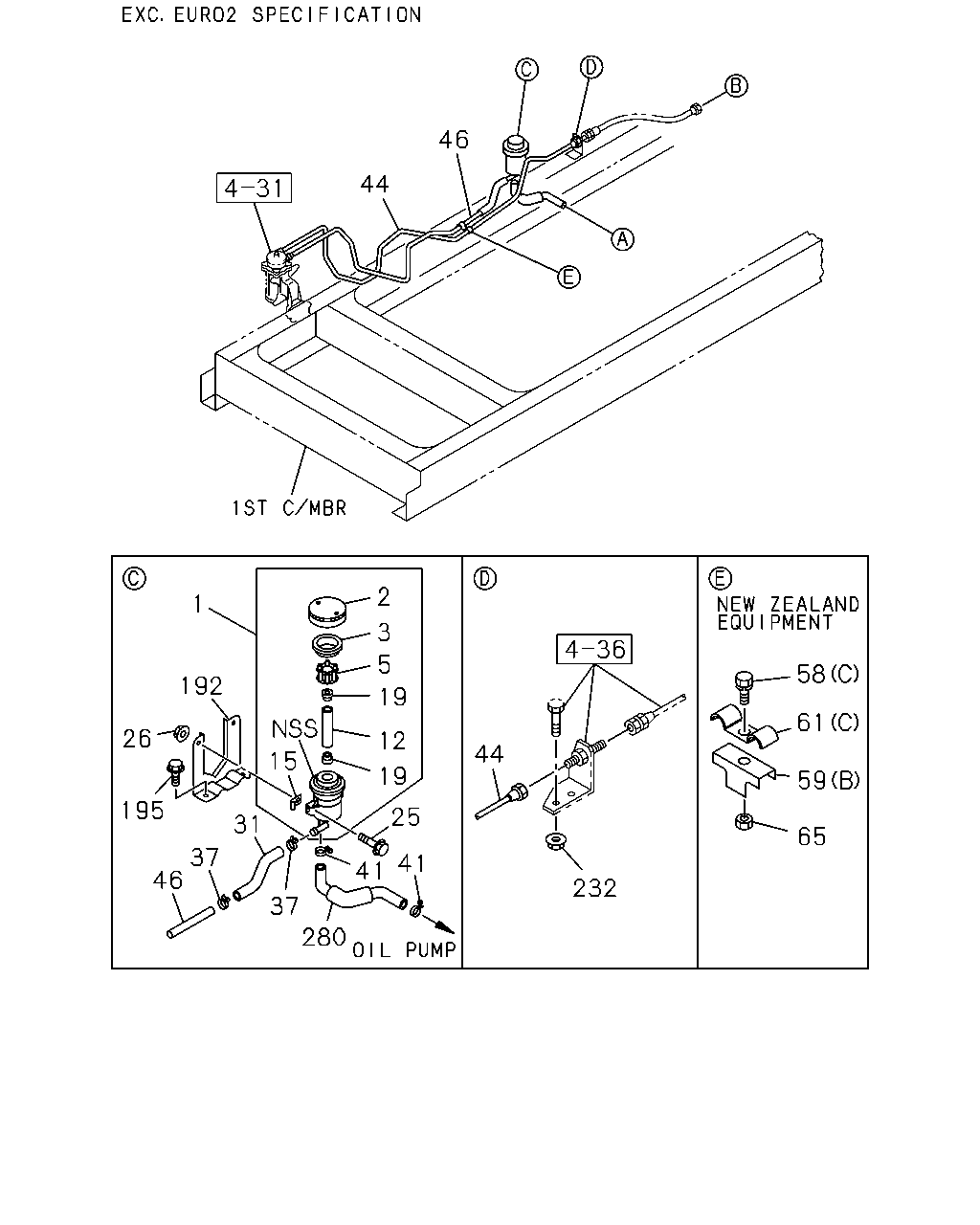

46 44 2 1 3 5 58 192 19 61 26 12 44 15 19 59 195 25 31 65 37 46 41 41 232 37 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9510-0004	●	●
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	0005-0508	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-1006	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9510-0004	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0005-1006	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9510-0004	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0005-	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9510-0004	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0005-	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9510-0004	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0005-	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9510-0004	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	0005-0508	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0509-	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9510-0004	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0005-	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-130-0	01	1	0011-0111	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21117-186-0	01	1	0112-	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	9510-0004	●	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	0005-0010	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0011-0405	●
31	HOSE; P/S OIL TANK,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0011-0405	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0406-	●
31	HOSE; P/S OIL TANK,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0406-	●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9510-0004	●	●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	0005-	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9510-0004	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-968-0	01	1	0406-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21115-251-0	01	1	9510-9802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-251-0	01	1	9510-9802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21116-043-0	01	1	9803-9805	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-043-0	01	1	9803-9805		●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21116-107-0	01	1	9806-0004	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-107-0	01	1	9806-0004		●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21116-107-0	01	1	0005-0010	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-107-0	01	1	0011-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-107-0	01	1	0011-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. FRONT AXLE F049(FS4)	1-21114-764-2	01	1	9510-9802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. FRONT AXLE F049(FS4)	1-21115-944-0	01	1	9803-9805	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. FRONT AXLE F049(FS4)	1-21116-106-0	01	1	9806-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-914-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21117-437-0	01	1	0406-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRONT AXLE F049(FS4)	1-21115-253-0	01	1	9510-0010	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21115-253-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRONT AXLE F049(FS4) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21115-253-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT AXLE F049(FS4)	1-21114-768-3	01	1	9510-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-915-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-512-0	01	1	9510-0004		●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28680-840-0	01	1	0011-0512	●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28650-840-0	01	1	0601-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9702	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-0004	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0010	●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0011-0405	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0011-0405	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0010	●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0405	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0405	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-47475-427-1	01	1	0011-	●
59	BRACKET; CLIP,OIL PIPE (A) L=60	1-47475-455-0	01	1	9510-0004	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=60	1-47475-455-0	01	1	0005-0010	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0011-0405	●
59	BRACKET; CLIP,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0011-0405	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0406-	●
59	BRACKET; CLIP,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0406-	●
61	CLIP; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0011-	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9510-0004	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0010	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0405	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0405	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0406-	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0406-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9510-0004	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0005-0010	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0011-0405	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0011-0405	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0406-	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0406-	●
65	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0010	●
65	NUT; BRKT 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
65	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
65	NUT; BRKT 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
65	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
65	NUT; BRKT 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0603-	●
65	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	9510-0004	●	●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	0005-	●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9510-9606	●	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9607-0004	●	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0005-0406	●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	0407-0512	●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	02	1	0601-	●
232	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-371-0	01	1	0011-0304	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21117-384-0	01	1	0305-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9510-0004	●	●
280	HOSE; P/S OIL PUMP,INL	1-21116-695-0	01	1	0005-0010	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0405	●
280	HOSE; P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0405	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0406-	●
280	HOSE; P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0406-	●

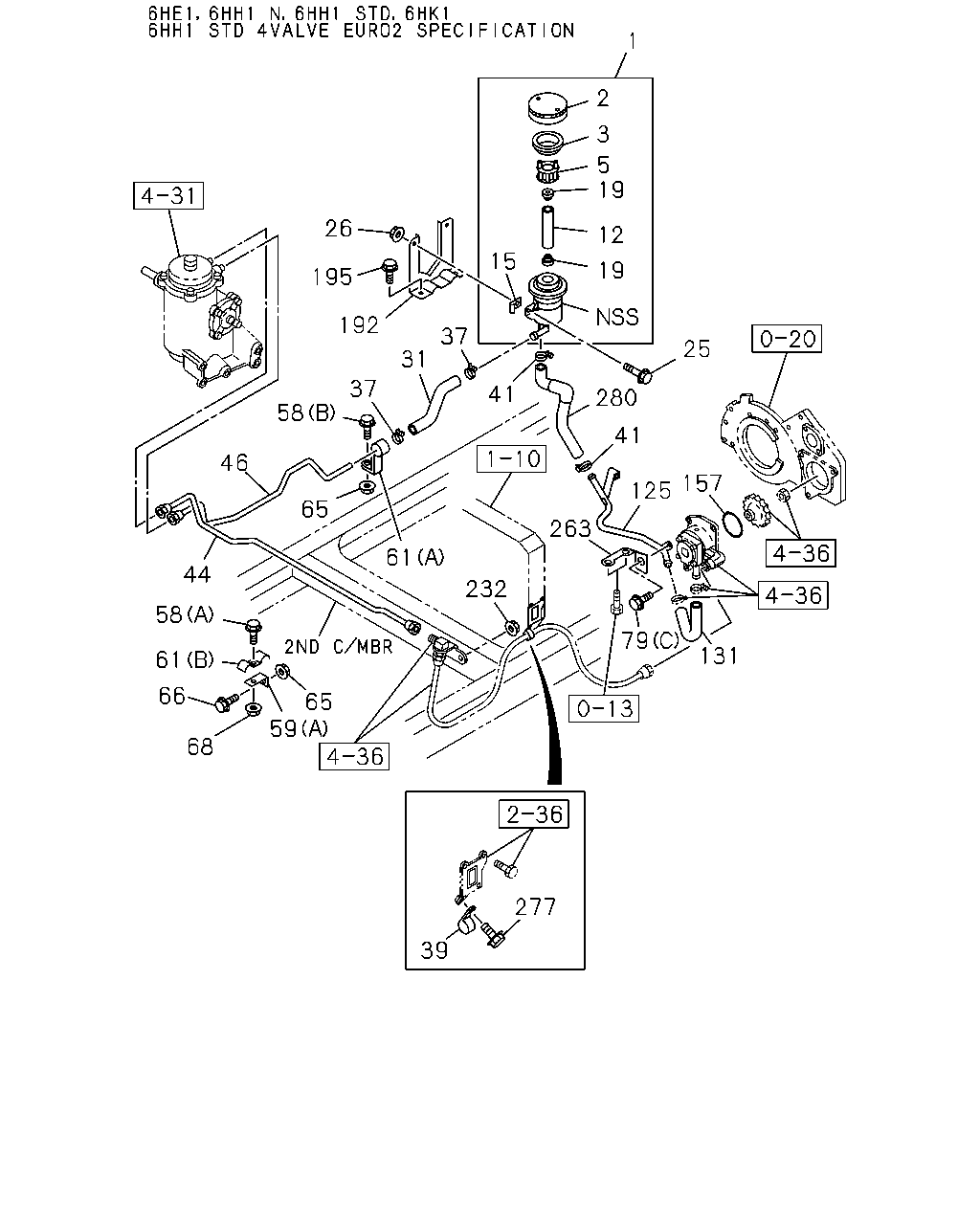

1 2 3 5 19 26 12 15 19 195 192 37 25 31 37 41 280 58 41 46 157 125 65 263 61 44 232 58 79 131 61 66 65 59 68 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9510-0004	●	●
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	0005-0508	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-1006	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9510-0004	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0005-1006	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9510-0004	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0005-	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9510-0004	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0005-	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9510-0004	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0005-	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9510-0004	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	0005-0508	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0509-	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9510-0004	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0005-	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-130-0	01	1	0011-0111	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21117-186-0	01	1	0112-	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	9510-0004	●	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	0005-0010	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0011-0405	●
31	HOSE; P/S OIL TANK,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0011-0405	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0406-	●
31	HOSE; P/S OIL TANK,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21113-591-1	01	1	0406-	●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9510-0004	●	●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	0005-	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9510-0004	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0005-0010	●
39	CLIP; FLEX HOSE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0011-0405	●
39	CLIP; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0011-0405	●
39	CLIP; FLEX HOSE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0406-	●
39	CLIP; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0406-	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9510-0004	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-968-0	01	1	0406-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21115-251-0	01	1	9510-9802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-251-0	01	1	9510-9802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21116-043-0	01	1	9803-9805	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-043-0	01	1	9803-9805		●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21116-107-0	01	1	9806-0004	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-107-0	01	1	9806-0004		●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4)	1-21116-107-0	01	1	0005-0010	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-107-0	01	1	0011-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE FRONT AXLE F049(FS4) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-107-0	01	1	0011-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. FRONT AXLE F049(FS4)	1-21114-764-2	01	1	9510-9802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. FRONT AXLE F049(FS4)	1-21115-944-0	01	1	9803-9805	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. FRONT AXLE F049(FS4)	1-21116-106-0	01	1	9806-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-914-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21117-437-0	01	1	0406-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRONT AXLE F049(FS4)	1-21115-253-0	01	1	9510-0010	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21115-253-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRONT AXLE F049(FS4) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21115-253-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT AXLE F049(FS4)	1-21114-768-3	01	1	9510-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-915-0	01	1	0011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-512-0	01	1	9510-0004		●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28680-840-0	01	1	0011-0512	●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28650-840-0	01	1	0601-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9702	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-0004	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0010	●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0011-0405	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0011-0405	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0010	●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0405	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0405	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-47475-427-1	01	1	0011-	●
59	BRACKET; CLIP,OIL PIPE (A) L=60	1-47475-455-0	01	1	9510-0004	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=60	1-47475-455-0	01	1	0005-0010	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0011-0405	●
59	BRACKET; CLIP,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0011-0405	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0406-	●
59	BRACKET; CLIP,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=60	1-47475-455-0	01	1	0406-	●
61	CLIP; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0011-	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9510-0004	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0010	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0405	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0405	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0406-	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0406-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9510-0004	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0005-0010	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0011-0405	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0011-0405	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0406-	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0406-	●
65	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0010	●
65	NUT; BRKT 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
65	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
65	NUT; BRKT 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
65	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
65	NUT; BRKT 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0603-	●
65	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	9802-0004	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0005-0010	●
66	BOLT; BRKT,OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	01	1	0011-0405	●
66	BOLT; BRKT,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	01	1	0011-0405	●
66	BOLT; BRKT,OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
66	BOLT; BRKT,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
66	BOLT; BRKT,OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
66	BOLT; BRKT,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9510-9606	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
68	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
68	NUT; CLIP,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0011-0405	●
68	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
68	NUT; CLIP,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
68	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0603-	●
68	NUT; CLIP,OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0603-	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28181-016-0	01	1	0011-0512	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28881-420-0	01	1	0011-0512	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	9510-0004	●	●
79	BOLT; BRKT 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-0405	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-0405	●
79	BOLT; BRKT 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0406-0512	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0406-0512	●
79	BOLT; BRKT 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
125	CONNECTOR; P/S PUMP AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-319-1	01	1	9612-9901	●
125	CONNECTOR; P/S PUMP	8-94394-319-1	01	1	9612-9901		●
125	CONNECTOR; P/S PUMP AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-97600-115-0	01	1	9902-0004	●
125	CONNECTOR; P/S PUMP	8-97600-115-0	01	1	9902-0004		●
125	CONNECTOR; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT VAR2<TAK> EURO2 SPECIFICATION<THN>	8-97600-115-0	01	1	0005-	●
125	CONNECTOR; P/S PUMP	8-94394-319-0	01	1	9510-9605	●	●
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9606-9611	●	●
125	CONNECTOR; P/S PUMP EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94390-310-0	01	1	9612-9901	●
125	CONNECTOR; P/S PUMP EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-97600-113-0	01	1	9902-0004	●
125	CONNECTOR; P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-97600-113-0	01	1	0005-0405	●
125	CONNECTOR; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	8-97600-113-0	01	1	0005-0405	●
125	CONNECTOR; P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	8-97600-113-0	01	1	0406-	●
125	CONNECTOR; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	8-97600-113-0	01	1	0406-	●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9510-0004	●	●
131	HOSE; RUBBER,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-94396-331-1	01	1	0005-0405	●
131	HOSE; RUBBER,P/S 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94396-331-1	01	1	0005-0405	●
131	HOSE; RUBBER,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	8-94396-331-1	01	1	0406-	●
131	HOSE; RUBBER,P/S 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94396-331-1	01	1	0406-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> ID=105.6	1-09623-247-0	01	1	0011-0412	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> ID=105.6	8-97386-295-0	01	1	0501-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9510-0004	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ID=96.4	1-09623-178-0	01	1	0005-0405	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=96.4	1-09623-178-0	01	1	0005-0405	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) ID=96.4	1-09623-178-0	01	1	0406-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=96.4	1-09623-178-0	01	1	0406-	●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	9510-0004	●	●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	0005-	●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9510-9606	●	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9607-0004	●	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0005-0406	●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	0407-0512	●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	02	1	0601-	●
232	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	8-97600-076-0	01	1	0011-	●
263	BRACKET; P/S PIPE	8-94393-981-0	01	1	9510-9901	●	●
263	BRACKET; P/S PIPE	8-97600-117-0	01	1	9902-0004	●	●
263	BRACKET; P/S PIPE 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-97600-117-0	01	1	0005-0405	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-97600-117-0	01	1	0005-0405	●
263	BRACKET; P/S PIPE 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	8-97600-117-0	01	1	0406-	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-97600-117-0	01	1	0406-	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0010	●
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	01	1	0011-0405	●
277	BOLT; HOSE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	01	1	0011-0405	●
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	01	1	0406-0512	●
277	BOLT; HOSE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	01	1	0406-0512	●
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
277	BOLT; HOSE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-371-0	01	1	0011-0304	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21117-384-0	01	1	0305-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9510-0004	●	●
280	HOSE; P/S OIL PUMP,INL	1-21116-695-0	01	1	0005-0010	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0405	●
280	HOSE; P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0405	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0406-	●
280	HOSE; P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0406-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
