4-33 — STEERING LINKAGE (#64283) — 81 parça

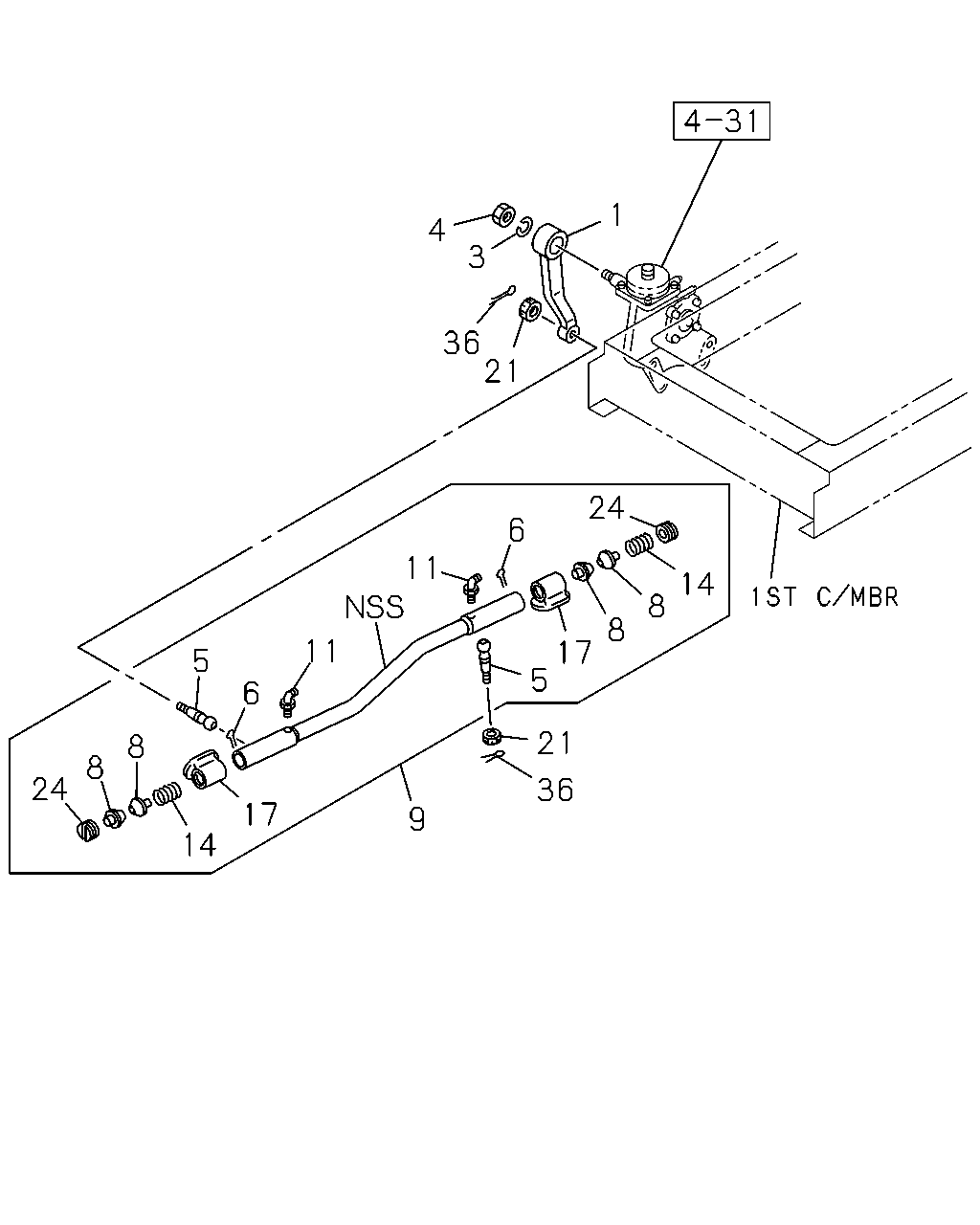

1 4 3 36 21 24 6 11 14 8 8 11 17 5 5 6 21 8 8 24 36 17 9 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-309-2	01	1	9510-0004	●
1	ARM; PITMAN,STRG	1-44341-309-2	01	1	9510-0004		●
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-309-3	01	1	0005-	●
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-406-0	01	1	9510-0211	●
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-479-1	01	1	0212-	●
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-026-0	01	1	9510-0004	●	●
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-026-0	01	1	0005-0805	●
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-055-0	01	1	0806-	●
4	NUT; PITMAN ARM M30	1-09400-050-0	01	1	9510-0004	●	●
4	NUT; PITMAN ARM M30	1-09400-050-0	01	1	0005-0805	●
4	NUT; PITMAN ARM M30	1-09400-166-0	01	1	0806-	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4)	1-44361-110-1	02	1	9510-0004	●
5	BALL; JOINT,DRAG LINK	1-44361-110-1	02	1	9510-0004		●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4)	1-44361-110-1	02	1	0005-	●
6	PIN; SPLIT,ADJ SCREW FRONT AXLE F049(FS4)	9-08115-065-0	03	1	9510-0004	●
6	PIN; SPLIT,ADJ SCREW	9-08115-065-0	03	1	9510-0004		●
6	PIN; SPLIT,ADJ SCREW FRONT AXLE F049(FS4)	9-08115-065-0	03	1	0005-	●
8	SEAT; SPR,ROD END FRONT AXLE F049(FS4) OD=36	9-09881-340-0	04	1	9510-0004	●
8	SEAT; SPR,ROD END OD=36	9-09881-340-0	04	1	9510-0004		●
8	SEAT; SPR,ROD END FRONT AXLE F049(FS4) OD=36	9-09881-340-0	04	1	0005-	●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-072-1	01	1	9510-0004	●
9	LINK; DRAG	1-44380-072-1	01	1	9510-0004		●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-072-1	01	1	0005-	●
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-133-0	01	1	9510-0004	●
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-238-0	01	1	0005-0109	●
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-133-0	01	1	0110-	●
11	NIPPLE; GREASE,DRAG LINK FRONT AXLE F049(FS4) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9510-0004	●
11	NIPPLE; GREASE,DRAG LINK PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9510-0004		●
11	NIPPLE; GREASE,DRAG LINK FRONT AXLE F049(FS4) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0005-0512	●
11	NIPPLE; GREASE,DRAG LINK FRONT AXLE F049(FS4) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
14	SPRING; COIL,DRAG LINK FRONT AXLE F049(FS4)	9-09940-639-1	02	1	9510-0004	●
14	SPRING; COIL,DRAG LINK	9-09940-639-1	02	1	9510-0004		●
14	SPRING; COIL,DRAG LINK FRONT AXLE F049(FS4)	9-09940-639-1	02	1	0005-	●
17	GUARD; MUD,DRAG LINK FRONT AXLE F049(FS4)	1-44365-020-0	02	1	9510-0004	●
17	GUARD; MUD,DRAG LINK	1-44365-020-0	02	1	9510-0004		●
17	GUARD; MUD,DRAG LINK FRONT AXLE F049(FS4)	1-44365-020-0	02	1	0005-	●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	02	1	9510-0004	●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	9510-0004		●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	02	1	0005-0805	●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24	1-09442-032-0	02	1	0806-	●
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-021-1	02	1	9510-0805	●
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-031-0	02	1	0806-	●
24	PLUG; ADJ,DRAG LINK FRONT AXLE F049(FS4)	9-44375-021-0	02	1	9510-0004	●
24	PLUG; ADJ,DRAG LINK	9-44375-021-0	02	1	9510-0004		●
24	PLUG; ADJ,DRAG LINK FRONT AXLE F049(FS4)	9-44375-021-0	02	1	0005-	●
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	02	1	9510-0004	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9510-0004		●
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	02	1	0005-0606	●
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	0-81125-035-0	02	1	0607-	●
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	9-08114-025-0	02	1	9510-0606	●
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	0-81124-025-0	02	1	0607-	●

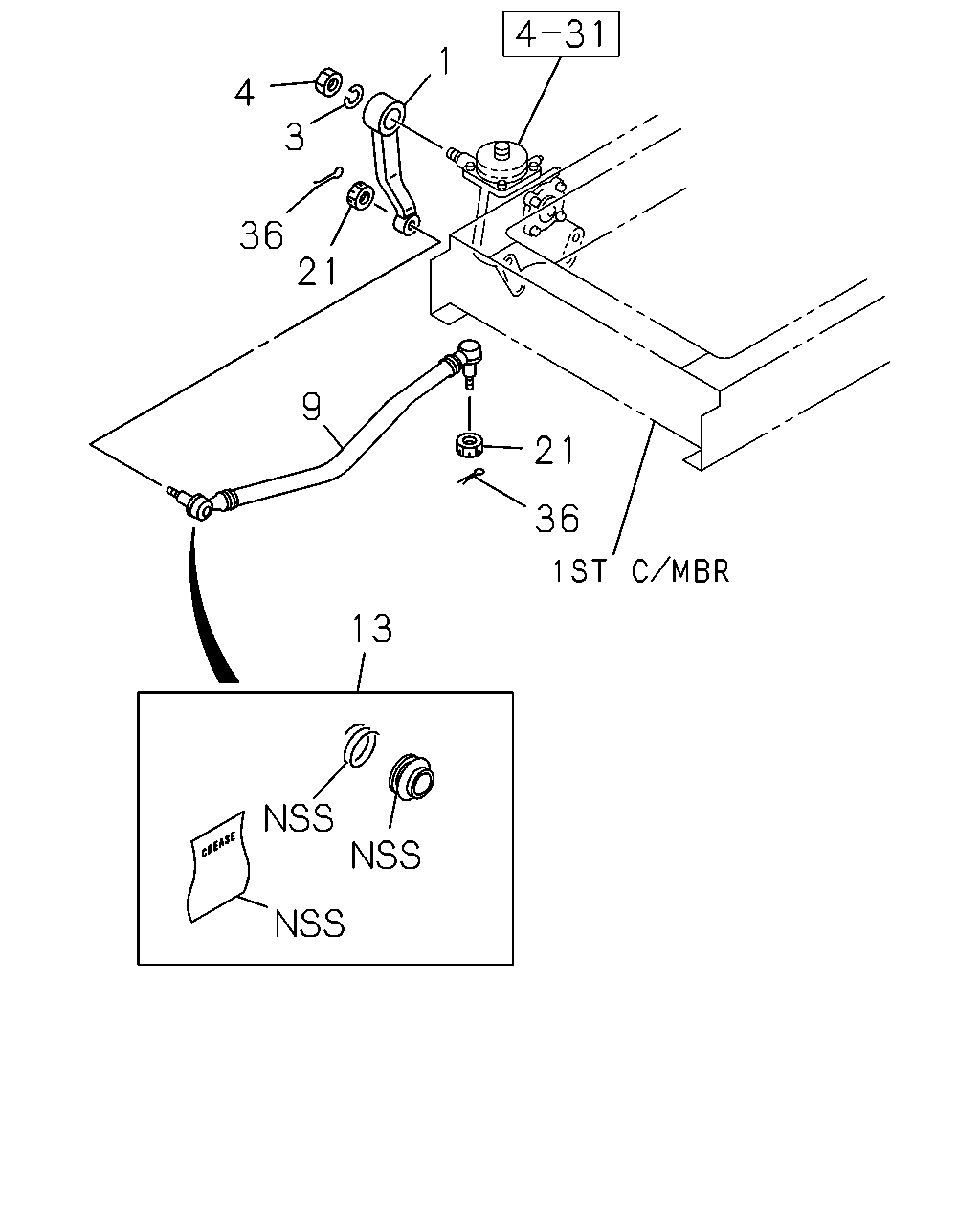

1 4 3 36 21 9 21 36 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-309-2	01	1	9510-0004	●
1	ARM; PITMAN,STRG	1-44341-309-2	01	1	9510-0004		●
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-309-3	01	1	0005-	●
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-406-0	01	1	9510-0211	●
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-479-1	01	1	0212-	●
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-026-0	01	1	9510-0004	●	●
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-026-0	01	1	0005-0805	●
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-055-0	01	1	0806-	●
4	NUT; PITMAN ARM M30	1-09400-050-0	01	1	9510-0004	●	●
4	NUT; PITMAN ARM M30	1-09400-050-0	01	1	0005-0805	●
4	NUT; PITMAN ARM M30	1-09400-166-0	01	1	0806-	●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-072-1	01	1	9510-0004	●
9	LINK; DRAG	1-44380-072-1	01	1	9510-0004		●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-072-1	01	1	0005-	●
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-133-0	01	1	9510-0004	●
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-238-0	01	1	0005-0109	●
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-133-0	01	1	0110-	●
13	BOOT; DRAG LINK EXC. FRONT AXLE F049(FS4)	1-85574-046-0	02	1	9510-	●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	02	1	9510-0004	●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	9510-0004		●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	02	1	0005-0805	●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24	1-09442-032-0	02	1	0806-	●
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-021-1	02	1	9510-0805	●
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-031-0	02	1	0806-	●
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	02	1	9510-0004	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9510-0004		●
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	02	1	0005-0606	●
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	0-81125-035-0	02	1	0607-	●
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	9-08114-025-0	02	1	9510-0606	●
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	0-81124-025-0	02	1	0607-	●
