4-31 — STEERING COLUMN AND SHAFT (#64282) — 191 parça

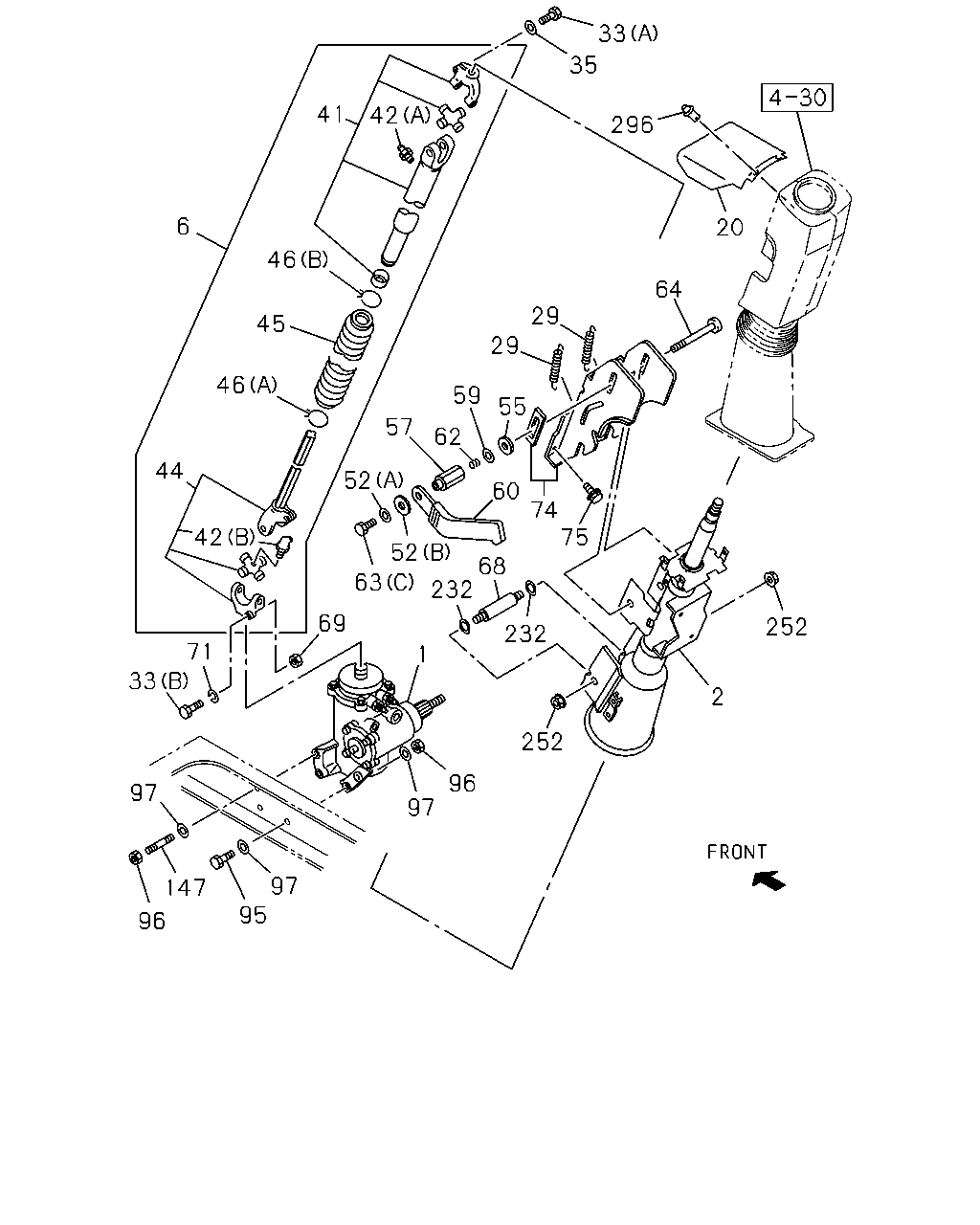

çizim 184019
41 46 45 46 44 42 6 42 35 296 33 20 64 29 29 59 55 57 62 52 52 60 74 75 2 252 252 232 232 68 63 69 1 96 97 33 71 97 147 95 97 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-810-2 01 1 9510-0004 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-838-1 01 1 0005-0208 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-884-2 01 1 0209- ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-586-0 01 1 9510-9804 ●
2 SHAFT ASM; STRG 1-44130-586-0 01 1 9510-9804 ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-694-0 01 1 9805-0004 ●
2 SHAFT ASM; STRG 1-44130-694-0 01 1 9805-0004 ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-694-1 01 1 0005- ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-556-1 01 1 9510-9804 ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-689-1 01 1 9805- ●
6 SHAFT; STRG LWR 1-44135-298-0 01 1 9510-9804 ● ●
20 COVER; STRG SHAFT 1-72438-121-2 01 1 9510-0004 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0005- ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9510-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9510-0004 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0005-0707 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9510-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-0004 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0005- ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9510-9804 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805-0004 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0005- ●
41 YOKE; SLEEVE,STRG 1-44135-299-0 01 1 9510-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9804 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9510-9804 ● ●
44 SHAFT; SPLINE,STRG 1-44135-300-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-0004 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0005- ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9510-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-0004 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 0005- ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9510-9804 ● ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9510-9804 ● ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9510-9804 ● ●
55 PLATE; GUIDE 1-44227-132-0 01 1 9510-9804 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9510-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-0004 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0005- ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9510-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9510-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-0004 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0005- ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9510-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0004 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 0005-0111 ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112- ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9510-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-0004 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0005- ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-0004 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0005- ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9510-9804 ● ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9510-9804 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9510-0004 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 0005-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9510-0004 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 0005-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9510-9804 ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9510-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0004 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
95 BOLT; STRG UNIT
SUSPENSION HEAVY DUTY VAR1(F40) M14X55 		9-92061-455-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
FRONT SPRING HEAVY DUTY<F60> M14X55 		9-92061-455-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) M14X55 		9-92061-455-0 04 1 9803-0004 ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 04 1 9803-0004 ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) M14X55 		9-92061-455-0 04 1 0005-0009 ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) M14X55 		8-97301-262-0 04 1 0010- ●
95 BOLT; STRG UNIT
EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> M14X45 		9-92061-445-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
EXC. FRONT AXLE F049(FS4) M14X45 		9-92061-445-0 04 1 9803-0009 ●
95 BOLT; STRG UNIT
EXC. FRONT AXLE F049(FS4) M14X50 		1-09000-739-1 04 1 0010-0805 ●
95 BOLT; STRG UNIT
EXC. FRONT AXLE F049(FS4) M14X50 		1-09000-787-1 04 1 0806- ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9510-0004 ● ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 0005-0009 ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 05 1 0010-0805 ●
96 NUT; STRG UNIT
M14 		1-09440-097-0 05 1 0806- ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 9510-0004 ● ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 0005-1201 ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 09 1 1202- ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9510-0004 ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 0005- ●
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9510-9804 ● ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9510-9804 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9510-0004 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0005- ●

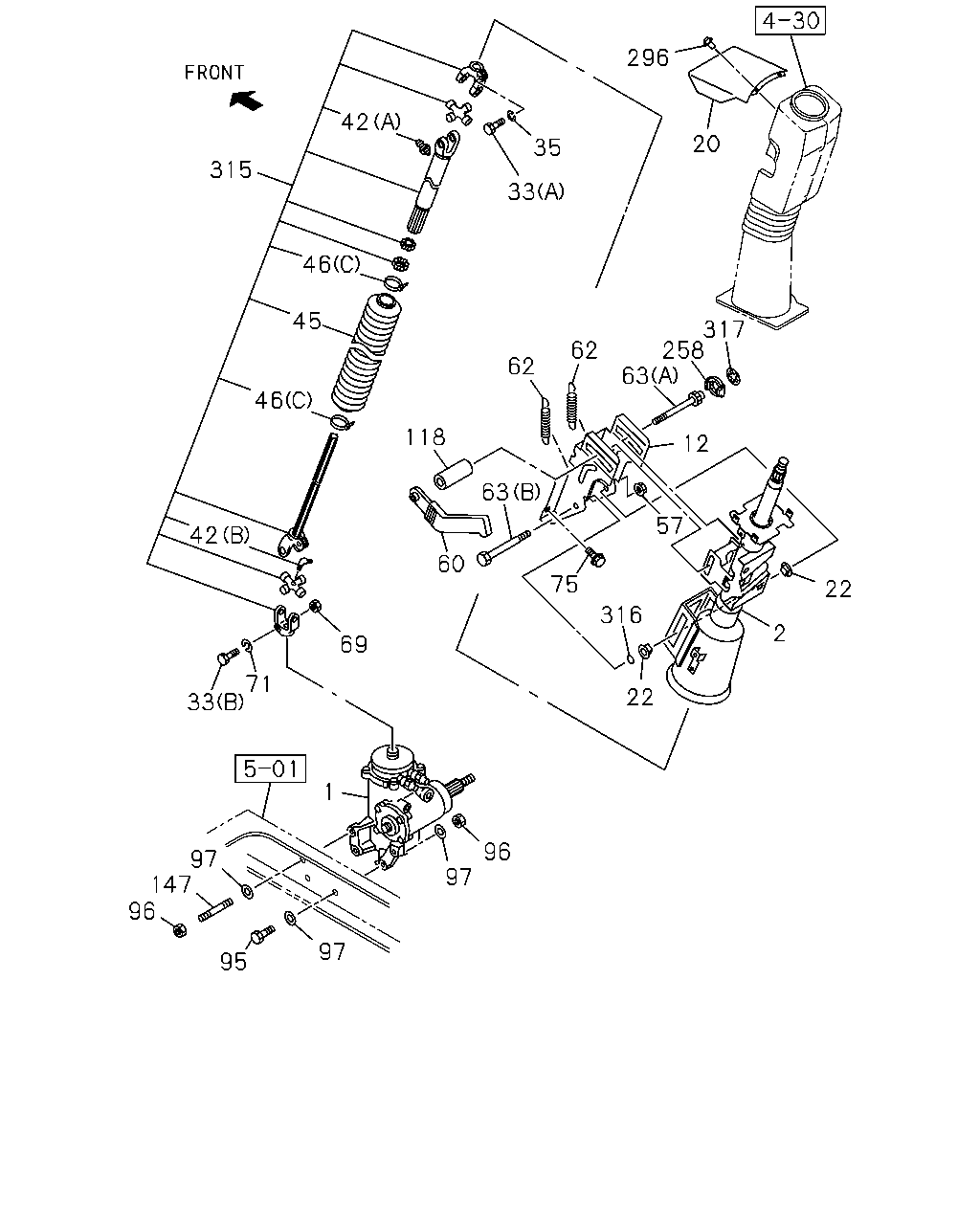

çizim 184029
296 42 20 35 315 33 46 45 317 258 63 62 62 46 118 12 63 57 42 60 75 22 316 2 69 71 33 22 1 96 97 147 96 97 97 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-810-2 01 1 9510-0004 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-838-1 01 1 0005-0208 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-884-2 01 1 0209- ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-586-0 01 1 9510-9804 ●
2 SHAFT ASM; STRG 1-44130-586-0 01 1 9510-9804 ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-694-0 01 1 9805-0004 ●
2 SHAFT ASM; STRG 1-44130-694-0 01 1 9805-0004 ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-694-1 01 1 0005- ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-556-1 01 1 9510-9804 ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-689-1 01 1 9805- ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-0004 ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0005-0811 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812- ●
20 COVER; STRG SHAFT 1-72438-121-2 01 1 9510-0004 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0005- ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805-0004 ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0005- ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9510-0004 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0005-0707 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9510-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-0004 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0005- ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9510-9804 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805-0004 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0005- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9804 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-0004 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0005- ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9510-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-0004 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 0005- ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9510-9804 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9510-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-0004 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0005- ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9510-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-0004 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0005- ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9510-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0004 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 0005-0111 ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112- ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9510-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-0004 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0005- ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-0004 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0005- ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9510-0004 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 0005-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9510-0004 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 0005-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9510-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0004 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
95 BOLT; STRG UNIT
SUSPENSION HEAVY DUTY VAR1(F40) M14X55 		9-92061-455-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
FRONT SPRING HEAVY DUTY<F60> M14X55 		9-92061-455-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) M14X55 		9-92061-455-0 04 1 9803-0004 ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 04 1 9803-0004 ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) M14X55 		9-92061-455-0 04 1 0005-0009 ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) M14X55 		8-97301-262-0 04 1 0010- ●
95 BOLT; STRG UNIT
EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> M14X45 		9-92061-445-0 04 1 9510-9802 ●
95 BOLT; STRG UNIT
EXC. FRONT AXLE F049(FS4) M14X45 		9-92061-445-0 04 1 9803-0009 ●
95 BOLT; STRG UNIT
EXC. FRONT AXLE F049(FS4) M14X50 		1-09000-739-1 04 1 0010-0805 ●
95 BOLT; STRG UNIT
EXC. FRONT AXLE F049(FS4) M14X50 		1-09000-787-1 04 1 0806- ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9510-0004 ● ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 0005-0009 ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 05 1 0010-0805 ●
96 NUT; STRG UNIT
M14 		1-09440-097-0 05 1 0806- ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 9510-0004 ● ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 0005-1201 ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 09 1 1202- ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-0004 ● ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 0005-0506 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507- ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9510-0004 ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 0005- ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805-0004 ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0005- ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9510-0004 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0005- ●
315 JOINT; SPLINE
DRIVING POSITION WIDE LEG SPACE(PR2) CAB UP +50MM<W60> 		1-44135-342-0 01 1 0406-0506 ●
315 JOINT; SPLINE
DRIVING POSITION WIDE LEG SPACE(PR2) CAB UP +50MM<W60> 		1-44135-377-0 01 1 0507- ●
315 JOINT; SPLINE 1-44135-341-0 01 1 9805-0004 ● ●
315 JOINT; SPLINE 1-44135-341-1 01 1 0005-0405 ●
315 JOINT; SPLINE
DRIVING POSITION WIDE LEG SPACE(PR2) EXC. CAB UP +50MM<W60> 		1-44135-341-1 01 1 0406- ●
315 JOINT; SPLINE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44135-341-1 01 1 0406- ●
316 RING 1-44227-152-0 01 1 9805-0004 ● ●
316 RING 1-44227-152-0 01 1 0005- ●
317 NUT; PUSH 1-44227-148-0 01 1 9805-0004 ● ●
317 NUT; PUSH 1-44227-148-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
