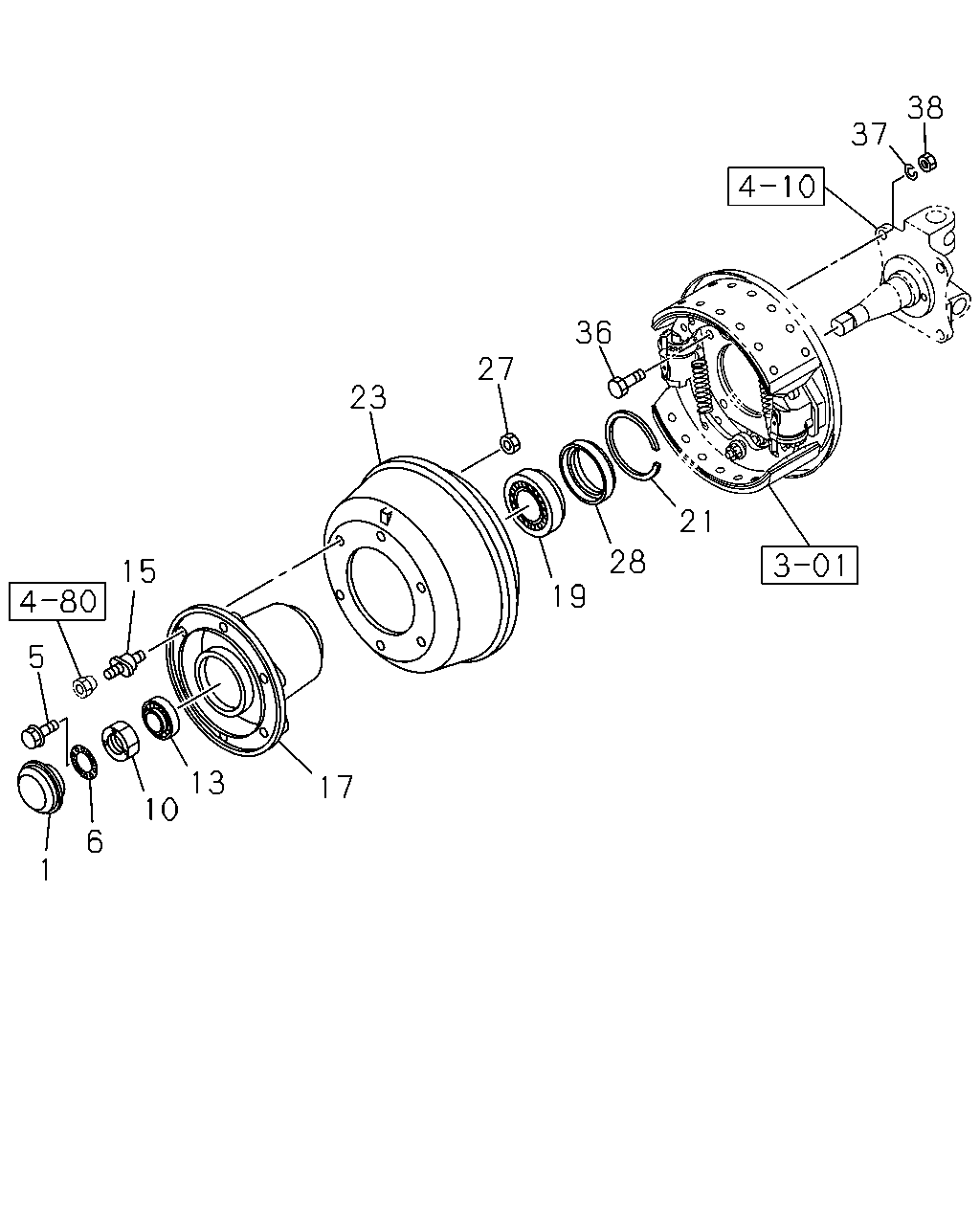

4-11 — FRONT HUB AND DRUM OR ROTOR (#64278) — 162 parça

38 37 36 27 23 21 28 15 19 5 13 10 17 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE FRONT AXLE F049(FS4) OD=136	1-42313-007-1	02	1	9510-0004	●
1	CAP; HUB,FRT AXLE OD=136	1-42313-007-1	02	1	9510-0004		●
1	CAP; HUB,FRT AXLE FRONT AXLE F049(FS4) OD=136	1-42313-007-1	02	1	0005-	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-019-1	02	1	9510-0507	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-029-0	02	1	0508-0704	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-030-0	02	1	0705-1511	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	8-98331-640-0	02	1	1512-	●
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201	●
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9510-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0004	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0005-0512	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●
5	BOLT; LK WASHER EXC. FRONT AXLE F049(FS4) M6X16 FLANGE	0-28650-616-0	04	1	0708-	●
6	WASHER; LK,FRT HUB FRONT AXLE F049(FS4) ID=39	8-98086-313-0	02	1	0708-	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9510-0004	●	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0005-0707	●
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F049(FS4) ID=39	1-09841-003-0	02	1	0708-	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9510-0004	●	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	0005-	●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) NSK	9-00093-146-0	02	1	9510-0004	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-146-0	02	1	9510-0004		●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) NSK	9-00093-146-0	02	1	0005-	●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-147-1	02	1	9510-0004	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	9-00093-147-1	02	1	9510-0004		●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-147-1	02	1	0005-	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	1-09812-064-0	02	1	9510-	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-065-0	02	1	9510-	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	08	1	9510-0004	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	08	1	9510-0004		●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	0005-	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	08	1	9510-0004	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	08	1	9510-0004		●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	0005-	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	9510-	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	9510-	●
17	HUB; FRT AXLE FRONT AXLE F049(FS4)	1-42312-113-0	02	1	9510-0004	●
17	HUB; FRT AXLE	1-42312-113-0	02	1	9510-0004		●
17	HUB; FRT AXLE FRONT AXLE F049(FS4)	1-42312-113-0	02	1	0005-	●
17	HUB; FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42312-036-2	02	1	9510-	●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) NSK	8-98143-848-0	02	1	0907-	●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-114-0	02	1	9510-0004	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	9-00093-114-0	02	1	9510-0004		●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-114-0	02	1	0005-	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	9-00093-031-1	02	1	9510-1002	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	9-00093-205-1	02	1	9510-1002	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-206-0	02	1	1003-	●
21	RING; SNAP,HUB FRONT AXLE F049(FS4) OD=132	9-09950-164-0	02	1	9510-0004	●
21	RING; SNAP,HUB OD=132	9-09950-164-0	02	1	9510-0004		●
21	RING; SNAP,HUB FRONT AXLE F049(FS4) OD=132	9-09950-164-0	02	1	0005-	●
21	RING; SNAP,HUB EXC. FRONT AXLE F049(FS4) OD=117	1-09587-001-0	02	1	9510-	●
23	DRUM; BRK,FRT FRONT AXLE F049(FS4)	1-42315-138-2	02	1	9510-0004	●
23	DRUM; BRK,FRT	1-42315-138-2	02	1	9510-0004		●
23	DRUM; BRK,FRT FRONT AXLE F049(FS4)	1-42315-138-2	02	1	0005-	●
23	DRUM; BRK,FRT EXC. FRONT AXLE F049(FS4)	1-42315-278-1	02	1	9510-	●
27	NUT; WHEEL PIN,FRT AXLE M22	9-09110-522-0	16	1	9510-9609	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9610-9904	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-0004	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0005-	●
28	SEAL; OIL,FRT HUB FRONT AXLE F049(FS4) OD=128	1-09625-129-0	02	1	9510-0004	●
28	SEAL; OIL,FRT HUB OD=128	1-09625-129-0	02	1	9510-0004		●
28	SEAL; OIL,FRT HUB FRONT AXLE F049(FS4) OD=128	1-09625-129-0	02	1	0005-	●
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F049(FS4)	1-09625-568-0	02	1	9510-	●
36	BOLT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14X45	9-92061-445-0	08	1	9510-	●
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	9-09150-816-0	08	1	9510-0004	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	08	1	9510-0004		●
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	9-09150-816-0	08	1	0005-0603	●
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	0-91510-816-0	08	1	0604-	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	9-09150-814-0	08	1	9510-0603	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	0-91510-814-0	08	1	0604-	●
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	9-99110-416-0	08	1	9510-0004	●
38	NUT; BACK PLATE M16	9-99110-416-0	08	1	9510-0004		●
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	9-99110-416-0	08	1	0005-0512	●
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	0-91110-516-0	08	1	0601-	●
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	9-99110-514-0	08	1	9510-0512	●
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	0-91110-514-0	08	1	0601-	●

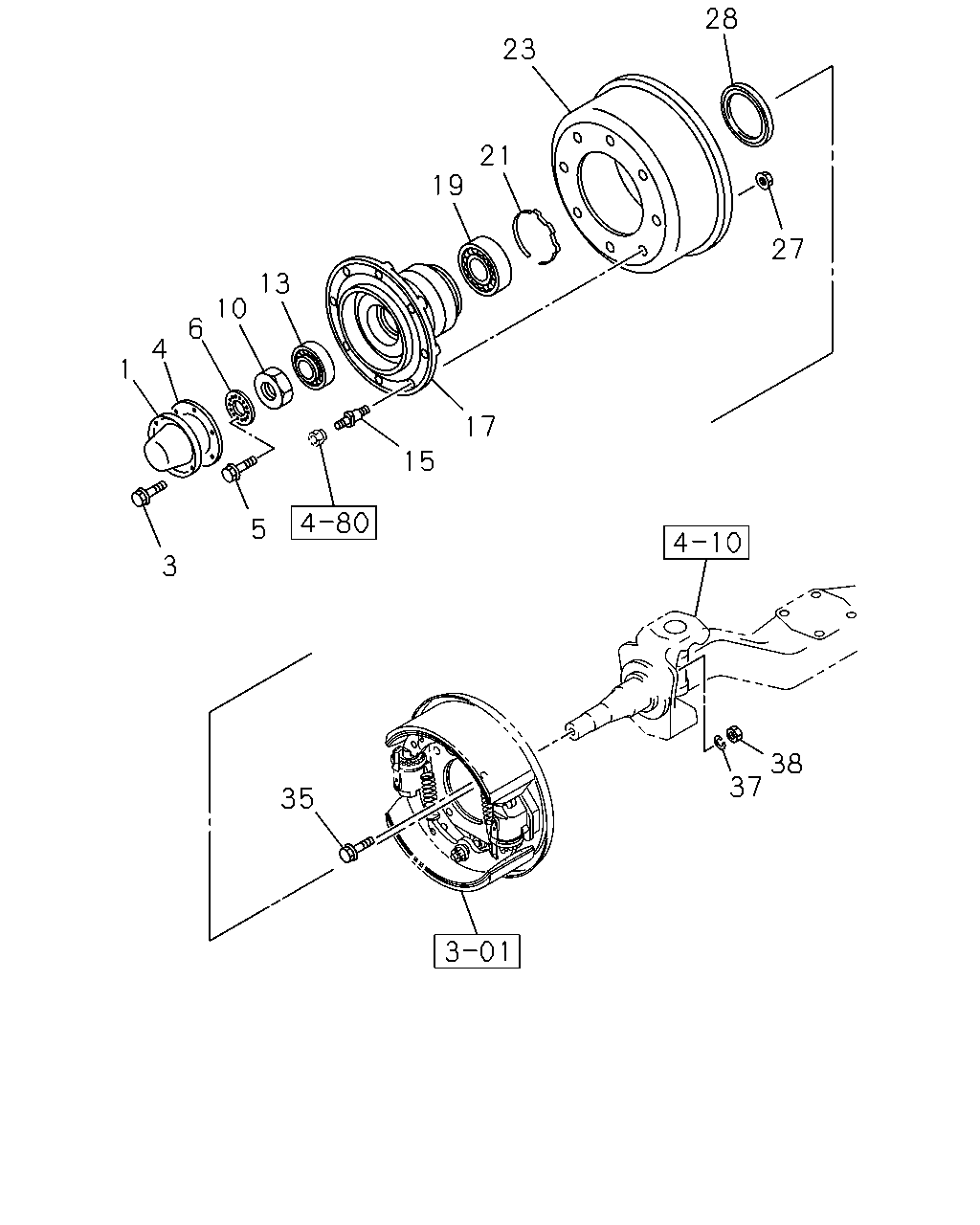

28 23 21 19 27 13 10 6 4 1 17 15 5 3 38 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE FRONT AXLE F049(FS4) OD=136	1-42313-007-1	02	1	9510-0004	●
1	CAP; HUB,FRT AXLE OD=136	1-42313-007-1	02	1	9510-0004		●
1	CAP; HUB,FRT AXLE FRONT AXLE F049(FS4) OD=136	1-42313-007-1	02	1	0005-	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-019-1	02	1	9510-0507	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-029-0	02	1	0508-0704	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-030-0	02	1	0705-1511	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	8-98331-640-0	02	1	1512-	●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4) M8X12 FLANGE	0-28080-812-0	12	1	9510-0004	●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	9510-0004		●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4) M8X12 FLANGE	0-28080-812-0	12	1	0005-0512	●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4) M8X12 FLANGE	0-28050-812-0	12	1	0601-	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4)	1-42319-028-0	02	1	9510-0004	●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-028-0	02	1	9510-0004		●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4)	1-42319-028-0	02	1	0005-	●
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201	●
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9510-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0004	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0005-0512	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●
5	BOLT; LK WASHER EXC. FRONT AXLE F049(FS4) M6X16 FLANGE	0-28650-616-0	04	1	0708-	●
6	WASHER; LK,FRT HUB FRONT AXLE F049(FS4) ID=39	8-98086-313-0	02	1	0708-	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9510-0004	●	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0005-0707	●
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F049(FS4) ID=39	1-09841-003-0	02	1	0708-	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9510-0004	●	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	0005-	●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) NSK	9-00093-146-0	02	1	9510-0004	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-146-0	02	1	9510-0004		●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) NSK	9-00093-146-0	02	1	0005-	●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-147-1	02	1	9510-0004	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	9-00093-147-1	02	1	9510-0004		●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-147-1	02	1	0005-	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	1-09812-064-0	02	1	9510-	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-065-0	02	1	9510-	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	08	1	9510-0004	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	08	1	9510-0004		●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	0005-	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	08	1	9510-0004	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	08	1	9510-0004		●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	0005-	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	9510-	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	9510-	●
17	HUB; FRT AXLE FRONT AXLE F049(FS4)	1-42312-113-0	02	1	9510-0004	●
17	HUB; FRT AXLE	1-42312-113-0	02	1	9510-0004		●
17	HUB; FRT AXLE FRONT AXLE F049(FS4)	1-42312-113-0	02	1	0005-	●
17	HUB; FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42312-036-2	02	1	9510-	●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) NSK	8-98143-848-0	02	1	0907-	●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-114-0	02	1	9510-0004	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	9-00093-114-0	02	1	9510-0004		●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-114-0	02	1	0005-	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	9-00093-031-1	02	1	9510-1002	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	9-00093-205-1	02	1	9510-1002	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-206-0	02	1	1003-	●
21	RING; SNAP,HUB FRONT AXLE F049(FS4) OD=132	9-09950-164-0	02	1	9510-0004	●
21	RING; SNAP,HUB OD=132	9-09950-164-0	02	1	9510-0004		●
21	RING; SNAP,HUB FRONT AXLE F049(FS4) OD=132	9-09950-164-0	02	1	0005-	●
21	RING; SNAP,HUB EXC. FRONT AXLE F049(FS4) OD=117	1-09587-001-0	02	1	9510-	●
23	DRUM; BRK,FRT FRONT AXLE F049(FS4)	1-42315-138-2	02	1	9510-0004	●
23	DRUM; BRK,FRT	1-42315-138-2	02	1	9510-0004		●
23	DRUM; BRK,FRT FRONT AXLE F049(FS4)	1-42315-138-2	02	1	0005-	●
23	DRUM; BRK,FRT EXC. FRONT AXLE F049(FS4)	1-42315-278-1	02	1	9510-	●
27	NUT; WHEEL PIN,FRT AXLE M22	9-09110-522-0	16	1	9510-9609	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9610-9904	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-0004	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0005-	●
28	SEAL; OIL,FRT HUB FRONT AXLE F049(FS4) OD=128	1-09625-129-0	02	1	9510-0004	●
28	SEAL; OIL,FRT HUB OD=128	1-09625-129-0	02	1	9510-0004		●
28	SEAL; OIL,FRT HUB FRONT AXLE F049(FS4) OD=128	1-09625-129-0	02	1	0005-	●
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F049(FS4)	1-09625-568-0	02	1	9510-	●
35	BOLT; DRUM COVER FRONT AXLE F049(FS4) M16X50	0-20801-650-0	08	1	9510-0004	●
35	BOLT; DRUM COVER M16X50	0-20801-650-0	08	1	9510-0004		●
35	BOLT; DRUM COVER FRONT AXLE F049(FS4) M16X50	0-20801-650-0	08	1	0005-0512	●
35	BOLT; DRUM COVER FRONT AXLE F049(FS4) M16X50	0-20851-650-0	08	1	0601-	●
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	9-09150-816-0	08	1	9510-0004	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	08	1	9510-0004		●
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	9-09150-816-0	08	1	0005-0603	●
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	0-91510-816-0	08	1	0604-	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	9-09150-814-0	08	1	9510-0603	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	0-91510-814-0	08	1	0604-	●
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	9-99110-416-0	08	1	9510-0004	●
38	NUT; BACK PLATE M16	9-99110-416-0	08	1	9510-0004		●
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	9-99110-416-0	08	1	0005-0512	●
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	0-91110-516-0	08	1	0601-	●
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	9-99110-514-0	08	1	9510-0512	●
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	0-91110-514-0	08	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
