◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#64276) — 588 parça

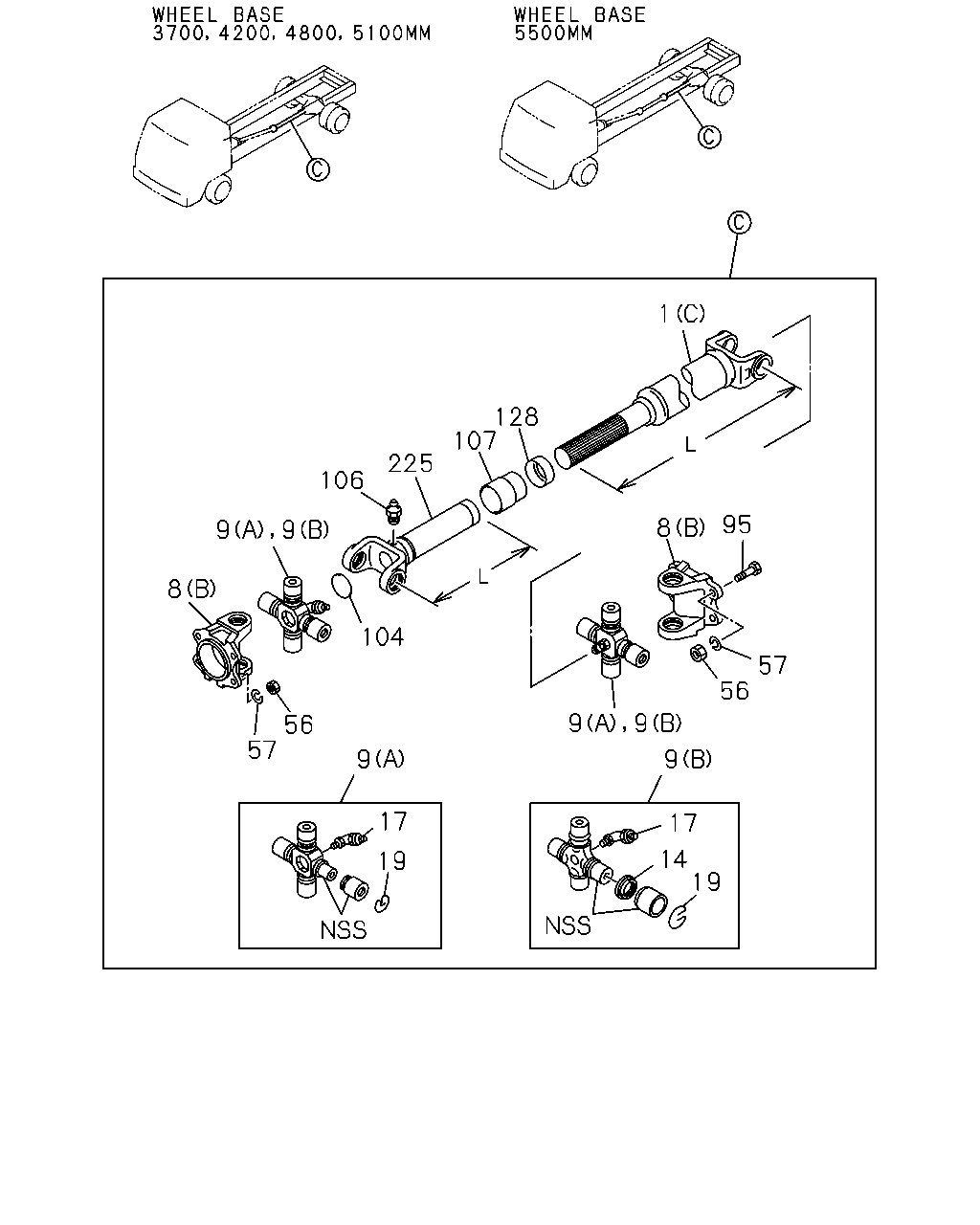

çizim 122572
1 128 107 225 106 95 8 9 9 8 104 57 56 9 9 56 57 9 9 17 17 14 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
(C) L=716 		1-37123-771-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=761 		1-37151-772-1 01 1 9510- ●
1 SHAFT; PROP
(C) L=951 		1-37123-764-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1091 		1-37151-640-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=991 		1-37151-582-1 01 1 9510- ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-2 01 1 9510-9802 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 9803-0004 ● ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0005- ● ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1251 		1-37152-003-0 01 1 9510-9802 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1386 		1-37152-002-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 9510-0405 ●
1 SHAFT; PROP
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
(B) L=926 		1-37152-790-0 01 1 0005- ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=961 		1-37151-382-1 01 1 9803-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1251 		1-37152-003-1 01 1 9803- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1096 		1-37151-941-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1096 		1-37151-941-1 01 1 0005- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=996 		1-37152-006-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=996 		1-37152-006-1 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (C) 		1-37211-054-0 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-2 01 1 9510-9802 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 9803-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 02 1 9510-9802 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 9803-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> (B) 1ST 		8-98048-925-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9510-9802 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9803-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-0 AR 1 9810-0004 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-0 AR 1 0005-0512 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L), 6HH1STD ENG(65L),6HH1 N ENG(66L) MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L), 6HH1STD ENG(65L),6HH1 N ENG(66L) MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
MBJ5 M/T<Y9A> 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-129-0 AR 1 0601-1111 ● ● ● ●
14 COVER; DUST,SPIDER
MLD6 M/T<X9Y> 1ST 		8-98020-800-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 		8-98020-800-0 04 1 1506- ● ● ●
14 COVER; DUST,SPIDER
6HE1 TCN ENG(58L) MLD6 M/T<X9Y> 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MBJ6 M/T<Y9B> 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9810-0004 ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0405 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0406-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0406-1111 ●
14 COVER; DUST,SPIDER
1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A> 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 0406-1505 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-9802 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9803-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9510-9802 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9803-0004 ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0005-0512 ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9510-9802 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9803-0004 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0005-0603 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9803-0004 ● ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0005- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9510-9802 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9803-0004 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0005- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-9802 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9803-0004 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9510-9802 ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9803-0004 ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9810-9811 ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812-0004 ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0005- ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9510-9802 ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9803-9809 ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9810-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9810-9811 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9812-9902 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9903-0004 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0005- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9510-9802 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9803-9809 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9810-9811 ● ● ●

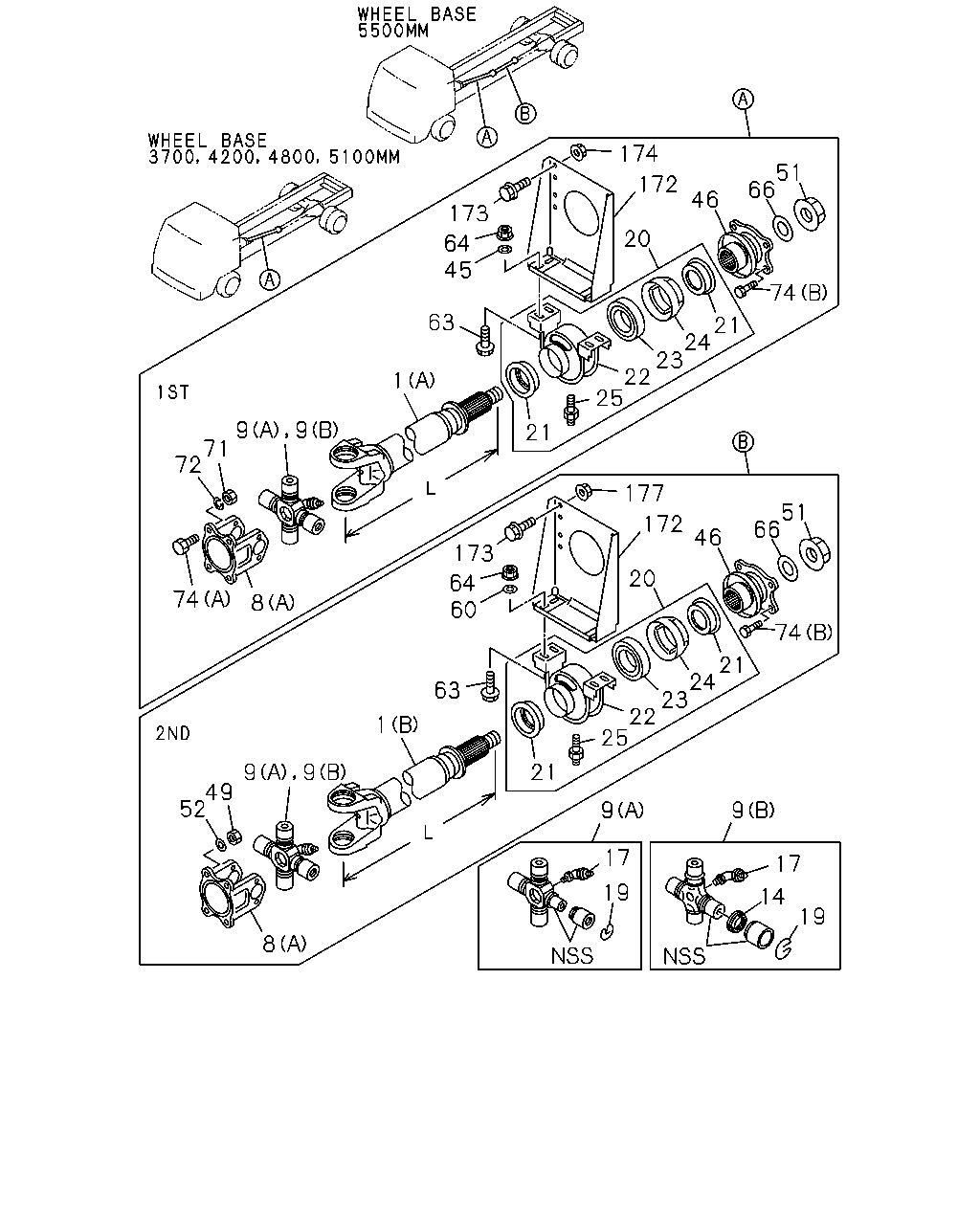

çizim 184018
174 51 66 172 46 173 20 64 45 74 63 21 24 23 22 25 1 9 9 21 71 72 177 51 66 172 46 173 20 64 60 74 8 74 21 24 23 22 25 63 1 9 9 21 49 52 9 9 17 17 19 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
(C) L=716 		1-37123-771-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=761 		1-37151-772-1 01 1 9510- ●
1 SHAFT; PROP
(C) L=951 		1-37123-764-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1091 		1-37151-640-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=991 		1-37151-582-1 01 1 9510- ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-2 01 1 9510-9802 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 9803-0004 ● ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0005- ● ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1251 		1-37152-003-0 01 1 9510-9802 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1386 		1-37152-002-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 9510-0405 ●
1 SHAFT; PROP
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
(B) L=926 		1-37152-790-0 01 1 0005- ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=961 		1-37151-382-1 01 1 9803-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1251 		1-37152-003-1 01 1 9803- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1096 		1-37151-941-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1096 		1-37151-941-1 01 1 0005- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=996 		1-37152-006-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=996 		1-37152-006-1 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (C) 		1-37211-054-0 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-2 01 1 9510-9802 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 9803-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 02 1 9510-9802 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 9803-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> (B) 1ST 		8-98048-925-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9510-9802 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9803-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-0 AR 1 9810-0004 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-0 AR 1 0005-0512 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L), 6HH1STD ENG(65L),6HH1 N ENG(66L) MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L), 6HH1STD ENG(65L),6HH1 N ENG(66L) MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
MBJ5 M/T<Y9A> 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-129-0 AR 1 0601-1111 ● ● ● ●
14 COVER; DUST,SPIDER
MLD6 M/T<X9Y> 1ST 		8-98020-800-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 		8-98020-800-0 04 1 1506- ● ● ●
14 COVER; DUST,SPIDER
6HE1 TCN ENG(58L) MLD6 M/T<X9Y> 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MBJ6 M/T<Y9B> 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9810-0004 ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0405 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0406-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0406-1111 ●
14 COVER; DUST,SPIDER
1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A> 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 0406-1505 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-9802 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9803-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6 M/T<X9Y> 1ST 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-1111 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005- ●
24 RETAINER; CENTER BRG,1ST
MLD6 M/T<X9Y> 1ST 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-1111 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-1111 ●
24 RETAINER; CENTER BRG,1ST
1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-9802 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9803-0004 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0605 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6 M/T<X9Y> 1ST 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-1111 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9803-0004 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0512 ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005- ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9803-0004 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0603 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9803-0004 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0605 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0405 ● ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0406-0512 ● ● ●
71 NUT; YOKE
EXC. MLD6 M/T<X9Y> M14 		9-99110-514-0 04 1 0406-0512 ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ● ●
71 NUT; YOKE
EXC. MLD6 M/T<X9Y> M14 		0-91110-514-0 04 1 0601- ●
71 NUT; YOKE
MLD6 M/T<X9Y> M16 FLANGE 		1-09449-065-0 04 1 0406- ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9510-9802 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9803-0004 ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9510-9802 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9803-0004 ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0405 ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0406-0603 ● ● ●
72 WASHER; LK,YOKE
EXC. MLD6 M/T<X9Y> ID=14.2 		9-09150-614-0 04 1 0406-0603 ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
EXC. MLD6 M/T<X9Y> ID=14.2 		0-91510-614-0 04 1 0604- ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 9803-0004 ● ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 0005- ● ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 0005- ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9510-9802 ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9803-9807 ● ● ●
74 BOLT; YOKE,TRANS
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9803-9807 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 9510-0612 ●
172 BRACKET; CENTER BRG
EXC. EURO2 SPECIFICATION<THN> 		1-37515-118-0 01 1 0701- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 9510-9802 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 9803-0004 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 0005-0612 ● ●
172 BRACKET; CENTER BRG
EURO2 SPECIFICATION<THN> 		1-37515-122-0 01 1 0701- ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 0701- ● ●
172 BRACKET; CENTER BRG
2ND 		1-37515-119-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
2ND 		1-37515-121-0 01 1 0005- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9802 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9803-0004 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9803-0004 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0512 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0005-0005 ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0005 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0005 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0005 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0005 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●

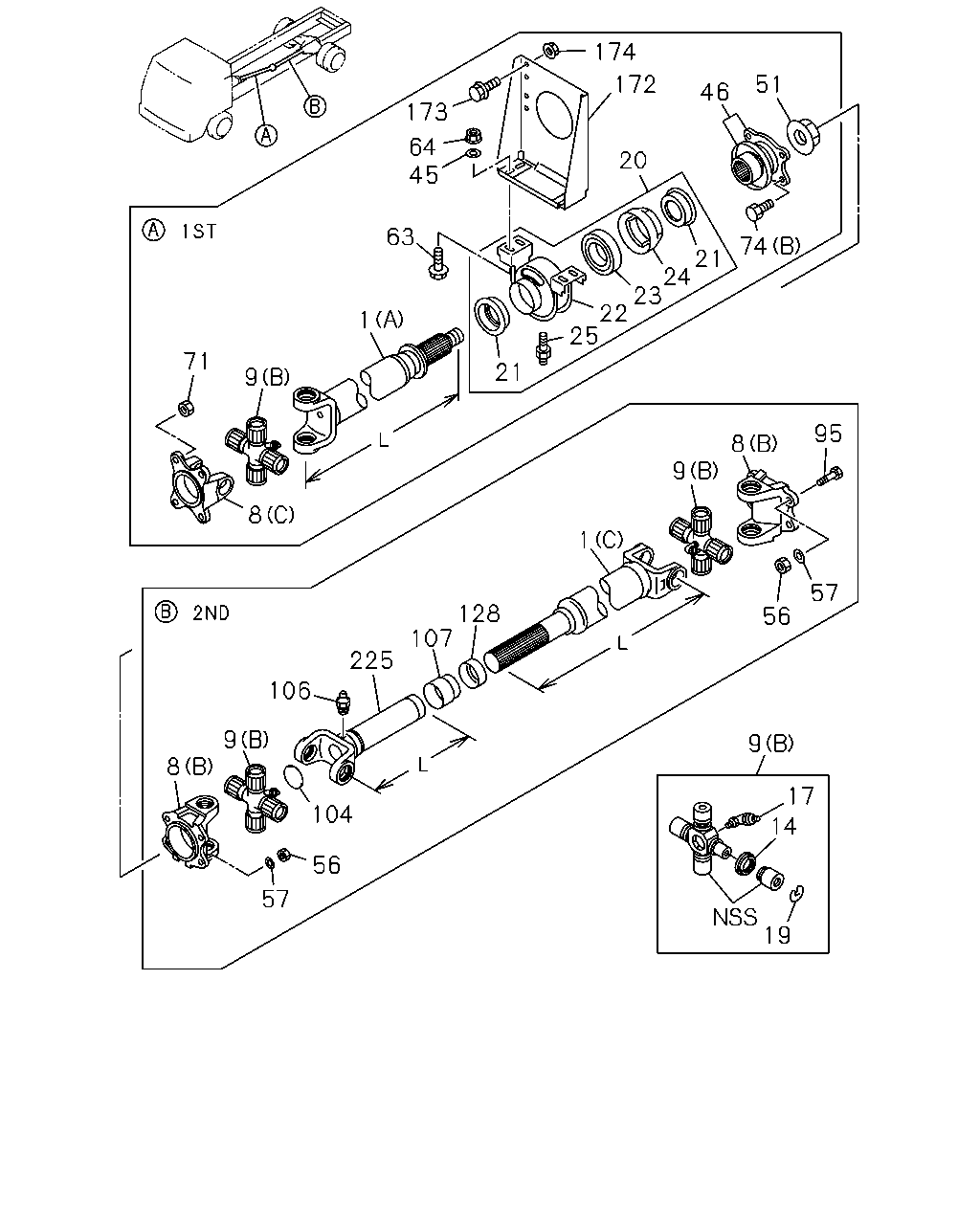

çizim 184084
174 51 172 46 173 64 45 20 63 74 21 24 23 22 25 1 71 21 9 95 8 9 8 1 57 128 107 56 225 106 9 9 8 17 104 14 56 57 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
(C) L=716 		1-37123-771-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=761 		1-37151-772-1 01 1 9510- ●
1 SHAFT; PROP
(C) L=951 		1-37123-764-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1091 		1-37151-640-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=991 		1-37151-582-1 01 1 9510- ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-2 01 1 9510-9802 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 9803-0004 ● ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0005- ● ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1251 		1-37152-003-0 01 1 9510-9802 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1386 		1-37152-002-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 9510-0405 ●
1 SHAFT; PROP
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
(B) L=926 		1-37152-790-0 01 1 0005- ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=961 		1-37151-382-1 01 1 9803-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1251 		1-37152-003-1 01 1 9803- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1096 		1-37151-941-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1096 		1-37151-941-1 01 1 0005- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=996 		1-37152-006-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=996 		1-37152-006-1 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (C) 		1-37211-054-0 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-2 01 1 9510-9802 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 9803-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 02 1 9510-9802 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 9803-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> (B) 1ST 		8-98048-925-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9510-9802 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9803-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-0 AR 1 9810-0004 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-0 AR 1 0005-0512 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L), 6HH1STD ENG(65L),6HH1 N ENG(66L) MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L), 6HH1STD ENG(65L),6HH1 N ENG(66L) MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) MBJ5 M/T<Y9A> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FS**M*) 6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) 1ST=MBJ,AT AND 2ND,END 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
MBJ5 M/T<Y9A> 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-129-0 AR 1 0601-1111 ● ● ● ●
14 COVER; DUST,SPIDER
MLD6 M/T<X9Y> 1ST 		8-98020-800-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 		8-98020-800-0 04 1 1506- ● ● ●
14 COVER; DUST,SPIDER
6HE1 TCN ENG(58L) MLD6 M/T<X9Y> 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MBJ6 M/T<Y9B> 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9810-0004 ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0405 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0406-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0406-1111 ●
14 COVER; DUST,SPIDER
1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
1ST=MBJ,AT AND 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A> 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 0406-1505 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-9802 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9803-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-9802 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9803-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6 M/T<X9Y> 1ST 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-1111 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST=MBJ,AT AND 2ND 		1-37510-105-0 01 1 1112- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005- ●
24 RETAINER; CENTER BRG,1ST
MLD6 M/T<X9Y> 1ST 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-1111 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-1111 ●
24 RETAINER; CENTER BRG,1ST
1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
1ST=MBJ,AT AND 2ND 		1-37529-068-0 01 1 1112- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-9802 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9803-0004 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0605 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6 M/T<X9Y> 1ST 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-1111 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AT545 A/T ALLISON(MD1) 1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST=MBJ,AT AND 2ND 		1-37245-071-0 01 1 1112- ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005- ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9510-9802 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9803-0004 ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0005-0512 ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9510-9802 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9803-0004 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0005-0603 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0405 ● ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0406-0512 ● ● ●
71 NUT; YOKE
EXC. MLD6 M/T<X9Y> M14 		9-99110-514-0 04 1 0406-0512 ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ● ●
71 NUT; YOKE
EXC. MLD6 M/T<X9Y> M14 		0-91110-514-0 04 1 0601- ●
71 NUT; YOKE
MLD6 M/T<X9Y> M16 FLANGE 		1-09449-065-0 04 1 0406- ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9510-9802 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9803-0004 ● ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 9803-0004 ● ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 0005- ● ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 0005- ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9510-9802 ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9803-9807 ● ● ●
74 BOLT; YOKE,TRANS
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9803-9807 ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9803-0004 ● ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0005- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9510-9802 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9803-0004 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0005- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-9802 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9803-0004 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9510-9802 ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9803-0004 ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9810-9811 ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812-0004 ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0005- ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9510-9802 ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9803-9809 ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9810-9811 ● ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 9510-0612 ●
172 BRACKET; CENTER BRG
EXC. EURO2 SPECIFICATION<THN> 		1-37515-118-0 01 1 0701- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 9510-9802 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 9803-0004 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 0005-0612 ● ●
172 BRACKET; CENTER BRG
EURO2 SPECIFICATION<THN> 		1-37515-122-0 01 1 0701- ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 0701- ● ●
172 BRACKET; CENTER BRG
2ND 		1-37515-119-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
2ND 		1-37515-121-0 01 1 0005- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9802 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9803-0004 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9803-0004 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0512 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0005-0005 ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0005 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0005 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9810-9811 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9812-9902 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9903-0004 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0005- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9510-9802 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9803-9809 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9810-9811 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
