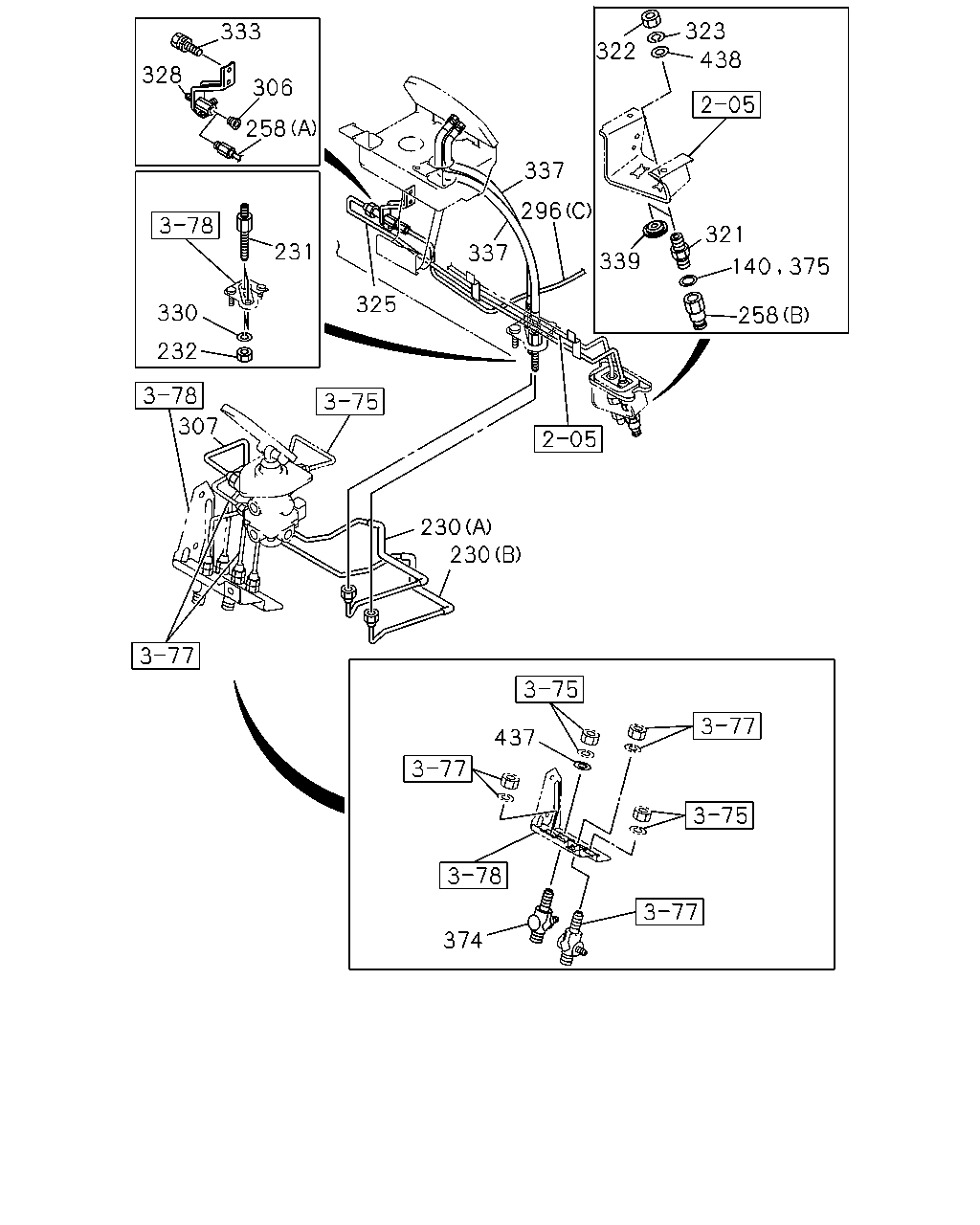

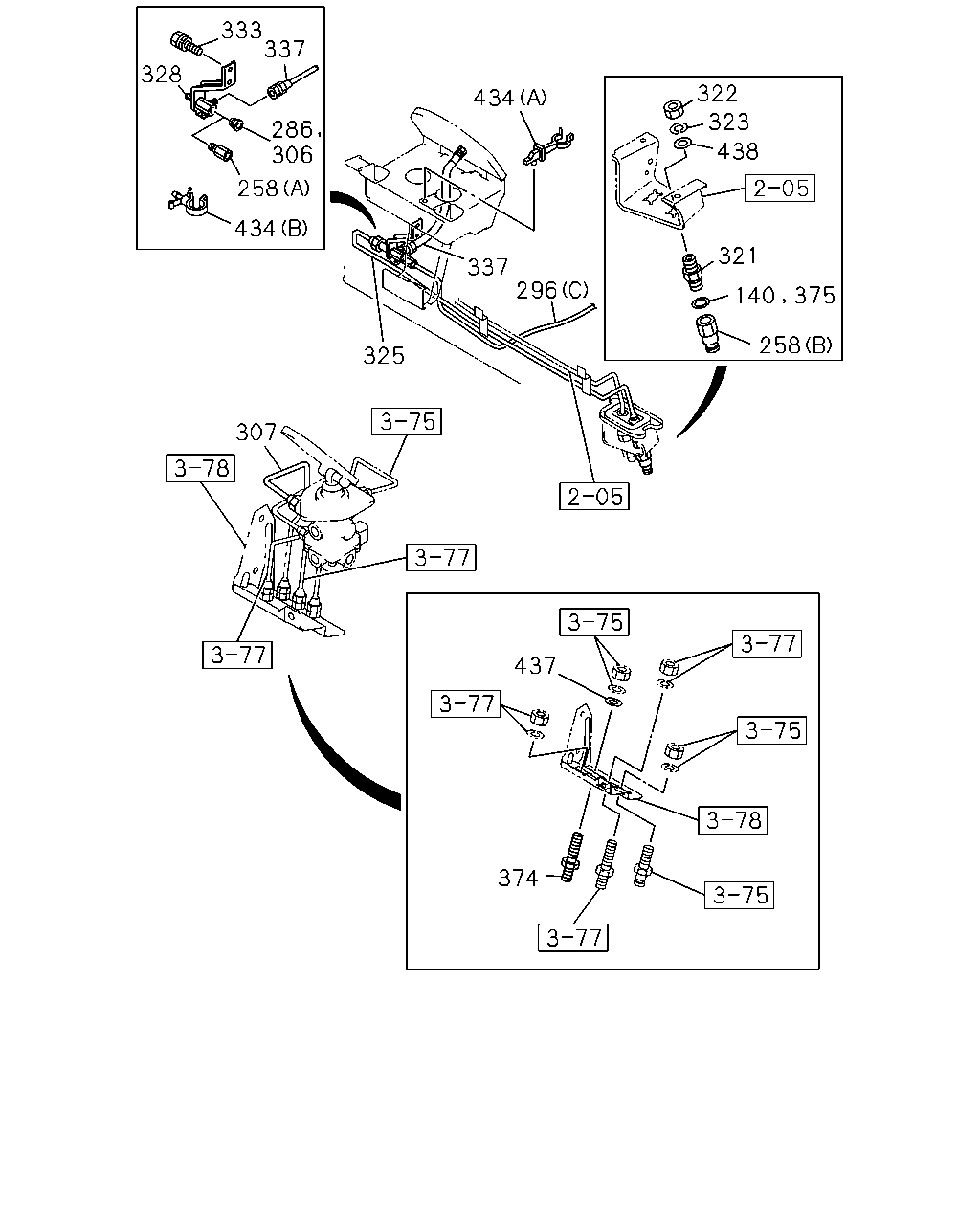

3-70 — BRAKE PIPING; AIR,AIR MASTER (#64272) — 714 parça

333 337 328 322 323 434 286 306 438 258 434 321 337 296 140 258 325 307 437 374 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

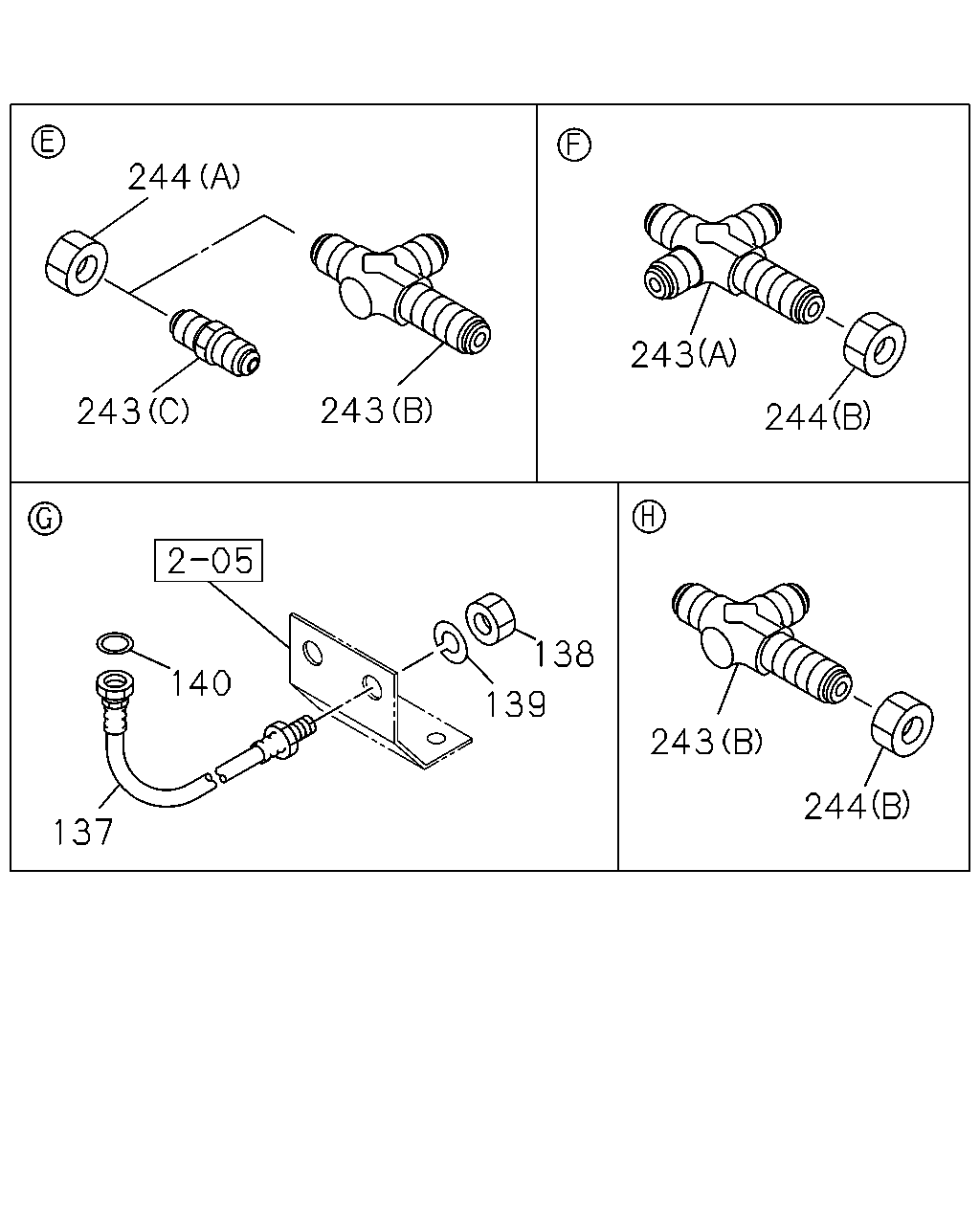

140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9510-9810	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9811-0004	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9811-0004		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0011-0302	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0303-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9510-9708	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9510-9708	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0010	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0010	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0011-0012	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0101-0405	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0406-	●
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	9510-9802	●
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	9803-9810	●
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	9811-0004	●
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	0005-0010	●
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	0011-	●

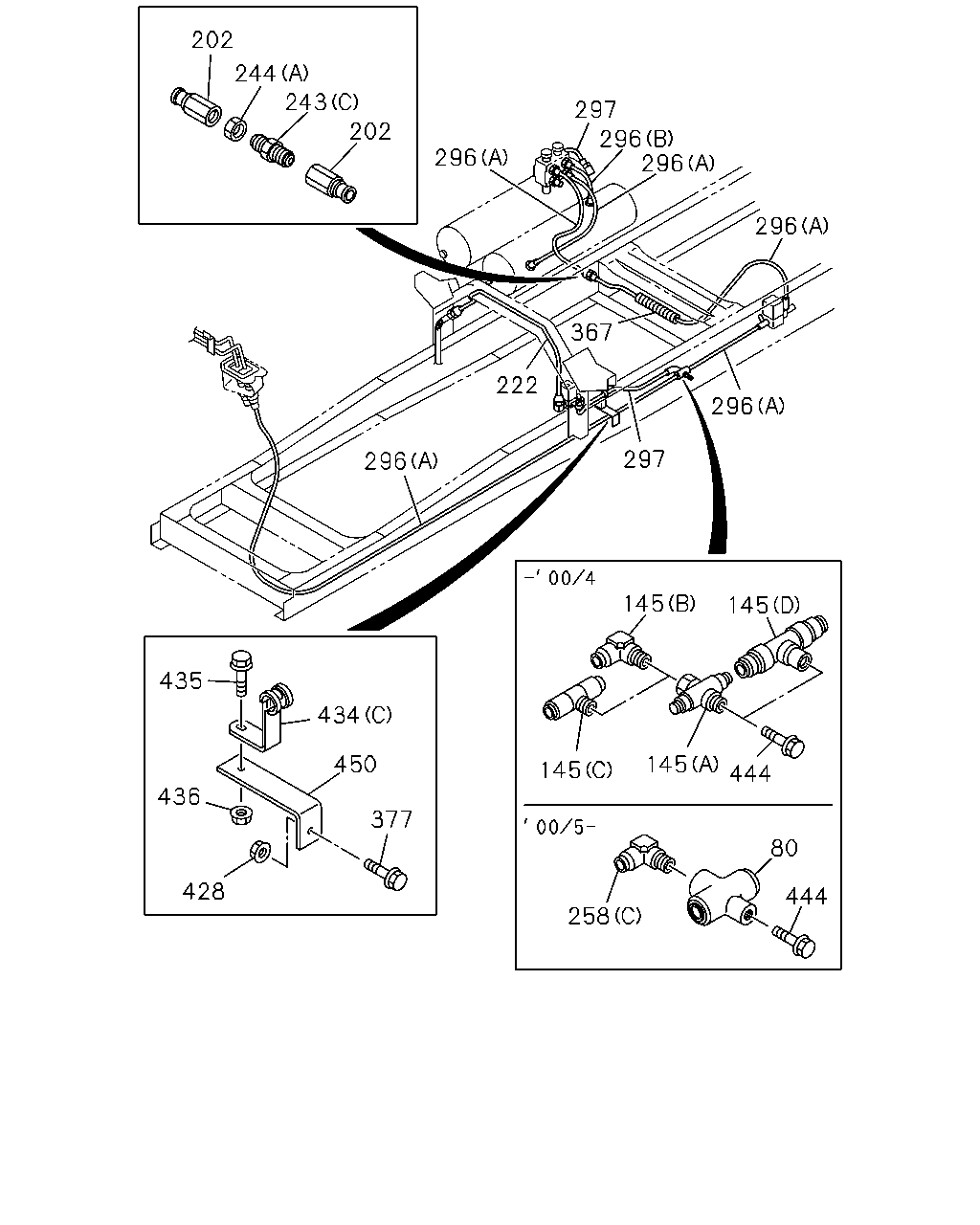

296	TUBE; NYLON (C) L=1200 OD=6	1-09366-256-0	AR	1	0005-	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●
296	TUBE; NYLON (C) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9510-0001	●	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9510-0004	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9510-0004	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●
306	PLUG; NYLON TUBE AIR CONTROL SEAT<A60> PT1/8	1-09605-050-0	01	1	9803-0004	●
306	PLUG; NYLON TUBE PT1/8	1-09605-050-0	01	1	9803-0004		●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-49116-427-0	01	1	9510-9512	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-47492-448-5	01	1	9601-9902	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-49121-486-0	01	1	9903-0004	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-49121-486-0	01	1	0005-	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9802	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9802	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9803-9810	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9803-9810	●
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9803-9810		●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9811-9811	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9811-9811	●
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT<SJA>	1-09654-362-1	01	1	9811-9811		●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0004	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0004	●
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT<SJA>	1-09656-738-0	01	1	9812-0004		●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0005-0010	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0005-0010	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0011-	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0011-	●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-9802	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-9802	●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9803-9810	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9803-9810	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9803-9810		●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9811-0004	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9811-0004	●
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8	1-09400-029-0	01	1	9811-0004		●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0005-0010	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0005-0010	●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0011-	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0011-	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-9802	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-9802	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9803-9810	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9803-9810	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9803-9810		●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9811-0004	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9811-0004	●
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2	9-09150-510-0	01	1	9811-0004		●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0005-0010	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0005-0010	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0011-0603	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0011-0603	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-	●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9510-9802	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9510-9802	●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9803-9810	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9803-9810	●
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	9803-9810		●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9811-0004	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9811-0004	●
325	PIPE; AIR,FLEX HOSE TO UNION DRIVER ISRINGHAUSEN SEAT<SJA>	1-47492-452-2	01	1	9811-0004		●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0005-0010	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0005-0010	●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0011-	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0011-	●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	9510-9802	●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	9803-9810	●
328	UNION; AIR PIPE	1-47470-392-0	01	1	9803-9810		●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	9811-0004	●
328	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA>	1-47470-392-0	01	1	9811-0004		●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	0005-0010	●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	0011-	●
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-362-2	01	1	9510-	●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810		●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●
333	BOLT; PIPE UNION DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004		●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9510-0004	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9510-0004		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	0005-0608	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9510-0605	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0606-	●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9510-9802	●
374	CONNECTOR	1-09656-451-1	01	1	9510-9802		●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-721-0	01	1	9803-0004	●
374	CONNECTOR	1-09656-721-0	01	1	9803-0004		●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-721-0	01	1	0005-0103	●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-754-0	01	1	0104-	●
374	CONNECTOR EXC. DUAL AIR GAUGE<UG2>	1-09654-324-0	01	1	9510-9802	●
374	CONNECTOR EXC. DUAL AIR GAUGE<UG2> M16 STRAIGHT	1-09654-380-0	01	1	9803-	●
375	GASKET AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9810	●
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9810	●
375	GASKET ID=11 OD=18	9-09572-510-0	01	1	9803-9810		●
375	GASKET AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9811-9811	●
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9811-9811	●
375	GASKET DRIVER ISRINGHAUSEN SEAT<SJA> ID=11 OD=18	9-09572-510-0	01	1	9811-9811		●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-	●
434	CLIP EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=45 L=20	1-09701-161-0	01	1	9803-0004	●
434	CLIP (C) ID=16 H=45 L=20	1-09701-161-0	01	1	9803-0004		●
434	CLIP EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45	5-09700-021-0	01	1	9803-0004	●
434	CLIP AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (C) D=9 T=45	5-09700-021-0	01	1	9803-0004	●
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-0004	●	●
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-9802	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-9802	●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-9810	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-9810	●
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-9810		●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9811-0004	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9811-0004	●
438	WASHER; PL,JOINT DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9811-0004		●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0010	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0010	●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0011-	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0011-	●

14 154 170 34 14 154 176 171 184 186 185 1 5 6 155 3 2 7 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6HE1 TCN ENG(58L) L=320	1-09363-560-1	01	1	9610-0405	●
1	HOSE; FLEX,AIR TANK 6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0406-	●
1	HOSE; FLEX,AIR TANK 6HK1 TCC ENG(81L) L=320	1-09363-560-1	01	1	0406-	●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-558-0	01	1	9510-0004	●	●
1	HOSE; FLEX,AIR TANK 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-558-0	01	1	0005-	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9510-0004	●	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0005-0512	●
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9510-0004	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0005-0603	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-	●
5	SLEEVE; FLEX HOSE ID=32 OD=36 L=50	1-09337-023-0	01	1	9810-0004		●
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9510-0004	●	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	0005-0304	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> CAB UP +50MM<W60>	1-49123-056-0	01	1	0601-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1682	1-49124-425-0	01	1	0406-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49114-924-0	01	1	9510-9802	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49118-360-0	01	1	9803-0004	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49118-360-0	01	1	0005-0405	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>,CAB UP +50MM<W60>	1-49118-360-0	01	1	0406-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-922-0	01	1	9510-0004	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-922-0	01	1	0005-0405	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> EXC. CAB UP +50MM<W60>	1-49114-922-0	01	1	0406-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49116-416-0	01	1	9510-9802		●
34	PIPE; AIR AIR DRYER<PS7>	1-49114-925-0	01	1	9510-9802	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-293-0	01	1	9803-0004	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-293-0	01	1	0005-0405	●
34	PIPE; AIR AIR DRYER<PS7> EXC. CAB UP +50MM<W60>	1-49118-293-0	01	1	0406-0512	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-293-0	01	1	0601-	●
34	PIPE; AIR AIR DRYER<PS7> L=912 SERVICED BY L=1000	1-49115-462-0	01	1	9510-9802		●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49114-881-0	01	1	9510-9802	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49118-296-0	01	1	9803-9910	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-147-0	01	1	9911-	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-381-0	01	1	9911-0004		●
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9510-9910	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE CAB UP +50MM<W60> EXC. AIR DRYER<PS7>	1-49124-426-0	01	1	0406-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49114-969-0	01	1	9510-9802	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49118-403-0	01	1	9803-9803	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49119-460-0	01	1	9804-9910	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-149-0	01	1	9911-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-149-0	01	1	0005-0405	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>,CAB UP +50MM<W60>	1-49122-149-0	01	1	0406-	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49114-971-0	01	1	9510-9802	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1106 SERVICED BY L=1200	1-47426-352-0	01	1	9803-9803	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1112 SERVICED BY L=1200	1-47426-352-0	01	1	9804-9910	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1137	1-49122-151-0	01	1	9911-0405	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. CAB UP +50MM<W60> L=1137	1-49122-151-0	01	1	0406-0512	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1137	1-49122-151-0	01	1	0601-	●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-382-0	01	1	9911-0001		●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-513-0	01	1	0002-0004		●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49116-419-0	01	1	9510-9802		●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> CAB UP +50MM<W60>	1-49122-829-0	01	1	0601-	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49114-972-0	01	1	9510-0004	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49114-972-0	01	1	0005-0512	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. CAB UP +50MM<W60>	1-49114-972-0	01	1	0601-	●
184	HOSE; FLEX,AIR GOV 6HE1 TCN ENG(58L) L=330	1-09363-584-0	01	1	9610-0405	●
184	HOSE; FLEX,AIR GOV 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) L=330	1-09363-584-0	01	1	0406-	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=330	1-09363-584-0	01	1	9510-9606	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD 4VALVE ENG(1A6) L=370	1-09363-586-0	01	1	0005-	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-651-0	01	1	9607-0004	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-651-0	01	1	0005-	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9510-0004	●	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0005-	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9510-0004	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0005-0603	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-	●

251 222 272 250 217 238 222 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
217	PIPE; VAC,UNION TO MAG VLV 6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=774	1-49124-514-0	01	1	0406-	●
217	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	1-49114-871-0	01	1	9510-9802	●
217	PIPE; VAC,UNION TO MAG VLV 6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=947 SERVICED BY L=1000	1-47428-814-0	01	1	0011-0012	●
217	PIPE; VAC,UNION TO MAG VLV 6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=892 SERVICED BY L=900	1-47428-813-0	01	1	0101-	●
217	PIPE; VAC,UNION TO MAG VLV	1-49116-412-0	01	1	9510-9802		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	0406-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1047	1-49113-685-0	01	1	9610-9711	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9712-0004	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	0005-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9510-0004	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0005-0010	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0011-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0011-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1082 SERVICED BY L=1100	1-47428-815-0	01	1	0011-0012	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1045 SERVICED BY L=1100	1-47428-815-0	01	1	0101-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1042 SERVICED BY L=1100	1-47428-815-0	01	1	9510-0004		●
238	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1348 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802	●
250	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT<A56> L=2455 SERVICED BY L=2500	1-47426-362-0	01	1	9510-9802	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=2455 SERVICED BY L=2500	1-47426-362-0	01	1	9510-9802	●
251	PIPE; AIR,UNION TO MAG VLV AUSTRALIA EQUIPMENT(RR3)	1-49115-027-0	01	1	9510-9802	●	●
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. AUSTRALIA EQUIPMENT(RR3)	1-49115-027-0	01	1	9510-9802	●
272	PIPE; AIR,MAG VLV TO UNION EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3)	1-49116-267-0	01	1	9510-9802	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6>	1-49116-267-0	01	1	9510-9802	●
272	PIPE; AIR,MAG VLV TO UNION AUSTRALIA EQUIPMENT(RR3)	1-49116-267-0	01	1	9510-9802		●

323 333 322 438 328 306 258 337 296 321 231 337 339 140 325 330 258 232 307 230 230 437 374 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●
230	PIPE; AIR,UNION TO UNION HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (A)	1-49123-979-0	01	1	0301-	●
230	PIPE; AIR,UNION TO UNION HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (B)	1-49123-980-0	01	1	0301-	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A)	1-49116-429-1	01	1	9510-0004	●
230	PIPE; AIR,UNION TO UNION (A)	1-49116-429-1	01	1	9510-0004		●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A)	1-49116-429-1	01	1	0005-0103	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A)	1-49122-777-0	01	1	0104-0212	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-49122-777-0	01	1	0301-	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B)	1-49116-430-1	01	1	9510-0004	●
230	PIPE; AIR,UNION TO UNION (B)	1-49116-430-1	01	1	9510-0004		●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B)	1-49116-430-1	01	1	0005-0103	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B)	1-49122-778-0	01	1	0104-0212	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-49122-778-0	01	1	0301-	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> M10 STRAIGHT	1-09654-361-0	02	1	9510-0004	●
231	UNION; AIR PIPE M10 STRAIGHT	1-09654-361-0	02	1	9510-0004		●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> M10 STRAIGHT	1-09654-361-0	02	1	0005-	●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9510-0004	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	9510-0004		●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	0005-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9510-9810	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9811-0004	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9811-0004		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0011-0302	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0303-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9510-9708	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9510-9708	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0010	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0010	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0011-0012	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0101-0405	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0406-	●
296	TUBE; NYLON (C) L=1200 OD=6	1-09366-256-0	AR	1	0005-	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●
296	TUBE; NYLON (C) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9510-0001	●	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9510-0004	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9510-0004	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●
306	PLUG; NYLON TUBE AIR CONTROL SEAT<A60> PT1/8	1-09605-050-0	01	1	9803-0004	●
306	PLUG; NYLON TUBE PT1/8	1-09605-050-0	01	1	9803-0004		●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-49116-427-0	01	1	9510-9512	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-47492-448-5	01	1	9601-9902	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-49121-486-0	01	1	9903-0004	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV	1-49121-486-0	01	1	0005-	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9802	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9510-9802	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9803-9810	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9803-9810	●
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9803-9810		●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9811-9811	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9811-9811	●
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT<SJA>	1-09654-362-1	01	1	9811-9811		●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0004	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-0004	●
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT<SJA>	1-09656-738-0	01	1	9812-0004		●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0005-0010	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0005-0010	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0011-	●
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0011-	●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-9802	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9510-9802	●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9803-9810	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9803-9810	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9803-9810		●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9811-0004	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9811-0004	●
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8	1-09400-029-0	01	1	9811-0004		●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0005-0010	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0005-0010	●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0011-	●
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0011-	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-9802	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9510-9802	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9803-9810	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9803-9810	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9803-9810		●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9811-0004	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9811-0004	●
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2	9-09150-510-0	01	1	9811-0004		●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0005-0010	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0005-0010	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0011-0603	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0011-0603	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-	●
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-	●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9510-9802	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9510-9802	●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9803-9810	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9803-9810	●
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	9803-9810		●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9811-0004	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	9811-0004	●
325	PIPE; AIR,FLEX HOSE TO UNION DRIVER ISRINGHAUSEN SEAT<SJA>	1-47492-452-2	01	1	9811-0004		●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0005-0010	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0005-0010	●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0011-	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0011-	●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	9510-9802	●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	9803-9810	●
328	UNION; AIR PIPE	1-47470-392-0	01	1	9803-9810		●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	9811-0004	●
328	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA>	1-47470-392-0	01	1	9811-0004		●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	0005-0010	●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	0011-	●
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-362-2	01	1	9510-	●
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9510-0004	●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	9510-0004		●
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	0005-0603	●
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	02	1	0604-	●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810		●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●
333	BOLT; PIPE UNION DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004		●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9510-0004	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9510-0004		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	0005-0608	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9510-0605	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0606-	●
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	9510-9802	●
339	GROMMET; AIR PIPE OD=28	8-94279-720-0	01	1	9510-9802		●
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> OD=28	8-94279-720-0	01	1	9803-9810	●
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28	8-94279-720-0	01	1	9811-0004	●
339	GROMMET; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT<SJA> OD=28	8-94279-720-0	01	1	9811-0004		●
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	0005-0010	●
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> OD=28	8-94279-720-0	01	1	0011-	●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9510-9802	●
374	CONNECTOR	1-09656-451-1	01	1	9510-9802		●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-721-0	01	1	9803-0004	●
374	CONNECTOR	1-09656-721-0	01	1	9803-0004		●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-721-0	01	1	0005-0103	●
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-754-0	01	1	0104-	●
374	CONNECTOR EXC. DUAL AIR GAUGE<UG2>	1-09654-324-0	01	1	9510-9802	●
374	CONNECTOR EXC. DUAL AIR GAUGE<UG2> M16 STRAIGHT	1-09654-380-0	01	1	9803-	●
375	GASKET AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9810	●
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9803-9810	●
375	GASKET ID=11 OD=18	9-09572-510-0	01	1	9803-9810		●
375	GASKET AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9811-9811	●
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9811-9811	●
375	GASKET DRIVER ISRINGHAUSEN SEAT<SJA> ID=11 OD=18	9-09572-510-0	01	1	9811-9811		●
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-0004	●	●
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-9802	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-9802	●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-9810	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-9810	●
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-9810		●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9811-0004	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9811-0004	●
438	WASHER; PL,JOINT DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9811-0004		●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0010	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0010	●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0011-	●
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0011-	●

244 243 243 243 244 138 140 139 243 244 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT<A56> L=450	0-07120-450-0	01	1	9510-9802	●
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450	0-07120-450-0	01	1	9510-9802	●
138	NUT; FLEX HOSE,AIR GOV AIR SUSP DRIVER SEAT<A56> M12	9-09840-280-0	01	1	9510-9802	●
138	NUT; FLEX HOSE,AIR GOV EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9510-9802	●
139	WASHER; LK,FLEX HOSE,AIR GOV AIR SUSP DRIVER SEAT<A56> ID=12.2	9-09150-512-0	01	1	9510-9802	●
139	WASHER; LK,FLEX HOSE,AIR GOV EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9510-9802	●
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (B) M12 3WAY	9-09228-906-1	01	1	0406-0607	●
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (B) M12 3WAY	0-92138-906-0	01	1	0608-	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802	●
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802	●
243	UNION; AIR PIPE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802	●
243	UNION; AIR PIPE (B) M12 2WAY	1-09654-059-2	01	1	9510-9802		●
243	UNION; AIR PIPE (C) M12 L=66.5	9-09223-306-1	01	1	9510-0004	●	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (C) M12 L=66.5	9-09223-306-1	01	1	0005-0010	●
243	UNION; AIR PIPE ISUZU M/T<X9A> (C) M12 L=66.5	9-09223-306-1	01	1	0005-0010	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	9-09223-306-1	01	1	0005-0010	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (C) M12 L=66.5	9-09223-306-1	01	1	0011-0405	●
243	UNION; AIR PIPE ISUZU M/T<X9A> (C) M12 L=66.5	9-09223-306-1	01	1	0011-0405	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	9-09223-306-1	01	1	0011-0405	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (C) M12 L=66.5	9-09223-306-1	01	1	0406-0607	●
243	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> (C) M12 L=66.5	9-09223-306-1	01	1	0406-0607	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	9-09223-306-1	01	1	0406-0607	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (C) M12 L=66.5	0-92113-306-0	01	1	0608-	●
243	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> (C) M12 L=66.5	0-92113-306-0	01	1	0608-	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	0-92113-306-0	01	1	0608-	●
244	NUT; UNION,AIR PIPE EXHAUST BRAKE<NF8> (B) M12	9-99111-412-0	01	1	9510-9802	●
244	NUT; UNION,AIR PIPE (B) M12	9-99111-412-0	01	1	9510-9802		●
244	NUT; UNION,AIR PIPE (A) M12	9-09840-280-0	01	1	9510-0004	●	●
244	NUT; UNION,AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (A) M12	9-09840-280-0	01	1	0005-0010	●
244	NUT; UNION,AIR PIPE ISUZU M/T<X9A> (A) M12	9-09840-280-0	01	1	0005-0010	●
244	NUT; UNION,AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09840-280-0	01	1	0005-0010	●
244	NUT; UNION,AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (A) M12	9-09840-280-0	01	1	0011-	●
244	NUT; UNION,AIR PIPE ISUZU M/T<X9A> (A) M12	9-09840-280-0	01	1	0011-	●
244	NUT; UNION,AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (A) M12	9-09840-280-0	01	1	0011-	●

202 244 243 297 202 296 296 296 296 367 222 296 297 296 145 145 435 434 450 145 145 444 436 377 80 428 444 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	UNION; 3 WAY AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0010	●
80	UNION; 3 WAY ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0010	●
80	UNION; 3 WAY AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0011-0405	●
80	UNION; 3 WAY ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0011-0405	●
80	UNION; 3 WAY 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0011-0405	●
80	UNION; 3 WAY AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-	●
80	UNION; 3 WAY ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-	●
80	UNION; 3 WAY 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-	●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804	●
145	UNION; NYLON TUBE EXHAUST BRAKE<NF8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804	●
145	UNION; NYLON TUBE EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804	●
145	UNION; NYLON TUBE (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804		●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-9805	●
145	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-9805	●
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-9805	●
145	UNION; NYLON TUBE (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-9805		●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9806-0004	●
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9806-0004	●
145	UNION; NYLON TUBE (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9806-0004		●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804	●
145	UNION; NYLON TUBE EXHAUST BRAKE<NF8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804	●
145	UNION; NYLON TUBE EXHAUST BRAKE<NF8> PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804	●
145	UNION; NYLON TUBE (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804		●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9805-9805	●
145	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9805-9805	●
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9805-9805	●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9806-9807	●
145	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9806-9807	●
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9806-9807	●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9808-0004	●
145	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9808-0004	●
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9808-0004	●
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9803-9804	●
145	UNION; NYLON TUBE EXHAUST BRAKE<NF8> PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9803-9804	●
145	UNION; NYLON TUBE EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9805-0004	●
145	UNION; NYLON TUBE (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9805-0004		●
145	UNION; NYLON TUBE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6> (D)	1-09660-788-0	01	1	9803-9804	●
145	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (D)	1-09660-788-0	01	1	9803-9804	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004	●	●
202	ADAPTER AIR SUSP DRIVER SEAT<A56> A/T<X9D> DIN8 & M12 STRAIGHT	1-09661-093-0	02	1	0005-0007	●
202	ADAPTER ISUZU M/T<X9A> DIN8 & M12 STRAIGHT	1-09661-093-0	02	1	0005-0007	●
202	ADAPTER A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT	1-09661-093-0	02	1	0005-0007	●
202	ADAPTER AIR SUSP DRIVER SEAT<A56> A/T<X9D> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0008-0010	●
202	ADAPTER ISUZU M/T<X9A> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0008-0010	●
202	ADAPTER A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0008-0010	●
202	ADAPTER AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0011-	●
202	ADAPTER ISUZU M/T<X9A> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0011-	●
202	ADAPTER A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0011-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	0406-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1047	1-49113-685-0	01	1	9610-9711	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9712-0004	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	0005-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9510-0004	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0005-0010	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0011-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0011-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1082 SERVICED BY L=1100	1-47428-815-0	01	1	0011-0012	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1045 SERVICED BY L=1100	1-47428-815-0	01	1	0101-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1042 SERVICED BY L=1100	1-47428-815-0	01	1	9510-0004		●
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (B) M12 3WAY	9-09228-906-1	01	1	0406-0607	●
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (B) M12 3WAY	0-92138-906-0	01	1	0608-	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802	●
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802	●
243	UNION; AIR PIPE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802	●
243	UNION; AIR PIPE (B) M12 2WAY	1-09654-059-2	01	1	9510-9802		●
243	UNION; AIR PIPE (C) M12 L=66.5	9-09223-306-1	01	1	9510-0004	●	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (C) M12 L=66.5	9-09223-306-1	01	1	0005-0010	●
243	UNION; AIR PIPE ISUZU M/T<X9A> (C) M12 L=66.5	9-09223-306-1	01	1	0005-0010	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	9-09223-306-1	01	1	0005-0010	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (C) M12 L=66.5	9-09223-306-1	01	1	0011-0405	●
243	UNION; AIR PIPE ISUZU M/T<X9A> (C) M12 L=66.5	9-09223-306-1	01	1	0011-0405	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	9-09223-306-1	01	1	0011-0405	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (C) M12 L=66.5	9-09223-306-1	01	1	0406-0607	●
243	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> (C) M12 L=66.5	9-09223-306-1	01	1	0406-0607	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	9-09223-306-1	01	1	0406-0607	●
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (C) M12 L=66.5	0-92113-306-0	01	1	0608-	●
243	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> (C) M12 L=66.5	0-92113-306-0	01	1	0608-	●
243	UNION; AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (C) M12 L=66.5	0-92113-306-0	01	1	0608-	●
244	NUT; UNION,AIR PIPE EXHAUST BRAKE<NF8> (B) M12	9-99111-412-0	01	1	9510-9802	●
244	NUT; UNION,AIR PIPE (B) M12	9-99111-412-0	01	1	9510-9802		●
244	NUT; UNION,AIR PIPE (A) M12	9-09840-280-0	01	1	9510-0004	●	●
244	NUT; UNION,AIR PIPE AIR SUSP DRIVER SEAT<A56> A/T<X9D> (A) M12	9-09840-280-0	01	1	0005-0010	●
244	NUT; UNION,AIR PIPE ISUZU M/T<X9A> (A) M12	9-09840-280-0	01	1	0005-0010	●
244	NUT; UNION,AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09840-280-0	01	1	0005-0010	●
244	NUT; UNION,AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> (A) M12	9-09840-280-0	01	1	0011-	●
244	NUT; UNION,AIR PIPE ISUZU M/T<X9A> (A) M12	9-09840-280-0	01	1	0011-	●
244	NUT; UNION,AIR PIPE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (A) M12	9-09840-280-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9510-9810	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9811-0004	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	9811-0004		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0011-0302	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0303-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9510-9708	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9510-9708	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0010	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9810		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9811-9811		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0010	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0010	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0011-	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0011-0012	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0101-0405	●
258	CONNECTOR; NYLON TUBE 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0406-	●
296	TUBE; NYLON (C) L=1200 OD=6	1-09366-256-0	AR	1	0005-	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●
296	TUBE; NYLON (C) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9510-0001	●	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9510-0004	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9510-0004	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9803-0212	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9803-0212	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9803-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28680-825-0	01	1	9803-0004	●	●
428	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9803-0004	●	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-	●
434	CLIP EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=45 L=20	1-09701-161-0	01	1	9803-0004	●
434	CLIP (C) ID=16 H=45 L=20	1-09701-161-0	01	1	9803-0004		●
434	CLIP EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45	5-09700-021-0	01	1	9803-0004	●
434	CLIP AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (C) D=9 T=45	5-09700-021-0	01	1	9803-0004	●
435	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9803-0004	●	●
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9803-0004	●	●
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9803-0001	●	●
444	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0002-0004	●	●
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	01	1	0005-0010	●
444	BOLT; UNION ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	0005-0010	●
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	01	1	0011-0512	●
444	BOLT; UNION ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	0011-0512	●
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ISUZU M/T<X9A> M8X20 FLANGE	0-28050-820-0	01	1	0601-	●
444	BOLT; UNION ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28050-820-0	01	1	0601-	●
450	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	9803-0004	●	●

154 14 170 154 34 14 176 171 184 186 185 155 1 6 3 2 7 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6HE1 TCN ENG(58L) L=320	1-09363-560-1	01	1	9610-0405	●
1	HOSE; FLEX,AIR TANK 6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0406-	●
1	HOSE; FLEX,AIR TANK 6HK1 TCC ENG(81L) L=320	1-09363-560-1	01	1	0406-	●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-558-0	01	1	9510-0004	●	●
1	HOSE; FLEX,AIR TANK 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-558-0	01	1	0005-	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9510-0004	●	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0005-0512	●
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9510-0004	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0005-0603	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9510-0004	●	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	0005-0304	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> CAB UP +50MM<W60>	1-49123-056-0	01	1	0601-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1682	1-49124-425-0	01	1	0406-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49114-924-0	01	1	9510-9802	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49118-360-0	01	1	9803-0004	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49118-360-0	01	1	0005-0405	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>,CAB UP +50MM<W60>	1-49118-360-0	01	1	0406-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-922-0	01	1	9510-0004	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-922-0	01	1	0005-0405	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> EXC. CAB UP +50MM<W60>	1-49114-922-0	01	1	0406-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49116-416-0	01	1	9510-9802		●
34	PIPE; AIR AIR DRYER<PS7>	1-49114-925-0	01	1	9510-9802	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-293-0	01	1	9803-0004	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-293-0	01	1	0005-0405	●
34	PIPE; AIR AIR DRYER<PS7> EXC. CAB UP +50MM<W60>	1-49118-293-0	01	1	0406-0512	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-293-0	01	1	0601-	●
34	PIPE; AIR AIR DRYER<PS7> L=912 SERVICED BY L=1000	1-49115-462-0	01	1	9510-9802		●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49114-881-0	01	1	9510-9802	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49118-296-0	01	1	9803-9910	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-147-0	01	1	9911-	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-381-0	01	1	9911-0004		●
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9510-9910	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE CAB UP +50MM<W60> EXC. AIR DRYER<PS7>	1-49124-426-0	01	1	0406-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49114-969-0	01	1	9510-9802	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49118-403-0	01	1	9803-9803	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49119-460-0	01	1	9804-9910	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-149-0	01	1	9911-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-149-0	01	1	0005-0405	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>,CAB UP +50MM<W60>	1-49122-149-0	01	1	0406-	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49114-971-0	01	1	9510-9802	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1106 SERVICED BY L=1200	1-47426-352-0	01	1	9803-9803	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1112 SERVICED BY L=1200	1-47426-352-0	01	1	9804-9910	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1137	1-49122-151-0	01	1	9911-0405	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. CAB UP +50MM<W60> L=1137	1-49122-151-0	01	1	0406-0512	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1137	1-49122-151-0	01	1	0601-	●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-382-0	01	1	9911-0001		●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-513-0	01	1	0002-0004		●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49116-419-0	01	1	9510-9802		●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> CAB UP +50MM<W60>	1-49122-829-0	01	1	0601-	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49114-972-0	01	1	9510-0004	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49114-972-0	01	1	0005-0512	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. CAB UP +50MM<W60>	1-49114-972-0	01	1	0601-	●
184	HOSE; FLEX,AIR GOV 6HE1 TCN ENG(58L) L=330	1-09363-584-0	01	1	9610-0405	●
184	HOSE; FLEX,AIR GOV 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) L=330	1-09363-584-0	01	1	0406-	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=330	1-09363-584-0	01	1	9510-9606	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD 4VALVE ENG(1A6) L=370	1-09363-586-0	01	1	0005-	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-651-0	01	1	9607-0004	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-651-0	01	1	0005-	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9510-0004	●	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0005-	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9510-0004	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0005-0603	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-	●

358 359 238 242 238 251 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
238	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1348 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802	●
242	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU>	1-49114-895-0	01	1	9510-9802	●
251	PIPE; AIR,UNION TO MAG VLV AUSTRALIA EQUIPMENT(RR3)	1-49115-027-0	01	1	9510-9802	●	●
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. AUSTRALIA EQUIPMENT(RR3)	1-49115-027-0	01	1	9510-9802	●
358	PIPE; AIR,AIR TANK TO AIR VLV BRAKE REGULATION ADR<TDU>	1-49114-896-0	01	1	9510-9802	●
358	PIPE; AIR,AIR TANK TO AIR VLV	1-49114-896-0	01	1	9510-9802		●
359	PIPE; AIR,AIR VLV TO UNION BRAKE REGULATION ADR<TDU>	1-49114-897-0	01	1	9510-9802	●
359	PIPE; AIR,AIR VLV TO UNION	1-49114-897-0	01	1	9510-9802		●

113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600	1-47426-379-0	01	1	9510-0004	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600	1-47426-379-0	01	1	0005-	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49112-660-0	01	1	9510-0004	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49112-660-0	01	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
