0-25B — INLET MANIFOLD (#6427) — 61 parça

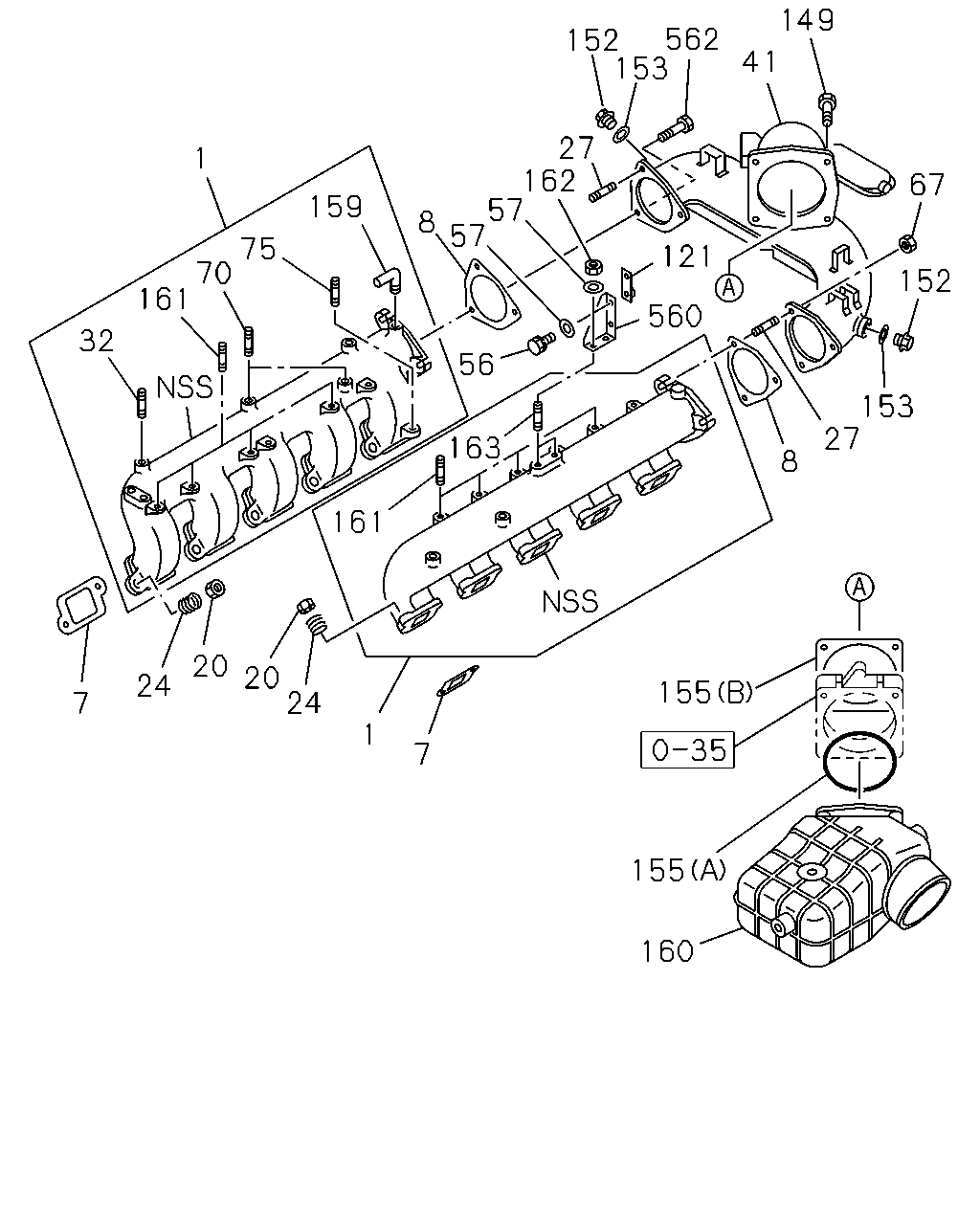

çizim 6862
149 153 41 27 162 57 57 1 67 159 8 75 70 161 121 152 560 32 56 153 27 163 8 161 20 20 24 24 155 7 1 7 155 160 152 562
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL
LH BANK 		1-14112-584-1 01 1 9601-9602 ●
1 MANIFOLD; INL
RH BANK 		1-14112-583-1 01 1 9601-9602 ●
1 MANIFOLD; INL
LH BANK 		1-14112-584-1 01 1 9603-9603 ●
1 MANIFOLD; INL
RH BANK 		1-14112-583-1 01 1 9603-9603 ●
1 MANIFOLD; INL
RH BANK 		1-14112-583-1 01 1 9604-9904 ●
1 MANIFOLD; INL
LH BANK 		1-14112-584-2 01 1 9604-9904 ●
1 MANIFOLD; INL
LH BANK 		1-14112-584-2 01 1 9905- ● ●
1 MANIFOLD; INL
RH BANK 		1-14112-583-1 01 1 9905- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 10 1 9601-9904 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 10 1 9905- ● ●
8 GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14117-078-0 02 1 9601-9904 ●
8 GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14117-078-0 02 1 9905- ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 20 1 9601-9904 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 20 1 9905- ● ●
24 SPRING; INL MANIF 1-09580-156-0 20 1 9601-9904 ●
24 SPRING; INL MANIF 1-09580-156-0 20 1 9905- ● ●
27 STUD; INL MANIF
M10X35 L=55 		9-04311-035-0 03 1 9601-9904 ●
27 STUD; INL MANIF
M10X35 L=55 		9-04311-035-0 03 1 9905- ● ●
32 STUD; INL PIPE
M8X16 L=28 		9-04110-816-0 01 1 9601-9904 ●
32 STUD; INL PIPE
M8X16 L=28 		9-04110-816-0 01 1 9905- ● ●
41 DUCT; INT COVER 1-14134-163-0 01 1 9601-9605 ●
41 DUCT; INT COVER 1-14134-204-2 01 1 9606-9904 ●
41 DUCT; INT COVER 1-14134-204-2 01 1 9905- ● ●
56 BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER 		0-50141-020-0 04 1 9601-9904 ●
56 BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER 		0-50141-020-0 04 1 9905- ● ●
57 WASHER; PL
ID=10.5 OD=22 		9-09160-610-0 02 1 9601-9904 ●
57 WASHER; PL
ID=10.5 OD=22 		9-09160-610-0 02 1 9905- ● ●
57 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 9601-9904 ●
57 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 9905- ● ●
67 NUT; INL DUCT
M10 FLANGE 		0-91150-110-0 03 1 9601-9904 ●
67 NUT; INL DUCT
M10 FLANGE 		0-91150-110-0 03 1 9905- ● ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 02 1 9601-9904 ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 02 1 9905- ● ●
75 STUD; BRKT,AIR PIPE
M10X16 L=31 		9-04411-016-0 01 1 9601-9904 ●
75 STUD; BRKT,AIR PIPE
M10X16 L=31 		9-04411-016-0 01 1 9905- ● ●
121 BRACKET
L=65 		1-47476-513-0 01 1 9601-9904 ●
121 BRACKET
L=65 		1-47476-513-0 01 1 9905- ● ●
149 BOLT; INT SHUTTER
M10X60 FLANGE 		0-28081-060-0 04 1 9601-9904 ●
149 BOLT; INT SHUTTER
M10X60 FLANGE 		0-28081-060-0 04 1 9905- ● ●
152 PLUG; INT DUCT
M22X12 		1-09604-035-0 02 1 9601-9904 ●
152 PLUG; INT DUCT
M22X12 		1-09604-035-0 02 1 9905- ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9601-9904 ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9905- ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4 		1-13213-012-0 01 1 9601-9904 ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4 		1-13213-012-0 01 1 9905- ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14117-072-0 01 1 9601-9904 ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14117-072-0 01 1 9905- ● ●
159 PIPE; VENTILATOR 1-14119-381-0 01 1 9601-9904 ●
159 PIPE; VENTILATOR 1-14119-381-0 01 1 9905- ● ●
160 DUCT; AIR 1-14134-139-4 01 1 9601-9904 ●
160 DUCT; AIR 1-14134-139-4 01 1 9905- ● ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 08 1 9601-9904 ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 08 1 9905- ● ●
162 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9601-9904 ●
162 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ●
163 STUD; BRKT,ENG SPD CONT
M10X20 L=35 		9-04411-020-0 02 1 9601-9904 ●
163 STUD; BRKT,ENG SPD CONT
M10X20 L=35 		9-04411-020-0 02 1 9905- ● ●
560 BRACKET; AIR PIPE 1-14119-336-0 02 1 9601-9904 ●
560 BRACKET; AIR PIPE 1-14119-336-0 02 1 9905- ● ●
562 BOLT; INL DUCT
M10X40 FLANGE 		0-28181-040-0 03 1 9601-9904 ●
562 BOLT; INL DUCT
M10X40 FLANGE 		0-28181-040-0 03 1 9905- ● ●
