3-46 — AIR DRYER (#64268) — 77 parça

1 79 71 80 85 82 82 85 81 75 72 84 5 68 91 4 3 70 77 65 6 7 80 72 79 85 82

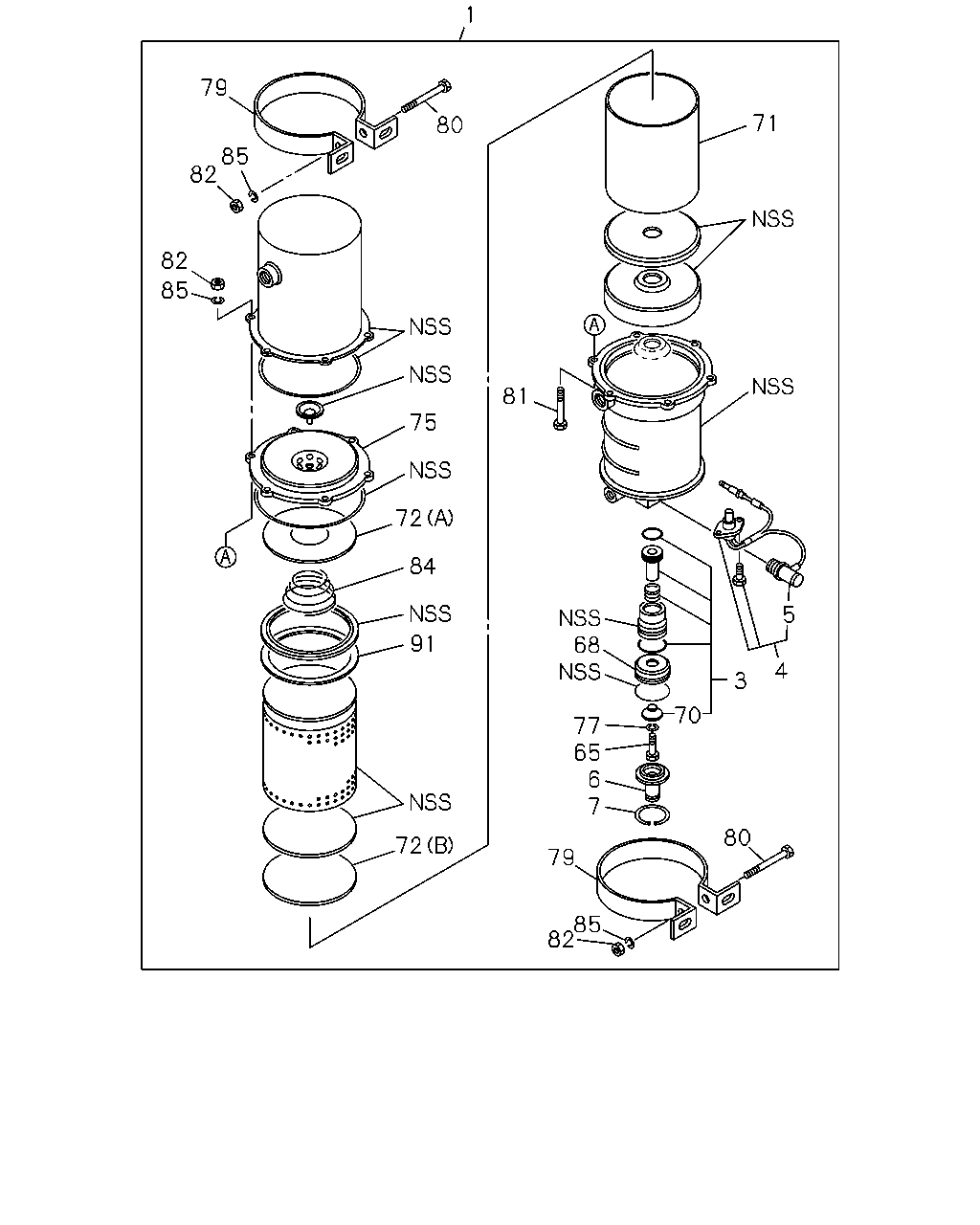

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-1	01	1	9510-0004	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-2	01	1	0005-	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-084-0	01	1	9510-0004	●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-084-0	01	1	0005-	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-121-0	01	1	9510-0004	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-121-0	01	1	0005-	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-200-0	01	1	9510-0004	●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-200-0	01	1	0005-	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9510-0004	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	0005-	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-100-0	01	1	9510-0004	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-100-0	01	1	0005-	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9510-0004	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	0005-1001	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9510-0004	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	0005-	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9510-0004	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0005-	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-099-0	01	1	9510-0004	●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-099-0	01	1	0005-	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (A)	1-48199-097-0	01	1	9510-0004	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (A)	1-48199-097-0	01	1	0005-	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (B)	1-48199-098-0	01	1	9510-0004	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (B)	1-48199-098-0	01	1	0005-	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-201-0	01	1	9510-0004	●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-201-0	01	1	0005-	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9510-0004	●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	0005-1001	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-209-0	02	1	9510-0004	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-209-0	02	1	0005-	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-212-0	02	1	9510-0004	●	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-212-0	02	1	0005-	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-208-0	06	1	9510-0004	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-208-0	06	1	0005-	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-211-0	08	1	9510-0004	●	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-211-0	08	1	0005-1001	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-320-0	08	1	1002-	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-092-0	01	1	9510-0004	●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-092-0	01	1	0005-	●
85	WASHER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-024-0	08	1	9510-0004	●	●
85	WASHER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-024-0	08	1	0005-1001	●
91	GUIDE; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-091-0	01	1	9510-0004	●	●
91	GUIDE; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-091-0	01	1	0005-	●

13 13 1 11 8 10 9 10 9

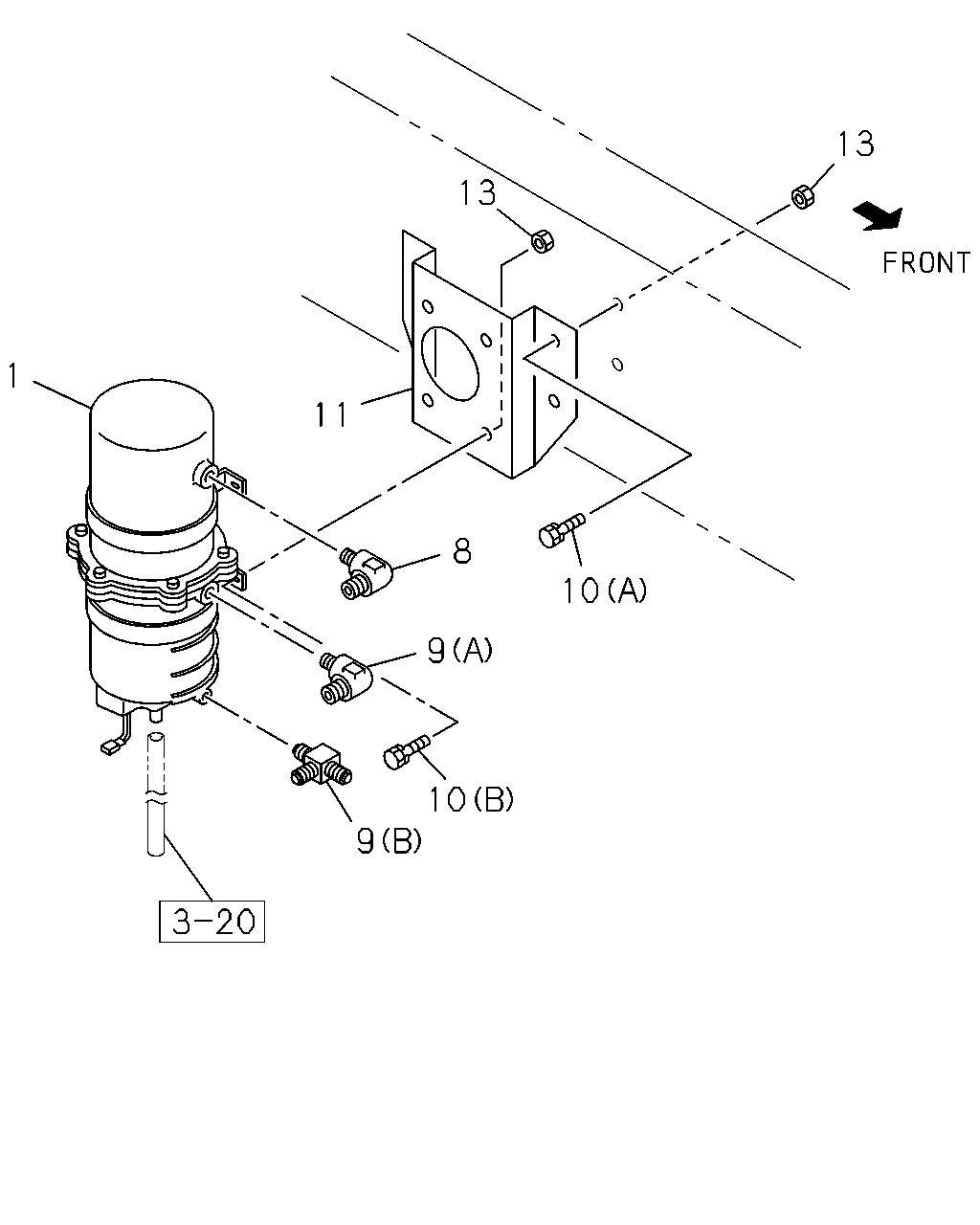

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-1	01	1	9510-0004	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-2	01	1	0005-	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9510-9802	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9803-0004	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0005-0607	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9510-0004	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0005-	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9510-0004	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X30 FLANGE	0-28081-030-0	04	1	9510-9606	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X35 FLANGE	0-28681-035-0	04	1	9607-0004	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X35 FLANGE	0-28681-035-0	04	1	0005-0512	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9510-9606	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X25 FLANGE	0-28681-025-0	04	1	9607-0004	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
11	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48195-045-0	01	1	9510-0004	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48195-045-0	01	1	0005-	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9510-9606	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9510-9606	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●

2 70

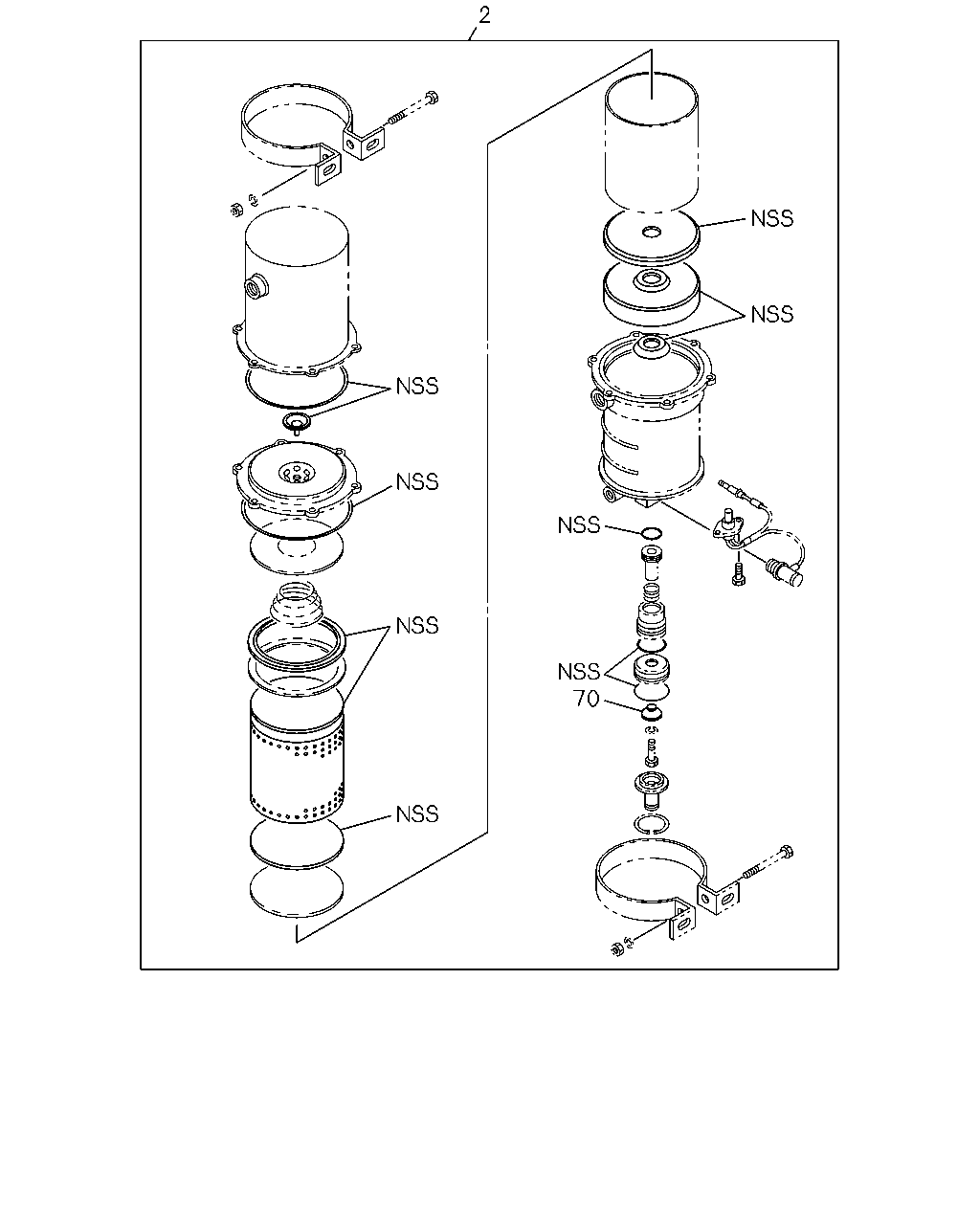

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-083-0	01	1	9510-0004	●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-083-0	01	1	0005-1001	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-229-0	01	1	1002-	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9510-0004	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0005-	●
