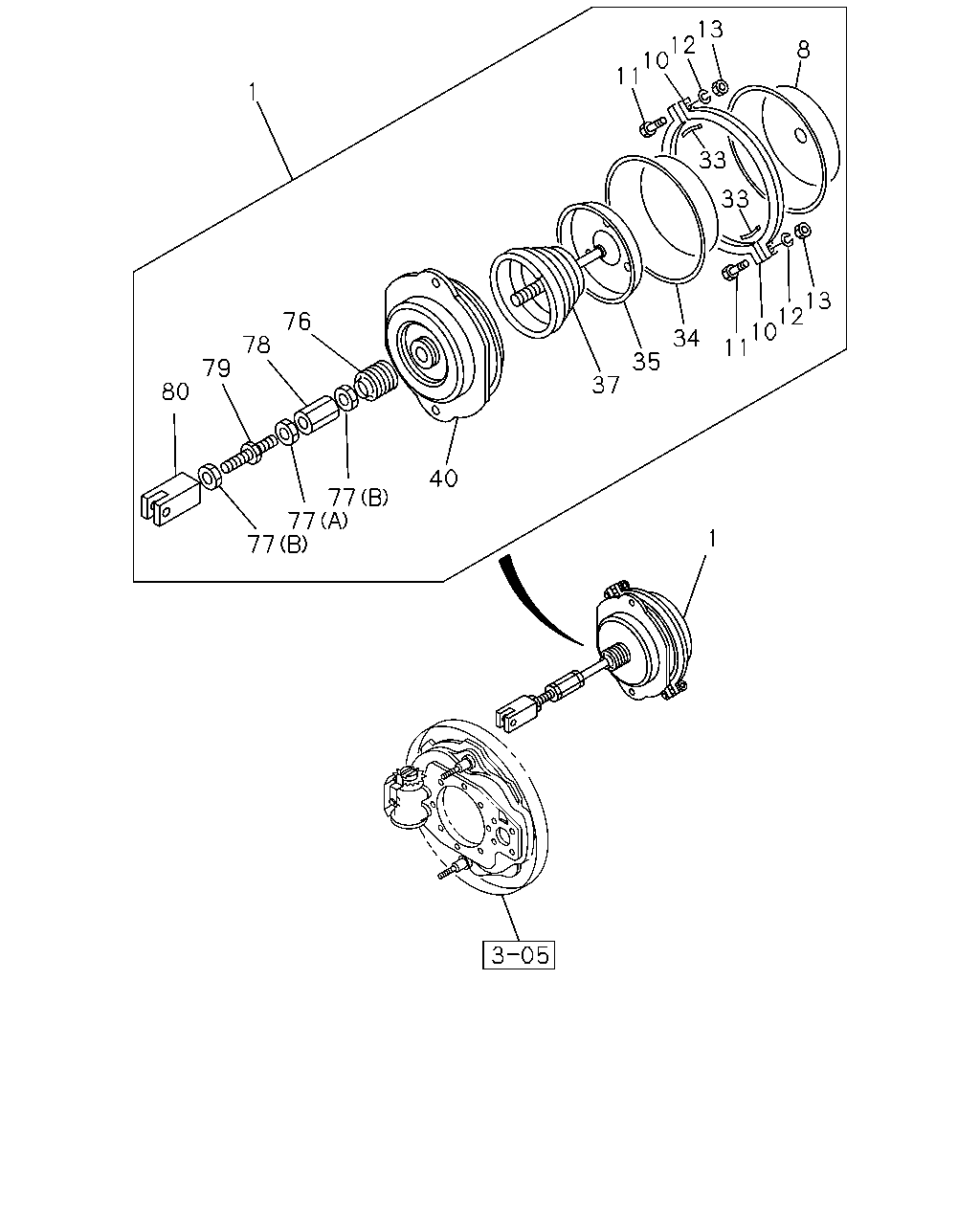

3-41 — REAR BRAKE POWER CHAMBER (#64266) — 36 parça

13 12 10 11 8 1 33 33 13 12 10 11 76 34 78 35 79 37 80 40 77 77 77 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-305-1	01	1	9510-0004	●	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-305-1	01	1	0005-	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-304-1	01	1	9510-0004	●	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-304-1	01	1	0005-	●
8	SHELL; CYL,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	9510-0004	●	●
8	SHELL; CYL,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	0005-	●
10	RING; CLAMP,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	9510-0004	●	●
10	RING; CLAMP,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	0005-	●
11	BOLT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	9510-0004	●	●
11	BOLT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	0005-	●
12	WASHER; LK,CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	9510-0004	●	●
12	WASHER; LK,CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	0005-	●
13	NUT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	9510-0004	●	●
13	NUT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	0005-	●
33	RETAINER; DIAPH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-044-0	04	1	9510-0004	●	●
33	RETAINER; DIAPH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-044-0	04	1	0005-	●
34	DIAPHRAGM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	9510-0004	●	●
34	DIAPHRAGM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	0005-	●
35	PLATE; ROD END,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	9510-0004	●	●
35	PLATE; ROD END,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	0005-	●
37	SPRING; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	9510-0004	●	●
37	SPRING; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	0005-	●
40	COVER ASM; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	9510-0004	●	●
40	COVER ASM; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	0005-	●
76	GUARD; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-096-0	02	1	9510-0004	●	●
76	GUARD; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-096-0	02	1	0005-	●
77	NUT; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48253-021-0	02	1	9510-0004	●	●
77	NUT; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48253-021-0	02	1	0005-	●
77	NUT; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-88510-432-0	04	1	9510-0004	●	●
77	NUT; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-88510-432-0	04	1	0005-	●
78	TURNBACKLE; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-023-0	02	1	9510-0004	●	●
78	TURNBACKLE; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-023-0	02	1	0005-	●
79	STUD; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-027-0	02	1	9510-0004	●	●
79	STUD; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-027-0	02	1	0005-	●
80	CLEVIS; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-026-0	02	1	9510-0004	●	●
80	CLEVIS; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-026-0	02	1	0005-	●
