Sayfa 3-33 - Isuzu EPC

3-33 — AIR MASTER (#64264) — 267 parça

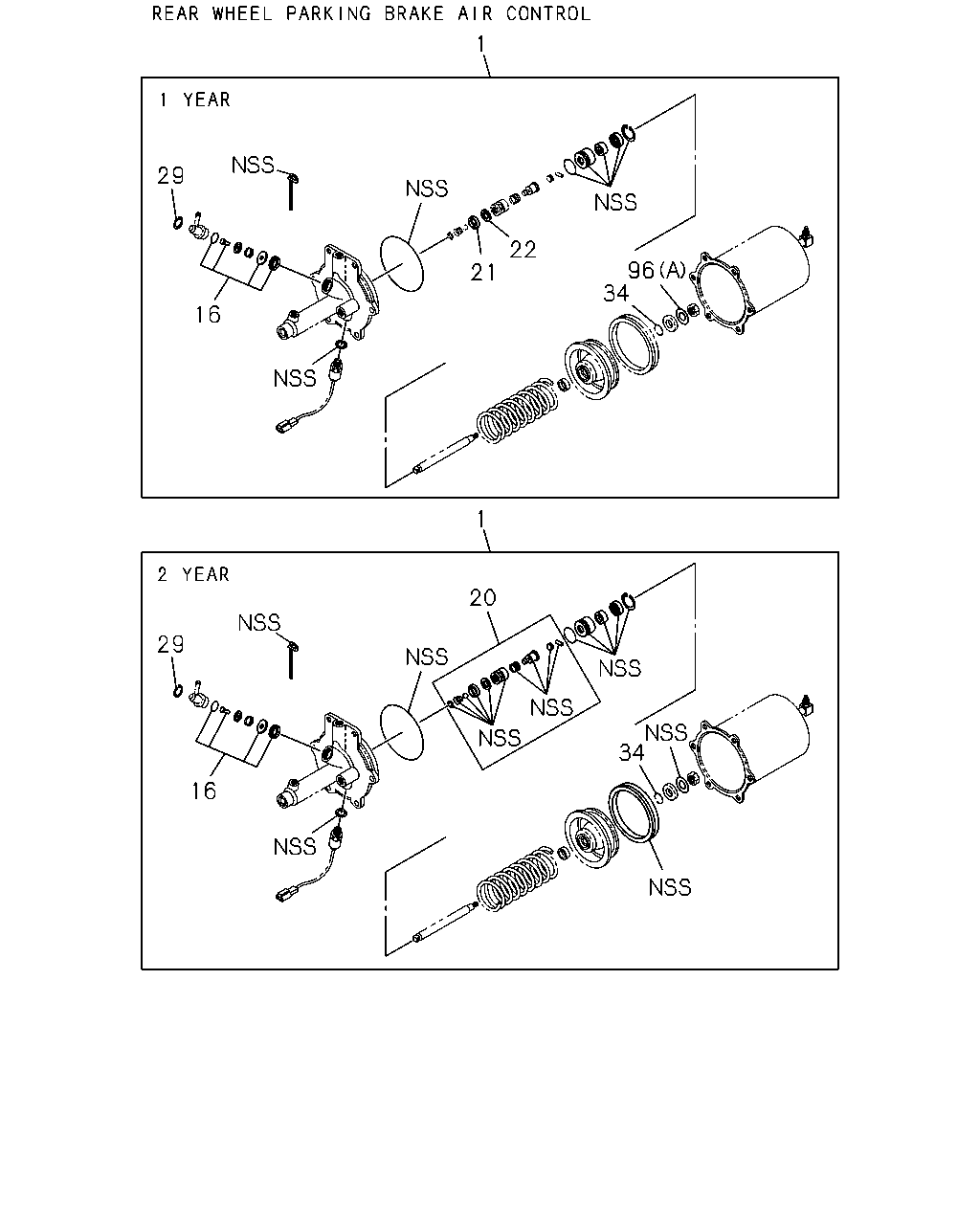

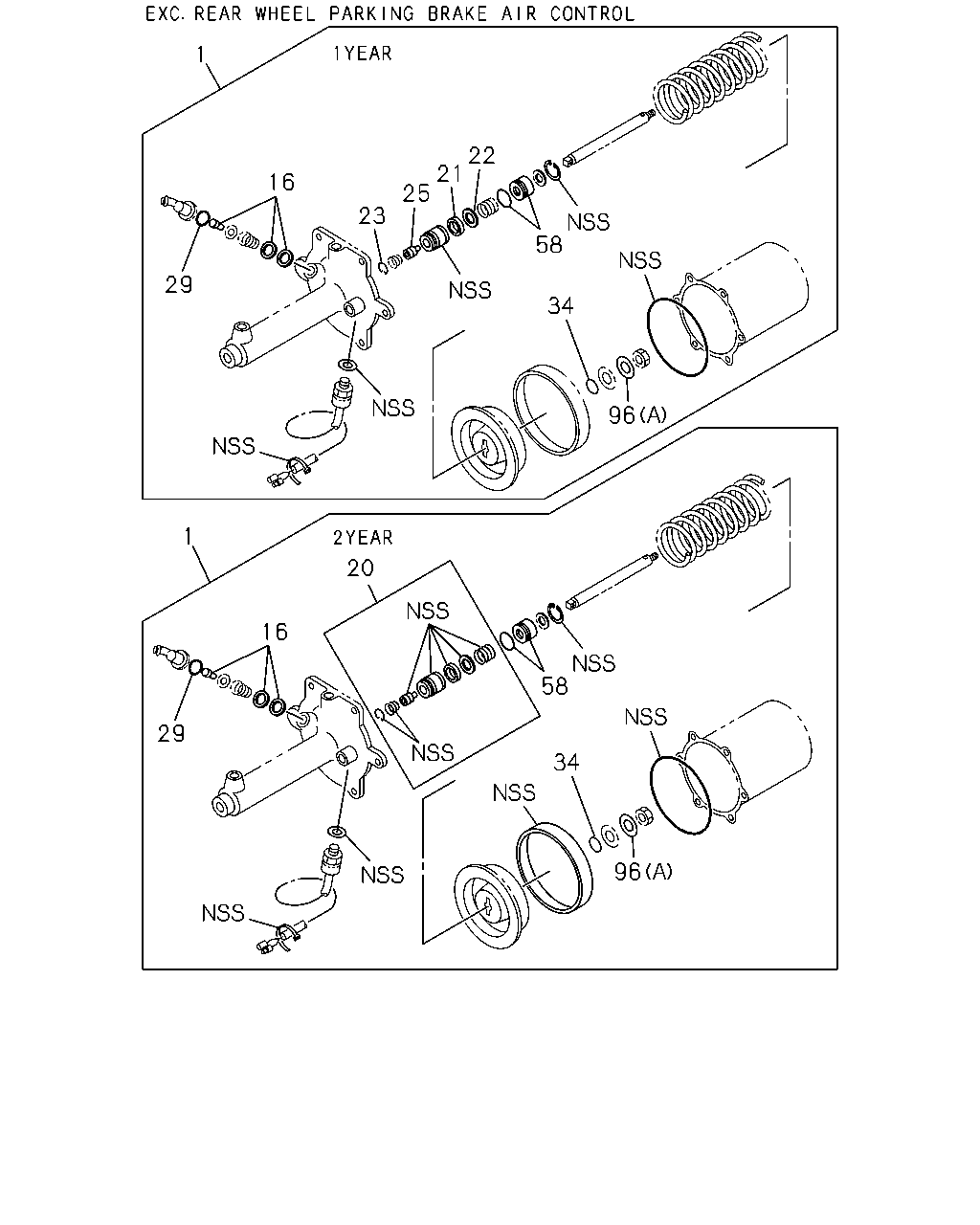

1 22 21 25 16 23 58 29 34 96 1 20 16 58 29 34 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-604-0, F = 1-47800-605-0	1-47810-046-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-604-0, F = 1-47800-605-0	1-47810-047-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-056-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-

1 29 22 96 34 21 16 1 20 29 34 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-604-0, F = 1-47800-605-0	1-47810-046-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-604-0, F = 1-47800-605-0	1-47810-047-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-

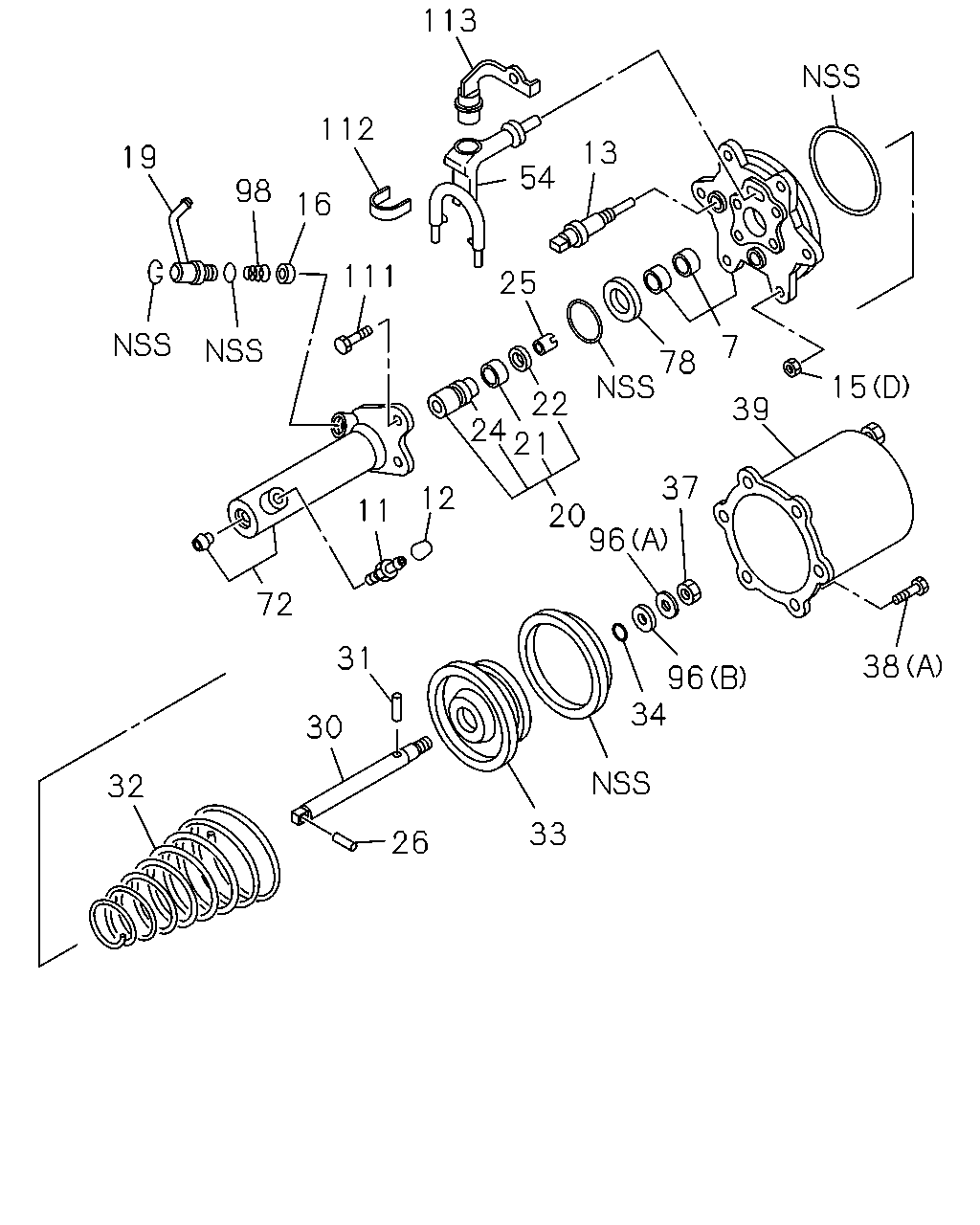

113 112 13 19 54 98 16 111 25 7 78 15 22 39 24 21 37 12 11 20 96 72 31 38 96 34 30 32 33 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, C = 1-47800-600-0, E = 1-47800-604-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: D = 1-47800-601-0, F = 1-47800-605-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-83315-080-0	02	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-83315-078-0	04	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, E = 1-47800-604-0, F = 1-47800-605-0	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47811-139-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47811-140-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-110-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
98	SPRING; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-205-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47843-006-0	01	1	-
111	BOLT; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-203-0	03	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-188-0	01	1	-
113	HOLDER; EXH COVER,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-207-0	01	1	-

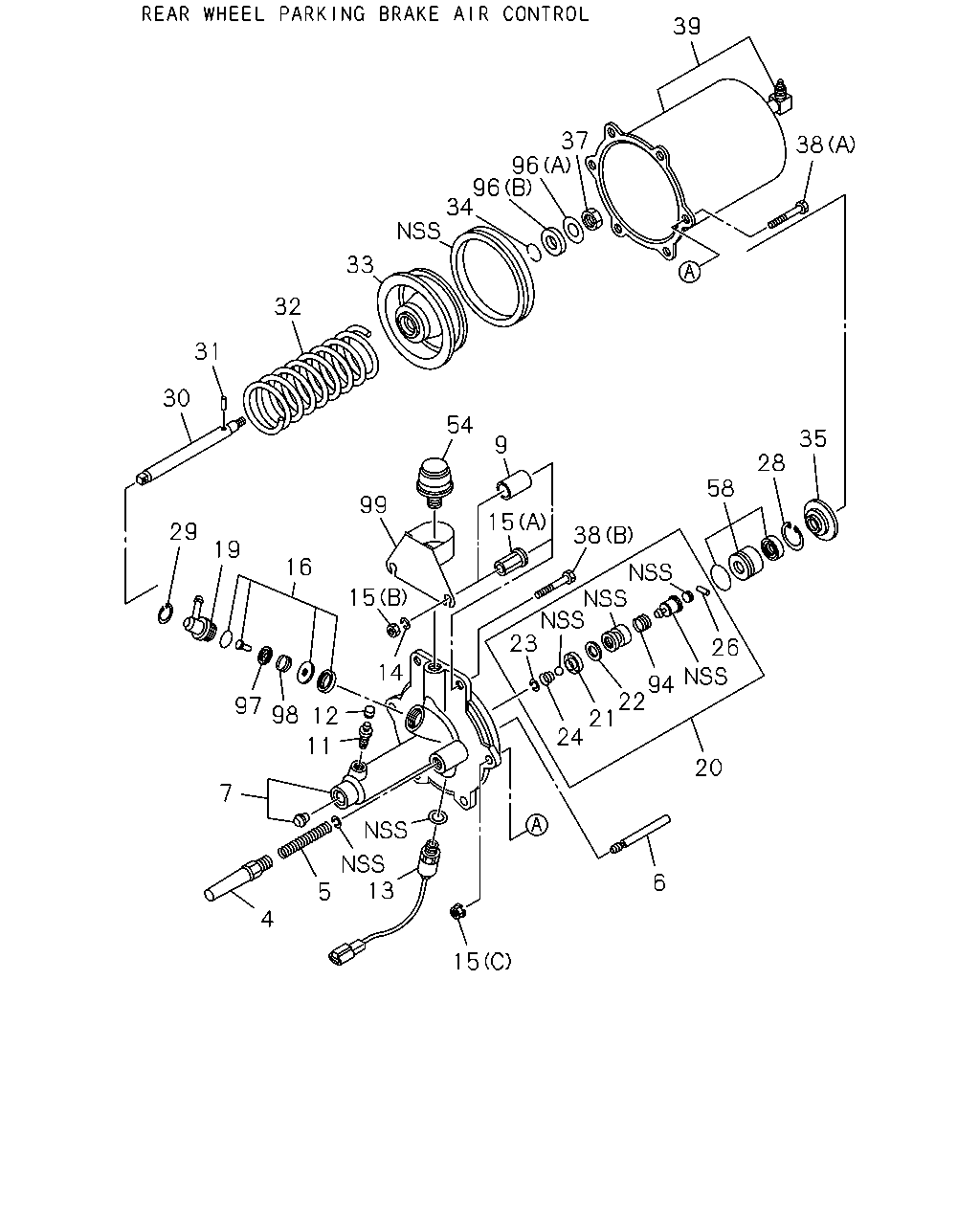

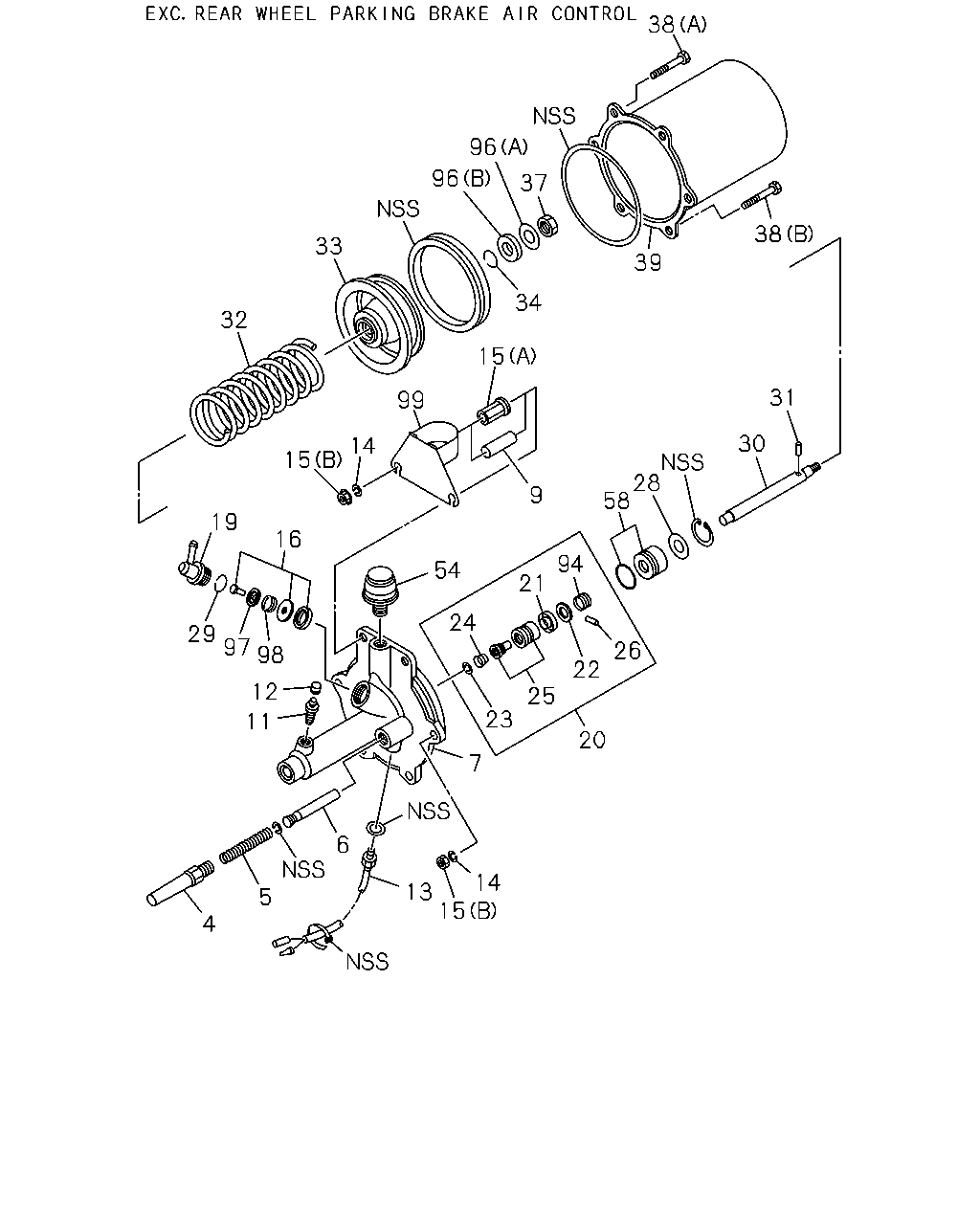

39 37 38 96 96 34 33 32 31 30 54 35 9 28 58 99 15 29 38 19 16 23 15 26 94 22 21 24 14 97 98 12 11 20 7 13 6 5 4 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-052-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-021-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-026-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, C = 1-47800-600-0, E = 1-47800-604-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: D = 1-47800-601-0, F = 1-47800-605-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0	1-44569-165-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-09150-510-0	02	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-09150-510-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-83315-080-0	02	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
35	WASHER; PLATE,PUSH ROD ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47829-079-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-83315-078-0	04	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, E = 1-47800-604-0, F = 1-47800-605-0	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-059-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-205-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-128-0	01	1	-

1 112 13 54 16 25 20 12 96 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-604-0, F = 1-47800-605-0	1-47810-046-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-604-0, F = 1-47800-605-0	1-47810-047-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-027-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-188-0	01	1	-

38 96 96 37 38 33 39 34 32 15 31 99 30 14 15 28 58 9 19 16 94 54 21 24 29 97 98 26 22 12 25 23 11 20 7 6 14 13 15 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-052-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-021-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-026-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, C = 1-47800-600-0, E = 1-47800-604-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: D = 1-47800-601-0, F = 1-47800-605-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0	1-44569-165-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-09150-510-0	02	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-09150-510-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-83315-080-0	02	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	9-83315-078-0	04	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, E = 1-47800-604-0, F = 1-47800-605-0	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-600-0, D = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47829-059-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-205-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-600-0, D = 1-47800-601-0, E = 1-47800-604-0, F = 1-47800-605-0	1-47819-128-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
