Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#64261) — 419 parça

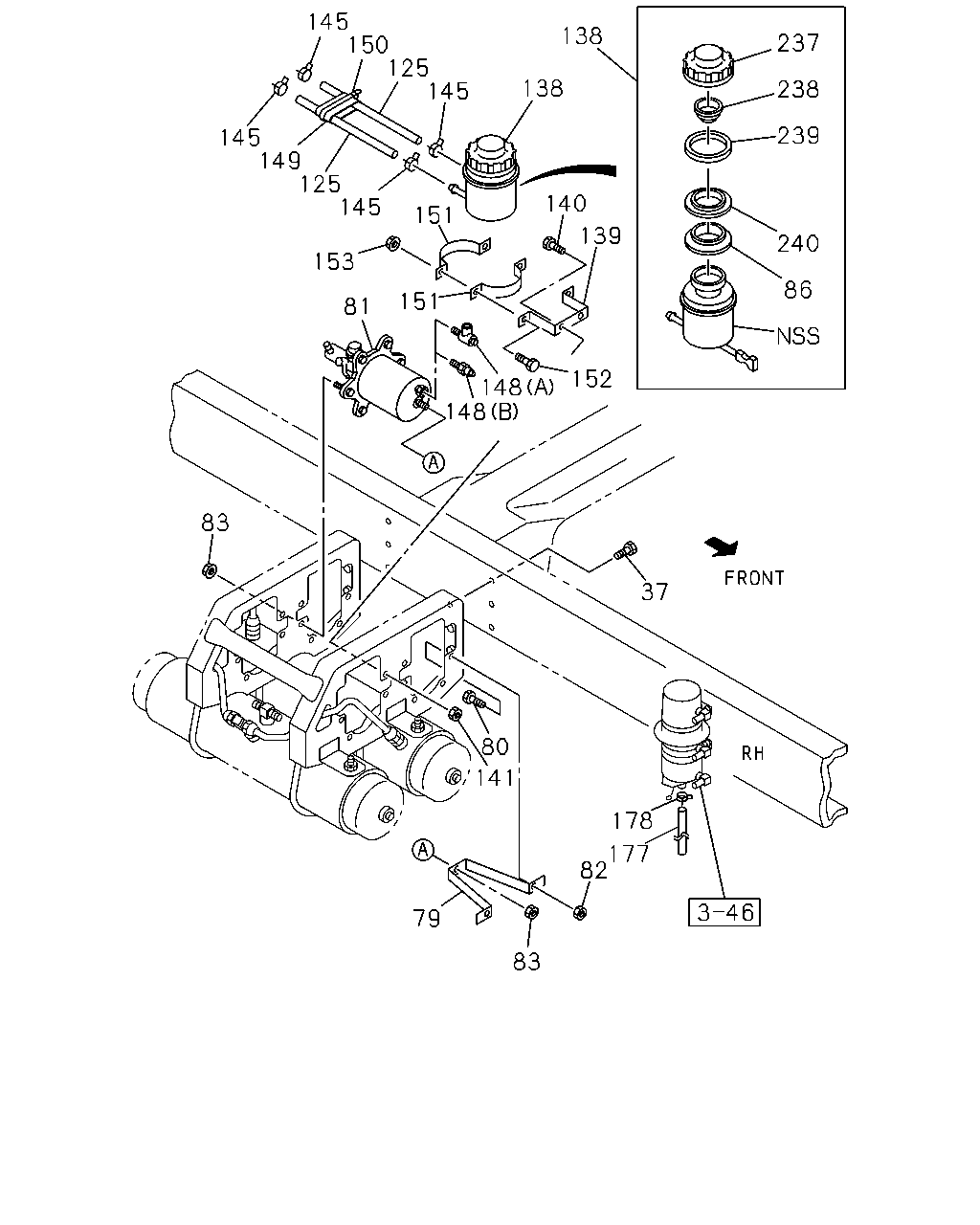

145 150 125 145 138 237 138 238 239 145 149 125 145 140 151 139 240 153 86 151 81 152 148 148 83 37 80 141 178 177 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9510-9601	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9602-0004	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-	●
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9510-9802	●	●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	9803-0004	●	●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0005-0805	●
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-	●
80	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	04	1	9510-9606	●	●
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9607-0004	●	●
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0005-0512	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-600-0	01	1	9510-9802	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-600-0	01	1	9510-9802		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-665-1	01	1	9803-0004	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-665-1	01	1	9803-0004		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) PRIMARY	1-47800-665-1	01	1	0005-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-601-0	01	1	9510-9802	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-601-0	01	1	9510-9802		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-666-2	01	1	9803-0004	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-666-2	01	1	9803-0004		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) SECONDARY	1-47800-666-2	01	1	0005-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-604-0	01	1	9510-9802	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-605-0	01	1	9510-9802	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-663-1	01	1	9803-0004	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) PRIMARY	1-47800-663-1	01	1	0005-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-468-1	01	1	9510-9802	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-664-2	01	1	9803-0004	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) SECONDARY	1-47800-664-2	01	1	0005-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-469-1	01	1	9510-9802	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-110-0	04	1	9510-9606	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9510-9606	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9607-0004	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0005-0602	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-	●
86	SEAL; DUST	1-47529-019-0	01	1	9510-0004	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0005-	●
125	HOSE; OIL TANK TO AIR MASTER L=325 SERVICED BY L=1800	1-09360-320-0	02	1	9510-9802	●	●
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9803-0004	●	●
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0005-	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9510-0004	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	0005-0011	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9510-0004	●	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0005-	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9510-9606	●	●
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9607-9903	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9904-0004	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9510-9606	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0004	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9510-0004	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0005-	●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	9803-0004	●
148	CONNECTOR; AIR MASTER (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	9803-0004		●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	0005-	●
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9803-	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9510-0004	●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0005-	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9510-0004	●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	0005-	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9510-0004	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0005-	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9801-0004	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9510-0004	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9510-0004	●	●
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9908-0004	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-	●
237	CAP; OIL TANK	1-47525-019-2	01	1	9510-0004	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9510-0004	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0005-	●
239	FILTER; DUST	1-47529-017-0	01	1	9510-0004	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0005-	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9510-0004	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0005-	●

49 128 172 43 129 13 54 21 49 21 12 36 126 172 282 274 11 21 282 67 174 8 36 21 15 10 43 10 11 1 10 5 282 10 5 53 10 175 10 10 13 176 175 21 10 9 7 6 58 15 7 6 58 42 42 58 4 174 58 274 58 213 282 176 58 42 42 58 58 1 10 10 213 213 213 351 14 126 351 12

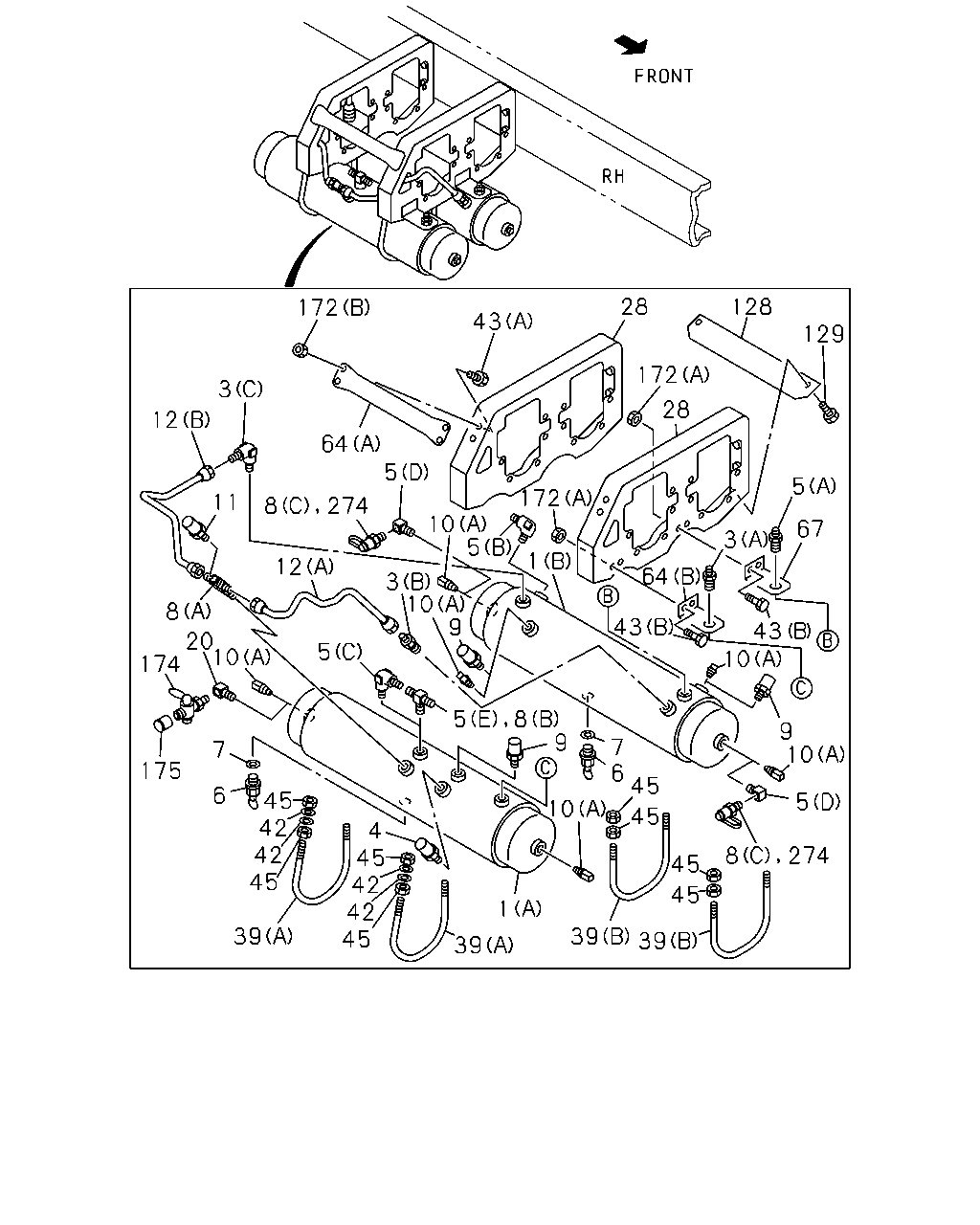

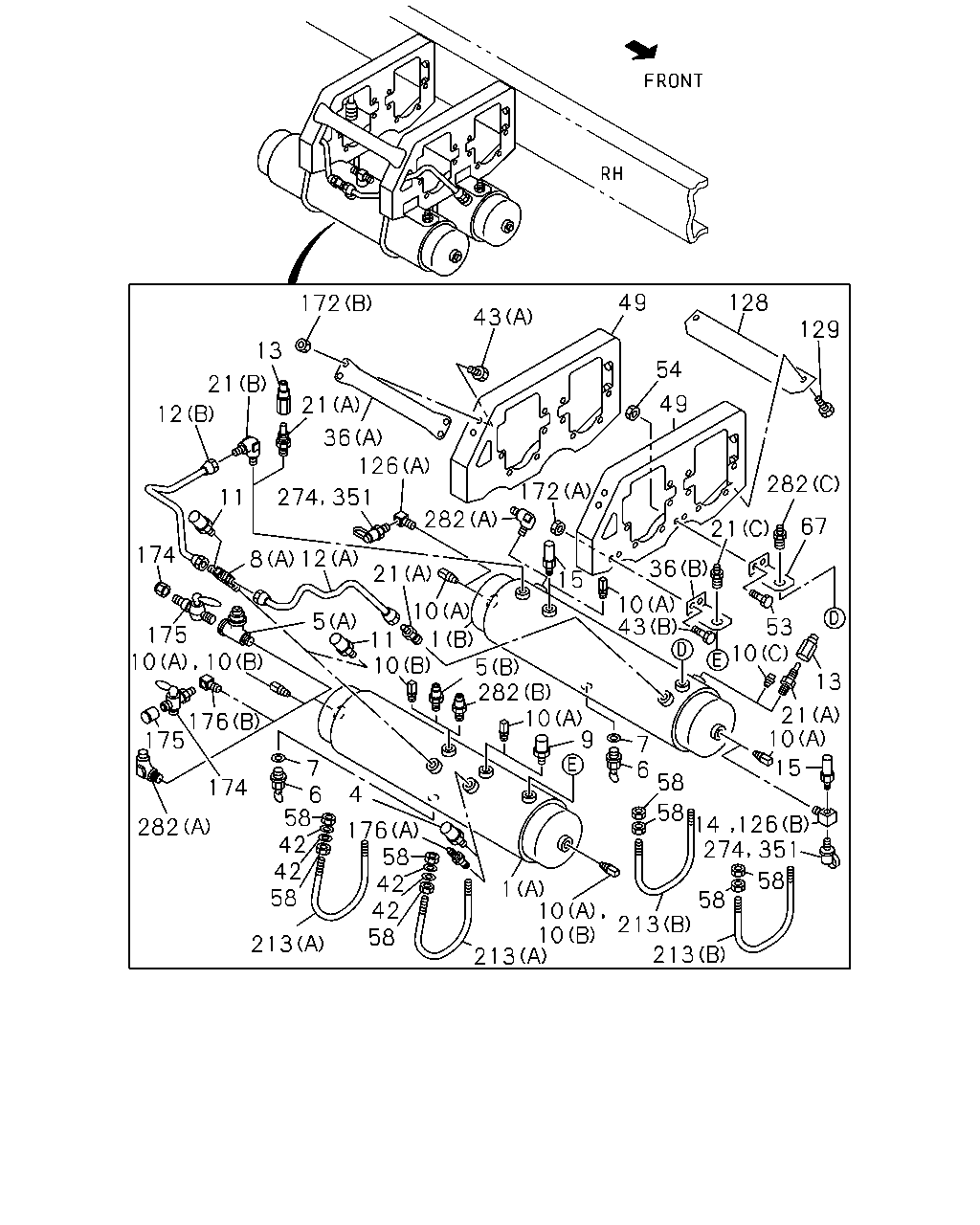

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9510-9802	●	●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	9803-0004	●	●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0005-	●
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9510-9802	●	●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	9803-0004	●	●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	0005-0212	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-	●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	9510-0004	●	●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	0005-	●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (E) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802	●
5	UNION; AIR TANK (E) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802		●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	9510-9802	●
5	UNION; AIR TANK (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	9510-9802		●
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9803-0212	●
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9510-9802	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0212	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-	●
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9802	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9510-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-	●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-9802	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-9802		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802	●
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9510-9802	●	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-09656-699-0	01	1	9803-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	03	1	9510-9802	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9510-9802		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9510-9802	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-1	01	1	9803-	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	9510-9802	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9510-9802		●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	01	1	9803-0004	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	9803-0004		●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	01	1	0005-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	0301-	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	9803-0004	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	9803-0004	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	9803-0004		●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0005-0010	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0005-0010	●
10	PLUG; AIR TANK A/T<X9D> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56>,TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0005-0010	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0011-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,TIRE INFLATOR DEVICE<SG4>,DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0011-0212	●
10	PLUG; AIR TANK ISUZU M/T<X9A>,A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0011-0212	●
10	PLUG; AIR TANK DUAL AIR GAUGE<UG2> A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	03	1	0005-0010	●
10	PLUG; AIR TANK DUAL AIR GAUGE<UG2> A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	03	1	0011-0212	●
10	PLUG; AIR TANK DUAL AIR GAUGE<UG2> A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	06	1	0301-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	9803-0004	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	9803-0004	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0005-0010	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0005-0010	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0005-0010	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0011-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0011-0212	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0011-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,TIRE INFLATOR DEVICE<SG4>,DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	04	1	0301-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	04	1	0301-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	05	1	9510-9802	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	9803-0004	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	0005-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	0005-0212	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	0301-	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	0301-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	0301-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	06	1	9510-9802	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	9803-0212	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	05	1	0301-	●
10	PLUG; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	05	1	0301-	●
10	PLUG; AIR TANK A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU>,DUAL AIR GAUGE<UG2> (A) PT1/4	9-99204-513-0	05	1	0301-	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9803-0004	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0005-	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9510-0004	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9510-9802	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B)	1-47497-011-0	01	1	9803-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9510-9802	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-47497-012-0	01	1	9803-	●
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004		●
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0005-	●
14	UNION; 3 WAY,AIR TANK BRAKE REGULATION ADR<TDU> PT1/4 MALE & PT1/4 FEMALE X2 3WAY	1-09660-363-0	01	1	9803-0004	●
14	UNION; 3 WAY,AIR TANK PT1/4 MALE & PT1/4 FEMALE X2 3WAY	1-09660-363-0	01	1	9803-0004		●
14	UNION; 3 WAY,AIR TANK BRAKE REGULATION ADR<TDU> PT1/4 MALE & PT1/4 FEMALE X2 3WAY	1-09660-363-0	01	1	0005-	●
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	02	1	9803-0004	●
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-0	02	1	9803-0004		●
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-1	02	1	0005-	●
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-1	02	1	0005-	●
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-1	02	1	0005-	●
21	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	9803-0004	●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	9803-0004		●
21	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	0005-	●
21	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	01	1	9803-	●
21	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9803-	●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	9803-0004	●	●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	0005-	●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	9803-0004	●	●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0005-	●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	9803-0004	●	●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0005-	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9510-0004	●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0005-0605	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28080-820-0	04	1	9510-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9802	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	9803-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	9803-0004	●	●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0005-	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	9803-0004	●	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	9803-0004	●	●
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	9803-0004	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	0005-0512	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0601-	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9510-0004	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	0005-	●
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0301-	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0301-	●
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9803-9806	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9803-9806		●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9807-0004	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9807-0004		●
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0005-0212	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0005-0212	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0005-0212	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	0301-	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 MALE & PT1/4 FEMALE X2 3WAY	1-09660-363-0	01	1	9803-9806	●
128	PROTECTOR	1-53319-018-0	01	1	9510-0004		●
129	BOLT; PROTECTOR FIX M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●
129	BOLT; PROTECTOR FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-0004		●
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9510-9702	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9703-9802	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9803-0004	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9510-9702	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9703-0004	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9510-0010	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9510-	●
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-283-1	01	1	9803-	●
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0212	●
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0301-	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	9803-0004	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0005-	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	9803-0004	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0005-	●
274	CONNECTOR; VLV BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004		●
274	CONNECTOR; VLV BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0005-	●
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9803-0004	●
282	UNION; 2 WAY (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9803-0004		●
282	UNION; 2 WAY BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0212	●
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0212	●
282	UNION; 2 WAY (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-	●
282	UNION; 2 WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0004	●
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0004	●
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0212	●
282	UNION; 2 WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0212	●
282	UNION; 2 WAY BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0301-	●
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0301-	●
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0301-	●
282	UNION; 2 WAY EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0004	●
282	UNION; 2 WAY A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, BRAKE REGULATION ADR<TDU>,DUAL AIR GAUGE<UG2> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0010	●
282	UNION; 2 WAY AIR SUSP DRIVER SEAT<A56> A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0010	●
282	UNION; 2 WAY ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0010	●
282	UNION; 2 WAY A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU>,DUAL AIR GAUGE<UG2> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0011-0212	●
282	UNION; 2 WAY AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0011-0212	●
282	UNION; 2 WAY ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0011-0212	●
282	UNION; 2 WAY A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU>,DUAL AIR GAUGE<UG2> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-	●
282	UNION; 2 WAY AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-	●
282	UNION; 2 WAY ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-	●
282	UNION; 2 WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9803-0004	●	●
282	UNION; 2 WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-	●
351	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9803-0004	●
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9803-0004		●
351	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0005-	●

28 128 172 43 129 172 3 28 12 64 5 172 5 11 10 5 67 3 64 1 12 3 10 9 43 8 43 10 20 10 174 5 9 9 10 7 6 45 7 175 6 45 42 42 45 5 10 45 4 45 42 42 45 45 45 1 39 39 39 39 5 8 8 274 8 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9510-9802	●	●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	9803-0004	●	●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0005-	●
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9510-9802	●	●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	9803-0004	●	●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	0005-0212	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-	●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	01	1	9510-9606	●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-9802	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	9510-9802	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M22 & PT3/4	1-48410-136-3	01	1	9510-9802	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M20 & PT3/4 STRAIGHT	1-48410-182-3	01	1	9510-9802	●	●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	9510-0004	●	●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	0005-	●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (E) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802	●
5	UNION; AIR TANK (E) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802		●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	9510-9802	●
5	UNION; AIR TANK (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	9510-9802		●
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9803-0212	●
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9510-9802	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0212	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-	●
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9802	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9510-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-	●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-9802	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-9802		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802	●
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9510-9802	●	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-09656-699-0	01	1	9803-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	03	1	9510-9802	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9510-9802		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9510-9802	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-1	01	1	9803-	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	9510-9802	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9510-9802		●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	01	1	9803-0004	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	9803-0004		●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	01	1	0005-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	0301-	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	9803-0004	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	9803-0004	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	9803-0004		●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0005-0010	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0005-0010	●
10	PLUG; AIR TANK A/T<X9D> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56>,TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0005-0010	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0011-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,TIRE INFLATOR DEVICE<SG4>,DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0011-0212	●
10	PLUG; AIR TANK ISUZU M/T<X9A>,A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0011-0212	●
10	PLUG; AIR TANK DUAL AIR GAUGE<UG2> A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	03	1	0005-0010	●
10	PLUG; AIR TANK DUAL AIR GAUGE<UG2> A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	03	1	0011-0212	●
10	PLUG; AIR TANK DUAL AIR GAUGE<UG2> A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	06	1	0301-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	9803-0004	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	9803-0004	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0005-0010	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0005-0010	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0005-0010	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0011-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0011-0212	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0011-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,TIRE INFLATOR DEVICE<SG4>,DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	04	1	0301-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	04	1	0301-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	05	1	9510-9802	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	9803-0004	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	0005-0212	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	0005-0212	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	0301-	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	0301-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	0301-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	06	1	9510-9802	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	03	1	9803-0212	●
10	PLUG; AIR TANK AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	05	1	0301-	●
10	PLUG; AIR TANK ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	05	1	0301-	●
10	PLUG; AIR TANK A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TIRE INFLATOR DEVICE<SG4>, DRIVER ISRINGHAUSEN SEAT<SJA>,BRAKE REGULATION ADR<TDU>,DUAL AIR GAUGE<UG2> (A) PT1/4	9-99204-513-0	05	1	0301-	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9803-0004	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0005-	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9510-0004	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9510-9802	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B)	1-47497-011-0	01	1	9803-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9510-9802	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-47497-012-0	01	1	9803-	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<SG4> PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9510-9802	●
28	BRACKET; AIR TANK	1-53318-338-5	02	1	9510-9802	●	●
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9510-9802	●	●
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9510-9802	●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9510-0004	●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0005-0605	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28080-820-0	04	1	9510-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9802	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	9803-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9510-9802	●	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	9510-9802	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	9510-9802	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9510-0004	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	0005-	●
128	PROTECTOR	1-53319-018-0	01	1	9510-0004		●
129	BOLT; PROTECTOR FIX M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●
129	BOLT; PROTECTOR FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-0004		●
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9510-9702	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9703-9802	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9803-0004	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9510-9702	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9703-0004	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9510-0010	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9510-	●
274	CONNECTOR; VLV BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004		●
274	CONNECTOR; VLV BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0005-	●

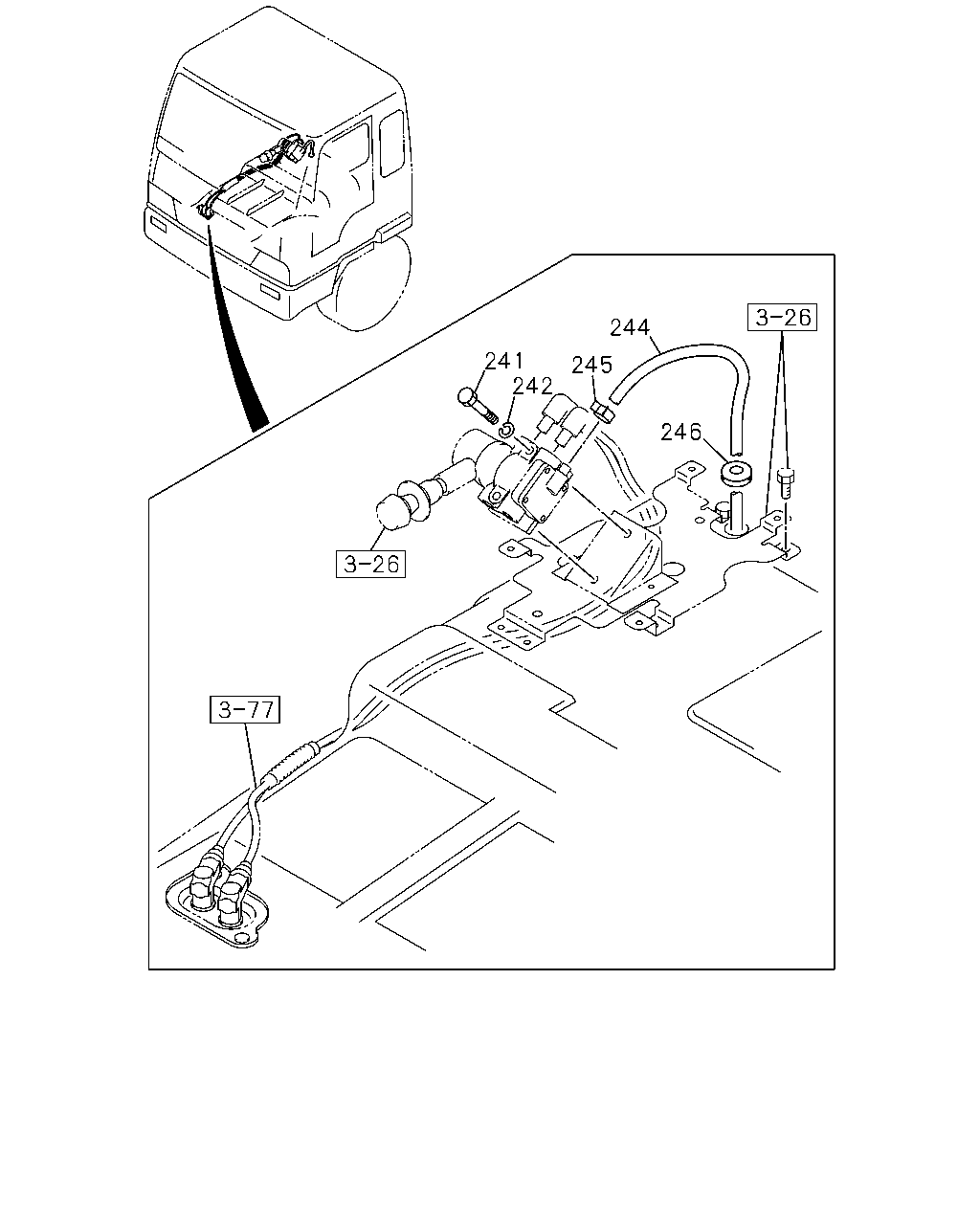

244 241 242 245 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9510-9704	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	9705-0004	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	0005-0512	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9510-9704	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9510-0004	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	9510-0004	●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0005-	●
246	GROMMET; VINYL PIPE DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	9510-	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9510-0004	●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
