◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#64260) — 72 parça

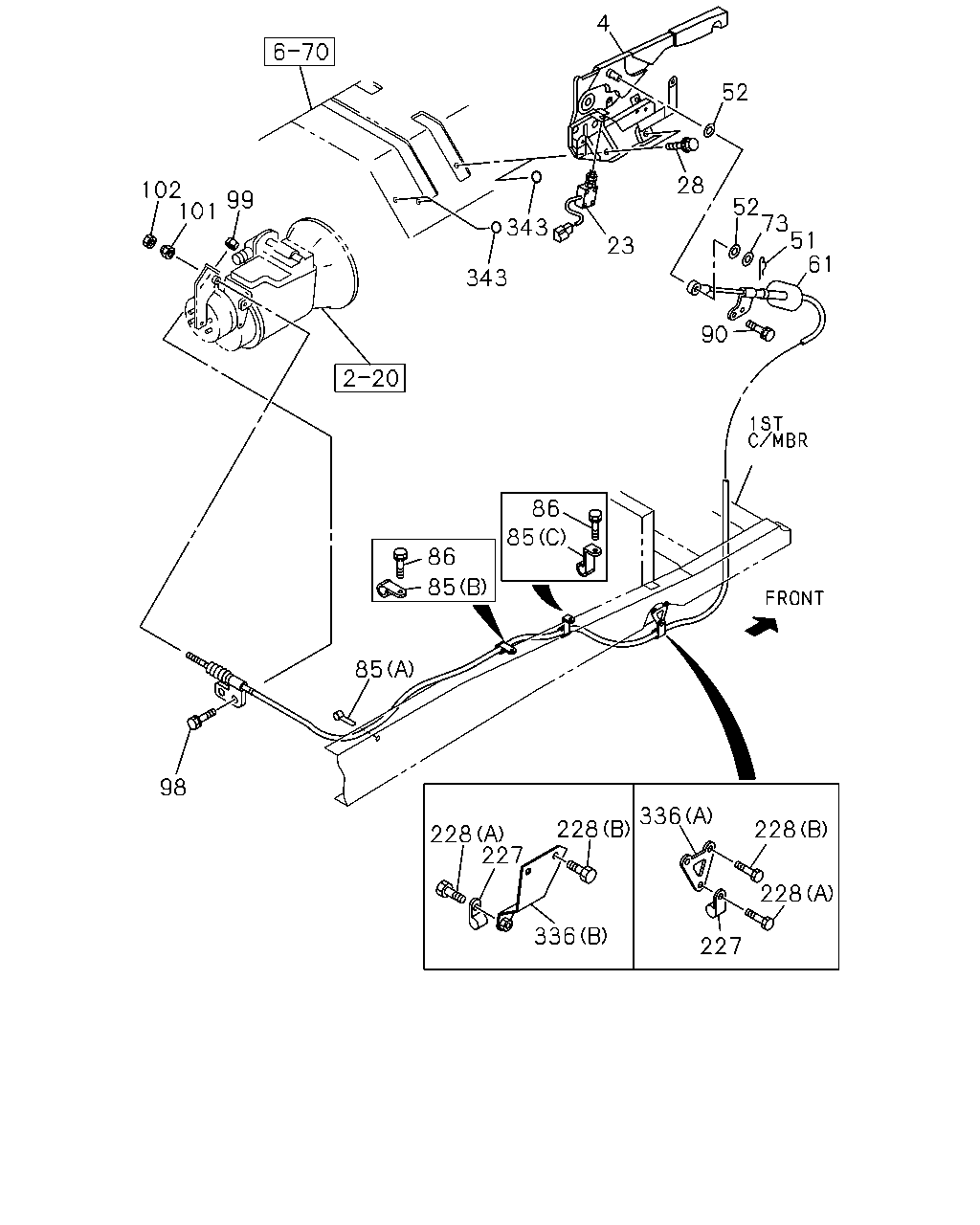

çizim 115384
4 52 28 102 101 99 52 73 51 61 343 23 343 90 86 85 86 85 85 98 336 228 228 228 227 228 336 227
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-864-1 01 1 9510-9802 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-864-1 01 1 9803-9809 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-419-0 01 1 9810-9908 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-481-0 01 1 9909-9911 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-503-0 01 1 9912-0010 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0011- ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 9510-9802 ● ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 9803- ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9802 ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0904 ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 9510-9802 ● ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 9803- ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9510-9802 ● ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9803- ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-231-1 01 1 9510-9909 ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-473-3 01 1 9910- ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4344 		1-79996-232-1 01 1 9510-9909 ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4344 		1-79996-474-3 01 1 9910- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9510-9802 ● ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9803-0605 ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
85 CLIP; BRKT
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9510-0105 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 0106-0912 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 02 1 1001- ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9510- ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 01 1 9510-1101 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40 		1-09701-014-0 01 1 1102- ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0904 ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 9607-0512 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9510-9702 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 9703-0602 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		1-46259-007-0 01 1 9510- ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9510-9709 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9710-0602 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 9510-0606 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		0-95235-235-0 01 1 0607- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9510- ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 9510-0004 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-36183-162-1 01 1 0005- ●
336 BRACKET; RADIATOR
WEST MALAYSIA EQUIPMENT(SEQ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0005- ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 9510-0004 ● ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 0005- ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 9510-9802 ● ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 9803- ●
çizim 115432
97 61 324 218 46 45 46 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9802 ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-9812 ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9901- ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 03 1 9510-9802 ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 03 1 9803-0606 ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 03 1 0607- ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-231-1 01 1 9510-9909 ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-473-3 01 1 9910- ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4344 		1-79996-232-1 01 1 9510-9909 ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4344 		1-79996-474-3 01 1 9910- ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9510-0004 ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 0005- ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		8-94279-517-0 02 1 9510-9611 ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9612-0004 ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0005- ●
324 BRACKET 1-79998-750-3 01 1 9510-0004 ● ●
324 BRACKET 1-79998-750-3 01 1 0005- ●
