◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25A - INLET MANIFOLD ▶

0-25A — INLET MANIFOLD (#6426) — 204 parça

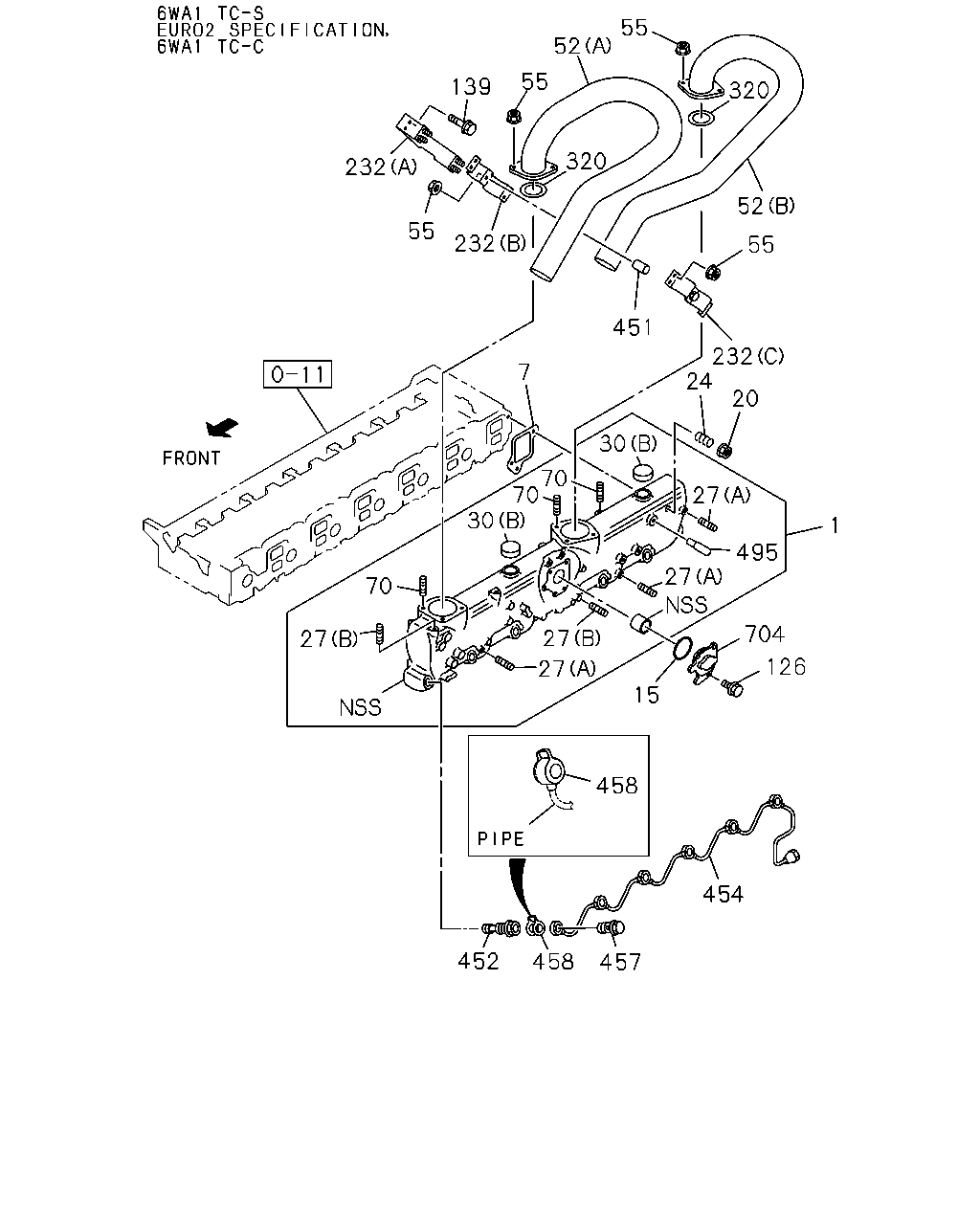

55 52 55 139 320 320 232 52 55 232 55 451 232 24 7 20 30 70 70 30 27 1 495 27 70 704 27 27 126 27 15 458 454 452 458 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	1-14110-547-0	01	1	9601-9610	●
1	MANIFOLD; INL EXC. EURO2 SPECIFICATION<THN>	1-14110-547-3	01	1	9611-9904	●
1	MANIFOLD; INL	1-14110-547-3	01	1	9611-9904		●
1	MANIFOLD; INL EURO2 SPECIFICATION<THN>	1-14110-551-3	01	1	9611-9904	●
1	MANIFOLD; INL ELECTRONIC GOV RED3(KG5)	1-14110-551-3	01	1	9905-		●
1	MANIFOLD; INL RLD GOVERNOR(SD7)	1-14110-579-1	01	1	9905-		●
1	MANIFOLD; INL	1-14110-547-3	01	1	9905-			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9601-9610	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9611-9904	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9905-		●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9601-9610	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9611-9904	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-		●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9601-9610	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9611-9904	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9905-		●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9601-9610	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9611-9904	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9905-		●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9601-9610	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9611-9904	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9905-		●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9601-9610	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9611-9904	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9905-		●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9601-9610	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9611-9904	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-		●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9601-9610	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9611-9904	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-		●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9601-9610	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9611-9904	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9905-		●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9601-9610	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9611-9904	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9905-		●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9601-9610	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9611-9904	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9905-		●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9601-9610	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9611-9904	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9905-		●	●	●
126	BOLT; COVER M10X20 FLANGE	0-28181-020-0	03	1	9601-9610	●
126	BOLT; COVER M10X20 FLANGE	0-28181-020-0	03	1	9611-9904	●	●
126	BOLT; COVER M10X20 FLANGE	0-28181-020-0	03	1	9905-		●	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9601-9610	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9611-9904	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9905-		●	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9601-9610	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9611-9904	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9905-		●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-0	01	1	9601-9610	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9611-9904	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9905-		●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-0	01	1	9601-9610	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9611-9904	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9905-		●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9601-9610	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9611-9904	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9905-		●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9601-9610	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9611-9904	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9905-		●	●	●
452	CYLINDER ASM; AIR EURO2 SPECIFICATION<THN>	1-14370-013-0	06	1	9611-9904	●
452	CYLINDER ASM; AIR	1-14370-013-0	06	1	9905-		●
454	PIPE; AIR,IVES EURO2 SPECIFICATION<THN>	1-19192-590-1	01	1	9611-9904	●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9905-		●
457	BOLT; EYE,AIR PIPE,IVES EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT	1-09675-037-1	06	1	9611-9904	●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9905-		●
458	GASKET; AIR PIPE,VSS EURO2 SPECIFICATION<THN> ID=8.6	8-94395-214-0	06	1	9611-9904	●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9905-		●
495	PIPE; BOOST SENSOR EURO2 SPECIFICATION<THN>	1-09669-073-0	01	1	9611-9904	●
495	PIPE; BOOST SENSOR ELECTRONIC GOV RED3(KG5)	1-09669-073-0	01	1	9905-		●
704	COVER	1-14134-193-0	01	1	9601-9610	●
704	COVER	1-14134-193-0	01	1	9611-9904	●	●
704	COVER	1-14134-193-0	01	1	9905-		●	●	●

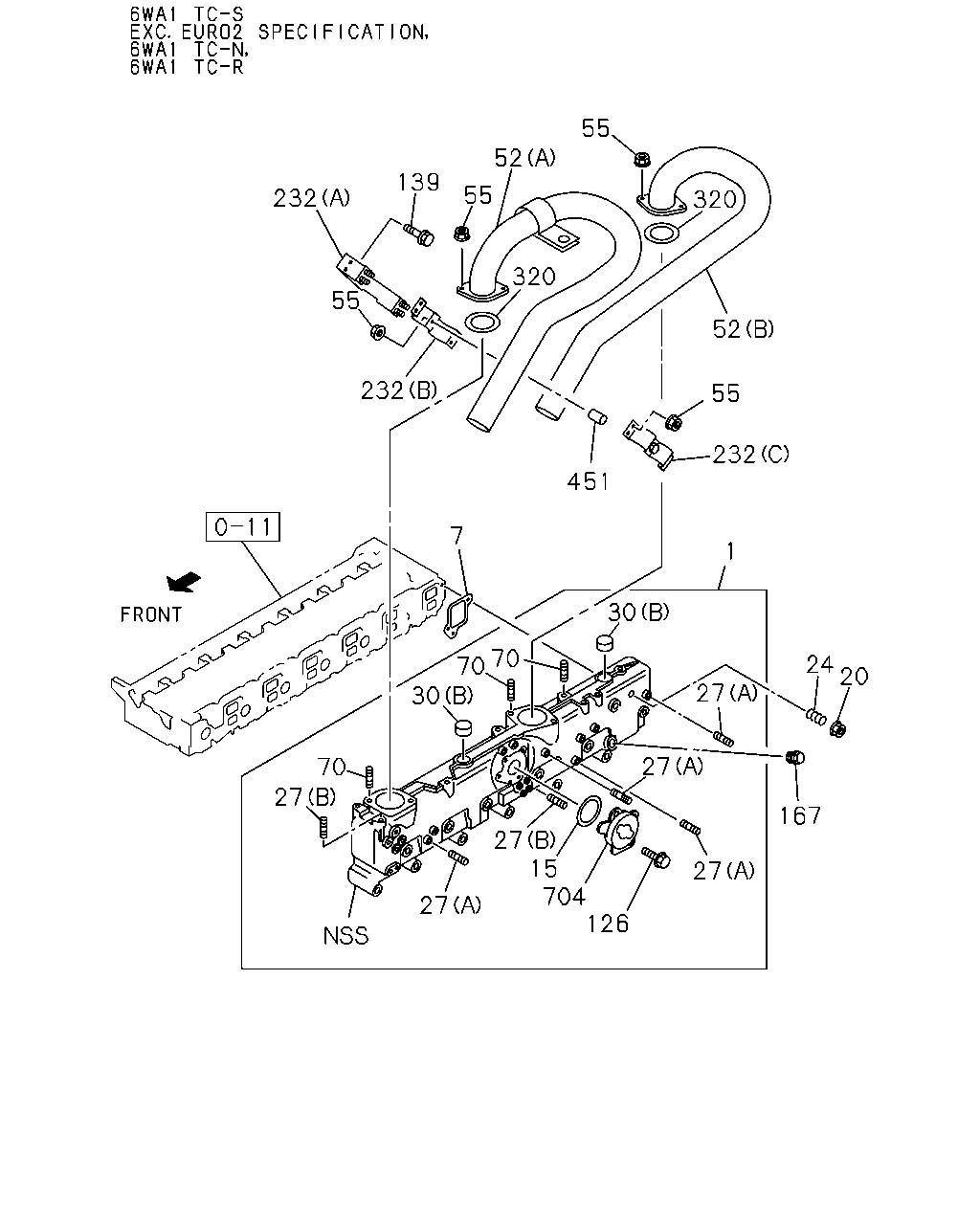

55 52 139 55 232 320 320 55 52 232 55 232 451 7 1 30 70 70 30 24 20 27 27 70 7 167 27 15 704 126 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	1-14110-547-0	01	1	9601-9610	●
1	MANIFOLD; INL EXC. EURO2 SPECIFICATION<THN>	1-14110-547-3	01	1	9611-9904	●
1	MANIFOLD; INL	1-14110-547-3	01	1	9611-9904		●
1	MANIFOLD; INL EURO2 SPECIFICATION<THN>	1-14110-551-3	01	1	9611-9904	●
1	MANIFOLD; INL ELECTRONIC GOV RED3(KG5)	1-14110-551-3	01	1	9905-		●
1	MANIFOLD; INL RLD GOVERNOR(SD7)	1-14110-579-1	01	1	9905-		●
1	MANIFOLD; INL	1-14110-547-3	01	1	9905-			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9601-9610	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9611-9904	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9905-		●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9601-9610	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9611-9904	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-		●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9601-9610	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9611-9904	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9905-		●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9601-9610	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9611-9904	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9905-		●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9601-9610	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9611-9904	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9905-		●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9601-9610	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9611-9904	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9905-		●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9601-9610	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9611-9904	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-		●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9601-9610	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9611-9904	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-		●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9601-9610	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9611-9904	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9905-		●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9601-9610	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9611-9904	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9905-		●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9601-9610	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9611-9904	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9905-		●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9601-9610	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9611-9904	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9905-		●	●	●
126	BOLT; COVER M10X20 FLANGE	0-28181-020-0	03	1	9601-9610	●
126	BOLT; COVER M10X20 FLANGE	0-28181-020-0	03	1	9611-9904	●	●
126	BOLT; COVER M10X20 FLANGE	0-28181-020-0	03	1	9905-		●	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9601-9610	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9611-9904	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9905-		●	●	●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9601-9610	●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9611-9904		●	●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9905-			●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9601-9610	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9611-9904	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9905-		●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-0	01	1	9601-9610	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9611-9904	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9905-		●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-0	01	1	9601-9610	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9611-9904	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9905-		●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9601-9610	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9611-9904	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9905-		●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9601-9610	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9611-9904	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9905-		●	●	●
704	COVER	1-14134-193-0	01	1	9601-9610	●
704	COVER	1-14134-193-0	01	1	9611-9904	●	●
704	COVER	1-14134-193-0	01	1	9905-		●	●	●

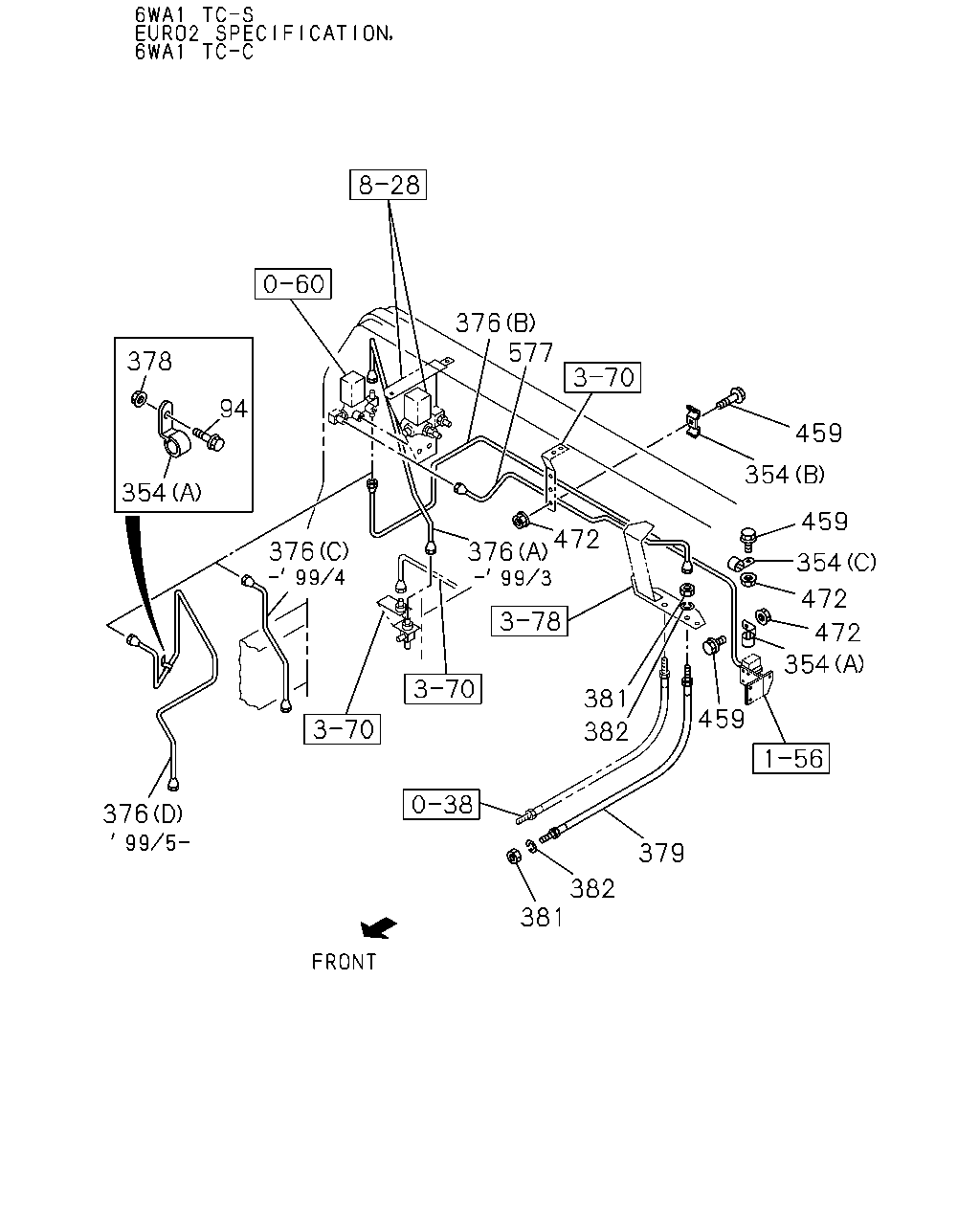

376 577 378 94 459 354 354 459 472 376 376 354 472 472 354 459 381 382 376 379 382 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	BOLT M8X20 FLANGE	0-28680-820-0	01	1	9905-		●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9611-9904	●
354	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9611-9904	●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-		●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (C) ID=7 L=20	9-09524-635-0	01	1	9611-9904	●
376	PIPE ASM; AIR UNION TO MAG VLV EURO2 SPECIFICATION<THN> (A)	1-49114-277-0	01	1	9611-9904	●
376	PIPE ASM; AIR UNION TO MAG VLV EURO2 SPECIFICATION<THN> (C) L=247	1-49119-648-0	01	1	9904-		●
376	PIPE ASM; AIR UNION TO MAG VLV EURO2 SPECIFICATION<THN> (B)	1-49117-470-0	01	1	9611-9904	●
376	PIPE ASM; AIR UNION TO MAG VLV (D) L=620	1-49121-778-0	01	1	9905-		●
378	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-		●
379	HOSE; FLEX EURO2 SPECIFICATION<THN> L=520	0-07030-520-0	01	1	9611-9702	●
379	HOSE; FLEX EURO2 SPECIFICATION<THN> L=520	1-09363-657-0	01	1	9703-9904	●
379	HOSE; FLEX EURO2 SPECIFICATION<THN> L=520	1-09363-657-0	01	1	9905-		●
381	NUT; FLEX TUBE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	02	1	9611-9904	●
381	NUT; FLEX TUBE M12	9-09840-280-0	02	1	9905-		●
382	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	02	1	9611-9904	●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9905-		●
459	BOLT; CLIP FIX EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	03	1	9611-9904	●
459	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	03	1	9905-		●
472	NUT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	03	1	9611-9904	●
472	NUT M8 FLANGE	0-91150-108-0	03	1	9905-		●
577	PIPE; AIR,UNION TO FLEX HOSE EURO2 SPECIFICATION<THN> L=708 SERVICED BY L=800	1-47428-812-0	01	1	9611-9904	●
577	PIPE; AIR,UNION TO FLEX HOSE	1-49121-789-0	01	1	9905-		●

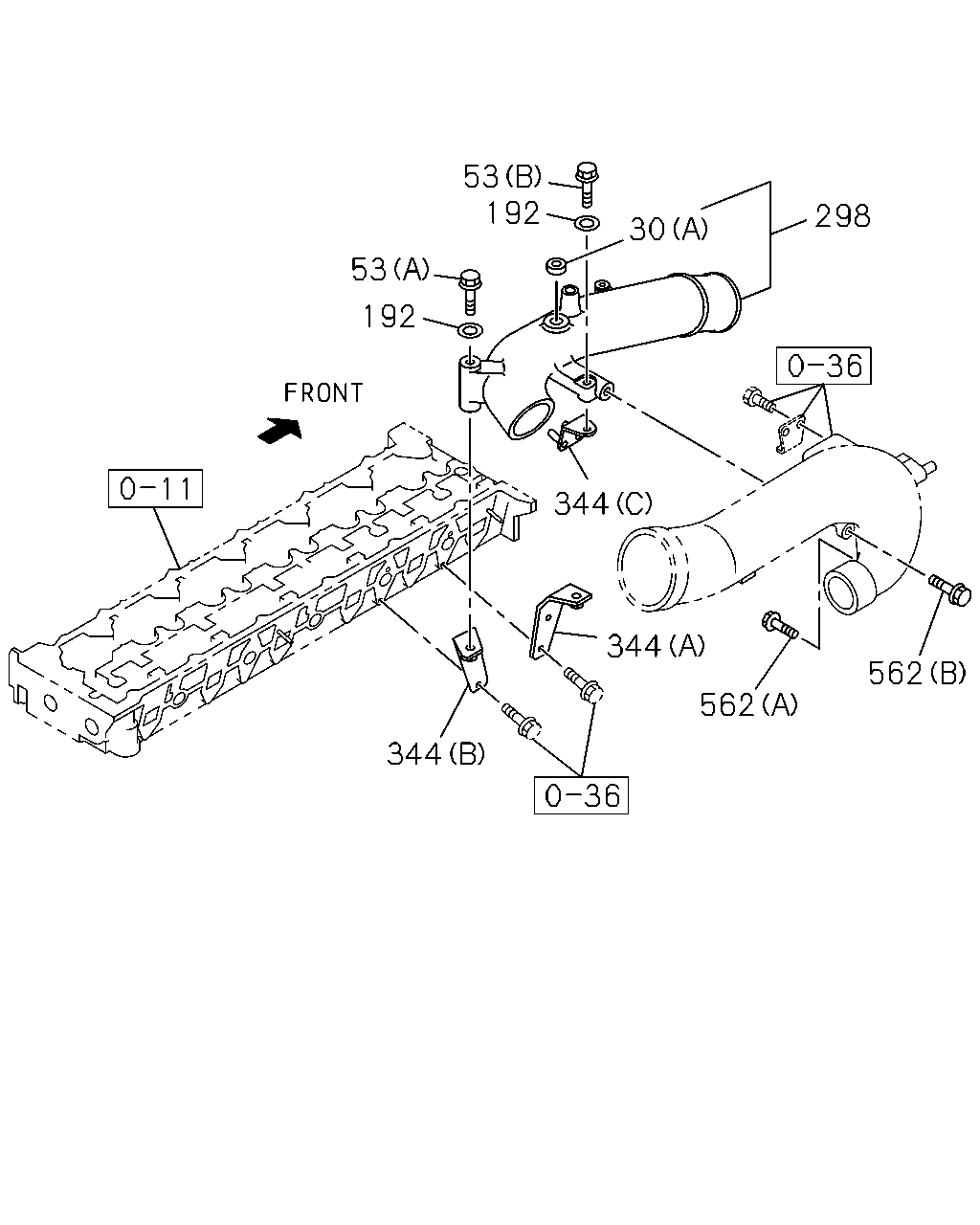

53 192 298 30 53 192 344 344 562 562 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9601-9610	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9611-9904	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-		●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9601-9610	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9611-9904	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-		●	●	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9601-9610	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9611-9904	●	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9905-		●	●	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9601-9610	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9611-9904	●	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9905-		●	●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	9902-9904	●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	9905-		●	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-1	01	1	9601-9610	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	9611-9904	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	9905-		●	●	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9601-9610	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9611-9904	●	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9905-		●	●	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9601-9610	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9611-9904	●	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9905-		●	●	●
344	BRACKET; INL PIPE (C)	1-14119-372-1	01	1	9601-9601	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9602-9610	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9611-9904	●	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9905-		●	●	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9601-9610	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9611-9904	●	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9905-		●	●	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9601-9610	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9611-9904	●	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
