Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#64255) — 324 parça

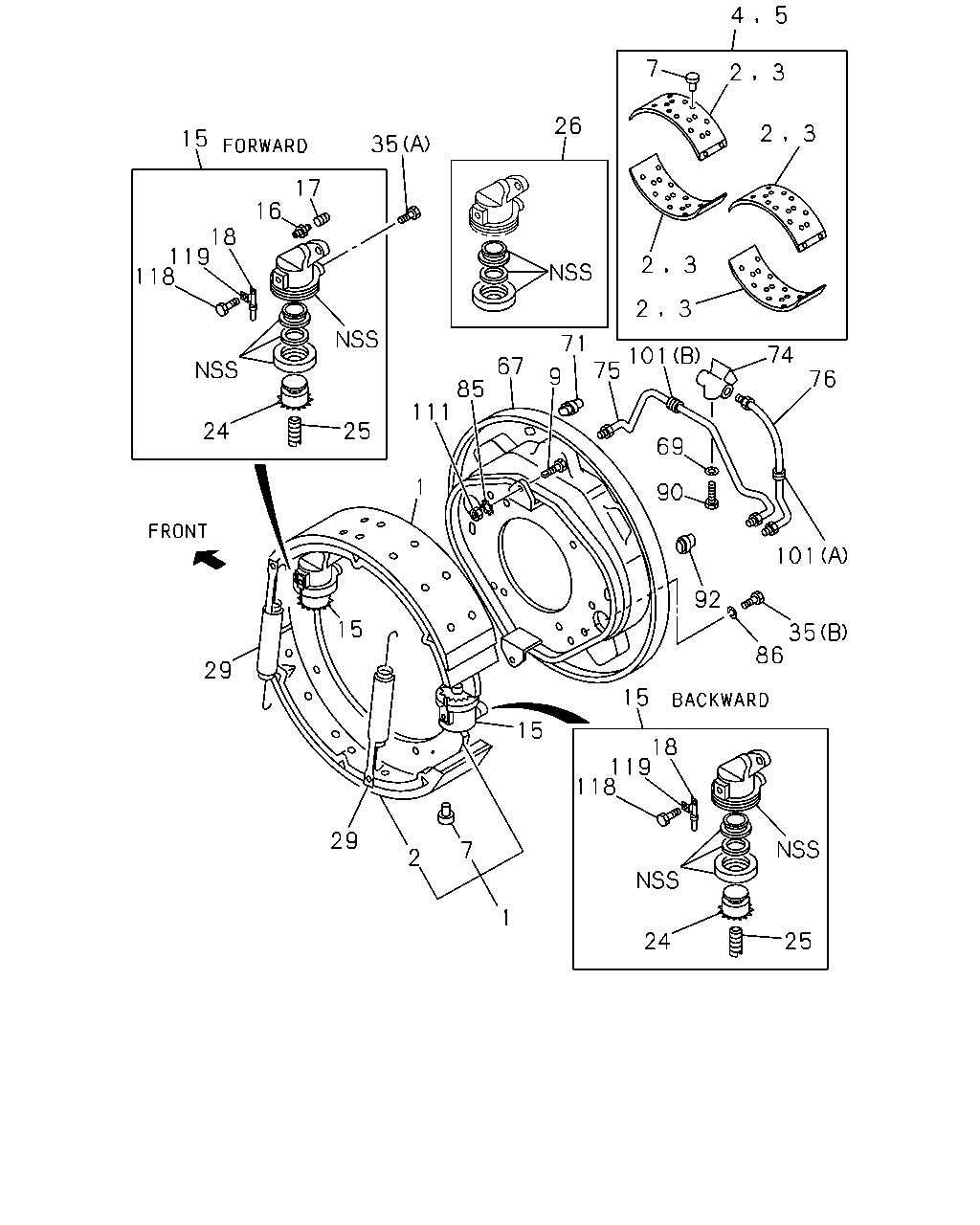

5 4 7 2 3 26 2 3 15 35 17 16 18 119 118 3 2 2 3 71 101 75 74 67 9 76 85 111 25 24 69 1 90 101 92 15 35 86 29 15 15 18 119 118 29 7 2 1 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-303-0	04	1	9811-0603	●
1	SHOE; BRK,FRT BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47170-437-0	04	1	0604-	●
1	SHOE; BRK,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-47110-981-0	04	1	9510-9802	●
1	SHOE; BRK,FRT SUSPENSION HEAVY DUTY VAR1(F40)	1-47110-981-0	04	1	9510-9802	●
1	SHOE; BRK,FRT FRONT SPRING HEAVY DUTY<F60>	1-47110-981-0	04	1	9510-9802	●
1	SHOE; BRK,FRT	1-47110-981-0	04	1	9510-9802		●
1	SHOE; BRK,FRT	1-47120-628-0	04	1	9803-9810	●	●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-628-0	04	1	9811-0004	●
1	SHOE; BRK,FRT	1-47120-628-0	04	1	9811-0004		●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-628-0	04	1	0005-0603	●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47120-628-0	04	1	0604-	●
1	SHOE; BRK,FRT THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-47120-303-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-422-0	04	1	9811-0603	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-756-0	04	1	0604-	●
2	LINING; FRT BRK SHOE,STANDARD EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-47125-008-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD SUSPENSION HEAVY DUTY VAR1(F40)	1-47125-008-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD FRONT SPRING HEAVY DUTY<F60>	1-47125-008-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-008-0	04	1	9510-9802		●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-805-0	04	1	9803-9810	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-805-0	04	1	9811-0004	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-805-0	04	1	9811-0004		●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-805-0	04	1	0005-0603	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-805-0	04	1	0604-	●
2	LINING; FRT BRK SHOE,STANDARD THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-47125-422-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-423-0	04	1	9811-0603	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-757-0	04	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-47125-009-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE SUSPENSION HEAVY DUTY VAR1(F40)	1-47125-009-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE FRONT SPRING HEAVY DUTY<F60>	1-47125-009-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-009-0	04	1	9510-9802		●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-806-0	04	1	9803-9810	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-806-0	04	1	9811-0004	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-806-0	04	1	9811-0004		●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-806-0	04	1	0005-0603	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-806-0	04	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-47125-423-0	04	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-303-0	01	1	9811-0603	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88311-355-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-88302-998-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD SUSPENSION HEAVY DUTY VAR1(F40)	1-88302-998-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD FRONT SPRING HEAVY DUTY<F60>	1-88302-998-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD	1-88302-998-0	01	1	9510-9802		●
4	LINING SET; FRT BRK,STANDARD	1-88310-505-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-505-0	01	1	9811-0004	●
4	LINING SET; FRT BRK,STANDARD	1-88310-505-0	01	1	9811-0004		●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-505-0	01	1	0005-0603	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88310-505-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-88310-303-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> BEST VALUE PARTS	1-87610-127-0	01	1	0005-0603	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY> BEST VALUE PARTS	1-87610-127-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-127-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> BEST VALUE PARTS	1-87610-127-0	01	1	9811-0004	●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-127-0	01	1	9811-0004		●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-304-0	01	1	9811-0603	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88311-356-0	01	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-88310-003-0	01	1	9510-9802	●
5	LINING SET; FRT BRK,OVER SIZE SUSPENSION HEAVY DUTY VAR1(F40)	1-88310-003-0	01	1	9510-9802	●
5	LINING SET; FRT BRK,OVER SIZE FRONT SPRING HEAVY DUTY<F60>	1-88310-003-0	01	1	9510-9802	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-003-0	01	1	9510-9802		●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-506-0	01	1	9803-9810	●	●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-506-0	01	1	9811-0004	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-506-0	01	1	9811-0004		●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-506-0	01	1	0005-0603	●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88310-506-0	01	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-88310-304-0	01	1	9510-9802	●
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	9510-0004	●	●
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	0005-	●
9	PIN; SHOE HOLDER	1-47162-012-0	04	1	9510-0004	●	●
9	PIN; SHOE HOLDER	1-47162-012-0	04	1	0005-0303	●
9	PIN; SHOE HOLDER	1-47162-036-0	04	1	0304-	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-555-1	02	1	9510-0004	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-555-1	02	1	9510-0004		●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-555-1	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-554-1	02	1	9510-0004	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-554-1	02	1	9510-0004		●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-554-1	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) FORWARD	1-47600-555-1	01	1	9510-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) BACKWARD	1-47600-735-0	01	1	9510-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) FORWARD	1-47600-554-1	01	1	9510-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) BACKWARD	1-47600-734-0	01	1	9510-	●
16	SCREW; BLEEDER,FRT BRK FRONT AXLE F049(FS4) L=44	1-47615-007-0	04	1	9510-0004	●
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	04	1	9510-0004		●
16	SCREW; BLEEDER,FRT BRK FRONT AXLE F049(FS4) L=44	1-47615-007-0	04	1	0005-	●
16	SCREW; BLEEDER,FRT BRK EXC. FRONT AXLE F049(FS4) L=44	1-47615-007-0	02	1	9510-	●
17	CAP; BLEEDER,FRT WHEEL CYL FRONT AXLE F049(FS4) OD=9.5	9-47619-005-0	04	1	9510-0004	●
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	04	1	9510-0004		●
17	CAP; BLEEDER,FRT WHEEL CYL FRONT AXLE F049(FS4) OD=9.5	9-47619-005-0	04	1	0005-	●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. FRONT AXLE F049(FS4) OD=9.5	9-47619-005-0	02	1	9510-	●
18	STOPPER; ADJ SCREW	1-47169-008-0	04	1	9510-0004	●	●
18	STOPPER; ADJ SCREW	1-47169-008-0	04	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	9510-0004	●	●
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	9510-0004	●	●
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	9510-0004	●	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	9510-0004	●	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	0005-	●
26	CUP SET; FRT WHEEL CYL EXC. FRONT AXLE F049(FS4)	1-87830-577-0	02	1	0005-	●
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	04	1	9510-0004	●	●
26	CUP SET; FRT WHEEL CYL FRONT AXLE F049(FS4)	1-87830-577-0	04	1	0005-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	9510-0004	●	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	0005-	●
35	BOLT; FRT WHEEL CYL (B) M16X30	0-23801-630-0	04	1	9510-0004	●	●
35	BOLT; FRT WHEEL CYL (B) M16X30	0-23801-630-0	04	1	0005-	●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50051-022-0	08	1	9510-0004	●	●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50051-022-0	08	1	0005-0906	●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50551-022-0	08	1	0907-	●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-348-1	01	1	9510-0004	●
67	PLATE; BACK,FRT BRK	1-47150-348-1	01	1	9510-0004		●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-348-1	01	1	0005-	●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-347-1	01	1	9510-0004	●
67	PLATE; BACK,FRT BRK	1-47150-347-1	01	1	9510-0004		●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-347-1	01	1	0005-	●
67	PLATE; BACK,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47150-501-0	01	1	9510-	●
67	PLATE; BACK,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47150-500-0	01	1	9510-	●
69	WASHER; LK,CONNECTOR EXC. FRONT AXLE F049(FS4) ID=8.2	9-09150-608-0	02	1	9510-0603	●
69	WASHER; LK,CONNECTOR EXC. FRONT AXLE F049(FS4) ID=8.2	0-91510-608-0	02	1	0604-	●
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	9510-0004	●	●
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	0005-	●
74	CONNECTOR; FRT BRK FRONT AXLE F049(FS4)	1-47630-003-2	02	1	9510-0004	●
74	CONNECTOR; FRT BRK	1-47630-003-2	02	1	9510-0004		●
74	CONNECTOR; FRT BRK FRONT AXLE F049(FS4)	1-47630-003-2	02	1	0005-	●
74	CONNECTOR; FRT BRK EXC. FRONT AXLE F049(FS4)	1-47630-030-0	01	1	9510-	●
74	CONNECTOR; FRT BRK EXC. FRONT AXLE F049(FS4)	1-47630-029-0	01	1	9510-	●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-792-0	01	1	9510-0004	●
75	PIPE; OIL,FWD,FRT BRK	1-47413-792-0	01	1	9510-0004		●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-792-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-791-0	01	1	9510-0004	●
75	PIPE; OIL,FWD,FRT BRK	1-47413-791-0	01	1	9510-0004		●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-791-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47423-927-0	02	1	9510-	●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-790-0	01	1	9510-0004	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-790-0	01	1	9510-0004		●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-790-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-789-0	01	1	9510-0004	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-789-0	01	1	9510-0004		●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-789-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47424-940-0	01	1	9510-	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47424-939-0	01	1	9510-	●
85	PLATE; LK,CONNECTOR	1-09533-006-0	04	1	9510-0004	●	●
85	PLATE; LK,CONNECTOR	1-09533-006-0	04	1	0005-	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	9510-0004	●	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	0005-0603	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	0-91510-616-0	04	1	0604-	●
90	BOLT; CONNECTOR FRONT AXLE F049(FS4) M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0004	●
90	BOLT; CONNECTOR M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0004		●
90	BOLT; CONNECTOR FRONT AXLE F049(FS4) M8X18 W/LK WASHER	0-50040-818-0	02	1	0005-0906	●
90	BOLT; CONNECTOR FRONT AXLE F049(FS4) M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-	●
90	BOLT; CONNECTOR EXC. FRONT AXLE F049(FS4) M8X16	0-20800-816-0	02	1	9510-0512	●
90	BOLT; CONNECTOR EXC. FRONT AXLE F049(FS4) M8X16	0-20850-816-0	02	1	0601-	●
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	9510-0004	●	●
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	0005-	●
101	PROTECTOR; OIL PIPE,FRT BRK EXC. FRONT AXLE F049(FS4) (A)	1-09332-133-0	02	1	9510-	●
101	PROTECTOR; OIL PIPE,FRT BRK (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	9510-0004	●	●
101	PROTECTOR; OIL PIPE,FRT BRK (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	0005-	●
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	9510-0004	●	●
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	0005-0512	●
111	NUT; FLANGE,SHOE HOLD M16	0-91111-516-0	04	1	0601-	●
118	BOLT; STOPPER M6X8	0-20800-608-0	04	1	9510-0004	●	●
118	BOLT; STOPPER M6X8	0-20800-608-0	04	1	0005-	●
119	PLATE; LK,STOPPER	1-47169-009-0	04	1	9510-0004	●	●
119	PLATE; LK,STOPPER	1-47169-009-0	04	1	0005-	●

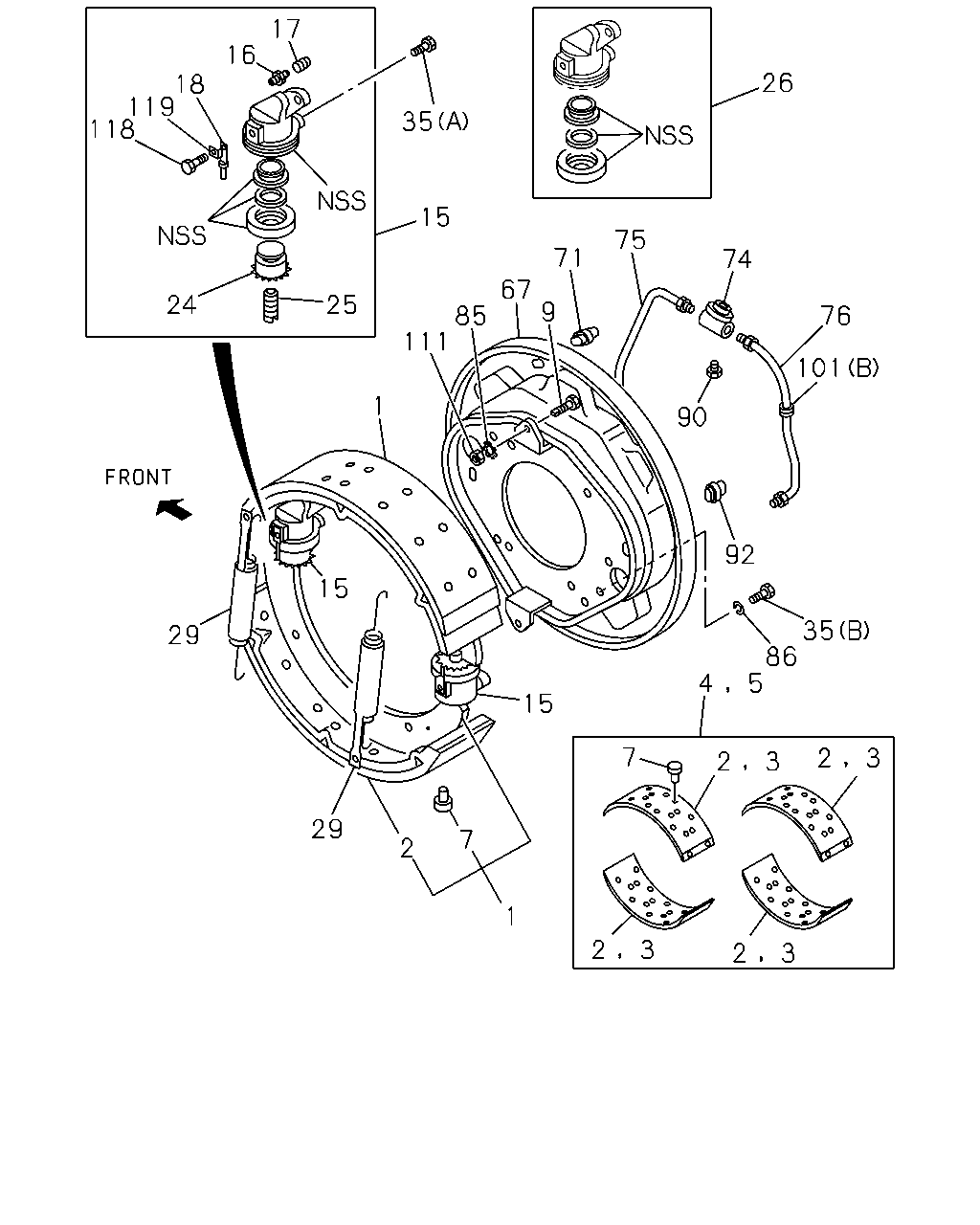

17 16 26 18 119 118 35 15 75 71 74 67 9 24 25 85 111 76 101 1 90 92 15 35 86 5 29 4 15 7 2 3 2 3 29 7 2 1 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-303-0	04	1	9811-0603	●
1	SHOE; BRK,FRT BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47170-437-0	04	1	0604-	●
1	SHOE; BRK,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-47110-981-0	04	1	9510-9802	●
1	SHOE; BRK,FRT SUSPENSION HEAVY DUTY VAR1(F40)	1-47110-981-0	04	1	9510-9802	●
1	SHOE; BRK,FRT FRONT SPRING HEAVY DUTY<F60>	1-47110-981-0	04	1	9510-9802	●
1	SHOE; BRK,FRT	1-47110-981-0	04	1	9510-9802		●
1	SHOE; BRK,FRT	1-47120-628-0	04	1	9803-9810	●	●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-628-0	04	1	9811-0004	●
1	SHOE; BRK,FRT	1-47120-628-0	04	1	9811-0004		●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-628-0	04	1	0005-0603	●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47120-628-0	04	1	0604-	●
1	SHOE; BRK,FRT THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-47120-303-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-422-0	04	1	9811-0603	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-756-0	04	1	0604-	●
2	LINING; FRT BRK SHOE,STANDARD EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-47125-008-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD SUSPENSION HEAVY DUTY VAR1(F40)	1-47125-008-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD FRONT SPRING HEAVY DUTY<F60>	1-47125-008-0	04	1	9510-9802	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-008-0	04	1	9510-9802		●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-805-0	04	1	9803-9810	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-805-0	04	1	9811-0004	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-805-0	04	1	9811-0004		●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-805-0	04	1	0005-0603	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-805-0	04	1	0604-	●
2	LINING; FRT BRK SHOE,STANDARD THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-47125-422-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-423-0	04	1	9811-0603	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-757-0	04	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-47125-009-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE SUSPENSION HEAVY DUTY VAR1(F40)	1-47125-009-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE FRONT SPRING HEAVY DUTY<F60>	1-47125-009-0	04	1	9510-9802	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-009-0	04	1	9510-9802		●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-806-0	04	1	9803-9810	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-806-0	04	1	9811-0004	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-806-0	04	1	9811-0004		●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-806-0	04	1	0005-0603	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-806-0	04	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-47125-423-0	04	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-303-0	01	1	9811-0603	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88311-355-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-88302-998-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD SUSPENSION HEAVY DUTY VAR1(F40)	1-88302-998-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD FRONT SPRING HEAVY DUTY<F60>	1-88302-998-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD	1-88302-998-0	01	1	9510-9802		●
4	LINING SET; FRT BRK,STANDARD	1-88310-505-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-505-0	01	1	9811-0004	●
4	LINING SET; FRT BRK,STANDARD	1-88310-505-0	01	1	9811-0004		●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-505-0	01	1	0005-0603	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88310-505-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-88310-303-0	01	1	9510-9802	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> BEST VALUE PARTS	1-87610-127-0	01	1	0005-0603	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY> BEST VALUE PARTS	1-87610-127-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-127-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> BEST VALUE PARTS	1-87610-127-0	01	1	9811-0004	●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-127-0	01	1	9811-0004		●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-304-0	01	1	9811-0603	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88311-356-0	01	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>,THAILAND EQUIPMENT(PM9)	1-88310-003-0	01	1	9510-9802	●
5	LINING SET; FRT BRK,OVER SIZE SUSPENSION HEAVY DUTY VAR1(F40)	1-88310-003-0	01	1	9510-9802	●
5	LINING SET; FRT BRK,OVER SIZE FRONT SPRING HEAVY DUTY<F60>	1-88310-003-0	01	1	9510-9802	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-003-0	01	1	9510-9802		●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-506-0	01	1	9803-9810	●	●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-506-0	01	1	9811-0004	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-506-0	01	1	9811-0004		●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-506-0	01	1	0005-0603	●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88310-506-0	01	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE THAILAND EQUIPMENT(PM9) EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-88310-304-0	01	1	9510-9802	●
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	9510-0004	●	●
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	0005-	●
9	PIN; SHOE HOLDER	1-47162-012-0	04	1	9510-0004	●	●
9	PIN; SHOE HOLDER	1-47162-012-0	04	1	0005-0303	●
9	PIN; SHOE HOLDER	1-47162-036-0	04	1	0304-	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-555-1	02	1	9510-0004	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-555-1	02	1	9510-0004		●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-555-1	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-554-1	02	1	9510-0004	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-554-1	02	1	9510-0004		●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-554-1	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) FORWARD	1-47600-555-1	01	1	9510-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) BACKWARD	1-47600-735-0	01	1	9510-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) FORWARD	1-47600-554-1	01	1	9510-	●
15	CYLINDER; WHEEL,FRT BRK EXC. FRONT AXLE F049(FS4) BACKWARD	1-47600-734-0	01	1	9510-	●
16	SCREW; BLEEDER,FRT BRK FRONT AXLE F049(FS4) L=44	1-47615-007-0	04	1	9510-0004	●
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	04	1	9510-0004		●
16	SCREW; BLEEDER,FRT BRK FRONT AXLE F049(FS4) L=44	1-47615-007-0	04	1	0005-	●
16	SCREW; BLEEDER,FRT BRK EXC. FRONT AXLE F049(FS4) L=44	1-47615-007-0	02	1	9510-	●
17	CAP; BLEEDER,FRT WHEEL CYL FRONT AXLE F049(FS4) OD=9.5	9-47619-005-0	04	1	9510-0004	●
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	04	1	9510-0004		●
17	CAP; BLEEDER,FRT WHEEL CYL FRONT AXLE F049(FS4) OD=9.5	9-47619-005-0	04	1	0005-	●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. FRONT AXLE F049(FS4) OD=9.5	9-47619-005-0	02	1	9510-	●
18	STOPPER; ADJ SCREW	1-47169-008-0	04	1	9510-0004	●	●
18	STOPPER; ADJ SCREW	1-47169-008-0	04	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	9510-0004	●	●
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	9510-0004	●	●
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	9510-0004	●	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	9510-0004	●	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	0005-	●
26	CUP SET; FRT WHEEL CYL EXC. FRONT AXLE F049(FS4)	1-87830-577-0	02	1	0005-	●
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	04	1	9510-0004	●	●
26	CUP SET; FRT WHEEL CYL FRONT AXLE F049(FS4)	1-87830-577-0	04	1	0005-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	9510-0004	●	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	0005-	●
35	BOLT; FRT WHEEL CYL (B) M16X30	0-23801-630-0	04	1	9510-0004	●	●
35	BOLT; FRT WHEEL CYL (B) M16X30	0-23801-630-0	04	1	0005-	●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50051-022-0	08	1	9510-0004	●	●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50051-022-0	08	1	0005-0906	●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50551-022-0	08	1	0907-	●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-348-1	01	1	9510-0004	●
67	PLATE; BACK,FRT BRK	1-47150-348-1	01	1	9510-0004		●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-348-1	01	1	0005-	●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-347-1	01	1	9510-0004	●
67	PLATE; BACK,FRT BRK	1-47150-347-1	01	1	9510-0004		●
67	PLATE; BACK,FRT BRK FRONT AXLE F049(FS4)	1-47150-347-1	01	1	0005-	●
67	PLATE; BACK,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47150-501-0	01	1	9510-	●
67	PLATE; BACK,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47150-500-0	01	1	9510-	●
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	9510-0004	●	●
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	0005-	●
74	CONNECTOR; FRT BRK FRONT AXLE F049(FS4)	1-47630-003-2	02	1	9510-0004	●
74	CONNECTOR; FRT BRK	1-47630-003-2	02	1	9510-0004		●
74	CONNECTOR; FRT BRK FRONT AXLE F049(FS4)	1-47630-003-2	02	1	0005-	●
74	CONNECTOR; FRT BRK EXC. FRONT AXLE F049(FS4)	1-47630-030-0	01	1	9510-	●
74	CONNECTOR; FRT BRK EXC. FRONT AXLE F049(FS4)	1-47630-029-0	01	1	9510-	●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-792-0	01	1	9510-0004	●
75	PIPE; OIL,FWD,FRT BRK	1-47413-792-0	01	1	9510-0004		●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-792-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-791-0	01	1	9510-0004	●
75	PIPE; OIL,FWD,FRT BRK	1-47413-791-0	01	1	9510-0004		●
75	PIPE; OIL,FWD,FRT BRK FRONT AXLE F049(FS4)	1-47413-791-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47423-927-0	02	1	9510-	●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-790-0	01	1	9510-0004	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-790-0	01	1	9510-0004		●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-790-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-789-0	01	1	9510-0004	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-789-0	01	1	9510-0004		●
76	PIPE; OIL,BACKWARD,FRT BRK FRONT AXLE F049(FS4)	1-47413-789-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47424-940-0	01	1	9510-	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. FRONT AXLE F049(FS4)	1-47424-939-0	01	1	9510-	●
85	PLATE; LK,CONNECTOR	1-09533-006-0	04	1	9510-0004	●	●
85	PLATE; LK,CONNECTOR	1-09533-006-0	04	1	0005-	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	9510-0004	●	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	0005-0603	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	0-91510-616-0	04	1	0604-	●
90	BOLT; CONNECTOR FRONT AXLE F049(FS4) M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0004	●
90	BOLT; CONNECTOR M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0004		●
90	BOLT; CONNECTOR FRONT AXLE F049(FS4) M8X18 W/LK WASHER	0-50040-818-0	02	1	0005-0906	●
90	BOLT; CONNECTOR FRONT AXLE F049(FS4) M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-	●
90	BOLT; CONNECTOR EXC. FRONT AXLE F049(FS4) M8X16	0-20800-816-0	02	1	9510-0512	●
90	BOLT; CONNECTOR EXC. FRONT AXLE F049(FS4) M8X16	0-20850-816-0	02	1	0601-	●
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	9510-0004	●	●
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	0005-	●
101	PROTECTOR; OIL PIPE,FRT BRK EXC. FRONT AXLE F049(FS4) (A)	1-09332-133-0	02	1	9510-	●
101	PROTECTOR; OIL PIPE,FRT BRK (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	9510-0004	●	●
101	PROTECTOR; OIL PIPE,FRT BRK (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	0005-	●
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	9510-0004	●	●
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	0005-0512	●
111	NUT; FLANGE,SHOE HOLD M16	0-91111-516-0	04	1	0601-	●
118	BOLT; STOPPER M6X8	0-20800-608-0	04	1	9510-0004	●	●
118	BOLT; STOPPER M6X8	0-20800-608-0	04	1	0005-	●
119	PLATE; LK,STOPPER	1-47169-009-0	04	1	9510-0004	●	●
119	PLATE; LK,STOPPER	1-47169-009-0	04	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
