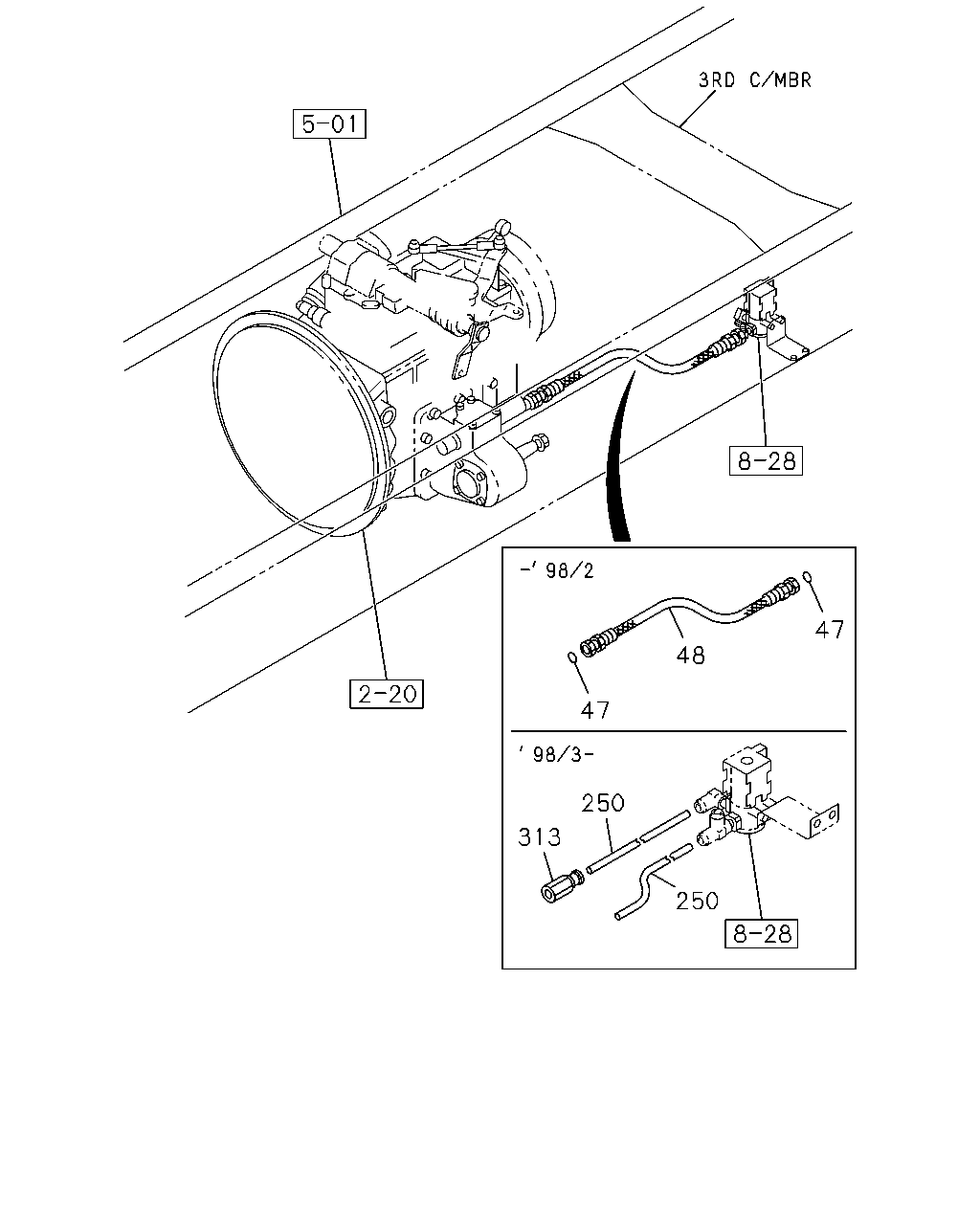

2-85A — POWER TAKE OFF CONTROL (#64253) — 15 parça

47 48 47 250 313 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=420	0-07150-420-0	01	1	9510-9802	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-0212	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-0212	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0405	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0405	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0406-	●	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0406-	●	●	●
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004	●	●
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007	●	●
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0405	●	●
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0406-	●	●	●

3 3 1 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	9510-	●	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9510-	●	●
55	GROMMET; CABLE	1-09983-068-0	01	1	9510-	●	●	●
