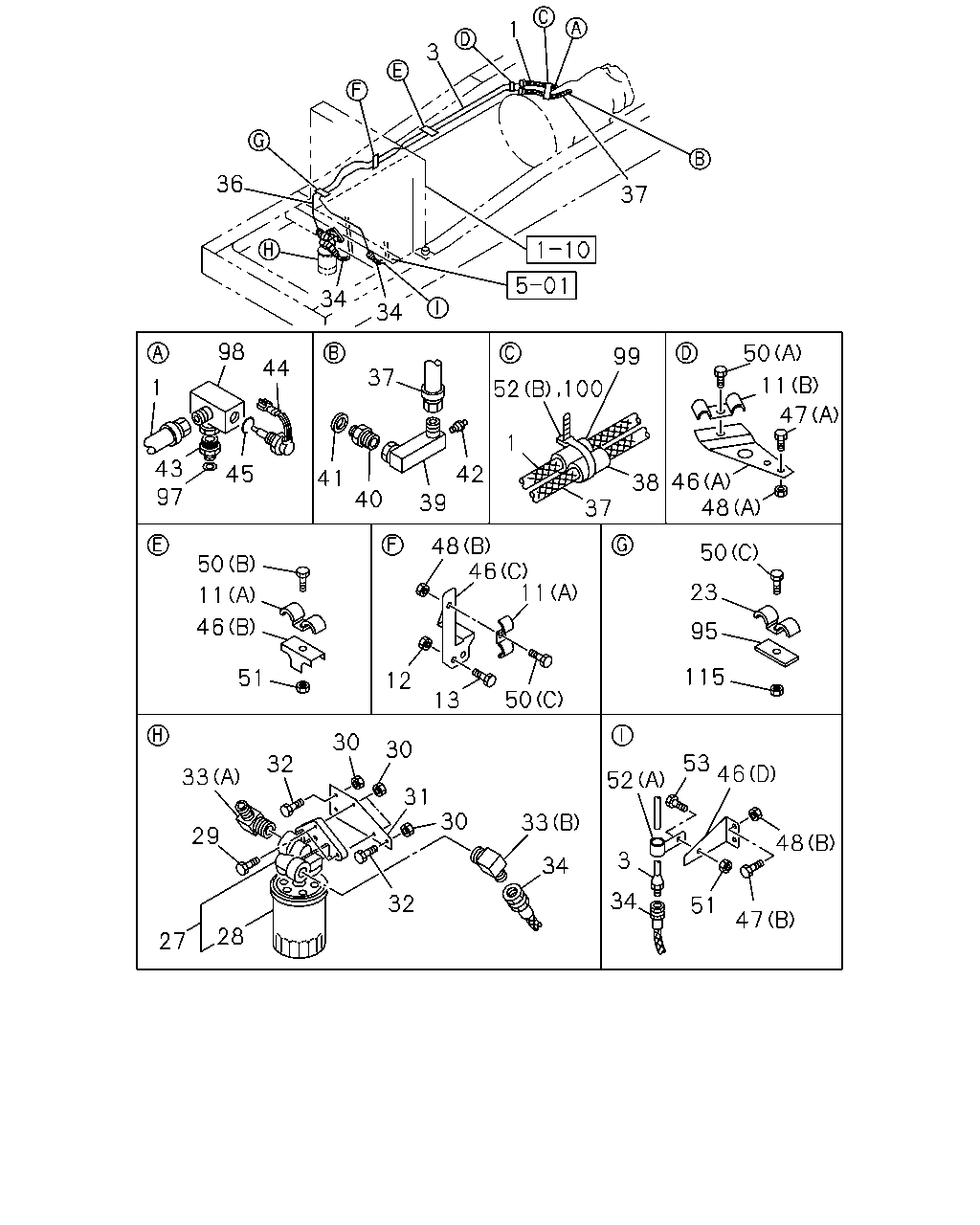

2-53 — TRANSMISSION OIL COOLER SYSTEM (#64249) — 89 parça

1 3 36 37 34 34 98 50 99 44 37 11 1 52 100 47 1 43 97 45 42 41 46 48 38 40 39 37 48 46 11 50 23 11 46 95 115 51 12 50 13 30 30 53 46 32 33 52 31 30 33 29 48 3 34 34 32 51 47 28 27 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF L=475	1-09364-828-0	01	1	9510-9602
1	HOSE; ATF L=570	1-09364-829-0	01	1	9603-
3	PIPE; OIL,A/T TO OIL COOLER	1-21114-904-2	01	1	9510-9601
3	PIPE; OIL,A/T TO OIL COOLER	1-21115-578-0	01	1	9602-9604
3	PIPE; OIL,A/T TO OIL COOLER	1-21115-677-0	01	1	9605-9608
3	PIPE; OIL,A/T TO OIL COOLER	1-21115-755-0	01	1	9609-9802
3	PIPE; OIL,A/T TO OIL COOLER	1-21115-879-0	01	1	9803-9805
3	PIPE; OIL,A/T TO OIL COOLER	1-21116-104-0	01	1	9806-
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9510-
11	CLIP; PIPE (B)	1-21439-013-0	01	1	9510-
12	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606
12	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
13	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
13	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
13	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
23	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9510-
27	FILTER ASM; OIL	1-32569-024-0	01	1	9510-
28	CARTRIDGE; OIL FILTER	1-32569-025-0	01	1	9510-
29	BOLT; FILTER TO BRKT M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
29	BOLT; FILTER TO BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
29	BOLT; FILTER TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	NUT; BRKT M8	9-09110-408-0	05	1	9510-9606
30	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	9607-0602
30	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
31	BRACKET; OIL FILTER	1-32569-067-0	01	1	9510-
32	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	03	1	9510-9606
32	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	9607-0512
32	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-
33	UNION; OIL FILTER (A)	1-09650-208-2	01	1	9510-
33	UNION; OIL FILTER (B)	1-09650-417-0	01	1	9510-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE L=395	1-09364-830-0	02	1	9510-
36	PIPE; OIL,FILTER TO A/T	1-21114-905-2	01	1	9510-9604
36	PIPE; OIL,FILTER TO A/T	1-21115-678-0	01	1	9605-9608
36	PIPE; OIL,FILTER TO A/T	1-21115-756-0	01	1	9609-9802
36	PIPE; OIL,FILTER TO A/T	1-21115-880-0	01	1	9803-
37	HOSE; FLEX,OIL COOLER PIPE TO A/T L=570	1-09364-829-0	01	1	9510-9602
37	HOSE; FLEX,OIL COOLER PIPE TO A/T L=475	1-09364-828-0	01	1	9603-
38	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	9510-
39	CONNECTOR; FLEX HOSE,A/T	1-09664-220-0	01	1	9510-
40	CONNECTOR; FLEX HOSE,A/T M27 & SAE3/4	1-09654-063-0	01	1	9510-
41	GASKET; FLEX HOSE,A/T	9-09562-217-0	01	1	9510-
42	PLUG; CONNECTOR,A/T PT1/4	9-99204-513-0	01	1	9510-
43	CONNECTOR; FLEX HOSE,A/T M27 & SAE3/4	1-09654-063-0	01	1	9510-
44	SWITCH; OIL THERMO	1-82450-047-1	01	1	9510-
45	GASKET; OIL THERMO SW ID=26.8	1-09623-058-0	01	1	9510-
46	BRACKET; OIL PIPE (A)	1-21439-057-0	01	1	9510-
46	BRACKET; OIL PIPE (D)	1-21439-090-0	01	1	9510-
46	BRACKET; OIL PIPE (B)	1-47475-427-1	01	1	9510-
46	BRACKET; OIL PIPE (C)	1-47476-954-0	01	1	9510-
47	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
47	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
47	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
47	BOLT; BRKT TO FRAME (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9510-9606
47	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	9607-0406
47	BOLT; BRKT TO FRAME (A) M10X30 FLANGE	0-28681-030-0	02	1	0407-0512
47	BOLT; BRKT TO FRAME (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-
48	NUT; BRKT (B) M8	9-09110-408-0	03	1	9510-9606
48	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	9607-0602
48	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	03	1	0603-
48	NUT; BRKT (A) M10	9-09110-510-0	02	1	9510-9606
48	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9607-0602
48	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0603-
50	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	9510-9702
50	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	9703-0512
50	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
50	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606
50	BOLT; CLIP (B) M8X40 FLANGE	0-28680-840-0	01	1	9607-0512
50	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0601-
50	BOLT; CLIP (A) M10X20 W/LK WASHER	0-50041-020-0	01	1	9510-9606
50	BOLT; CLIP (A) M10X20 FLANGE	0-28681-020-0	01	1	9607-0512
50	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	0601-
51	NUT; CLIP TO BRKT M8	9-09110-408-0	02	1	9510-9606
51	NUT; CLIP TO BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602
51	NUT; CLIP TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
52	CLIP; FLEX HOSE,A/T (A) ID=18 L=28	1-09701-067-0	01	1	9510-
52	CLIP; FLEX HOSE,A/T (B) L=250	5-09707-030-1	01	1	9805-
53	BOLT; CLIP,FLEX HOSE,A/T M8X16 FLANGE	0-28080-816-0	01	1	9510-0107
53	BOLT; CLIP,FLEX HOSE,A/T M8X20 FLANGE	0-28680-820-0	01	1	0108-0512
53	BOLT; CLIP,FLEX HOSE,A/T M8X20 FLANGE	0-28650-820-0	01	1	0601-
95	BRACKET; CLIP L=50	1-47475-299-2	01	1	9510-
97	GASKET; CONNECTOR	9-09562-217-0	01	1	9510-
98	CONNECTOR; HOSE & SW	1-09664-204-1	01	1	9510-
99	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	9510-9804
99	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	03	1	9805-
100	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	9510-
115	NUT; CLIP M8	9-09110-408-0	01	1	9510-9606
115	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-0602
115	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
