Isuzu WW
▶
TRUCKS
▶
FSR
▶
10700 - FSR32,33(RHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶

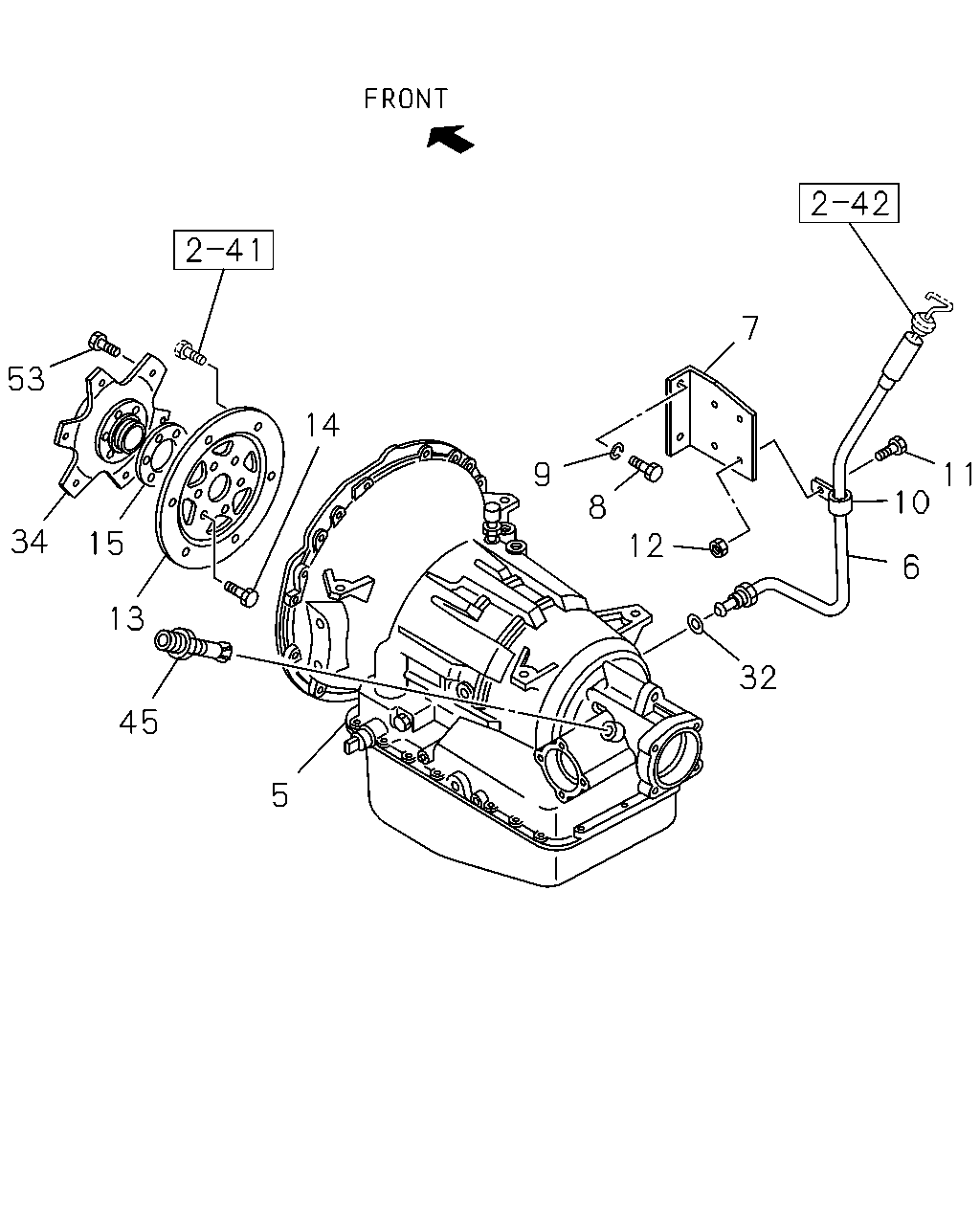

2-40 — AUTO TRANS ASM AND REPAIR KIT
(#64245) — 21 parça
7
53
14
9
11
10
8
34
15
12
6
13
32
45
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
TRANSMISSION ASM; AUTO
1-34000-270-0
01
1
9510-
6
FILLER; OIL
1-34121-126-0
01
1
9510-
7
BRACKET; OIL FILLER
1-34129-044-0
01
1
9510-
8
BOLT; BRKT
5/8"X30
1-09040-013-0
02
1
9510-
9
WASHER; LK
ID=16.2
9-09150-516-0
02
1
9510-0603
9
WASHER; LK
ID=16.2
0-91510-516-0
02
1
0604-
10
CLIP; OIL FILLER
ID=19
1-09700-664-0
02
1
9510-
11
BOLT; CLIP
M8X16 W/LK&PL WASHER
0-50140-816-0
04
1
9510-0512
11
BOLT; CLIP
M8X16 W/LK&PL WASHER
0-50640-816-0
04
1
0601-
12
NUT; BOLT
M8
9-09110-408-0
04
1
9510-0512
12
NUT; BOLT
M8
0-91110-508-0
04
1
0601-
13
PLATE; FLEX,A/T
1-32213-022-0
01
1
9510-
14
BOLT; FLEX PLATE
M14X25
9-92061-425-0
06
1
9510-0512
14
BOLT; FLEX PLATE
M14X25
0-20951-425-0
06
1
0601-
15
WASHER; FLEX PLATE
1-32213-009-1
01
1
9510-
32
GASKET
9-09921-103-0
01
1
9510-
34
ADAPTER
8-94396-923-2
01
1
9510-
45
GEAR; DRIVEN,SPD,A/T
Z=17
1-33372-065-0
01
1
9510-
53
BOLT; ADAPTER
1-09044-062-0
06
1
9510-9802
53
BOLT; ADAPTER
M10X30 FLANGE
0-28791-030-0
06
1
9803-0512
53
BOLT; ADAPTER
M10X30 FLANGE
0-28761-030-0
06
1
0601-
