2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#64243) — 69 parça

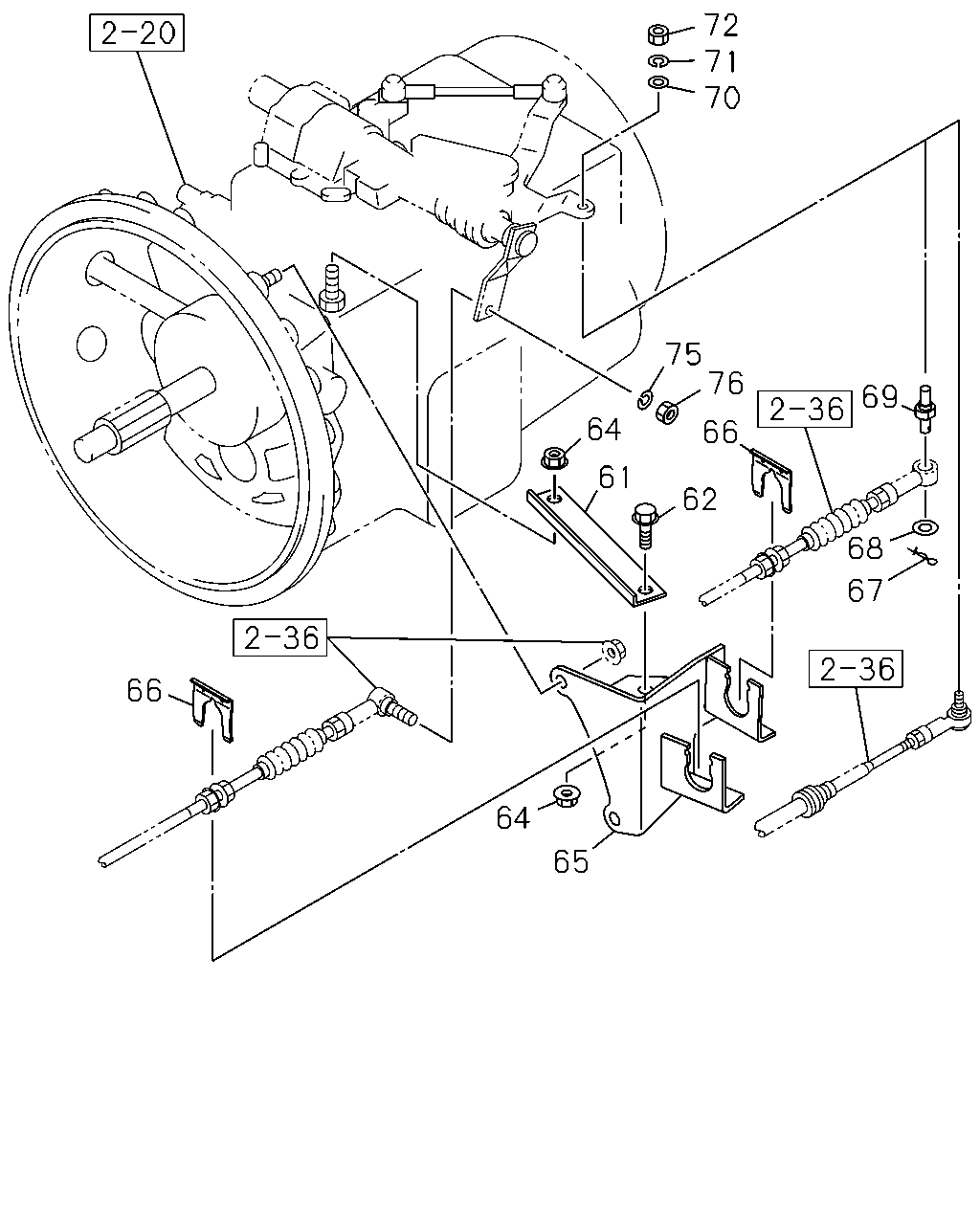

72 71 70 75 76 69 64 66 61 62 68 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	0406-	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-0405		●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	0406-		●	●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0406-	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	0406-0512	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605		●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9804		●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0405		●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0406-0512		●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	0406-0512	●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-		●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
64	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9510-9605		●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9606-0405		●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	0406-0602	●	●	●
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-691-1	01	1	0602-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	0406-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	8-97377-974-1	01	1	0406-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	9510-		●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-0405		●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0406-	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9510-9802		●	●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9510-9702		●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9510-9802		●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9510-9802		●	●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9510-9702		●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609		●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-0405		●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0406-	●	●	●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9510-9802		●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802		●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-0405		●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0406-	●	●	●

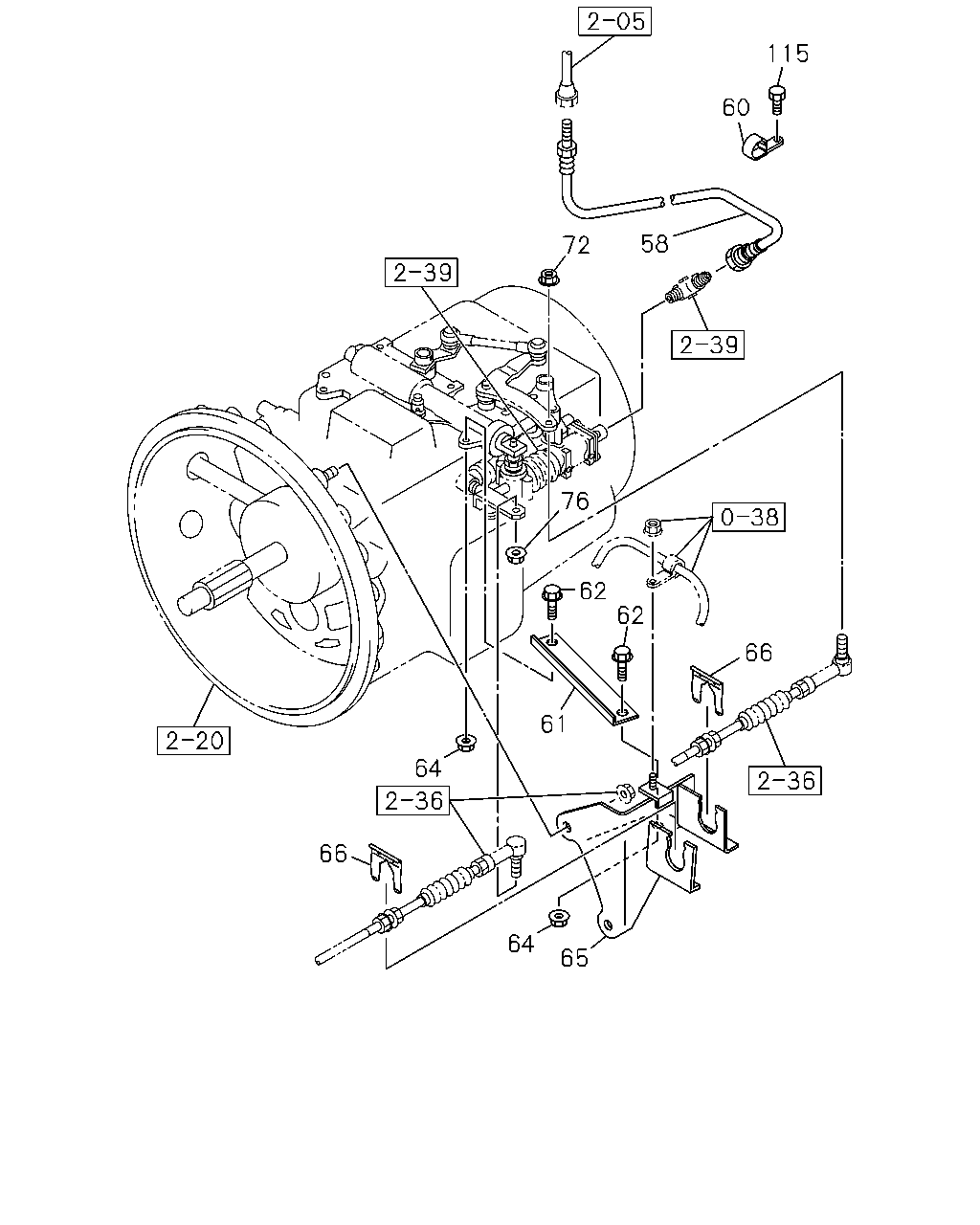

115 60 58 72 76 62 62 66 61 64 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	0406-	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	9-09525-235-0	02	1	0406-0606	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	0-95235-235-0	02	1	0607-	●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	0406-	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-0405		●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	0406-		●	●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0406-	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	0406-0512	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605		●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9804		●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0405		●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0406-0512		●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	0406-0512	●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-		●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
64	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9510-9605		●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9606-0405		●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	0406-0602	●	●	●
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-691-1	01	1	0602-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	0406-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	8-97377-974-1	01	1	0406-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	9510-		●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-0405		●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0406-	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609		●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-0405		●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0406-	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802		●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-0405		●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0406-	●	●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	0406-0512	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
