2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#64241) — 55 parça

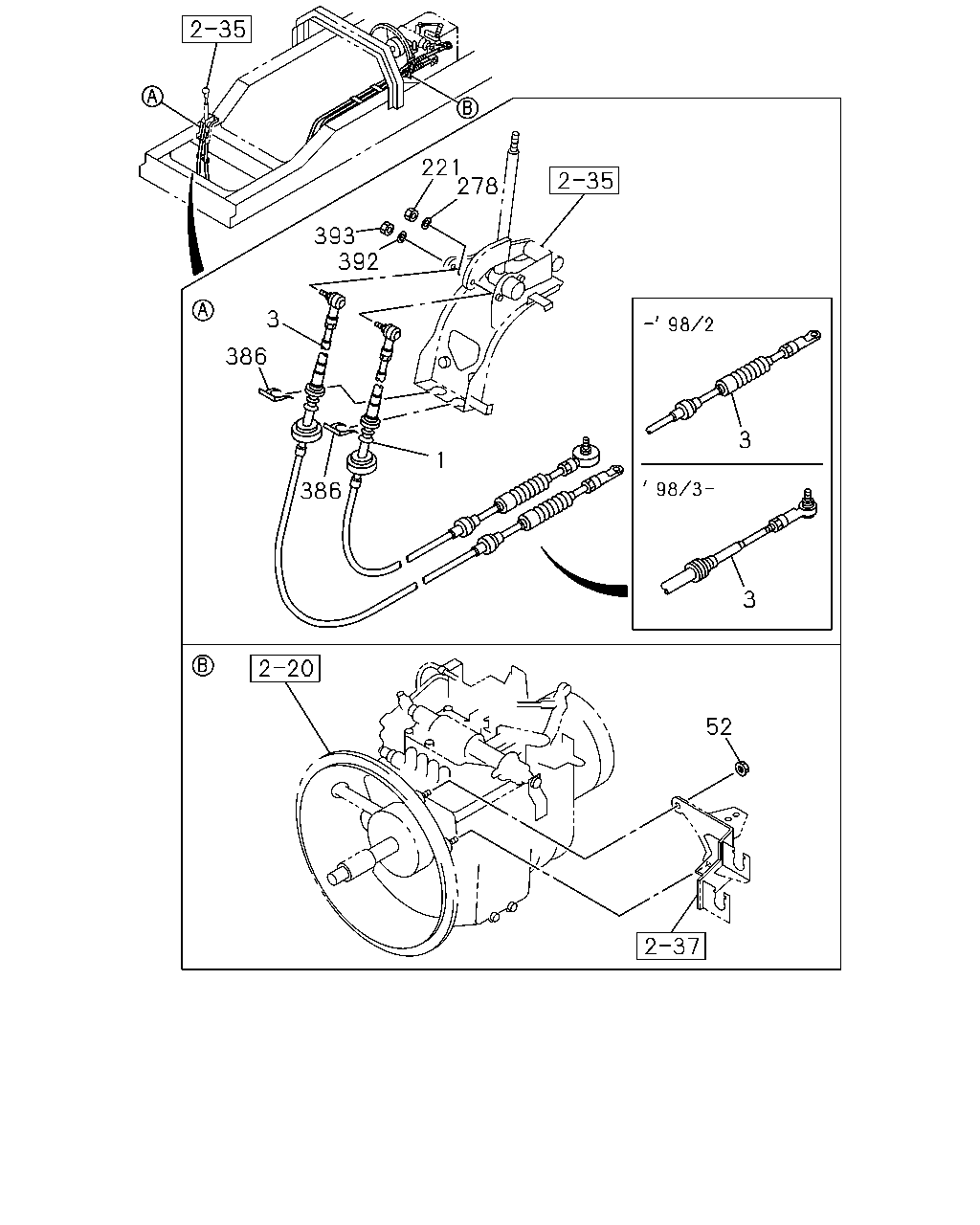

221 278 393 392 3 386 3 1 386 3 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3400	1-33671-971-0	01	1	0406-	●
1	CABLE; SHIFT,TRANS CONT L=3401	1-33670-785-0	01	1	9510-9802		●	●
1	CABLE; SHIFT,TRANS CONT L=3400	1-33671-124-0	01	1	9803-		●	●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3540	1-33671-973-0	01	1	0406-	●
3	CABLE; SELECT,TRANS CONT L=3524	1-33670-655-1	01	1	9510-9708		●	●
3	CABLE; SELECT,TRANS CONT L=3524	1-33670-658-1	01	1	9709-9802		●	●
3	CABLE; SELECT,TRANS CONT L=3525	1-33671-129-0	01	1	9803-		●	●
52	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9510-9605		●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9606-0405		●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0406-0602	●	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9510-9802		●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9803-0405		●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0406-1011	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-		●	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9510-9802		●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9510-0405		●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0406-	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9510-9802		●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9510-9802		●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9803-0405		●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0406-1011	●	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-		●	●

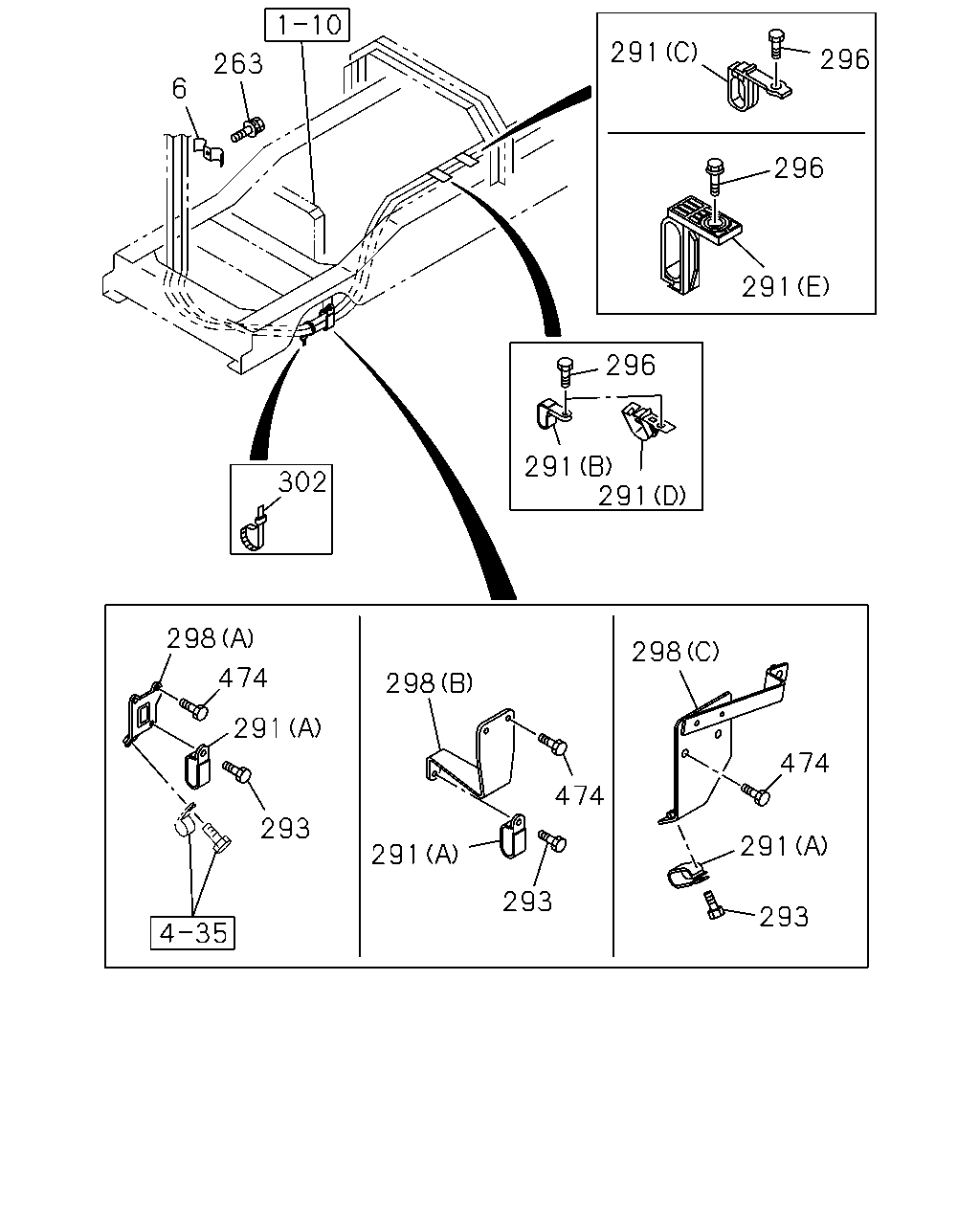

291 296 263 6 296 291 296 291 291 302 298 298 474 298 291 474 474 293 291 291 293 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9510-0405		●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0406-	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9812		●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0405		●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0406-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B)	1-09700-621-2	01	1	9510-9602		●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9510-0405		●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0406-0406	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (E)	1-09701-307-2	01	1	0407-		●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	9510-0405		●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0406-0606	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-		●	●
291	CLIP; SHIFT TO SELECT,FRAME (D)	1-09701-258-0	01	1	9702-9702		●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	9703-0405		●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0406-0506	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-312-0	01	1	0507-		●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	9510-0405		●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0406-0512	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
296	BOLT; CLIP,SHIFT & SELECT M8X25 FLANGE	0-28680-825-0	02	1	9510-9610		●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	9611-0405		●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0406-0512	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●
298	BRACKET (C)	1-36183-238-0	01	1	0406-	●
298	BRACKET 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-36183-206-0	01	1	0207-		●	●
298	BRACKET (A)	1-82659-149-0	01	1	9510-0206		●	●
298	BRACKET 6HH1 STD 4VALVE ENG(1A6) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-82659-149-0	01	1	0207-		●	●
298	BRACKET 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A)	1-82659-149-0	01	1	0207-		●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	9510-0405		●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0406-	●	●	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9510-0405		●	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0406-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
