Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#64239) — 489 parça

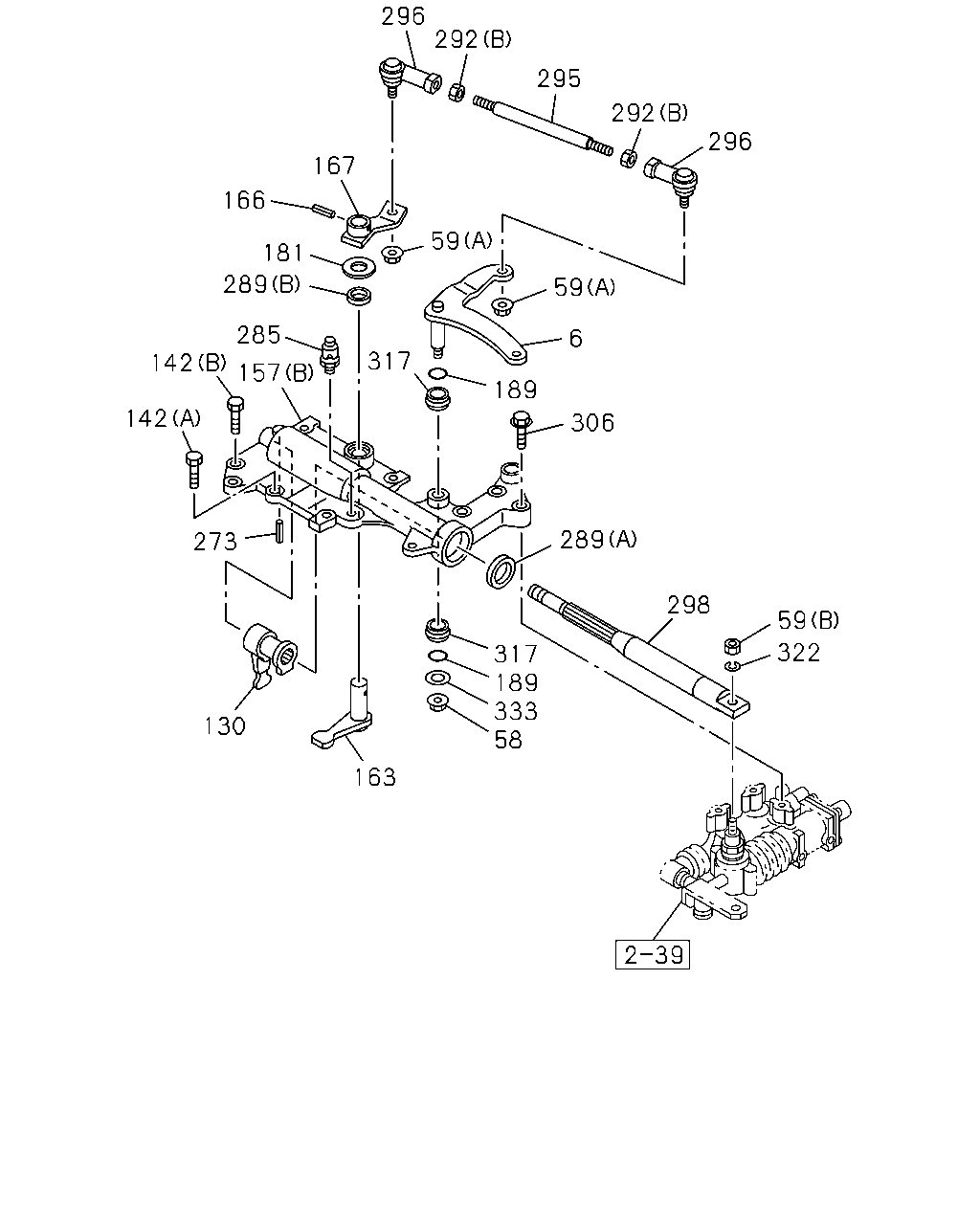

296 292 295 292 296 167 166 59 181 289 59 285 142 6 317 157 189 142 306 289 273 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY	1-33651-686-2	01	1	0406-	●
6	LEVER; RELAY	1-33511-462-0	01	1	9510-0005		●
6	LEVER; RELAY	1-33511-574-1	01	1	0006-		●
58	NUT M10 FLANGE	0-91150-110-0	01	1	0406-0602	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0603-	●
59	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●
59	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
59	NUT (B) M12	9-99110-412-0	01	1	0406-0512	●
59	NUT (B) M12	0-91110-512-0	01	1	0601-	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9510-		●	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	10	1	9510-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	10	1	0806-			●
142	BOLT; QUAD BOX (D) M10X32 FLANGE	0-28181-032-0	02	1	9510-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	03	1	9510-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	03	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0405		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805		●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0405		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-		●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-		●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9510-		●	●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9510-		●	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9510-		●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0406-	●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0406-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-0405		●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9510-		●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9510-		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9804		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-		●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0405		●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0406-0512	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-		●	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0406-0705	●
295	ROD; LINK,RELAY LEVER	8-98023-095-0	01	1	0706-	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-		●	●
296	ROD END L=48	1-09760-038-1	02	1	9510-0309		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0405		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0406-0705	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-		●	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9510-9802		●	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9803-		●	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	0406-0512	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0601-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-0405		●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0406-	●	●	●
322	WASHER; LK ID=12.2	9-09150-512-0	01	1	0406-0603	●
322	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-0705	●
322	WASHER; LK	8-98031-750-0	01	1	0706-	●
333	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0406-0705	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0706-	●

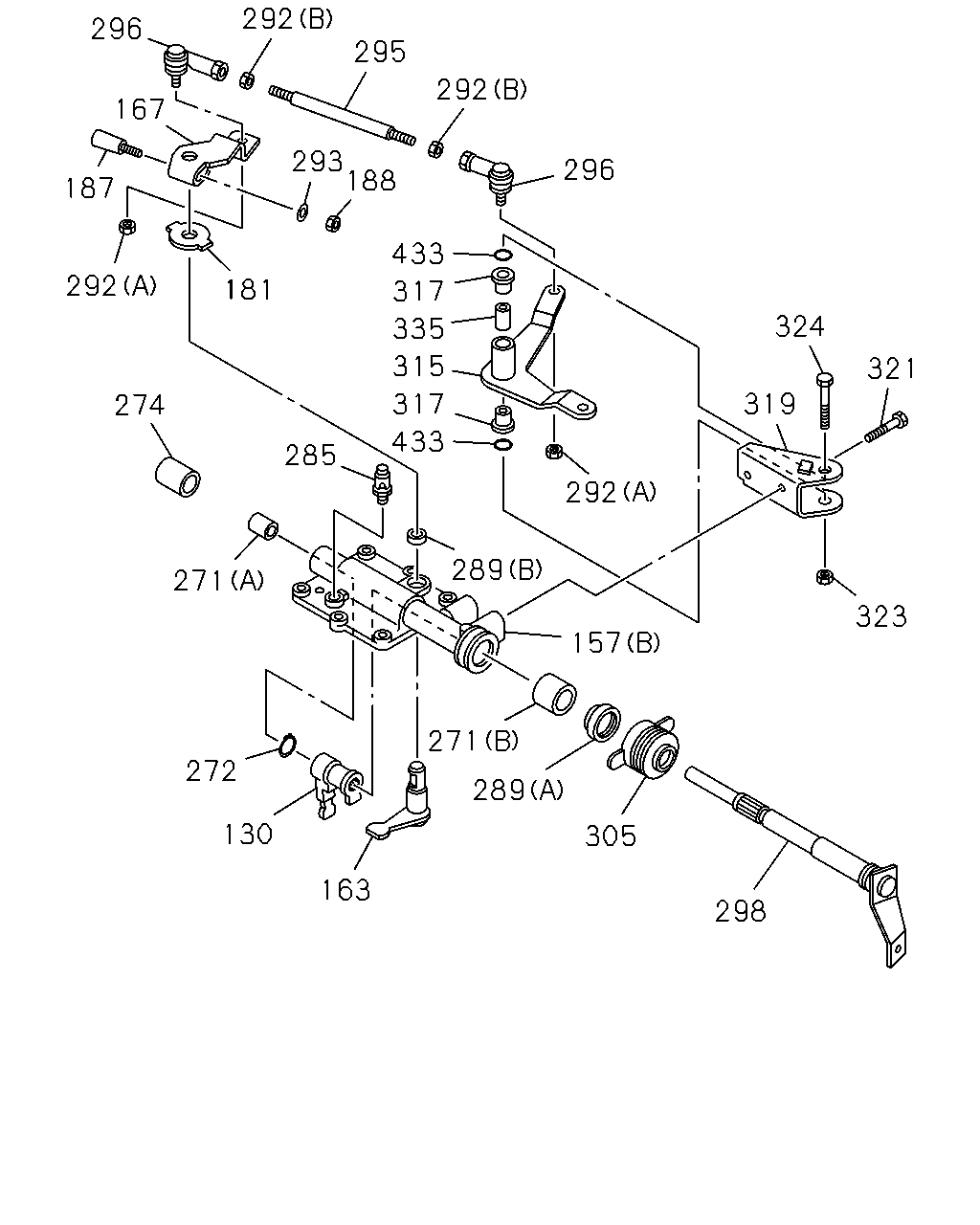

292 296 295 292 167 293 188 296 187 433 292 181 317 324 335 315 321 319 317 274 433 285 292 289 271 323 157 271 272 289 130 305 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9510-		●	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-		●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-		●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9510-		●	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9510-		●	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9510-		●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9510-		●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9510-9804		●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-		●	●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	9510-		●	●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	9510-		●	●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	9510-		●	●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9510-		●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-0405		●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9510-		●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9510-		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9804		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-		●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0405		●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0406-0512	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-		●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9510-0605		●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0406-0705	●
295	ROD; LINK,RELAY LEVER	8-98023-095-0	01	1	0706-	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-		●	●
296	ROD END L=48	1-09760-038-1	02	1	9510-0309		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0405		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0406-0705	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-		●	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9510-9802		●	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9803-		●	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9510-		●	●
315	LEVER; SELECT	1-33651-652-0	01	1	9510-9802		●	●
315	LEVER; SELECT	1-33651-703-0	01	1	9803-		●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-0405		●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0406-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9510-		●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9510-		●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9510-		●	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9510-9802		●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	9803-		●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9510-9809		●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9810-		●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9510-		●	●

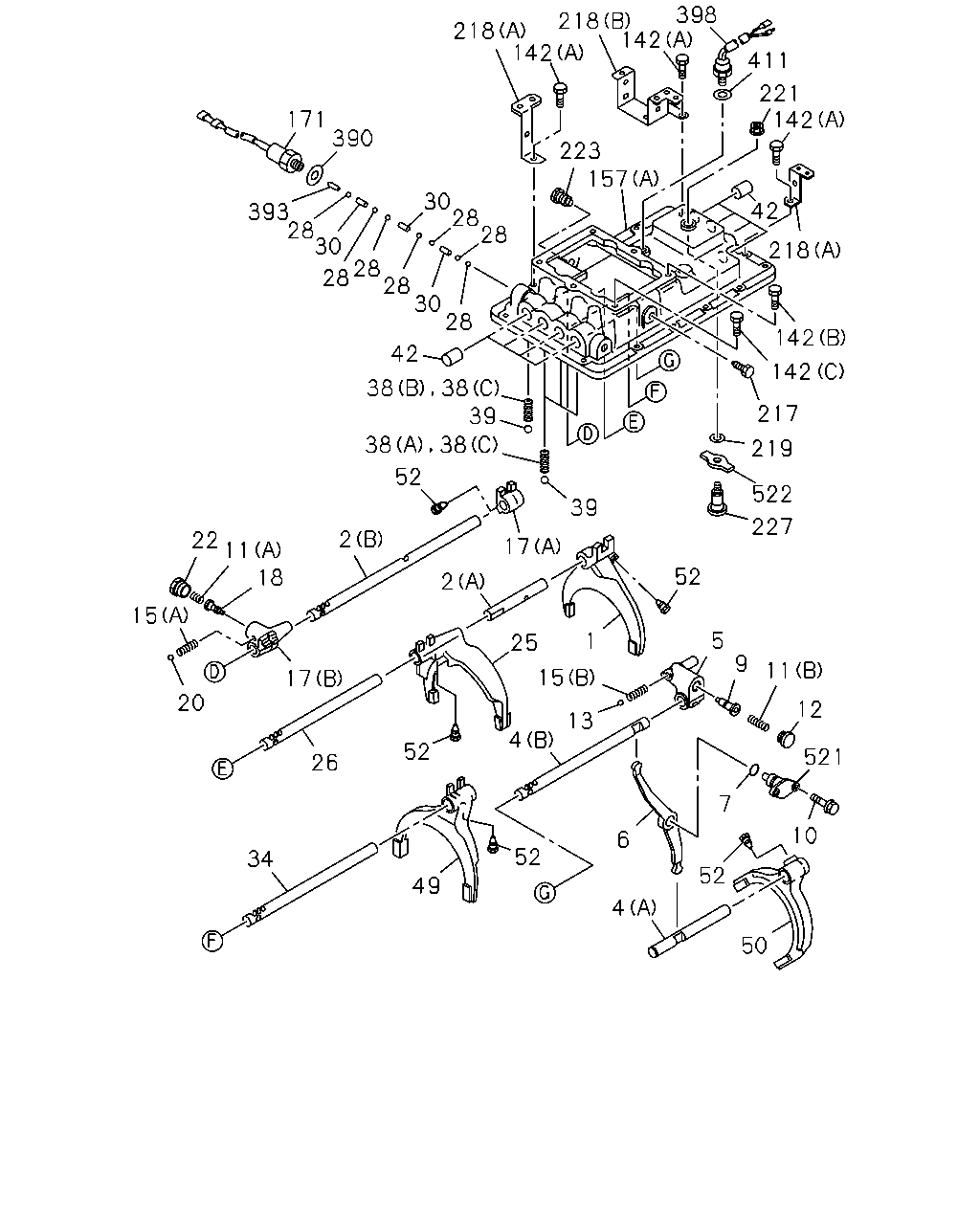

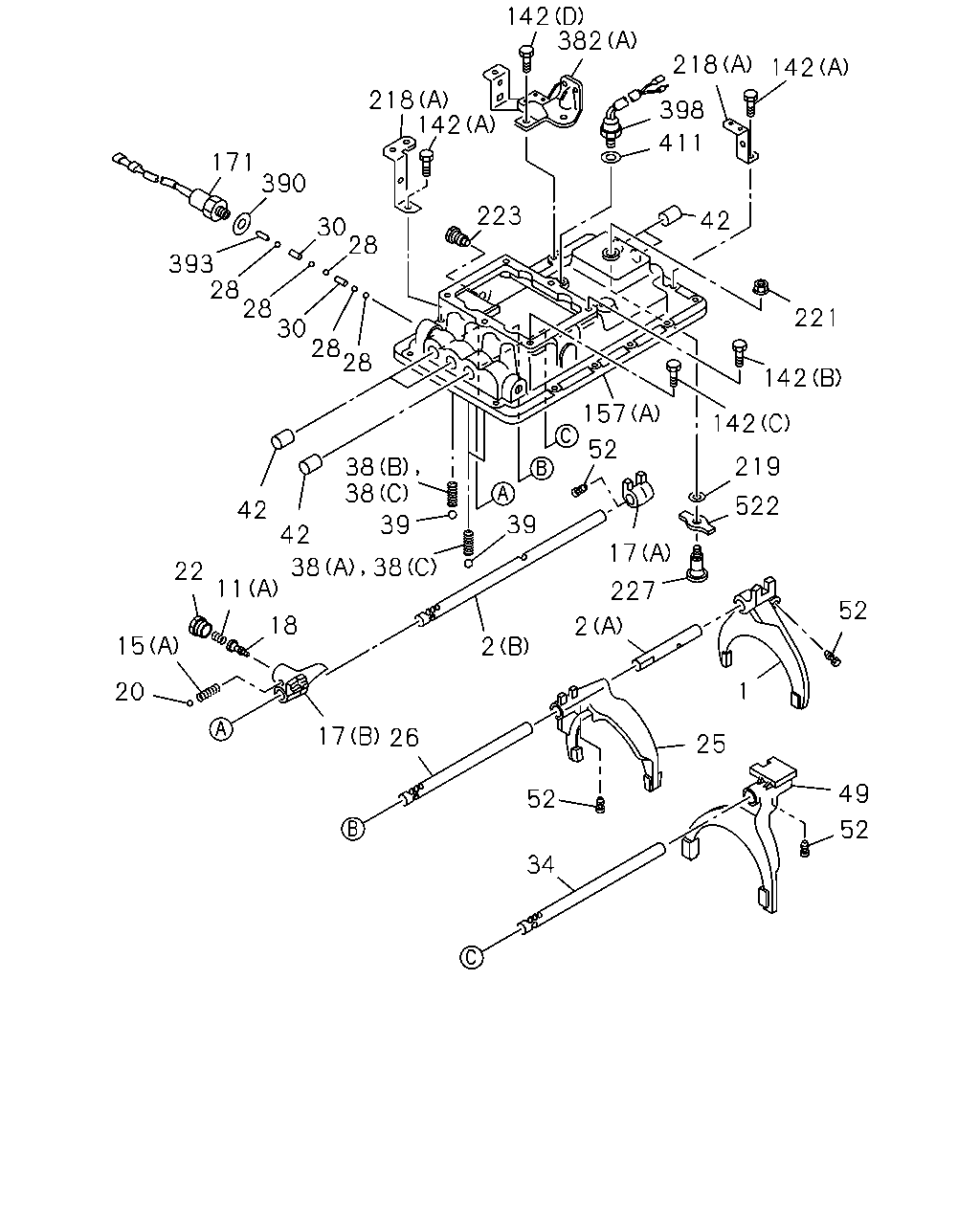

142 382 218 142 218 142 398 411 171 390 223 42 30 28 393 28 28 30 28 28 221 142 157 142 52 219 38 38 522 42 39 39 42 17 38 38 22 11 227 52 18 2 15 2 20 1 25 49 52 52 34 17 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9510-		●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	9510-		●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	9510-		●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	9510-		●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9510-0405		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0406-	●	●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	0406-	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9510-		●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9510-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	9510-		●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	9510-		●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	9510-		●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0406-	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9510-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0405		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-430-0	01	1	9510-9807		●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9808-		●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-362-1	01	1	9510-9606		●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9607-		●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0406-	●
28	BALL; INTER LK	9-00097-010-0	05	1	9510-			●
28	BALL; INTER LK	9-00097-010-0	07	1	9510-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0406-	●
30	PIN; INTER LK	1-33534-002-0	02	1	9510-			●
30	PIN; INTER LK	1-33534-002-0	03	1	9510-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-363-1	01	1	9510-9606		●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	9607-		●	●
38	SPRING; DETENT (D)	1-09580-379-0	04	1	0406-	●
38	SPRING; DETENT (C)	1-09580-374-0	03	1	9510-9606			●
38	SPRING; DETENT (C)	1-09580-548-0	03	1	9607-9706			●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-			●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-		●	●
38	SPRING; DETENT (C)	1-09580-374-0	04	1	9510-9606		●
38	SPRING; DETENT (C)	1-09580-548-0	04	1	9607-9706		●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	9707-		●
39	BALL; DETENT	1-09843-012-0	04	1	0406-	●
39	BALL; DETENT	9-00097-013-0	03	1	9510-			●
39	BALL; DETENT	9-00097-013-0	04	1	9510-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0406-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9510-			●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9510-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-460-0	01	1	9510-9807			●
49	ARM; SHIFT,4TH & 5TH	1-33511-582-0	01	1	9808-			●
49	ARM; SHIFT,4TH & 5TH	1-33511-463-0	01	1	9510-9807		●
49	ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9808-		●
52	BOLT; SHIFT ARM	1-09052-034-2	05	1	9510-			●
52	BOLT; SHIFT ARM	1-09052-034-2	07	1	9510-		●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	10	1	9510-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	10	1	0806-			●
142	BOLT; QUAD BOX (D) M10X32 FLANGE	0-28181-032-0	02	1	9510-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	03	1	9510-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	03	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0405		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805		●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0405		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-		●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0406-0702	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9510-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (D)	1-82699-733-0	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9510-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	9510-		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0406-	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9510-		●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0406-0602	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	9510-0602		●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-		●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0406-	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9510-		●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0406-	●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9510-9810		●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-		●	●
382	BRACKET; PARKING BRK CONT CABLE (A)	1-46147-209-3	01	1	9510-			●
382	BRACKET; PARKING BRK CONT CABLE PARKING BRAKE DRUM 8.5"(B1S) (B)	1-46147-187-2	01	1	9510-0004		●
382	BRACKET; PARKING BRK CONT CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-46147-187-2	01	1	0005-		●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-		●	●
393	PIN; SW	1-33534-003-0	01	1	9510-		●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9510-0405		●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0406-0602	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-		●	●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	9510-		●	●

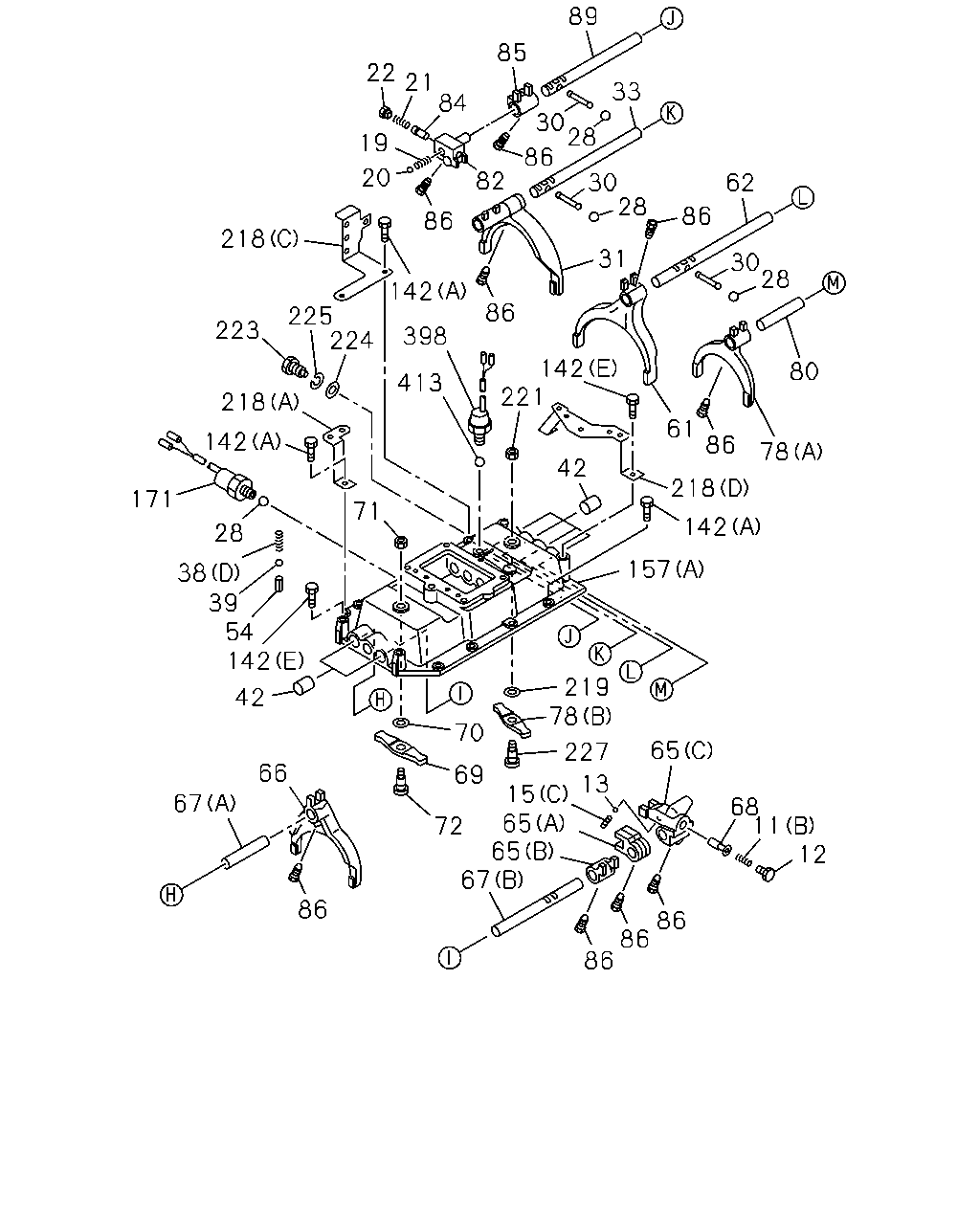

89 85 22 21 84 33 30 28 19 86 20 82 30 28 62 86 86 218 31 30 28 142 225 224 86 223 398 142 221 80 413 218 61 142 86 78 42 218 171 71 142 28 157 38 39 54 142 219 78 42 70 65 227 66 69 13 15 65 65 67 67 68 11 12 72 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	9510-		●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9510-0405		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0406-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0405		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0406-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9510-		●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	0406-	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9510-		●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9510-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0406-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0406-	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9510-		●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0406-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0405		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0406-	●
28	BALL; INTER LK	9-00097-010-0	05	1	9510-			●
28	BALL; INTER LK	9-00097-010-0	07	1	9510-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0406-	●
30	PIN; INTER LK	1-33534-002-0	02	1	9510-			●
30	PIN; INTER LK	1-33534-002-0	03	1	9510-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0406-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0406-1202	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●
38	SPRING; DETENT (D)	1-09580-379-0	04	1	0406-	●
38	SPRING; DETENT (C)	1-09580-374-0	03	1	9510-9606			●
38	SPRING; DETENT (C)	1-09580-548-0	03	1	9607-9706			●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-			●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-		●	●
38	SPRING; DETENT (C)	1-09580-374-0	04	1	9510-9606		●
38	SPRING; DETENT (C)	1-09580-548-0	04	1	9607-9706		●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	9707-		●
39	BALL; DETENT	1-09843-012-0	04	1	0406-	●
39	BALL; DETENT	9-00097-013-0	03	1	9510-			●
39	BALL; DETENT	9-00097-013-0	04	1	9510-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0406-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9510-			●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9510-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0406-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0406-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0406-1202	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0406-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0406-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0406-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0406-	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0406-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0406-1202	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0406-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0406-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0406-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0406-0602	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0406-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0406-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0406-	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0406-1202	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0406-	●
84	SLEEVE; REV	1-33516-025-0	01	1	0406-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0406-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0406-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0406-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	10	1	9510-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	10	1	0806-			●
142	BOLT; QUAD BOX (D) M10X32 FLANGE	0-28181-032-0	02	1	9510-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	03	1	9510-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	03	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0405		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805		●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0405		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-		●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0406-0702	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9510-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (D)	1-82699-733-0	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9510-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	9510-		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0406-	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9510-		●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0406-0602	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	9510-0602		●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-		●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0406-	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9510-		●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0406-0605	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0406-0603	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0406-	●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9510-9810		●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-		●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9510-0405		●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0406-0602	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0406-	●

398 218 142 218 142 411 221 142 171 390 223 157 30 28 28 42 393 28 30 218 28 28 28 30 28 142 42 142 39 217 38 38 219 52 522 39 227 2 22 11 18 17 52 2 15 5 1 25 9 11 15 17 20 12 13 4 52 521 26 7 10 6 52 34 52 49 4 50 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9510-		●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	9510-		●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	9510-		●	●
4	ROD; SHIFT,6TH (B)	1-33531-340-1	01	1	9510-9606		●
4	ROD; SHIFT,6TH (B)	1-33531-387-0	01	1	9607-		●
4	ROD; SHIFT,6TH (A)	1-33531-341-1	01	1	9510-		●
5	BLOCK; SHIFT,6TH	1-33511-326-1	01	1	9510-		●
6	LEVER; RELAY	1-33651-686-2	01	1	0406-	●
6	LEVER; RELAY	1-33511-462-0	01	1	9510-0005		●
6	LEVER; RELAY	1-33511-574-1	01	1	0006-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9510-0004		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	9510-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9510-		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	9510-		●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9510-0405		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0406-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0405		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0406-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9510-		●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	0406-	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9510-		●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9510-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	9510-		●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	9510-		●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	9510-		●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0406-	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9510-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0405		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-430-0	01	1	9510-9807		●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9808-		●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-362-1	01	1	9510-9606		●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9607-		●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0406-	●
28	BALL; INTER LK	9-00097-010-0	05	1	9510-			●
28	BALL; INTER LK	9-00097-010-0	07	1	9510-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0406-	●
30	PIN; INTER LK	1-33534-002-0	02	1	9510-			●
30	PIN; INTER LK	1-33534-002-0	03	1	9510-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-363-1	01	1	9510-9606		●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	9607-		●	●
38	SPRING; DETENT (D)	1-09580-379-0	04	1	0406-	●
38	SPRING; DETENT (C)	1-09580-374-0	03	1	9510-9606			●
38	SPRING; DETENT (C)	1-09580-548-0	03	1	9607-9706			●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-			●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-		●	●
38	SPRING; DETENT (C)	1-09580-374-0	04	1	9510-9606		●
38	SPRING; DETENT (C)	1-09580-548-0	04	1	9607-9706		●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	9707-		●
39	BALL; DETENT	1-09843-012-0	04	1	0406-	●
39	BALL; DETENT	9-00097-013-0	03	1	9510-			●
39	BALL; DETENT	9-00097-013-0	04	1	9510-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0406-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9510-			●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9510-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-460-0	01	1	9510-9807			●
49	ARM; SHIFT,4TH & 5TH	1-33511-582-0	01	1	9808-			●
49	ARM; SHIFT,4TH & 5TH	1-33511-463-0	01	1	9510-9807		●
49	ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9808-		●
50	ARM; SHIFT,6TH	1-33511-477-0	01	1	9510-		●
52	BOLT; SHIFT ARM	1-09052-034-2	05	1	9510-			●
52	BOLT; SHIFT ARM	1-09052-034-2	07	1	9510-		●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	10	1	9510-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	10	1	0806-			●
142	BOLT; QUAD BOX (D) M10X32 FLANGE	0-28181-032-0	02	1	9510-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	03	1	9510-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	03	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0405		●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805		●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0405		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-		●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0406-0702	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9510-		●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9510-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (D)	1-82699-733-0	01	1	0406-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9510-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	9510-		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0406-	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9510-		●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0406-0602	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	9510-0602		●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-		●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0406-	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9510-		●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0406-	●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9510-9810		●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-		●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-		●	●
393	PIN; SW	1-33534-003-0	01	1	9510-		●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9510-0405		●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0406-0602	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-		●	●
521	SPINDLE; 6TH	1-33519-008-1	01	1	9510-		●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	9510-		●	●

382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
382	BRACKET; PARKING BRK CONT CABLE (A)	1-46147-209-3	01	1	9510-		●
382	BRACKET; PARKING BRK CONT CABLE PARKING BRAKE DRUM 8.5"(B1S) (B)	1-46147-187-2	01	1	9510-0004	●
382	BRACKET; PARKING BRK CONT CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-46147-187-2	01	1	0005-	●
383	BOLT; BRKT,PARK BRAKE PARKING BRAKE DRUM 8.5"(B1S) M10X16 FLANGE	0-28181-016-0	01	1	9510-0004	●
383	BOLT; BRKT,PARK BRAKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	0005-0512	●
383	BOLT; BRKT,PARK BRAKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
