Sayfa 2-26A - Isuzu EPC

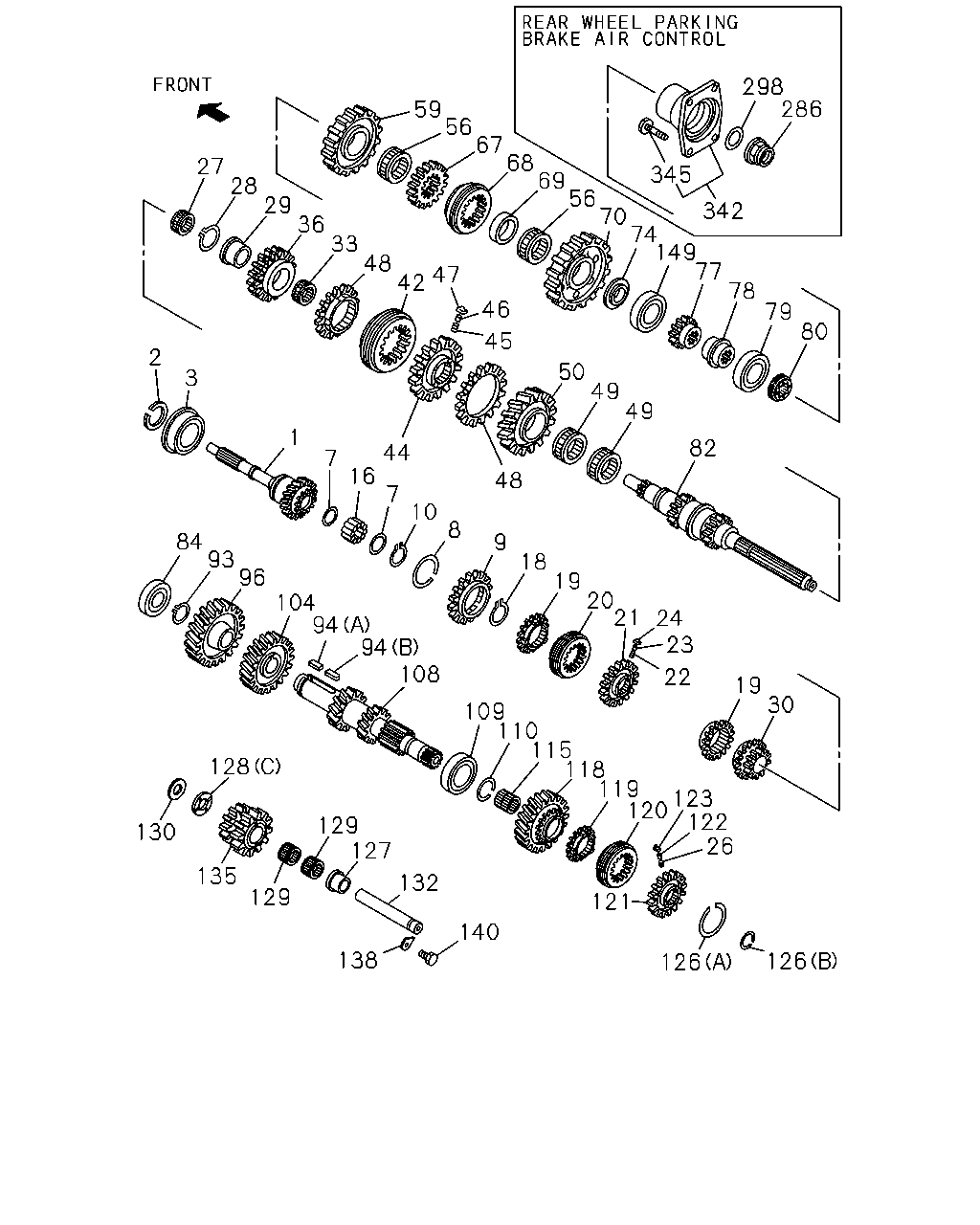

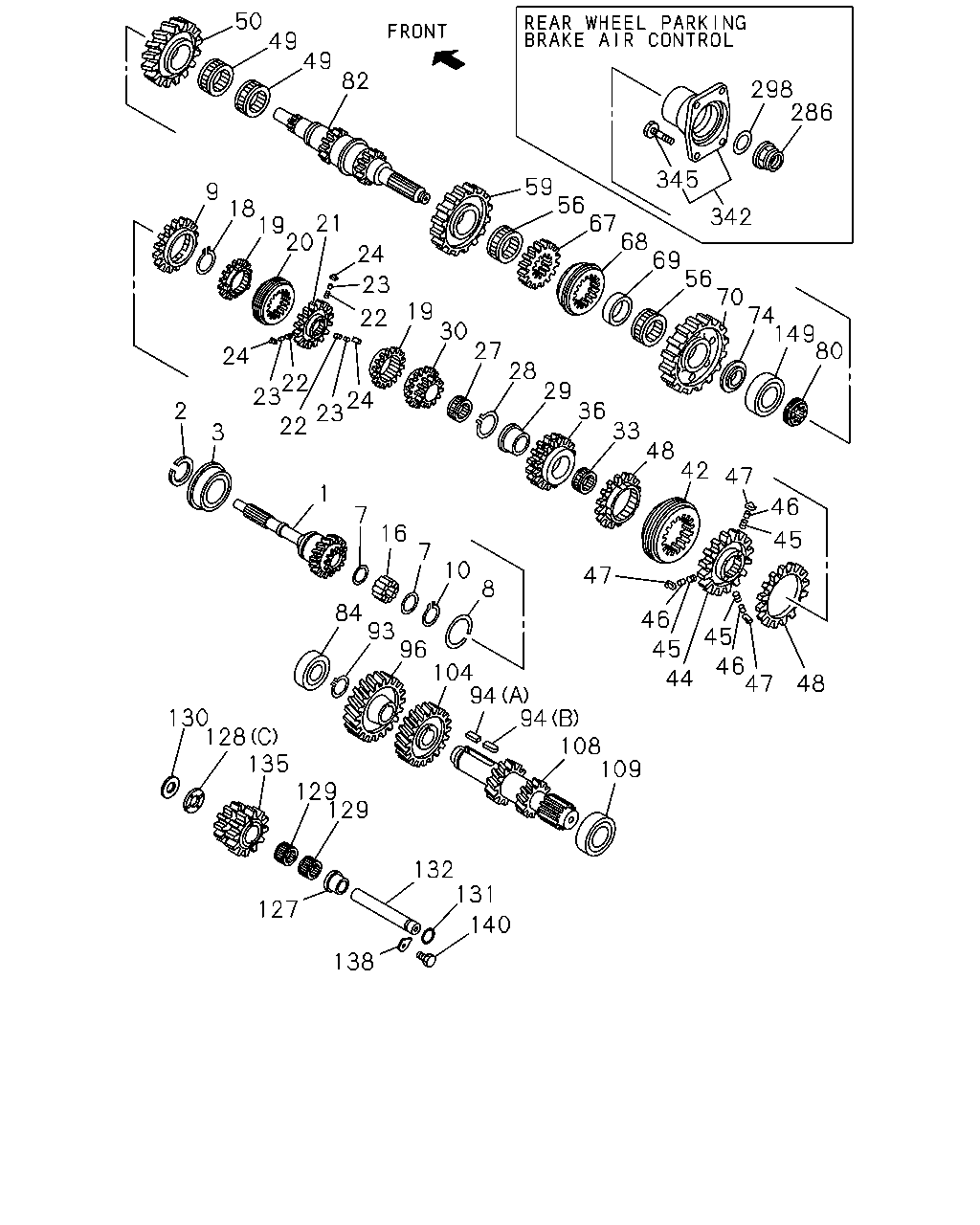

2-26A — MANUAL TRANSMISSION GEAR (#64238) — 463 parça

298 286 59 56 67 68 69 56 70 74 149 77 78 79 80 345 27 28 29 36 33 48 47 42 342 46 45 2 50 49 49 3 1 82 44 16 7 48 7 10 8 84 93 96 9 18 19 20 21 104 94 24 23 94 108 22 19 30 109 110 115 118 119 123 120 122 26 128 129 127 130 135 132 129 121 140 138 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0406-	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0406-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0406-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0406-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0405		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0406-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0406-	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-		●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0406-	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0406-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-		●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-		●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0406-	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-		●	●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9510-		●	●
20	SLEEVE	1-33262-167-0	01	1	9510-		●	●
21	HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9510-9811		●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-		●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0406-	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0405		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0406-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0405		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0406-	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9510-			●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0406-	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-		●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-		●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0406-	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-		●	●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9510-		●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0406-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-		●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9510-		●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	9510-		●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9712-		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0406-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-		●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0406-	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-		●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9510-		●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0406-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-		●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0406-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-		●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0406-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-		●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9510-		●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9510-		●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9510-		●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0406-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0406-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-		●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0406-	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-		●	●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9510-		●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9510-		●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9510-		●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0406-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-		●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0406-	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-		●	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0406-	●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9510-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-099-0	01	1	9510-			●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9510-9902			●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	9903-			●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-120-1	01	1	9510-			●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0406-	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0406-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909			●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0406-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-		●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0406-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-		●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0406-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0406-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-		●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-		●	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0406-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0406-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-		●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0406-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-1311			●
108	SHAFT; COUNTER Z=28-22-14	8-98246-783-0	01	1	1312-			●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0406-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0406-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-		●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-		●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0406-	●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9510-			●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9510-			●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9510-			●
115	BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	9510-			●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0406-	●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9510-			●
119	RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9510-			●
120	SLEEVE	1-33262-095-0	01	1	9510-			●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0406-	●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9510-			●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-			●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-			●
126	RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	9510-			●
126	RING; SNAP,CLU HUB (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9510-			●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9510-		●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0406-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0406-	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9510-		●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0406-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0406-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-		●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-		●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0406-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-		●	●
132	SHAFT; REV	1-33351-017-0	01	1	0406-	●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-		●
132	SHAFT; REV	1-33351-023-1	01	1	9510-			●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0406-	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-		●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9510-		●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9510-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9510-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9510-		●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0406-0805	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909		●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	9910-		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0406-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-		●	●
342	FLANGE; OUTPUT	1-37243-297-1	01	1	0406-	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-356-0	01	1	9808-		●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0406-	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	9808-0707		●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-		●	●

50 49 49 82 298 286 345 59 56 67 68 69 56 70 74 149 80 9 18 19 21 20 342 24 23 19 30 27 28 29 36 33 48 42 22 24 22 23 24 23 22 2 3 47 1 46 7 16 45 7 10 47 8 84 93 96 104 94 46 45 45 46 47 44 48 94 108 109 130 128 135 129 129 132 131 127 140 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0406-	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0406-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0406-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0406-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0405		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0406-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0406-	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-		●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0406-	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0406-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-		●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-		●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0406-	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-		●	●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9510-		●	●
20	SLEEVE	1-33262-167-0	01	1	9510-		●	●
21	HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9510-9811		●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-		●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0406-	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0405		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0406-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0405		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0406-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0406-	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-		●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-		●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0406-	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-		●	●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9510-		●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0406-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-		●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9510-		●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	9510-		●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9712-		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0406-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-		●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0406-	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-		●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9510-		●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0406-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-		●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0406-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-		●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0406-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-		●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9510-		●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9510-		●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9510-		●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0406-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0406-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-		●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0406-	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-		●	●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9510-		●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9510-		●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9510-		●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0406-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-		●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0406-	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-		●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0406-	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0406-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909			●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0406-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-		●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0406-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-		●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0406-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0406-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-		●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-		●	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0406-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0406-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-		●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0406-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-1311			●
108	SHAFT; COUNTER Z=28-22-14	8-98246-783-0	01	1	1312-			●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0406-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0406-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-		●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-		●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9510-		●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0406-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0406-	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9510-		●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0406-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0406-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-		●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-		●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0406-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-		●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0406-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9510-0004		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
132	SHAFT; REV	1-33351-017-0	01	1	0406-	●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-		●
132	SHAFT; REV	1-33351-023-1	01	1	9510-			●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0406-	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-		●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9510-		●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9510-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9510-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9510-		●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0406-0805	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909		●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	9910-		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0406-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-		●	●
342	FLANGE; OUTPUT	1-37243-297-1	01	1	0406-	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-356-0	01	1	9808-		●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0406-	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	9808-0707		●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-		●	●

298 286 56 58 57 59 56 60 74 75 77 80 47 46 45 43 345 342 37 30 34 42 82 34 36 50 37 322 38 39 28 172 70 2 3 1 16 8 9 11 12 24 23 124 22 17 15 7 7 10 84 93 96 118 104 105 94 94 94 94 108 109 110 18 121 11 14 27 27 130 128 135 129 129 128 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0406-	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0406-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0406-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0406-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0405		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0406-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0406-	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-		●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0406-	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-		●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0406-	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0406-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0406-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0406-	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0406-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-		●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810		●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-		●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0406-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0406-	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-		●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0406-	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0405		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0406-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0405		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0406-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0406-	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-		●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-		●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0406-	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-		●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0406-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-		●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0406-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0406-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-		●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0406-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0406-	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0406-	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0406-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0406-	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-		●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0406-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0406-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-		●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0406-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-		●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0406-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-		●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0406-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0406-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-		●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-		●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0406-	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0406-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0406-	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-		●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0406-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0406-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-		●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0406-	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-		●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0406-	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0406-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0406-	●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9510-			●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0406-	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0406-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909			●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0406-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-		●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0406-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-		●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0406-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0406-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-		●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-		●	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0406-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0406-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0406-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0406-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-1311			●
108	SHAFT; COUNTER Z=28-22-14	8-98246-783-0	01	1	1312-			●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0406-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0406-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-		●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-		●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0406-	●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9510-			●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0406-	●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9510-			●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0406-	●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9510-			●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0406-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0406-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0406-	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9510-		●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0406-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0406-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-		●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-		●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0406-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-		●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0406-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9510-0004		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
132	SHAFT; REV	1-33351-017-0	01	1	0406-	●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-		●
132	SHAFT; REV	1-33351-023-1	01	1	9510-			●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0406-	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-		●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0406-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0406-0805	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909		●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	9910-		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0406-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-		●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0406-	●
342	FLANGE; OUTPUT	1-37243-297-1	01	1	0406-	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-356-0	01	1	9808-		●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0406-	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	9808-0707		●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
