2-25A — SPEEDOMETER DRIVEN GEAR (#64236) — 72 parça

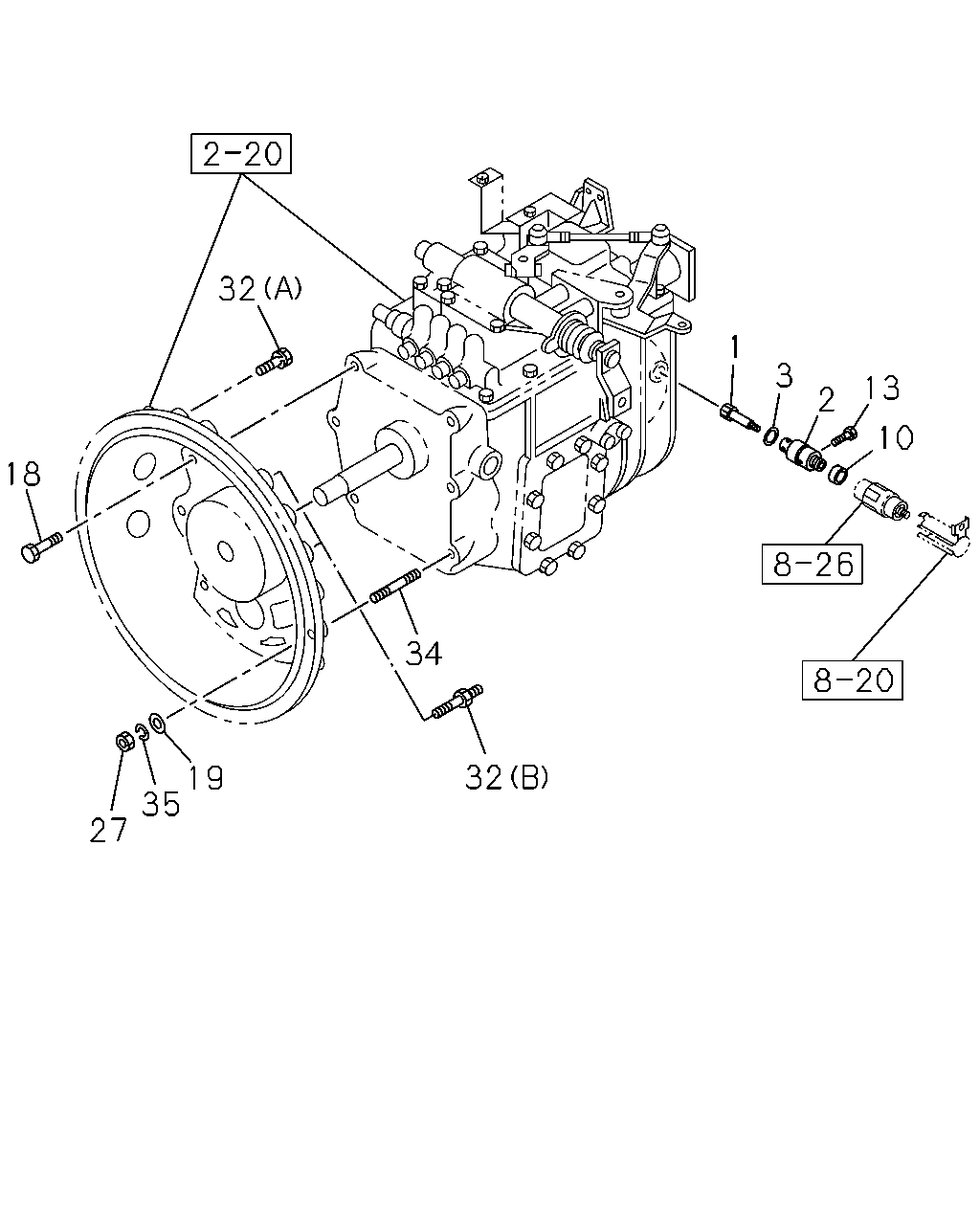

32 1 3 13 2 10 18 34 32 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0406-	●
1	GEAR; DRIVEN,SPD Z=18	1-33372-121-4	01	1	9510-		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0406-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-039-1	01	1	9510-		●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0406-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-370-0	01	1	9510-		●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9510-0405		●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0406-	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9510-0405		●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0406-0805	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-	●	●	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	0406-0512	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0601-	●
18	BOLT; CLU HSG TO TRANS M14X40 W/LK&PL WASHER	0-50151-440-0	05	1	9510-0512		●	●
18	BOLT; CLU HSG TO TRANS M14X40 W/LK&PL WASHER	0-50651-440-0	05	1	0601-		●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0406-0605	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●
19	WASHER; PL,CLU HSG TO TRANS ID=15	9-09160-514-0	01	1	9510-0605		●	●
19	WASHER; PL,CLU HSG TO TRANS ID=15	0-91610-514-0	01	1	0606-		●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0406-0512	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●
27	NUT; CLU HSG TO TRANS M14	9-99110-514-0	01	1	9510-0512		●	●
27	NUT; CLU HSG TO TRANS M14	0-91110-514-0	01	1	0601-		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 W/LK&PL WASHER	0-50151-030-0	10	1	9510-9606		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9607-0405		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0406-0512	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9510-0405		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0406-0805	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-		●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0406-	●
34	STUD; CLU HSG M14X39 L=57	1-09302-145-1	01	1	9510-		●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0406-0603	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●
35	WASHER; LK,CLU HSG TO TRANS ID=14.2	9-09150-514-0	01	1	9510-0603		●	●
35	WASHER; LK,CLU HSG TO TRANS ID=14.2	0-91510-514-0	01	1	0604-		●	●

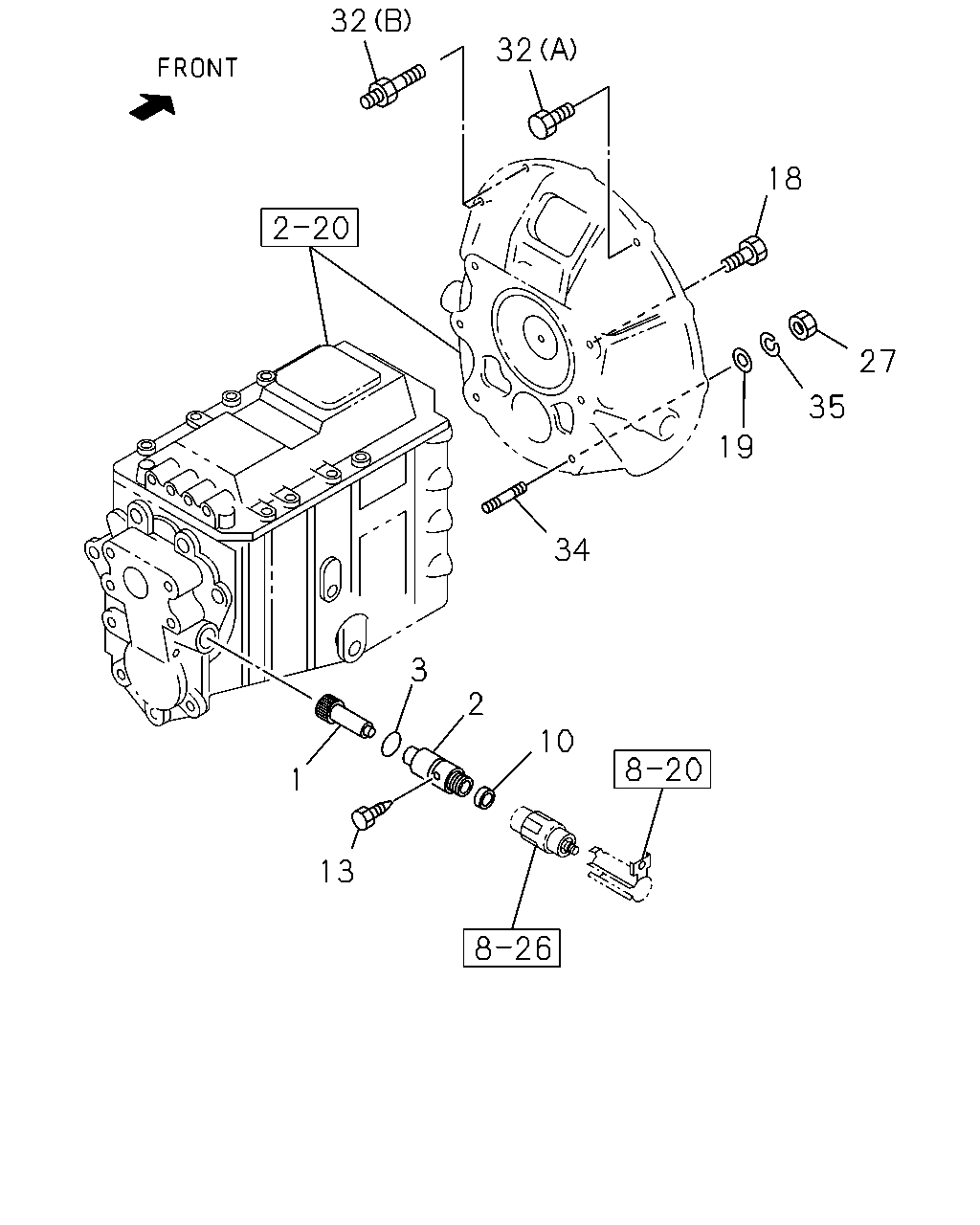

32 32 18 27 35 19 34 3 2 10 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0406-	●
1	GEAR; DRIVEN,SPD Z=18	1-33372-121-4	01	1	9510-		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0406-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-039-1	01	1	9510-		●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0406-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-370-0	01	1	9510-		●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9510-0405		●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0406-	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9510-0405		●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0406-0805	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-	●	●	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	0406-0512	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0601-	●
18	BOLT; CLU HSG TO TRANS M14X40 W/LK&PL WASHER	0-50151-440-0	05	1	9510-0512		●	●
18	BOLT; CLU HSG TO TRANS M14X40 W/LK&PL WASHER	0-50651-440-0	05	1	0601-		●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0406-0605	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●
19	WASHER; PL,CLU HSG TO TRANS ID=15	9-09160-514-0	01	1	9510-0605		●	●
19	WASHER; PL,CLU HSG TO TRANS ID=15	0-91610-514-0	01	1	0606-		●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0406-0512	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●
27	NUT; CLU HSG TO TRANS M14	9-99110-514-0	01	1	9510-0512		●	●
27	NUT; CLU HSG TO TRANS M14	0-91110-514-0	01	1	0601-		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 W/LK&PL WASHER	0-50151-030-0	10	1	9510-9606		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9607-0405		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0406-0512	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9510-0405		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0406-0805	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-		●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0406-	●
34	STUD; CLU HSG M14X39 L=57	1-09302-145-1	01	1	9510-		●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0406-0603	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●
35	WASHER; LK,CLU HSG TO TRANS ID=14.2	9-09150-514-0	01	1	9510-0603		●	●
35	WASHER; LK,CLU HSG TO TRANS ID=14.2	0-91510-514-0	01	1	0604-		●	●
