◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#64232) — 52 parça

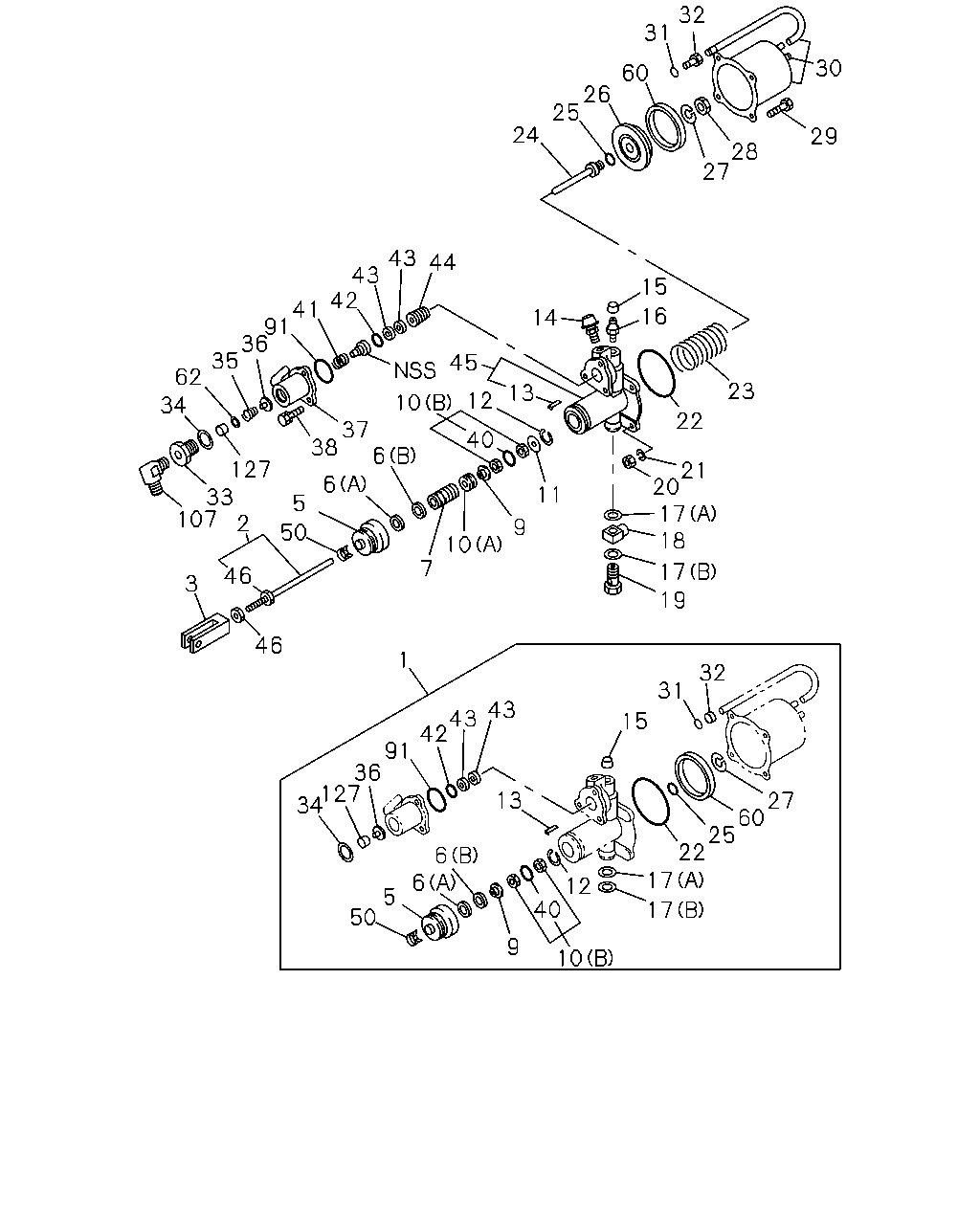

çizim 184080
32 31 30 60 26 25 24 29 28 27 43 43 42 44 15 41 91 36 35 16 14 45 62 23 13 12 10 34 22 37 38 6 40 127 33 107 2 21 20 17 18 6 11 5 9 50 10 7 17 46 3 19 46 1 32 31 43 43 42 15 91 36 127 34 13 27 60 25 22 17 6 6 12 40 5 50 17 9 10
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0406-
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0406-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0406-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0406-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0406-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0406-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0406-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0406-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0406-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0406-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0406-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0406-
13 PIN; SPR 1-31829-109-0 01 1 0406-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0406-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0406-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0406-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0406-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0406-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0406-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0406-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0406-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0406-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0406-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0406-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0406-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0406-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0406-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0406-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0406-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0406-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0406-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0406-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0406-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 0406-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0406-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0406-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0406-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0406-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0406-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0406-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0406-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0406-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0406-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0406-
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 0406-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0406-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0406-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0406-
62 RETAINER; POPPET 1-31829-489-0 01 1 0406-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0406-
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0406-
127 FILTER; POPPET 1-31829-495-0 01 1 0406-
