Isuzu WW
▶
TRUCKS
▶
FSR
▶
10700 - FSR32,33(RHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05B - CLUTCH PIPING
▶

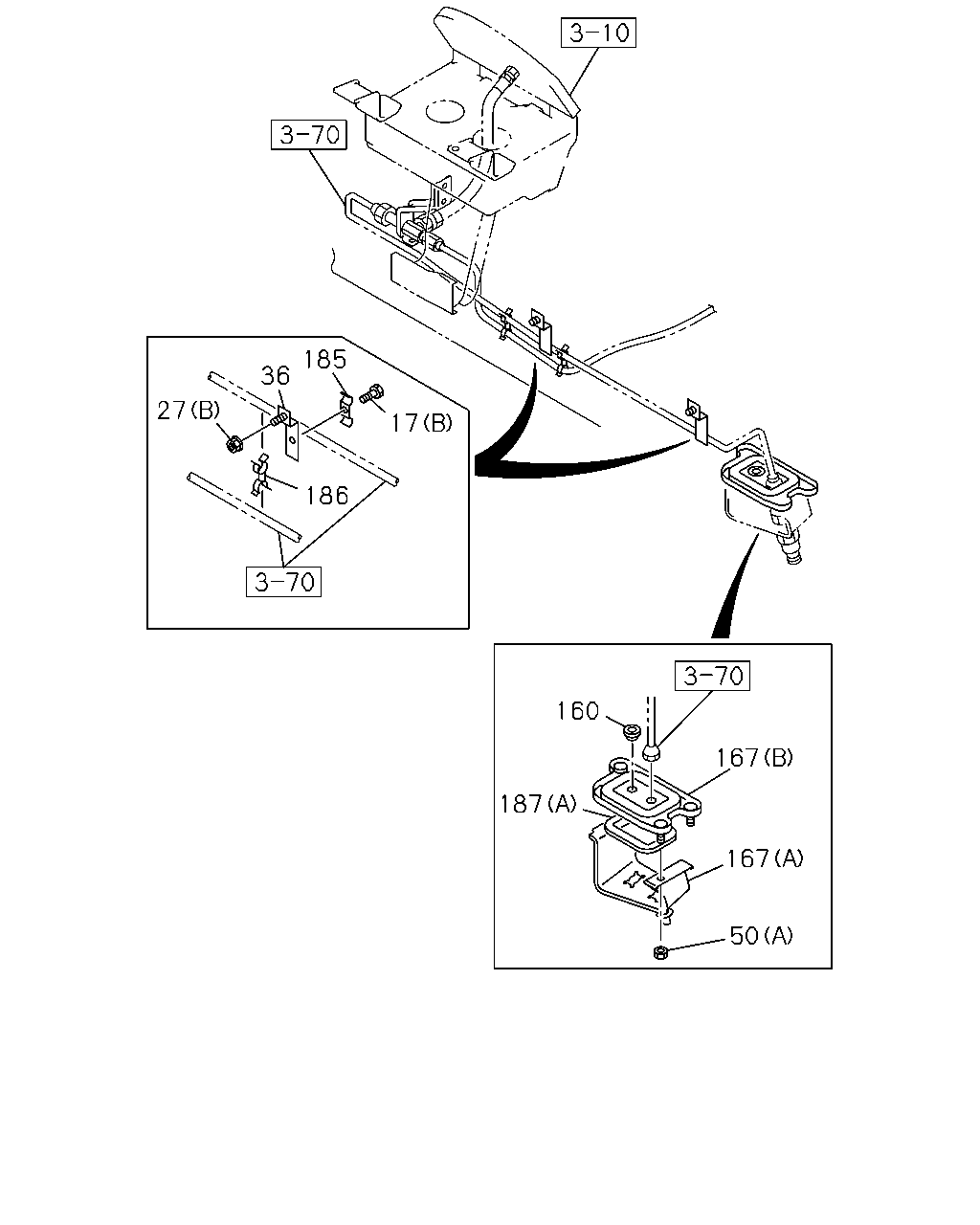

2-05B — CLUTCH PIPING
(#64230) — 41 parça
185
36
27
17
186
160
167
187
167
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9510-9802
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9803-9810
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9811-0004
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0005-0010
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0011-0405
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0406-
27
NUT; BRKT
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
9510-9802
27
NUT; BRKT
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
9803-9810
27
NUT; BRKT
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
9811-0004
27
NUT; BRKT
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0005-0010
27
NUT; BRKT
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0011-0405
27
NUT; BRKT
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0406-
36
BRACKET; CLIP
1-79738-186-1
02
1
9510-9802
36
BRACKET; CLIP
1-79738-186-1
02
1
9803-9810
36
BRACKET; CLIP
1-79738-186-1
02
1
9811-0004
36
BRACKET; CLIP
1-79738-186-1
02
1
0005-0010
36
BRACKET; CLIP
1-79738-186-1
02
1
0011-0405
36
BRACKET; CLIP
1-79738-186-1
02
1
0406-
50
NUT; UNION
(A) M8 FLANGE
8-94279-517-0
03
1
9510-9611
50
NUT; UNION
(A) M8 CUTTING NUT W/FLANGE
1-09985-340-0
03
1
9612-0405
50
NUT; UNION
(A) M8 CUTTING NUT W/FLANGE
1-09985-340-0
03
1
0406-
160
GROMMET; OIL PIPE
OD=31.6
8-94198-177-0
01
1
9510-
167
BRACKET; UNION
(B)
1-79738-204-2
01
1
9510-9911
167
BRACKET; UNION
(B)
1-79738-845-1
01
1
9912-0405
167
BRACKET; UNION
(B)
1-79738-845-1
01
1
0406-
167
BRACKET; UNION
(A)
1-79738-193-6
01
1
9803-
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
9510-9802
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
9803-9810
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
9811-0004
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
0005-0010
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
0011-0405
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
0406-
186
HOLDER; CLIP
ID=4.75 & 6
8-94165-403-0
02
1
9510-9706
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
9707-9802
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
9803-9810
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
9811-0004
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
0005-0010
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
0011-0405
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
0406-
187
SEAL; BRKT
(A)
1-79738-190-0
01
1
9510-0405
187
SEAL; BRKT
(A)
1-79738-190-0
01
1
0406-
