Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#64229) — 394 parça

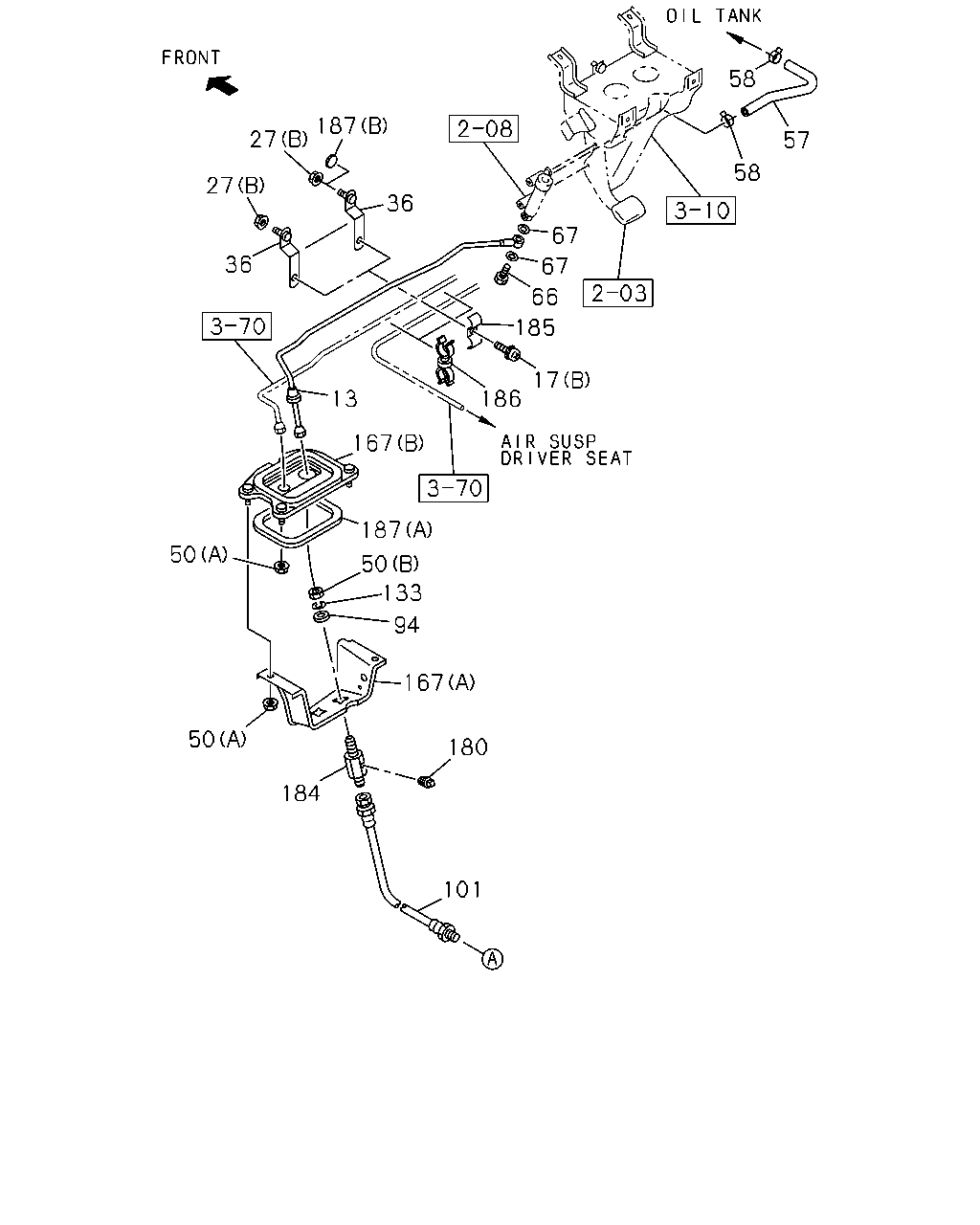

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9510-0405	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0406-	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0405	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9510-9802	●	●
36	BRACKET; CLIP STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>	1-79738-186-1	01	1	9803-9810	●	●
36	BRACKET; CLIP DOUBLE CAB(FS*W)	1-79738-186-1	01	1	9803-9810	●	●
36	BRACKET; CLIP STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9811-0004	●	●
36	BRACKET; CLIP DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9811-0004	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	0005-0010	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0011-0405	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0406-	●	●	●
36	BRACKET; CLIP STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9510-9802	●	●
36	BRACKET; CLIP STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9510-9802	●	●
36	BRACKET; CLIP STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9803-9810	●	●
36	BRACKET; CLIP STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9803-9810	●	●
36	BRACKET; CLIP STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-0405	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-0405	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0406-	●	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0406-	●	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0406-			●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0405	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0406-	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9510-0405	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0406-0512	●	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9510-0405	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0406-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9510-0405	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0406-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9510-0405	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0406-0805	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0405	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9510-0405	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0406-0605	●	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9510-0405	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0406-			●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9510-9911	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	9912-0405	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0406-	●	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9803-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9510-0405	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0406-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	9510-0405	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0406-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9510-9802	●	●
185	CLIP; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=5 & 8	5-09700-165-0	01	1	9803-9810	●	●
185	CLIP; BRKT DOUBLE CAB(FS*W) ID=5 & 8	5-09700-165-0	01	1	9803-9810	●	●
185	CLIP; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004	●	●
185	CLIP; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	0005-0010	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-0405	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0406-	●	●	●
185	CLIP; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9510-9802	●	●
185	CLIP; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9510-9802	●	●
185	CLIP; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9803-9810	●	●
185	CLIP; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9803-9810	●	●
185	CLIP; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-0405	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-0405	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0406-	●	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0406-	●	●	●
186	HOLDER; CLIP STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9510-9706	●	●
186	HOLDER; CLIP STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9802	●	●
186	HOLDER; CLIP STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=6 & 4.8	8-94313-325-0	02	1	9803-9810	●	●
186	HOLDER; CLIP STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
186	HOLDER; CLIP DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0005-0010	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-0405	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0406-	●	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9510-0405	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0406-	●	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9510-9802	●	●
187	SEAL; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) OD=25 BLACK	1-76798-019-0	01	1	9803-9810	●	●
187	SEAL; BRKT DOUBLE CAB(FS*W) (B) OD=25 BLACK	1-76798-019-0	01	1	9803-9810	●	●
187	SEAL; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004	●	●
187	SEAL; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0010	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-0405	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0406-	●	●	●

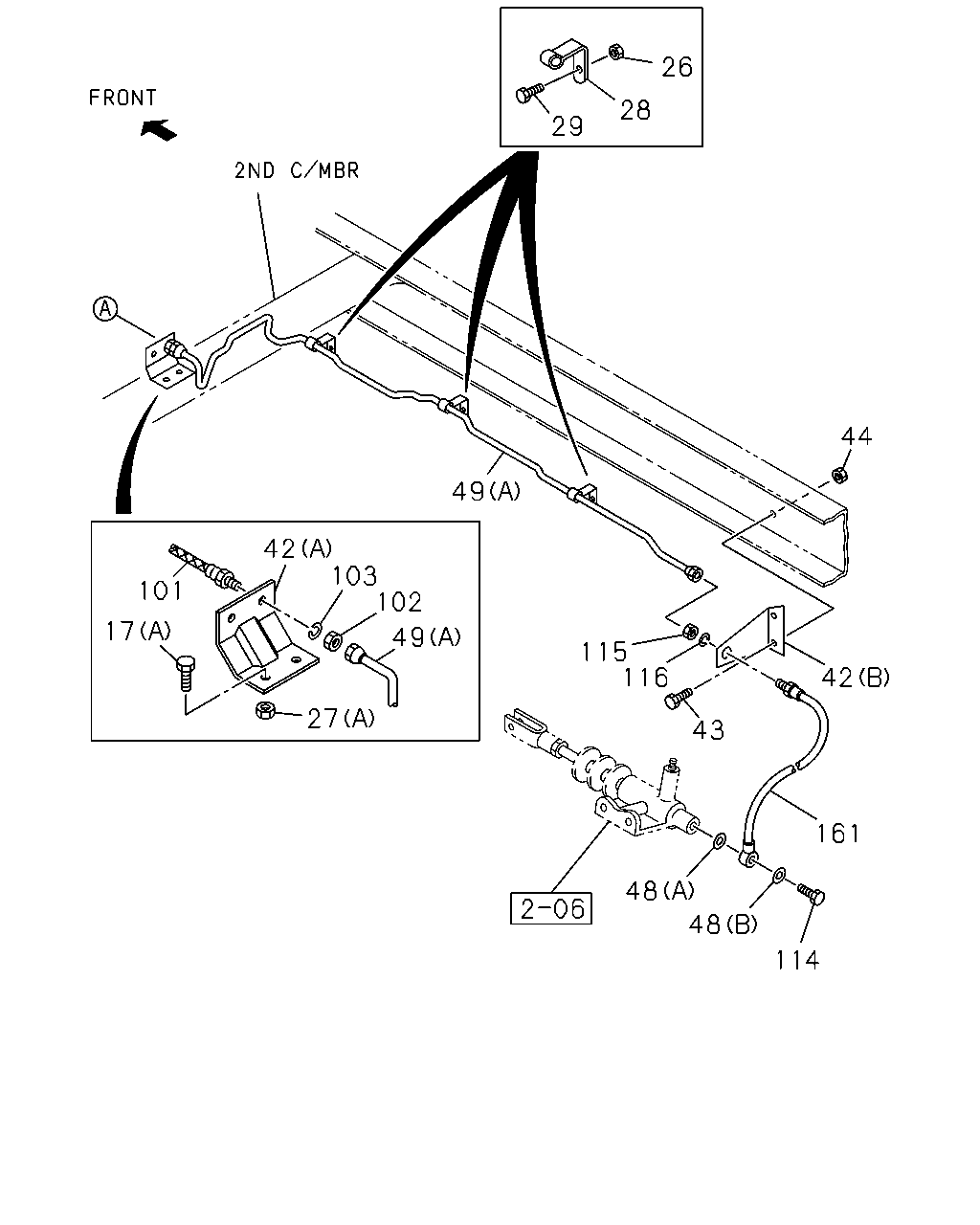

26 28 29 44 49 42 103 102 101 17 49 115 116 42 27 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0405	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0406-0512	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9809	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9810-0405	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	05	1	0406-0512			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0601-0602	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0406-0512	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9809	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9810-0405	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	0406-0512			●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0406-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-0405	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9809	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9810-0405	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	08	1	0406-0512			●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0601-0601			●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47477-944-0	01	1	0406-			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9510-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-0405	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0406-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-0405	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0406-0512	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0406-			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9510-	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3035 SERVICED BY L=3300	1-47426-398-0	01	1	0406-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=204	1-49117-400-0	01	1	0406-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2445 SERVICED BY L=2700	1-47426-396-0	01	1	9510-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0405	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0405	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9510-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0405	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0405	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	9510-	●	●

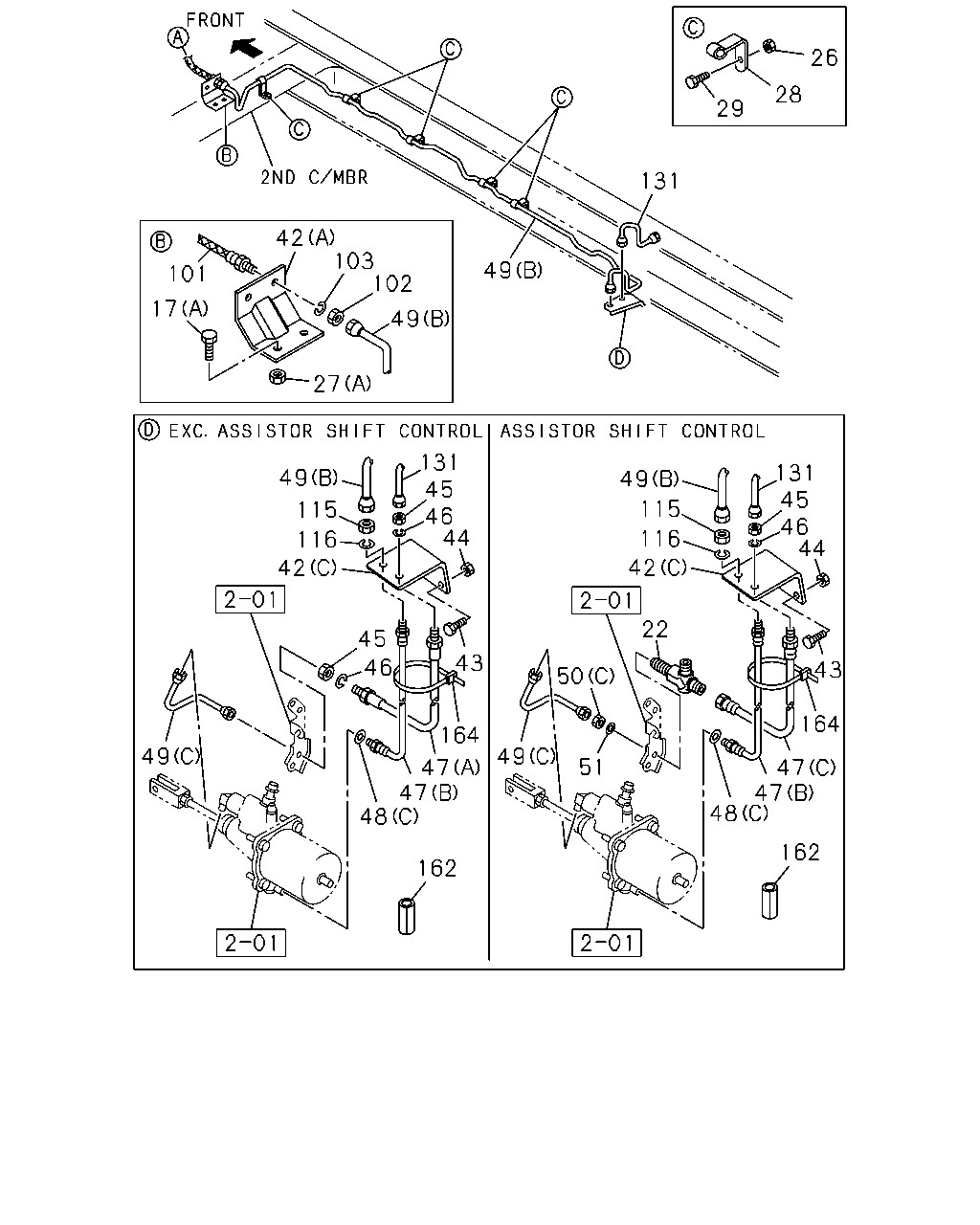

26 28 29 131 42 103 102 49 101 17 49 27 131 45 46 44 131 45 46 44 49 49 115 115 116 116 42 42 22 45 43 46 43 50 164 164 49 49 51 47 47 48 47 47 48 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0405	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	0406-0607			●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0608-			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0406-0512	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9809	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9810-0405	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	05	1	0406-0512			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0601-0602	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FS*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT DOUBLE CAB(FS*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT STD CAB(FS*M) EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0406-0512	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9809	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9810-0405	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	0406-0512			●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0406-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-0405	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9809	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9810-0405	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	08	1	0406-0512			●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0601-0601			●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47477-944-0	01	1	0406-			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9510-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-0405	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0406-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-0405	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0406-0512	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0406-			●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0406-			●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0406-0603			●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-			●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	0406-0603			●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	02	1	0604-			●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (C) L=430	1-09363-623-0	01	1	0406-			●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	0406-			●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	0406-			●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0406-			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9510-	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3035 SERVICED BY L=3300	1-47426-398-0	01	1	0406-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=204	1-49117-400-0	01	1	0406-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2445 SERVICED BY L=2700	1-47426-396-0	01	1	9510-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0406-			●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0405	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0406-	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9510-0405	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0406-0512	●	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0406-0603			●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0405	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0405	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0405	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0405	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49118-853-0	01	1	0406-			●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0406-			●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0406-			●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0406-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
