◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#64228) — 137 parça

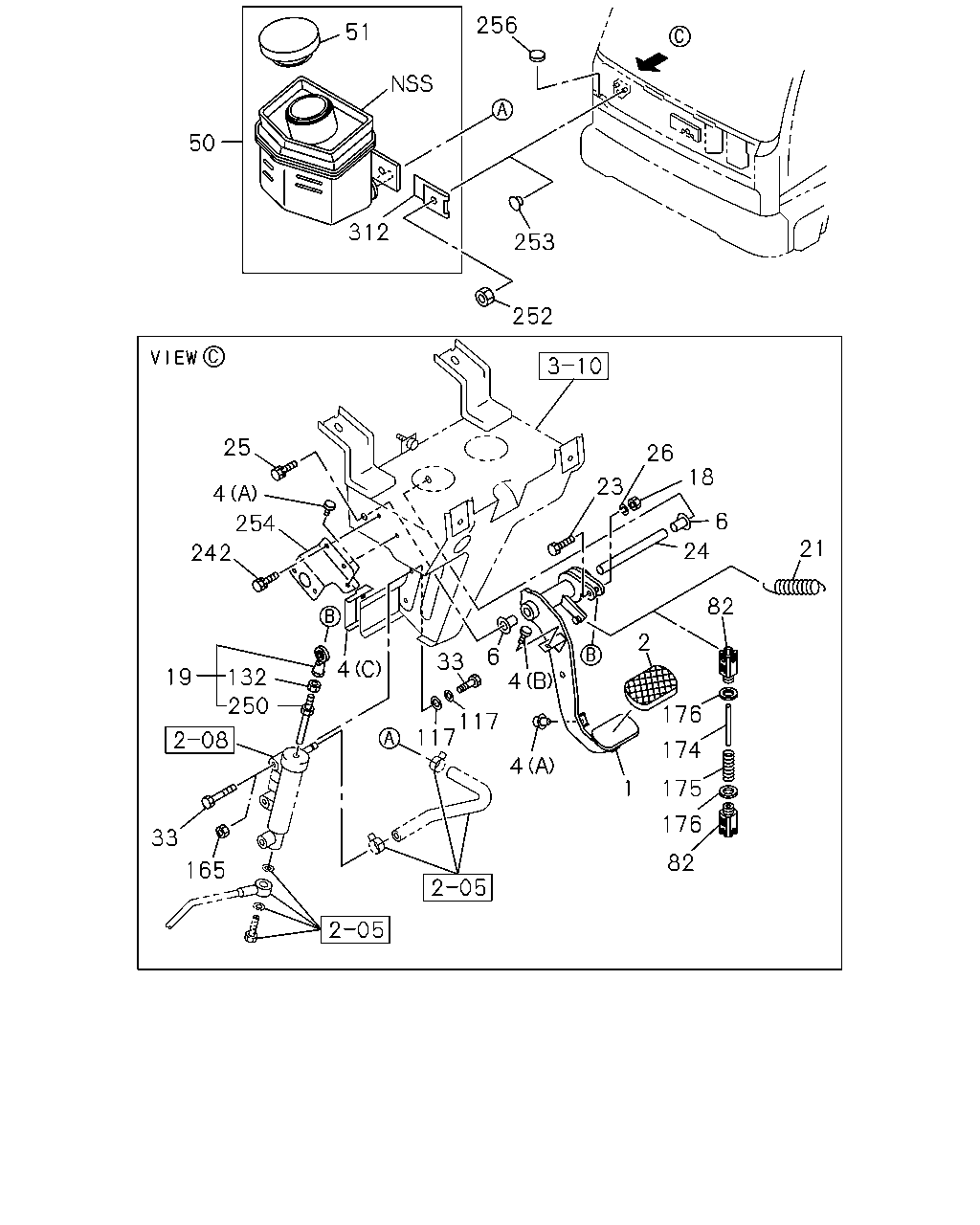

çizim 184140
256 51 50 312 253 252 25 26 18 23 4 6 254 21 24 242 82 2 6 4 33 4 19 132 250 176 117 117 174 4 1 175 176 33 82 165
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> 		1-73908-171-3 01 1 0406- ●
1 PEDAL; CLU
ISUZU M/T<X9A> 		1-73908-051-1 01 1 9510-9601 ●
1 PEDAL; CLU 1-73908-051-1 01 1 9510-9601 ●
1 PEDAL; CLU
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73908-051-3 01 1 9602-9802 ●
1 PEDAL; CLU
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73908-051-3 01 1 9602-9802 ●
1 PEDAL; CLU
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73908-051-3 01 1 9803-9803 ●
1 PEDAL; CLU
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-73908-249-1 01 1 9602-9802 ●
1 PEDAL; CLU
AUSTRALIA EQUIPMENT(RR3) 		1-73908-249-1 01 1 9602-9802 ●
1 PEDAL; CLU
AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> 		1-73908-249-1 01 1 9803-9803 ●
1 PEDAL; CLU 1-73908-249-1 01 1 9803-9803 ●
1 PEDAL; CLU
ISUZU M/T<X9A> 		1-73908-331-2 01 1 9804-0004 ●
1 PEDAL; CLU 1-73908-331-2 01 1 9804-0004 ●
1 PEDAL; CLU
ISUZU M/T<X9A> 		1-73908-331-2 01 1 0005-0405 ●
1 PEDAL; CLU
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-331-2 01 1 0406- ●
2 COVER; CLU PEDAL
ISUZU M/T<X9A> 		8-94204-810-0 01 1 9510-0004 ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9510-0004 ●
2 COVER; CLU PEDAL
ISUZU M/T<X9A> 		8-94204-810-0 01 1 0005-0103 ●
2 COVER; CLU PEDAL
ISUZU M/T<X9A> 		8-97893-618-1 01 1 0104- ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 0406- ●
4 STOPPER; CLU PEDAL
A/T<X9D> (A) 		1-47319-014-1 01 1 9510- ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (A) 		1-47319-014-1 02 1 9510-0004 ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 9510-0004 ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (A) 		1-47319-014-1 02 1 0005-0405 ●
4 STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> (A) 		1-47319-014-1 04 1 0406- ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (C) 		1-73908-088-0 01 1 9510-9601 ●
4 STOPPER; CLU PEDAL
(C) 		1-73908-088-0 01 1 9510-9601 ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (B) 		5-31419-003-0 01 1 9510-0004 ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 9510-0004 ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (B) 		5-31419-003-0 01 1 0005-0103 ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (C) 		1-73908-088-1 01 1 0104-0405 ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> (C) 		1-73908-088-1 01 1 0406- ●
6 BUSHING; CLU PEDAL
ISUZU M/T<X9A> 		1-09330-045-0 02 1 9510-0004 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9510-0004 ●
6 BUSHING; CLU PEDAL
ISUZU M/T<X9A> 		1-09330-045-0 02 1 0005- ●
18 NUT; PUSH ROD
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> M8 		0-91110-508-0 01 1 0406- ●
18 NUT; PUSH ROD
ISUZU M/T<X9A> M8 		9-09110-508-0 01 1 9510-0004 ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 9510-0004 ●
18 NUT; PUSH ROD
ISUZU M/T<X9A> M8 		9-09110-508-0 01 1 0005-0405 ●
18 NUT; PUSH ROD
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-508-0 01 1 0406- ●
19 ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> 		1-73996-144-1 01 1 0406- ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> 		1-73996-144-0 01 1 9510-9601 ●
19 ROD ASM; PUSH,CLU 1-73996-144-0 01 1 9510-9601 ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-144-0 01 1 9602-9802 ●
19 ROD ASM; PUSH,CLU
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-144-0 01 1 9602-9802 ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-144-0 01 1 9803-9803 ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-73907-320-1 01 1 9602-9802 ●
19 ROD ASM; PUSH,CLU
AUSTRALIA EQUIPMENT(RR3) 		1-73907-320-1 01 1 9602-9802 ●
19 ROD ASM; PUSH,CLU
AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> 		1-73907-320-1 01 1 9803-9803 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 9803-9803 ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> 		1-73908-332-0 01 1 9804-0004 ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 9804-0004 ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> 		1-73908-332-0 01 1 0005-0405 ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-332-0 01 1 0406- ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> 		1-73908-265-0 01 1 0406- ●
23 BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> M8X35 		0-10960-835-0 01 1 0406- ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> M8X35 		9-01060-835-0 01 1 9510-9601 ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9510-9601 ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) M8X35 		9-01060-835-0 01 1 9602-9802 ●
23 BOLT; PUSH ROD
EXC. AUSTRALIA EQUIPMENT(RR3) M8X35 		9-01060-835-0 01 1 9602-9802 ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) M8X35 		9-01060-835-0 01 1 9803-9803 ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X39.7 		1-09009-150-0 01 1 9602-9802 ●
23 BOLT; PUSH ROD
AUSTRALIA EQUIPMENT(RR3) M8X39.7 		1-09009-150-0 01 1 9602-9802 ●
23 BOLT; PUSH ROD
AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> M8X39.7 		1-09009-150-0 01 1 9803-9803 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 9803-9803 ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> M8X43.7 		1-73908-333-0 01 1 9804-0004 ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 9804-0004 ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> M8X43.7 		1-73908-333-0 01 1 0005-0405 ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> M8X43.7 		1-73908-333-0 01 1 0406- ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 9510-0004 ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0005- ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 9510-0004 ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0005- ●
26 WASHER; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> ID=8.2 		0-91510-608-0 01 1 0406- ●
26 WASHER; LK,PUSH ROD
ISUZU M/T<X9A> ID=8.2 		9-09150-608-0 01 1 9510-0004 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9510-0004 ●
26 WASHER; LK,PUSH ROD
ISUZU M/T<X9A> ID=8.2 		9-09150-608-0 01 1 0005-0405 ●
26 WASHER; LK,PUSH ROD
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> ID=8.2 		9-09150-608-0 01 1 0406- ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> M10X60 FLANGE 		0-28081-060-0 02 1 0406-0512 ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> M10X60 FLANGE 		0-28051-060-0 02 1 0601- ●
33 BOLT; CLU M/CYL TO BRKT
ISUZU M/T<X9A> M10X65 		5-09030-024-1 02 1 9510-0004 ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 9510-0004 ●
33 BOLT; CLU M/CYL TO BRKT
ISUZU M/T<X9A> M10X65 		5-09030-024-1 02 1 0005-0405 ●
33 BOLT; CLU M/CYL TO BRKT
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> M10X65 		5-09030-024-1 02 1 0406- ●
50 TANK; OIL,CLU
ISUZU M/T<X9A> 		1-47530-182-0 01 1 9510-0004 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 9510-0004 ●
50 TANK; OIL,CLU
ISUZU M/T<X9A> 		1-47530-182-0 01 1 0005- ●
51 CAP; OIL TANK,CLU
ISUZU M/T<X9A> 		8-94136-483-1 01 1 9510-0004 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 9510-0004 ●
51 CAP; OIL TANK,CLU
ISUZU M/T<X9A> 		8-94136-483-1 01 1 0005- ●
82 CLEVIS; HELPER,CLU PEDAL
ISUZU M/T<X9A> 		1-73998-472-1 02 1 9510-0004 ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 9510-0004 ●
82 CLEVIS; HELPER,CLU PEDAL
ISUZU M/T<X9A> 		1-73998-472-1 02 1 0005-0405 ●
82 CLEVIS; HELPER,CLU PEDAL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 0406- ●
117 WASHER; PL,CLU M/CYL
ISUZU M/T<X9A> ID=10.5 OD=18 		1-09985-173-0 04 1 9510-9601 ●
117 WASHER; PL,CLU M/CYL
ID=10.5 OD=18 		1-09985-173-0 04 1 9510-9601 ●
132 NUT; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> M8 		0-91110-508-0 01 1 0406- ●
132 NUT; LK,PUSH ROD
ISUZU M/T<X9A> M8 		9-09110-408-0 01 1 9510-0004 ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 9510-0004 ●
132 NUT; LK,PUSH ROD
ISUZU M/T<X9A> M8 		9-09110-408-0 01 1 0005-0405 ●
132 NUT; LK,PUSH ROD
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-408-0 01 1 0406- ●
165 NUT; CLU M/CYL
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9510-0004 ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 9510-0004 ●
165 NUT; CLU M/CYL
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 0005-0405 ●
165 NUT; CLU M/CYL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91150-210-0 02 1 0406-0602 ●
165 NUT; CLU M/CYL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91180-210-0 02 1 0603- ●
174 PIN; STRAIGHT,CLU PEDAL
ISUZU M/T<X9A> 		1-73998-474-0 01 1 9510-0004 ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 9510-0004 ●
174 PIN; STRAIGHT,CLU PEDAL
ISUZU M/T<X9A> 		1-73998-474-0 01 1 0005-0405 ●
174 PIN; STRAIGHT,CLU PEDAL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-474-0 01 1 0406- ●
175 SPRING; HELPER
ISUZU M/T<X9A> 		1-73908-052-0 01 1 9510-0004 ●
175 SPRING; HELPER 1-73908-052-0 01 1 9510-0004 ●
175 SPRING; HELPER
ISUZU M/T<X9A> 		1-73908-052-0 01 1 0005-0405 ●
175 SPRING; HELPER
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-052-0 01 1 0406- ●
176 SEAT; SPRING
ISUZU M/T<X9A> 		1-09503-114-0 02 1 9510-9601 ●
176 SEAT; SPRING 1-09503-114-0 02 1 9510-9601 ●
176 SEAT; SPRING
ISUZU M/T<X9A> 		1-09503-114-0 02 1 0104-0405 ●
176 SEAT; SPRING
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-09503-114-0 02 1 0406- ●
242 BOLT; BRKT,CLUTCH
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> M6X16 W/LK WASHER 		0-50540-616-0 02 1 0406- ●
242 BOLT; BRKT,CLUTCH
ISUZU M/T<X9A> M6X16 W/LK WASHER 		0-50040-616-0 04 1 9510-0004 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9510-0004 ●
242 BOLT; BRKT,CLUTCH
ISUZU M/T<X9A> M6X16 W/LK WASHER 		0-50040-616-0 04 1 0005-0405 ●
242 BOLT; BRKT,CLUTCH
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER 		0-50040-616-0 04 1 0406- ●
250 ROD; PUSH,CLU
ISUZU M/T<X9A> 		1-73996-219-0 01 1 9510-0004 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 9510-0004 ●
250 ROD; PUSH,CLU
ISUZU M/T<X9A> 		1-73996-219-0 01 1 0005- ●
252 NUT; OIL TANK
ISUZU M/T<X9A> M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9510-0004 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9510-0004 ●
252 NUT; OIL TANK
ISUZU M/T<X9A> M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005- ●
253 GROMMET; HOLE,OIL TANK
A/T<X9D> 		1-09983-146-0 01 1 9510- ●
254 BRACKET; CLU SENSOR
ISUZU M/T<X9A> 		1-73998-979-4 01 1 9510-0004 ●
254 BRACKET; CLU SENSOR 1-73998-979-4 01 1 9510-0004 ●
254 BRACKET; CLU SENSOR
ISUZU M/T<X9A> 		1-73998-979-5 01 1 0005- ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9510-0004 ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0005- ●
312 PLATE; OIL TANK,CLU
ISUZU M/T<X9A> 		1-21249-007-1 01 1 9510-0004 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 9510-0004 ●
312 PLATE; OIL TANK,CLU
ISUZU M/T<X9A> 		1-21249-007-1 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
