Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#64227) — 245 parça

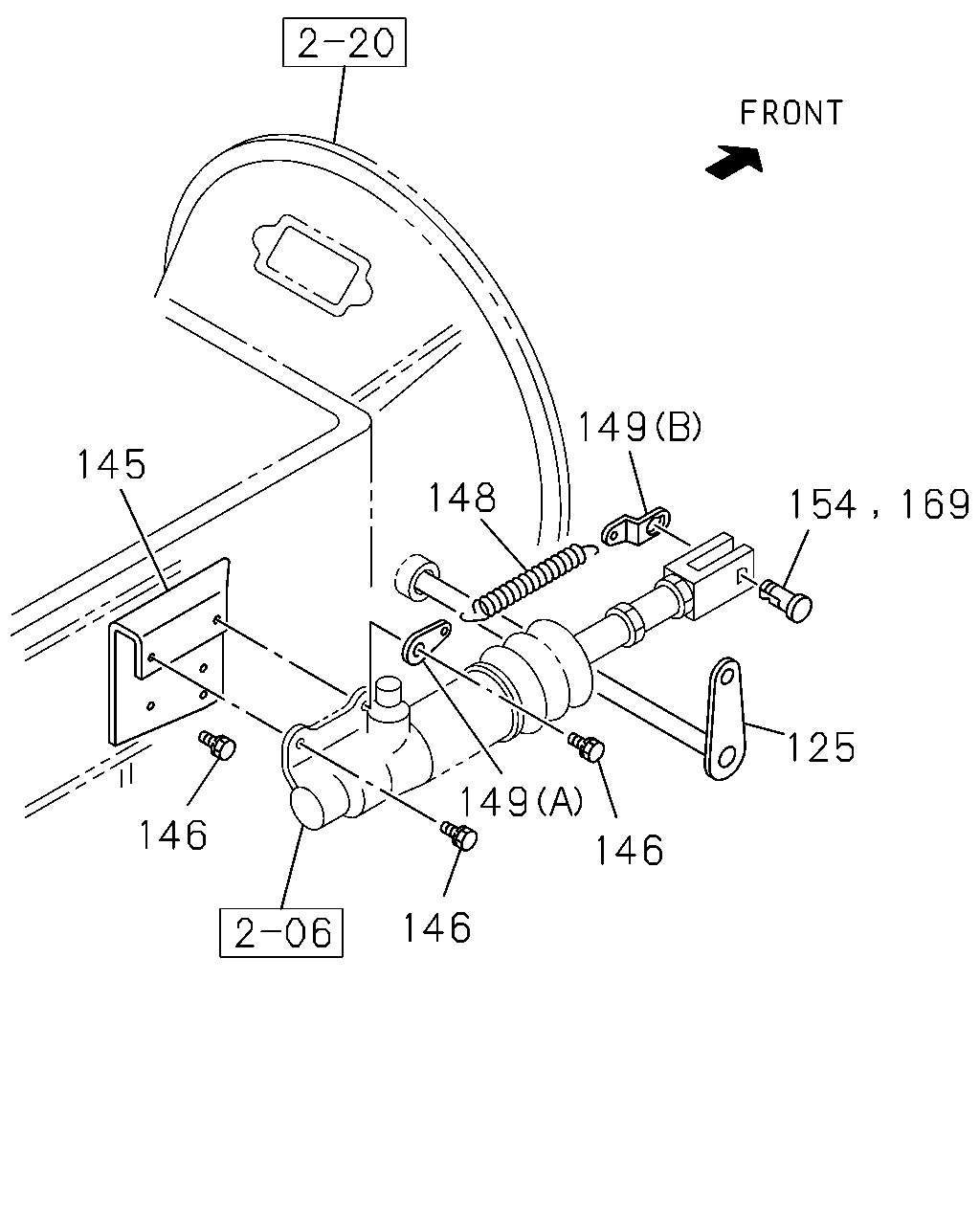

149 145 148 154 169 125 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
125	SHAFT; CLU	1-31342-169-1	01	1	0406-	●
125	SHAFT; CLU	1-31342-273-0	01	1	9510-9803		●	●
125	SHAFT; CLU	1-31342-299-0	01	1	9804-		●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-054-0	01	1	9510-9803		●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-059-0	01	1	9804-		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9510-0512		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28151-025-0	04	1	0601-		●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0406-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-		●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9510-		●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9510-		●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9510-		●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9510-0405		●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0406-	●	●	●

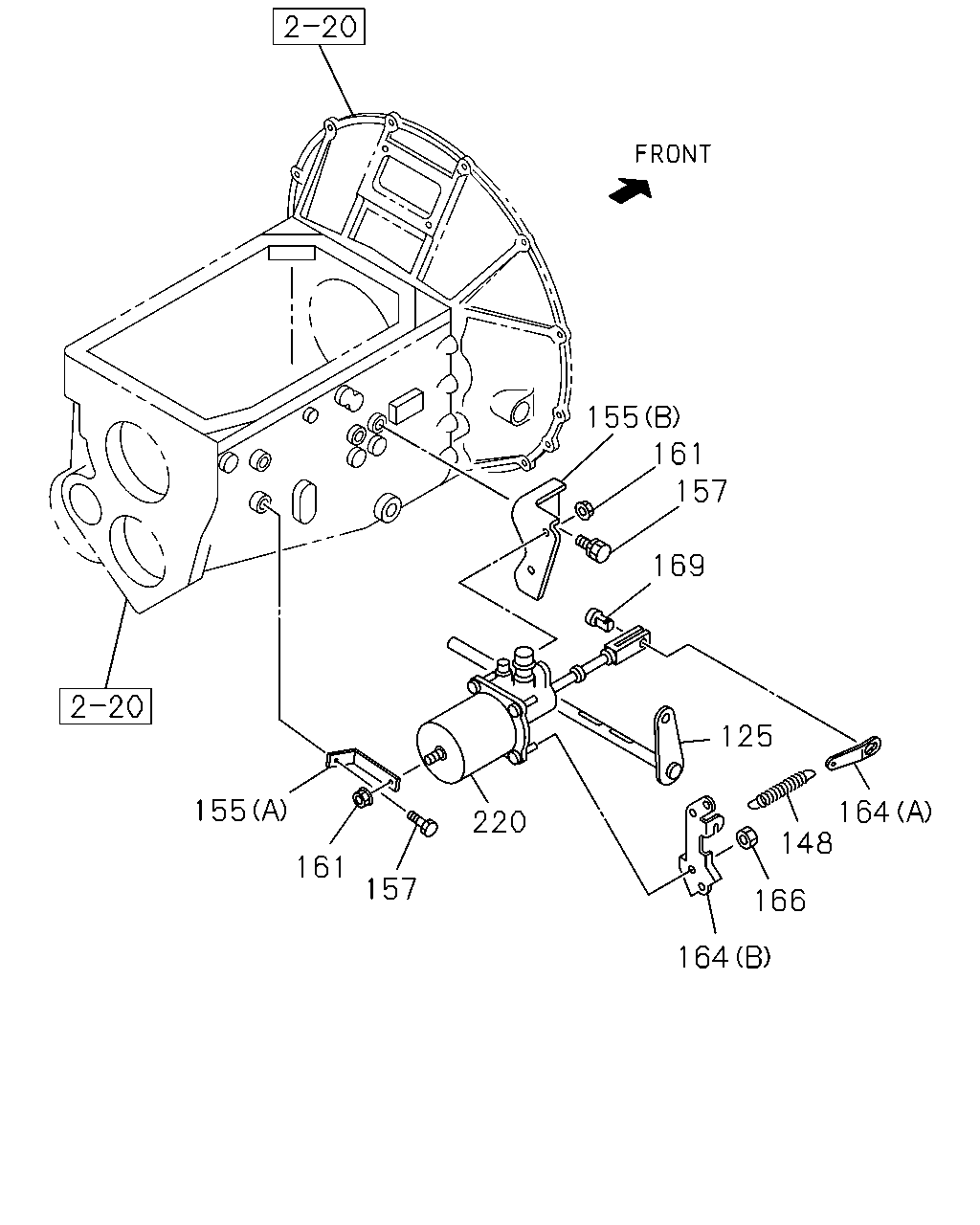

155 161 157 169 125 155 164 148 220 161 157 166 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
125	SHAFT; CLU	1-31342-169-1	01	1	0406-	●
125	SHAFT; CLU	1-31342-273-0	01	1	9510-9803		●	●
125	SHAFT; CLU	1-31342-299-0	01	1	9804-		●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0406-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-		●	●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	0406-	●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	0406-	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0406-	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	0406-0602	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-	●
164	EYE; SPRING (A)	1-31426-041-0	01	1	0406-	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	0406-	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	0406-0602	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9510-0405		●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0406-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-388-3	01	1	0406-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	0406-	●

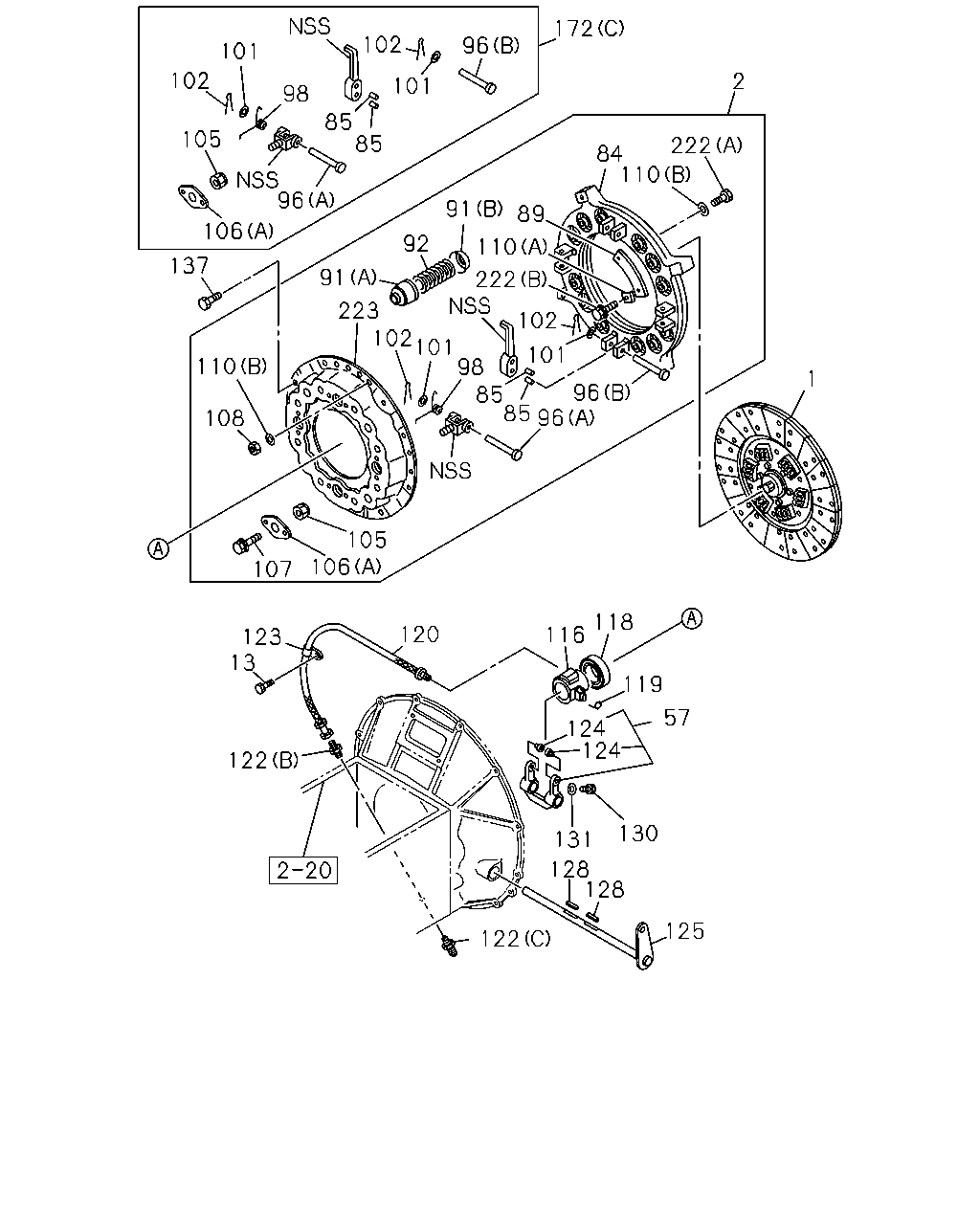

172 102 96 101 102 2 101 98 85 85 105 222 84 110 96 91 89 106 92 110 137 91 222 223 102 101 101 98 85 96 85 96 102 110 1 108 105 106 107 118 120 116 123 13 119 57 124 124 122 130 131 128 128 125 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0406-	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9510-0105		●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-291-0	01	1	9510-0109		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-		●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-		●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0406-0512	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0406-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9510-		●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0406-	●
84	PLATE; PRESSURE	1-31221-082-0	01	1	9510-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9510-0405		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0406-	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0406-	●
89	PLATE; STRAP	1-31229-001-0	08	1	9510-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9510-0405		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9510-0405		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-		●	●
92	SPRING; CLU	1-31214-086-0	12	1	0406-	●
92	SPRING; CLU	1-09580-234-0	12	1	9510-0308		●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005		●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9510-0405		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0406-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9510-0405		●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0406-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9510-0405		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0406-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0406-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9510-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0406-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9510-		●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9510-0109		●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0405		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0406-	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9510-0109		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9510-0405		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0406-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9510-0308		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0405		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0406-	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0406-	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0406-	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0406-	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0406-1204	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-070-3	01	1	9510-		●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0406-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9510-0111		●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0406-	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9510-0405		●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0406-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9510-0405		●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0406-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0406-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	9510-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0406-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9510-0405		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0406-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9510-0512		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0406-0606	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9510-0405		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0406-	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	0406-	●
125	SHAFT; CLU	1-31342-273-0	01	1	9510-9803		●	●
125	SHAFT; CLU	1-31342-299-0	01	1	9804-		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9510-0405		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0406-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9510-0405		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0406-0512	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9510-0405		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0406-0603	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9510-0403		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	24	1	0404-0512		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0601-0601	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0601-0601	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
172	LEVER KIT; RELEASE,CLU (C)	1-87831-170-1	01	1	0406-	●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-902-1	01	1	0005-0306		●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-173-1	01	1	0307-		●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9510-0004		●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0406-	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0406-	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9510-0109		●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-		●	●
223	COVER; CLU	1-31211-019-1	01	1	0406-	●

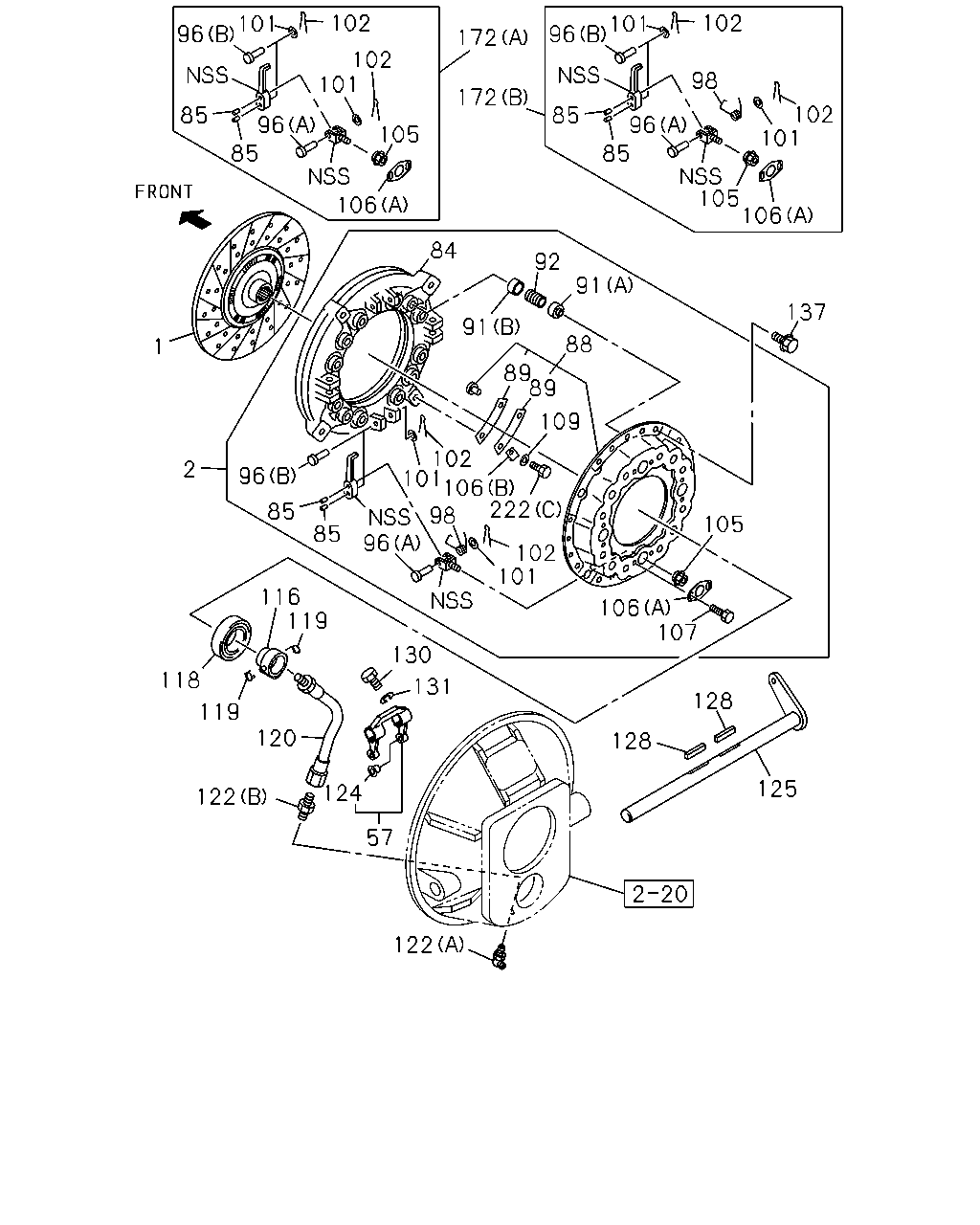

102 102 101 96 101 96 172 102 101 98 172 96 85 96 85 102 101 85 85 105 105 106 106 84 92 91 137 91 88 1 89 89 109 102 101 106 222 96 2 96 85 85 105 102 101 116 119 106 107 130 118 131 128 119 120 128 124 125 122 57 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0406-	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9510-0105		●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-291-0	01	1	9510-0109		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-		●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-		●	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0406-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9510-		●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0406-	●
84	PLATE; PRESSURE	1-31221-082-0	01	1	9510-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9510-0405		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0406-	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9510-		●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0406-	●
89	PLATE; STRAP	1-31229-001-0	08	1	9510-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9510-0405		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9510-0405		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-		●	●
92	SPRING; CLU	1-31214-086-0	12	1	0406-	●
92	SPRING; CLU	1-09580-234-0	12	1	9510-0308		●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005		●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9510-0405		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0406-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9510-0405		●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0406-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9510-0405		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0406-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0406-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9510-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0406-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9510-		●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9510-0109		●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0405		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0406-	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9510-0109		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9510-0405		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0406-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9510-0308		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0405		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0406-	●	●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9510-0603		●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-		●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0406-1204	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-070-3	01	1	9510-		●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0406-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9510-0111		●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0406-	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9510-0405		●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0406-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9510-0405		●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0406-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0406-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	9510-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0406-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9510-0405		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0406-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9510-0512		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9510-0405		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0406-	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	0406-	●
125	SHAFT; CLU	1-31342-273-0	01	1	9510-9803		●	●
125	SHAFT; CLU	1-31342-299-0	01	1	9804-		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9510-0405		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0406-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9510-0405		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0406-0512	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9510-0405		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0406-0603	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9510-0403		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	24	1	0404-0512		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0601-0601	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0601-0601	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
172	LEVER KIT; RELEASE,CLU (C)	1-87831-170-1	01	1	0406-	●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-902-1	01	1	0005-0306		●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-173-1	01	1	0307-		●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9510-0004		●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0406-	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0406-	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9510-0109		●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
