◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#64222) — 162 parça

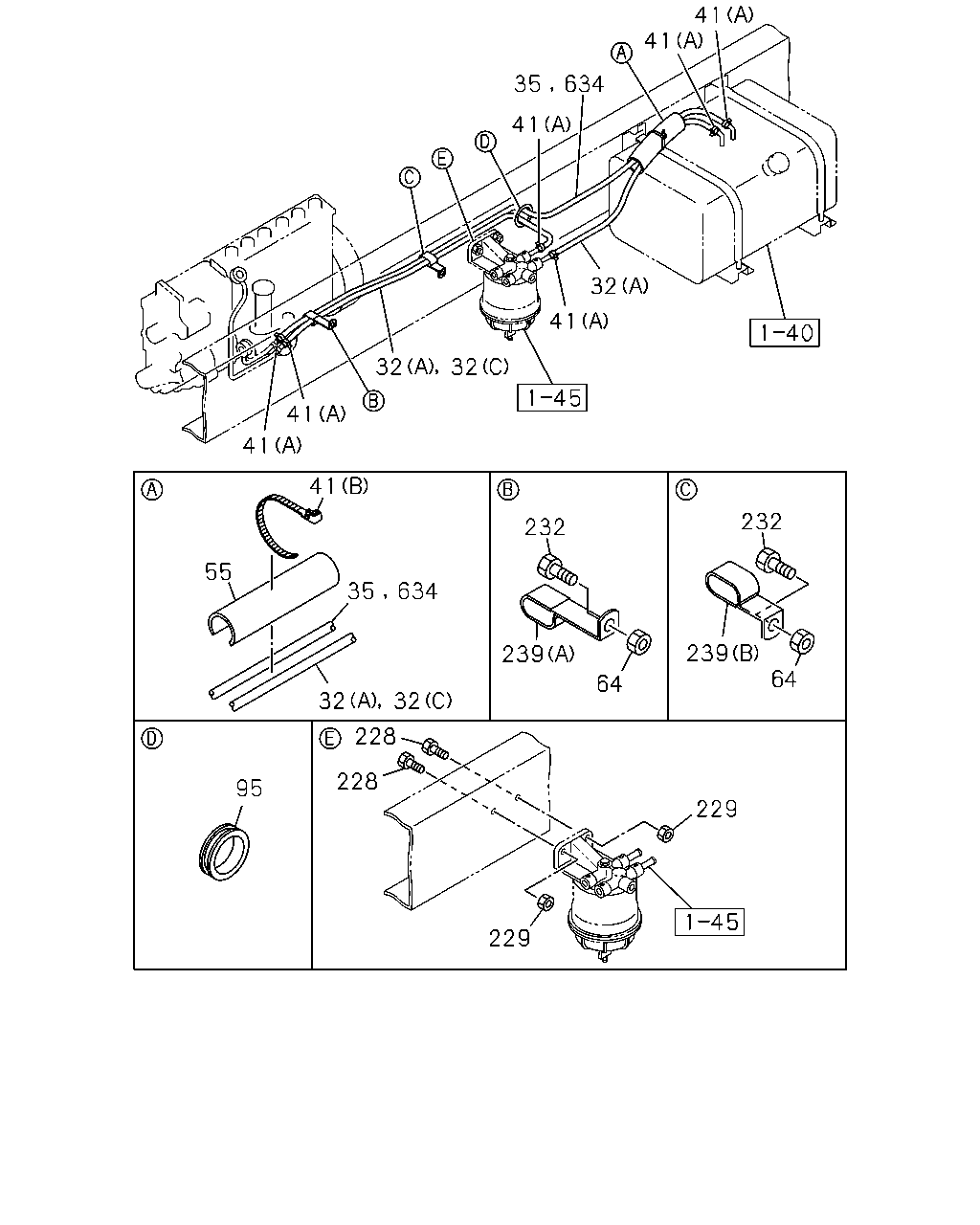

çizim 93039
41 41 35 634 41 32 41 32 32 41 41 41 232 232 55 634 35 239 239 64 64 32 32 228 228 95 229 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9802 ● ●
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (B) L=2100 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ●
32 PIPE; DELIVERY,FUEL TANK
(C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ●
32 PIPE; DELIVERY,FUEL TANK
(C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ●
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (A) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9510-9612 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (C) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0106 ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ●
35 PIPE; FUEL TANK,RETURN
AUSTRALIA EQUIPMENT(RR3) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9802 ● ●
35 PIPE; FUEL TANK,RETURN
AUSTRALIA EQUIPMENT(RR3) L=2650 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ●
35 PIPE; FUEL TANK,RETURN
EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9802 ●
35 PIPE; FUEL TANK,RETURN
L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0405 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0406- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0405 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0406- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=350 		1-09360-460-1 01 1 9510-9606 ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=250 		9-09912-735-1 01 1 9607-9802 ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=250 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-690-1 01 1 9510-9802 ● ● ●
55 COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-677-1 01 1 9803-0004 ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 0005-0405 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0406- ● ● ● ● ●
64 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 07 1 9510-9606 ● ●
64 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 07 1 9607-9802 ● ●
64 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ● ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-0004 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 0005-0009 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0010- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
WHEEL BASE 5500MM(55W) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0010- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-0004 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0405 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0406-0512 ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0405 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0406-0602 ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
232 BOLT; CLIP,PIPE
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 06 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9802 ● ●
232 BOLT; CLIP,PIPE
AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 05 1 9803-0004 ● ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0405 ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0406-0512 ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9510-9802 ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 9803-0004 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0005-0405 ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0406- ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ●
239 CLIP; FUEL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0405 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0406- ● ● ● ● ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
634 HOSE; RUBBER RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●

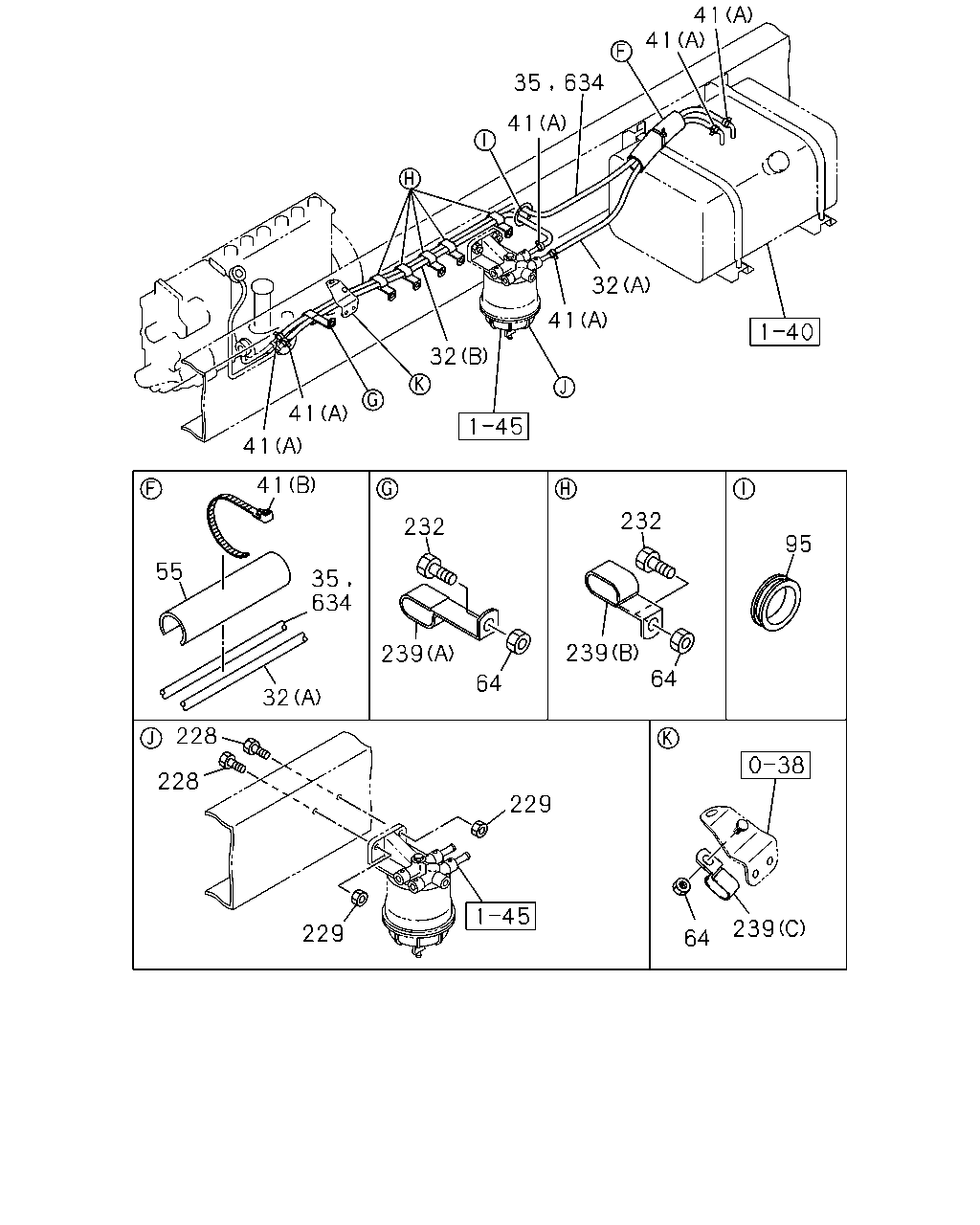

çizim 93615
41 41 35 634 41 32 41 32 41 41 41 232 232 95 55 35 634 239 239 64 64 32 228 228 229 239 229 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9802 ● ●
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (B) L=2100 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ●
32 PIPE; DELIVERY,FUEL TANK
(C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ●
32 PIPE; DELIVERY,FUEL TANK
(C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ●
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (A) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9510-9612 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (C) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0106 ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0405 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0406- ● ●
35 PIPE; FUEL TANK,RETURN
AUSTRALIA EQUIPMENT(RR3) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9802 ● ●
35 PIPE; FUEL TANK,RETURN
AUSTRALIA EQUIPMENT(RR3) L=2650 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ●
35 PIPE; FUEL TANK,RETURN
EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9802 ●
35 PIPE; FUEL TANK,RETURN
L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0405 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0406- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0405 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0406- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=350 		1-09360-460-1 01 1 9510-9606 ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=250 		9-09912-735-1 01 1 9607-9802 ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=250 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-690-1 01 1 9510-9802 ● ● ●
55 COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-677-1 01 1 9803-0004 ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 0005-0405 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0406- ● ● ● ● ●
64 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 07 1 9510-9606 ● ●
64 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 07 1 9607-9802 ● ●
64 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ● ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-0004 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 0005-0009 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0010- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
WHEEL BASE 5500MM(55W) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0010- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-0004 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0405 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0406-0512 ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0405 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0406-0602 ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
232 BOLT; CLIP,PIPE
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 06 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9802 ● ●
232 BOLT; CLIP,PIPE
AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 05 1 9803-0004 ● ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0405 ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0406-0512 ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9510-9802 ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 9803-0004 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0005-0405 ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0406- ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ●
239 CLIP; FUEL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0405 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0406- ● ● ● ● ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
634 HOSE; RUBBER RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
