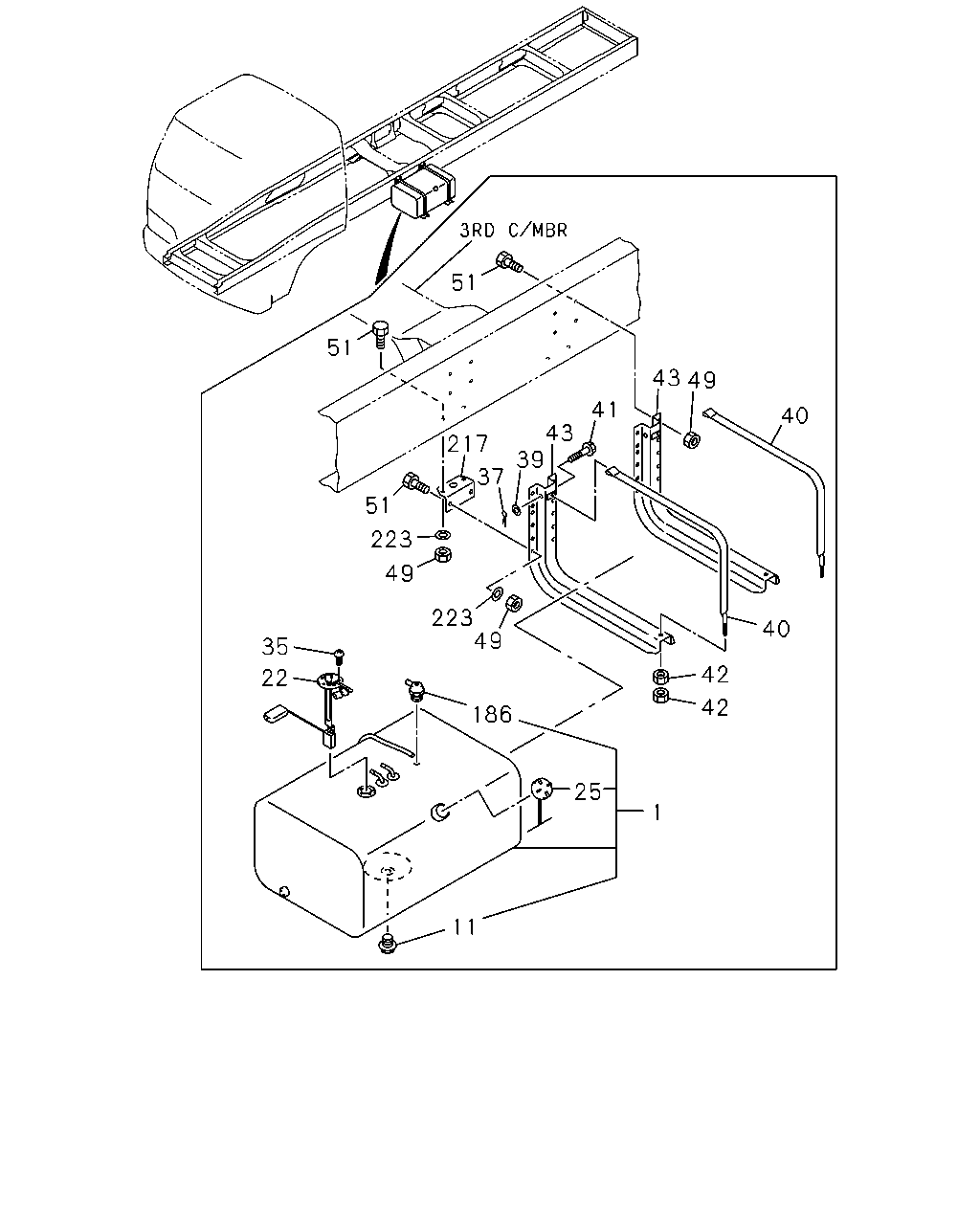

1-40 — FUEL TANK (#64221) — 132 parça

51 51 43 49 41 40 43 39 217 37 51 223 49 223 49 40 35 42 22 42 186 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9510-0004	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X533X323 200L	1-22400-995-0	01	1	9510-0004	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0005-0405	●	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0406-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	9510-0004	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9510-0004	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0005-0005	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0006-0405	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0406-	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9510-0004	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	9510-0004	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0005-0405	●	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0406-	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9510-0004	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9510-0004	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0005-0405	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0406-	●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9510-0004	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9510-0004	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0405	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0406-0501	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28	9-08114-028-0	02	1	9510-0004	●	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> ID=17	9-09164-516-0	02	1	9510-0004	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9510-0004	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=775	1-22550-211-1	02	1	9510-0004	●	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	0005-0112	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-0405	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0406-	●	●	●	●	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=16 L=75	9-08224-675-0	02	1	9510-0004	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9510-0004	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0405	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9510-0004	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-354-2	02	1	9510-0004	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9510-0004	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0005-0405	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0406-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9510-9702	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	16	1	9703-0004	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9510-9702	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0405	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0406-0602	●	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X30 FLANGE	0-28081-230-0	16	1	9510-9606	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	16	1	9607-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X30 FLANGE	0-28081-230-0	12	1	9510-9606	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28681-235-0	12	1	9607-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0405	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0406-0512	●	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●	●	●	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	9510-0004	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6> WHEEL BASE 3700MM(37W)	1-53461-432-1	01	1	9510-0004	●	●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) FUEL TANK 200L FMCSR<PK6>	1-53461-432-1	02	1	9510-0004	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L FMCSR<PK6> ID=12.5 OD=26	9-09160-612-0	04	1	9510-9702	●	●

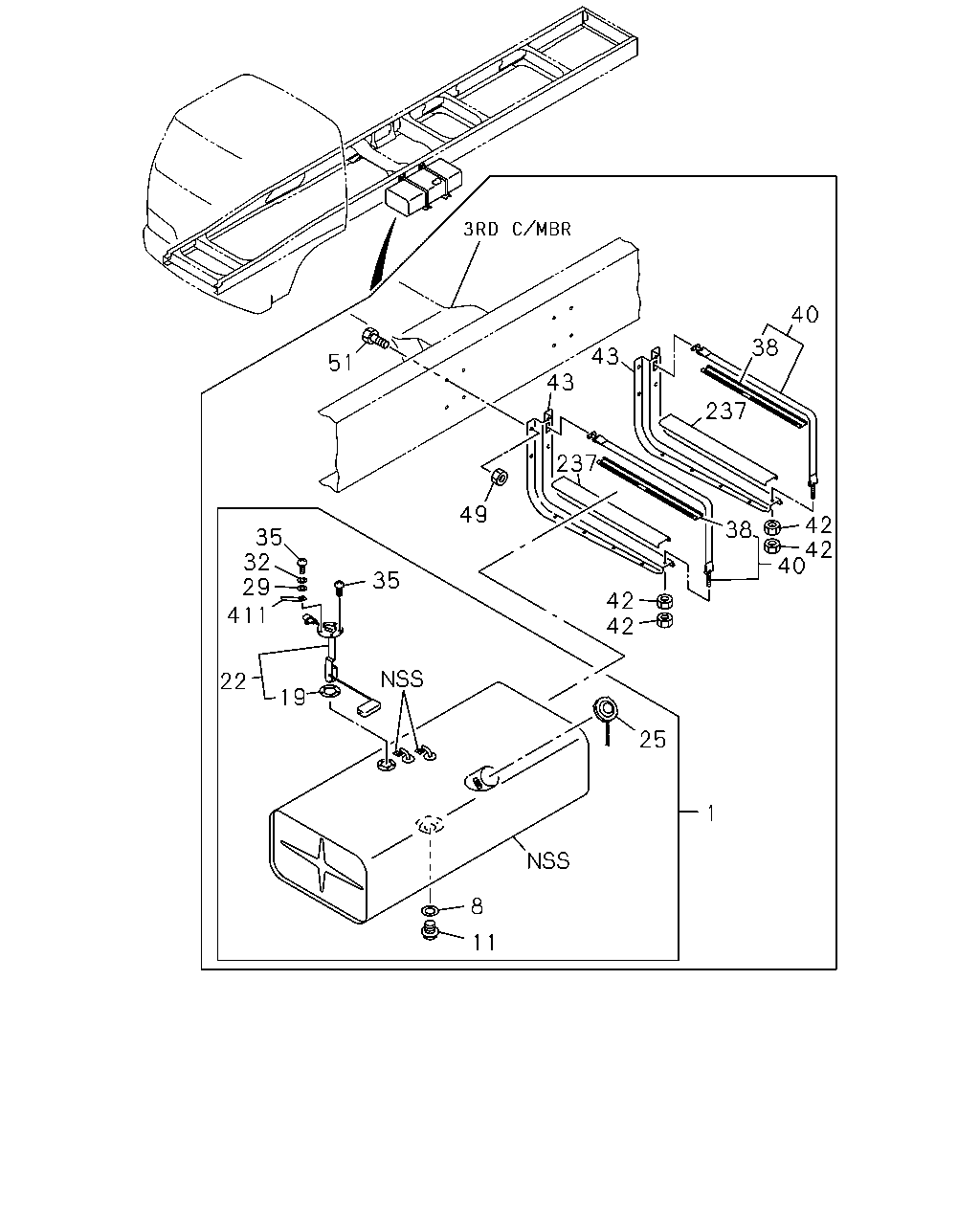

40 38 43 51 43 237 237 49 42 42 40 38 35 32 29 35 42 42 411 22 19 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9510-0004	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X533X323 200L	1-22400-995-0	01	1	9510-0004	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0005-0405	●	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0406-	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9510-0004	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0005-0405	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0406-0509	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	9510-0004	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9510-0004	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0005-0005	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0006-0405	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0406-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0005-0405	●	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0406-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42	9-83135-011-0	01	1	9510-0004	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9510-0004	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	9510-0004	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0005-0405	●	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0406-	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9510-0004	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9510-0004	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0005-0405	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0406-	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9510-0004	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0005-0405	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0406-0605	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	01	1	9510-0004	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	0005-0405	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	0406-0501	●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9510-0004	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9510-0004	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0405	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0406-0501	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0802-	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-014-2	02	1	9510-0004	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0005-0112	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9510-0004	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=775	1-22550-211-1	02	1	9510-0004	●	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	0005-0112	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-0405	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0406-	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9510-0004	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0405	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9510-0004	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-354-2	02	1	9510-0004	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9510-0004	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0005-0405	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0406-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9510-9702	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	16	1	9703-0004	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9510-9702	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0405	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0406-0602	●	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X30 FLANGE	0-28081-230-0	16	1	9510-9606	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	16	1	9607-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X30 FLANGE	0-28081-230-0	12	1	9510-9606	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28681-235-0	12	1	9607-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0405	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0406-0512	●	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=480	1-22553-002-0	02	1	9510-0004	●	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0005-0405	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0406-	●	●	●	●	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50	1-09700-416-0	01	1	9510-0004	●	●	●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	0005-0405	●	●	●	●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	0406-	●	●	●	●	●
