Sayfa 0-20A - Isuzu EPC

0-20A — TIMING GEAR CASE AND FLYWHEEL HOUSING (#6422) — 231 parça

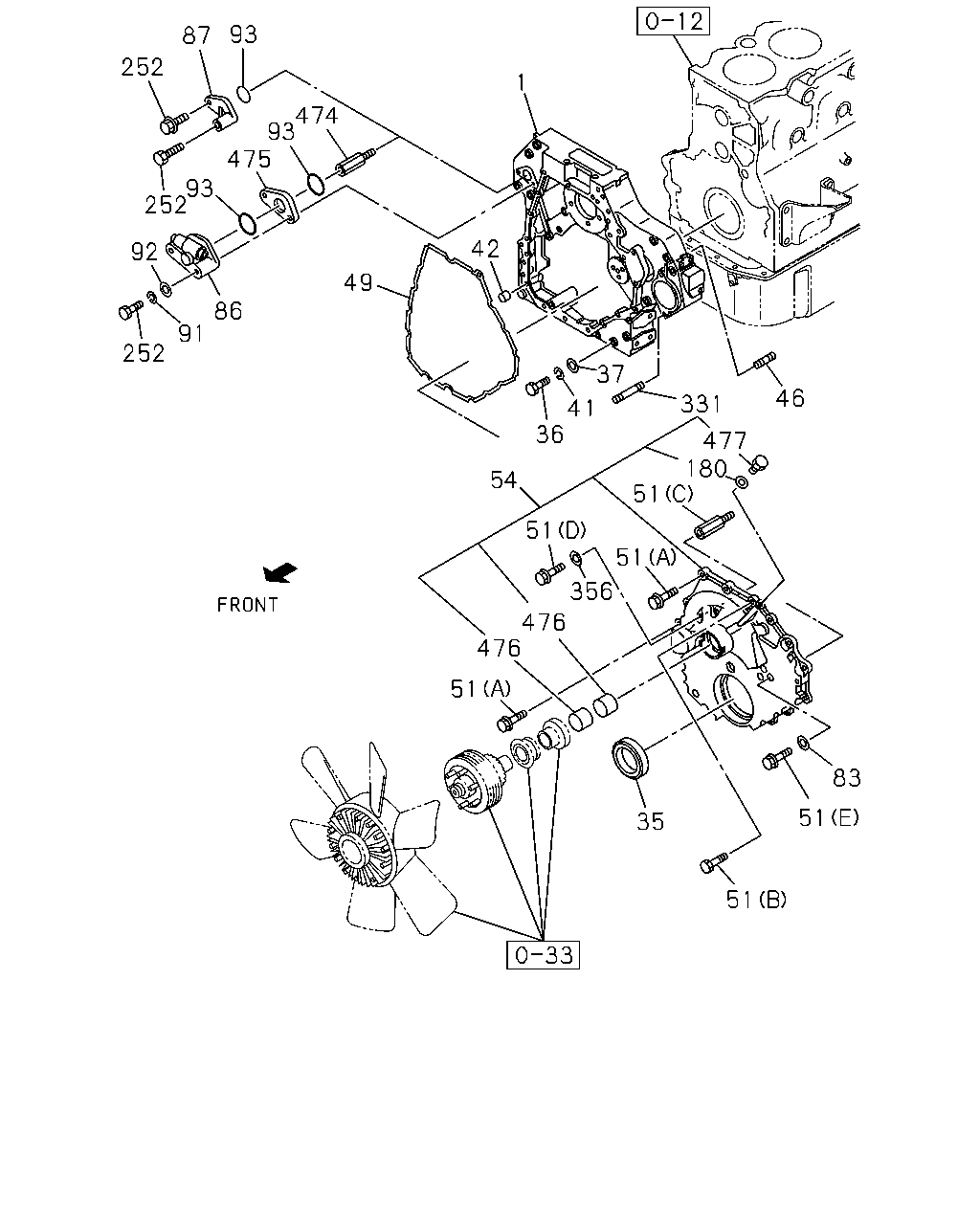

93 87 252 1 474 93 475 93 252 42 92 49 86 91 252 37 46 331 41 36 477 180 51 54 51 51 356 476 476 51 83 51 35 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9601-9610	●
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9611-9904	●	●
1	CASE; TIMING GEAR	1-11310-053-4	01	1	9905-		●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-1	01	1	9601-9610	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-1	01	1	9611-9904	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	9905-		●	●	●
36	BOLT; GEAR CASE M10X25 FLANGE	0-28181-025-0	04	1	9601-9610	●
36	BOLT; GEAR CASE M10X25 FLANGE	0-28181-025-0	04	1	9611-9904	●	●
36	BOLT; GEAR CASE M10X25 FLANGE	0-28181-025-0	04	1	9905-		●	●	●
36	BOLT; GEAR CASE M10X35 FLANGE	0-28181-035-0	01	1	9601-9610	●
36	BOLT; GEAR CASE M10X35 FLANGE	0-28181-035-0	01	1	9611-9904	●	●
36	BOLT; GEAR CASE M10X35 FLANGE	0-28181-035-0	01	1	9905-		●	●	●
36	BOLT; GEAR CASE M14X110	1-09020-007-0	10	1	9601-9610	●
36	BOLT; GEAR CASE EXC. AIR CONDITIONER MANUAL CONTROL(C60) M14X110	1-09020-007-0	10	1	9611-9705	●
36	BOLT; GEAR CASE EXC. AIR CONDITIONER MANUAL CONTROL(C60) M14X110	1-09020-007-0	10	1	9706-9904	●	●
36	BOLT; GEAR CASE M10X105	1-09020-014-1	03	1	9601-9602	●
36	BOLT; GEAR CASE M14X60	1-09020-146-0	01	1	9601-9603	●
36	BOLT; GEAR CASE M10X105	1-09020-014-1	03	1	9603-9608	●
36	BOLT; GEAR CASE M10X100 FLANGE	0-28181-000-0	03	1	9609-9609	●
36	BOLT; GEAR CASE M14X60	1-09020-146-0	01	1	9604-9610	●
36	BOLT; GEAR CASE M10X100 FLANGE	0-28181-000-0	03	1	9610-9610	●
36	BOLT; GEAR CASE M10X100 FLANGE	0-28181-000-0	03	1	9611-9801	●	●
36	BOLT; GEAR CASE M14X60	1-09020-146-0	01	1	9611-9810	●	●
36	BOLT; GEAR CASE M10X100 FLANGE	0-28181-000-0	03	1	9802-9904	●	●
36	BOLT; GEAR CASE HEATER & DEFROSTER(C41) M14X110	1-09020-007-0	10	1	9905-		●	●	●
36	BOLT; GEAR CASE M14X60	1-09020-146-0	01	1	9811-9904	●	●
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) M14X110	1-09020-007-0	08	1	9611-9904	●	●
36	BOLT; GEAR CASE M10X100 FLANGE	0-28181-000-0	03	1	9905-		●	●	●
36	BOLT; GEAR CASE M14X60	1-09020-146-0	01	1	9905-		●	●	●
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) M14X110	1-09020-007-0	08	1	9905-		●	●	●
37	WASHER; PL,GEAR CASE ID=10.5 OD=18	9-09160-510-0	03	1	9601-9608	●
37	WASHER; PL,GEAR CASE ID=15	9-09160-514-0	11	1	9601-9608	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	9-09164-514-0	11	1	9609-9610	●
37	WASHER; PL,GEAR CASE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	11	1	9611-9705	●
37	WASHER; PL,GEAR CASE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	11	1	9706-9904	●	●
37	WASHER; PL,GEAR CASE HEATER & DEFROSTER(C41) ID=15 OD=26	9-09164-514-0	11	1	9905-		●	●	●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9611-9705		●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9706-9904	●	●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9905-		●	●	●
41	WASHER; LK,GEAR CASE ID=10.2	9-09150-510-0	03	1	9601-9608	●
41	WASHER; LK,GEAR CASE ID=14.2	9-09150-514-0	11	1	9601-9608	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9601-9610	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9611-9904	●	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9905-		●	●	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9601-9610	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9611-9904	●	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9905-		●	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9601-9610	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9611-9904	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9905-		●	●	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9601-9610	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9611-9904	●	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9905-		●	●	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9601-9610	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9611-9904	●	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9905-		●	●	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9601-9610	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9611-9904	●	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9601-9602	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9601-9603	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9603-9610	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9604-9610	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9611-9810	●	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9611-9810	●	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9811-9904	●	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9905-		●	●	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9811-9904	●	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9905-		●	●	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9905-		●	●	●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9601-9610	●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9611-9904	●	●
54	COVER; GEAR CASE	1-11320-096-7	01	1	9905-		●	●	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	9601-9610	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	9611-9904	●	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	9905-		●	●	●
86	ELBOW; TACHOMETER DRIVE	1-85860-048-2	01	1	9601-9610	●
86	ELBOW; TACHOMETER DRIVE	1-85860-048-2	01	1	9611-9904	●	●
86	ELBOW; TACHOMETER DRIVE	1-85860-048-2	01	1	9905-			●	●
87	COVER; TACHOMETER DRIVE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-11349-151-2	01	1	9611-9904	●
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	9905-		●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	01	1	9601-9610	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	01	1	9611-9904	●	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	01	1	9905-			●	●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	01	1	9601-9610	●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	01	1	9611-9904	●	●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	01	1	9905-			●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9601-9610	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>. ID=35.7	1-09623-416-0	02	1	9611-9904	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM ECE REQUIREMENTS<SFV>. ID=35.7	1-09623-416-0	02	1	9611-9904	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9611-9904		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9905-		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN> ID=35.7	1-09623-416-0	01	1	9611-9904	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9905-			●	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9601-9610	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9611-9904	●	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-		●	●	●
252	BOLT; GEAR BOX M8X80	0-10805-880-0	01	1	9601-9610	●
252	BOLT; GEAR BOX HONG KONG EQUIPMENT(PQ1) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X80	0-10805-880-0	01	1	9611-9904	●
252	BOLT; GEAR BOX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X80	0-10805-880-0	01	1	9611-9904	●
252	BOLT; GEAR BOX M8X80	0-10805-880-0	01	1	9611-9904		●
252	BOLT; GEAR BOX M8X80	0-10805-880-0	01	1	9905-			●	●
252	BOLT; GEAR BOX M8X30 FLANGE	0-28080-830-0	01	1	9601-9610	●
252	BOLT; GEAR BOX HONG KONG EQUIPMENT(PQ1) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X30 FLANGE	0-28080-830-0	01	1	9611-9904	●
252	BOLT; GEAR BOX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X30 FLANGE	0-28080-830-0	01	1	9611-9904	●
252	BOLT; GEAR BOX M8X30 FLANGE	0-28080-830-0	01	1	9611-9904		●
252	BOLT; GEAR BOX HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28080-820-0	01	1	9611-9904	●
252	BOLT; GEAR BOX M8X20 FLANGE	0-28080-820-0	01	1	9905-		●
252	BOLT; GEAR BOX HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN> M8X60 FLANGE	0-28080-860-0	01	1	9611-9904	●
252	BOLT; GEAR BOX M8X60 FLANGE	0-28080-860-0	01	1	9905-		●
252	BOLT; GEAR BOX M8X30 FLANGE	0-28080-830-0	01	1	9905-			●	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9601-9610	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9611-9904	●	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9905-		●	●	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9601-9610	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9611-9904	●	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9905-		●	●	●
474	ADAPTER; ELBOW DRIVE	1-12539-026-0	01	1	9601-9610	●
474	ADAPTER; ELBOW DRIVE	1-12539-026-0	01	1	9611-9904	●	●
474	ADAPTER; ELBOW DRIVE	1-12539-026-0	01	1	9905-			●	●
475	SPACER; ELBOW	1-85869-001-1	01	1	9601-9610	●
475	SPACER; ELBOW	1-85869-001-1	01	1	9611-9904	●	●
475	SPACER; ELBOW	1-85869-001-1	01	1	9905-			●	●
476	BUSHING; COVER	1-09330-096-0	02	1	9601-9610	●
476	BUSHING; COVER	1-09330-096-0	02	1	9611-9904	●	●
476	BUSHING; COVER	1-09330-096-0	02	1	9905-		●	●	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9601-9610	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9611-9904	●	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9905-		●	●	●

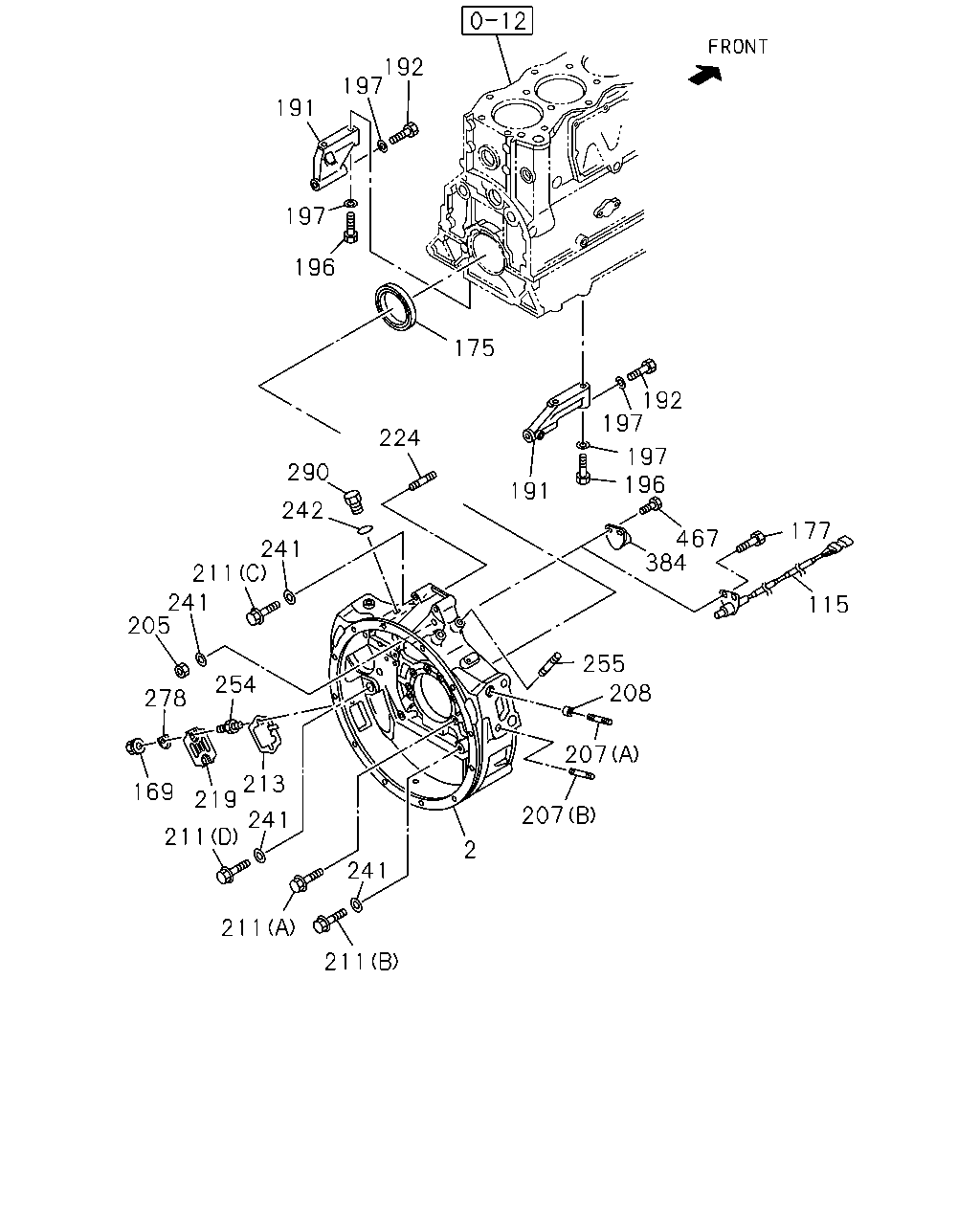

192 197 191 197 196 175 192 197 224 197 196 290 191 242 177 467 384 241 211 241 205 115 255 254 208 278 207 213 219 169 207 241 211 2 241 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOUSING; FLYWHEEL	1-11340-271-3	01	1	9601-9610	●
2	HOUSING; FLYWHEEL	1-11340-271-5	01	1	9611-9904	●	●
2	HOUSING; FLYWHEEL	1-11340-271-8	01	1	9905-		●	●	●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	1-81510-426-4	01	1	9611-9904	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-6	01	1	9905-		●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9601-9610	●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9611-9904	●	●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9905-		●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9601-9610	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9611-9904	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9905-		●	●	●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	9611-9904	●
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	9905-		●
191	STAY; FLYWHEEL HSG	1-11349-163-1	01	1	9601-9608	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9609-9610	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9611-9904	●	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9905-		●	●	●
191	STAY; FLYWHEEL HSG	1-11349-162-1	01	1	9601-9608	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9609-9610	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9611-9904	●	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9905-		●	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9601-9610	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9611-9904	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9905-		●	●	●
196	BOLT; STAY TO C/BL M14X70	9-91666-470-0	04	1	9601-9608	●
196	BOLT; STAY TO C/BL M14X70	9-91666-470-0	02	1	9609-9610	●
196	BOLT; STAY TO C/BL M14X70	9-91666-470-0	02	1	9611-9904	●	●
196	BOLT; STAY TO C/BL M14X70	9-91666-470-0	02	1	9905-		●	●	●
196	BOLT; STAY TO C/BL M14X100	9-91666-400-0	02	1	9609-9610	●
196	BOLT; STAY TO C/BL M14X100	9-91666-400-0	02	1	9611-9904	●	●
196	BOLT; STAY TO C/BL M14X100	9-91666-400-0	02	1	9905-		●	●	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9601-9610	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9611-9904	●	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9905-		●	●	●
205	NUT; HSG M14	9-99110-514-0	01	1	9601-9610	●
205	NUT; HSG M14	9-99110-514-0	01	1	9611-9904	●	●
205	NUT; HSG M14	9-99110-514-0	01	1	9905-		●	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9601-9610	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9611-9904	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9905-		●	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9601-9610	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9611-9904	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9905-		●	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9601-9610	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9611-9904	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9905-		●	●	●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9601-9610	●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9611-9904	●	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9601-9602	●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9601-9603	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9601-9602	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9603-9609	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9603-9607	●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9604-9610	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9608-9609	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9610-9610	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9611-9801	●	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9610-9610	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9611-9801	●	●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9905-		●	●	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9802-9902	●	●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9611-9904	●	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9802-9904	●	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9903-9904	●	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9905-		●	●	●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9905-		●	●	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9905-		●	●	●
213	POINTER; FLYWHEEL HSG	1-11327-042-0	01	1	9601-9610	●
213	POINTER; FLYWHEEL HSG	1-11327-042-0	01	1	9611-9611	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-0	01	1	9612-9904	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-0	01	1	9905-		●	●	●
219	COVER; POINTER	1-11349-131-0	01	1	9601-9610	●
219	COVER; POINTER	1-11349-131-0	01	1	9611-9904	●	●
219	COVER; POINTER	1-11349-131-0	01	1	9905-		●	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9601-9610	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9611-9904	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9905-		●	●	●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9601-9610	●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9611-9904	●	●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9905-		●	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	9711-9904	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	9905-		●	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9601-9610	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9611-9904	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9905-		●	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9601-9610	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9611-9904	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9905-		●	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9601-9610	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9611-9904	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9905-		●	●	●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	9711-9904	●	●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	9905-		●	●	●
384	PLATE	1-11343-007-0	01	1	9601-9610	●
384	PLATE EXC. EURO2 SPECIFICATION<THN>	1-11343-007-0	01	1	9611-9705	●
384	PLATE	1-11343-007-0	01	1	9611-9705		●
384	PLATE EXC. EURO2 SPECIFICATION<THN>	1-11343-007-0	01	1	9706-9904	●	●
384	PLATE	1-11343-007-0	01	1	9905-			●	●
467	BOLT; PLATE M8X16 FLANGE	0-28080-816-0	02	1	9601-9610	●
467	BOLT; PLATE EXC. EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	9611-9705	●
467	BOLT; PLATE M8X16 FLANGE	0-28080-816-0	02	1	9611-9705		●
467	BOLT; PLATE EXC. EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	9706-9904	●	●
467	BOLT; PLATE M8X16 FLANGE	0-28080-816-0	02	1	9905-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
